Fiido D12 250w Folding Electric Bike Instructions

Fiido D12 250W Folding Electric Bike

INSTRUCTIONS

• Size……………………………………………148cm*57cm*110cm
• Fold ing Size………………………..84cm*40cm*59cm
• Pedal-assistedmode range:…………………………………….100km
• Input Voltage………………………………………….100～240V
• Chain Wheel…………………………………………….52T
• Motor…………………………………………..250W
• Tyre……………………………………………..CST
• Brakes…………………………………Mechanical Disc Brake




FAQs -Fiido D12

Q: What is a Fiido D12 e-bike?
A: Fiido D12 is a bicycle with an electric motor offering power assistance to a rider in propelling the bike forwards. It means you can ride with adding measured powered assistance as you pedal the bike.
Q: Is Fiido D12 same as electric-powered motorcycles?
A: No, electric-powered motorcycles use a throttle to engage the power. Fiido D12 are pedal-assist. This means you must pedal to get motor to assist you.
Q: How heavy is Fiido D12?
A: 17kg
Q: What is the largest load of Fiido D12?
A: 120kg
Q: How long does it take to charge an Fiido D12?
A: Approx 5 to 8 hours
Q: How far can Fiido D12 go on full battery? *under good road condition and good weather condition?
A: Up to 100km
Q: How fast can Fiido D12 go? *under good road condition and good weather condition?
A: Up to 25km/hr
Q: What is the motor power output for Fiido D12?
A: 250W
Q: How is Fiido d12 powered?
A: Fiido D12 is powered by a Lithium-ion battery system.
Q: Does pedalling charge the battery?
A: No
Q: How is the ride? What is the benefit of Fiido D12?
A: D12 uses torque sensor, which has a better riding experience than speed sensor. It really enlarges your pedaling power, making climbing easier. You can easily explore more and places further away.
Q: Do I have to pedal to get assistance on my electric bike?
A: Yes, you must pedal to get the motor to assist you, or the speed will be less than 6km/h in pure electric mode.
Q: Can the e-bike go faster than the motor supports?
A: Yes, it can go as fast as you can pedal, the motor will stop increasing speed after reaching its max speed of 25km/hr.
Q: Can I ride with a flat battery?
A: Yes, you can still ride your E-bike like other regular bikes when there is no battery.
Q: Does Fiido D12 require any special maintenance?
A: Caring for an e-bike is similar to a regular bike. You need to keep the tyres inflated and the chain lubricated and check your bike regularly to change the worn-out parts.
Q: How do I store the Fiido D12?
A: Lithium ion batteries should be stored at 10 to 25 degrees Celsius; battery life depletion may occur if left outside for prolonged times. We recommend storing them indoors away from direct sunlight, water, and heat.
Q: Can I ride Fiido D12 under any weather or road conditions?
A: Unlike a regular bike, an e-bike is more sensitive to water damage. You should ride your e-bike under good weather conditions and smooth, even ground. You should not ride it during bad weather where excess water is expected.
Q: How many times can the D12
battery be recycled？
A: 1000 times.
Q: What makes the D12 so light？
A: Fiido makes it lighter through its minimalist design, ultra light micro torque motor and magnesium alloy material.
Q: What’s special about the D12?
A: The Fiido D12 features a patented modeling design and unique seat tube battery patent technology.

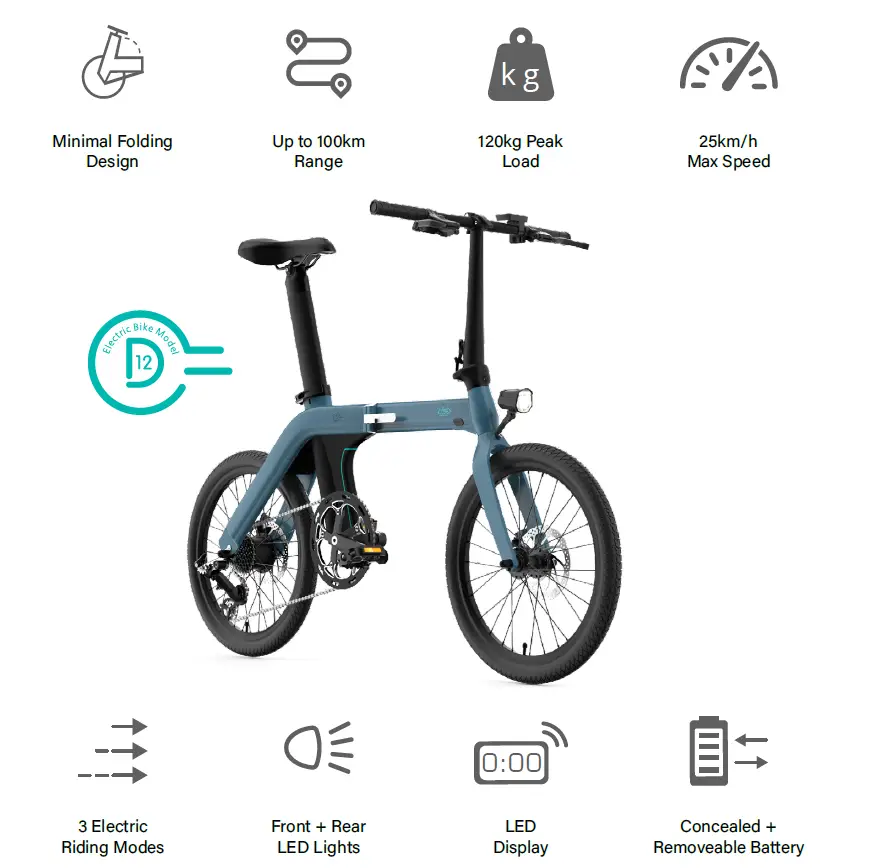

Product Overview

• Power Assist Mileage (reference) ……………………………………….100km
• Electric Bike System ………………………………………..FIIS Riding System
• Top Speed ………………………………………………………………………………..25km/h
• Size (unfolded) ……………………………………………….. 148cm*57cm*110cm
• Folding Size ………………………………………………………..84cm*40cm*59cm
• Weight ………………………………………………………………………………………….17.5kg
• Frame Material …………………………….Aviation-grade aluminum alloy
• Battery ……..concealed, removable 36V 11.6Ah lithium battery
• Braking System …………………………………….front and rear disc brakes
• Variable Speed Mode…………………………….. Shimano 7-speed gears 3 levels adjustable in moped mode
• Drive Type ………………………………….. brushless gear motor rear drive
• Tyre ……………………………………………………..CST 20*1.75 inch spoke tyre

Product Specifications

Product FAQ’s / Troubleshooting

• When the battery is used up, it should be fully charged in time. The green light on the charger indicates full charge. Long-term underpowered storage will affect the performance of the battery.
• When crossing the pool, water section, please pay attention to the wading height is not higher than the hub, preventing motor damage due to water inflow.Do not use high-pressure water gun to clean, so as not to damage the electronic components and wiring due to humidity.
•  Add some lubricating oil to the chain and flywheel of the bike to avoid wading and rusting
• It is best to charge the battery in a ventilated, dry place.Direct sunlight or rain can have a bad effect on the performance of batteries and chargers.When charging,
  the battery and charger should be away from other sources of heat.
• Connect the battery before charging, and then plug it into the electric supply.After charging, pull out the electricity first, and then pull out the battery end.If do not follow the steps, it will cause a fire when connecting the battery end.

Product Warranty

DOA:
Complete replacement
12-Month Warranty*:
All returns are accepted excluding items that have received physical damage by the owner/end-user

Warranty does not apply to any:

• Damage caused by nature or acts of God, for example, lightning strikes, tornadoes and the like;
• Negligent or incorrect use of the Product;
• Commercial use of the Product;
• Modifications to any part of the Product;
• Damage caused by use with non Fiido products;
• Damage caused by negligence, accident, abuse, misuse, flood, fire, earthquake or other external causes;
• Damage caused by operating the Product outside the permitted or intended uses described by the manufacturer’s instructions provided by Fiido or with
  improper voltage or power supply;
• Damage caused by servicing of the product (including upgrades and expansions) performed by anyone who is not a representative of Pammi;
• Damage caused by natural wear and tear.
  www.panmi.com.au/warranty
  Email: [email protected]
