Fiido D12 Electric Bike User Manual

D12 User Manual

SHENZHEN FIIDO TECHNOLOGY DEVELOPMENT CO., LTD
NO.142 Fiido Industrial Park, Futong Rd. Yuanshan St. Longgang District, Shenzhen, China
https://www.fiido.com email- [email protected]

Made in China

Fiido Electric Bicycle Catalog
I.Important Note
II.Bike Diagrams
III.How to adjust the saddle height
IV.Unfolding Instructions
V.Folding Instructions
VI.Specifications
VII.Daily maintenance and basic troubleshooting

E-Scooter and E-Bike laws differ by State – check your local laws and only ride in legally permitted areas. Use helmets, protective gear, and always ride responsibly.

Riding Safety
As with other sports, bicycling involves the risk of personal injury and damage to the bicycle. By choosing to ride a bicycle, you assume the responsibility for that risk, so you need to know – and practice – the rules of safe and responsible riding and of proper use and maintenance. Proper use and maintenance of your bicycle reduce the risk of injury.

Because it is impossible to anticipate every situation or condition which can occur while riding, this Manual makes no representation about the safe use of the bicycle under all conditions. There are risks associated with the use of any bicycle which cannot be predicted or avoided, and which are the sole responsibility of the rider. If you have any questions or do not understand something, take responsibility for your safety and consult with the bike shop or the bicycle’s manufacturer. It is important for a rider to read carefully all instructions below before your first ride.

Important Note

This manual includes important safety performance and service information. Please make sure to read the following warnings before using our products for the first time.
a) If you lend your e-bike to other people, please confirm that he/she has read this manual to decrease the risk of an accident.
b) Please wear a suitable and safe helmet before riding, please wear clothes with fluorescent and reflective stripes when riding at night. Follow the traffic rules and don’t exceed the speed limits, which may cause accidents.
c) Don’t touch or use metal to touch the charging port on the bike, otherwise, it will cause a short circuit.
d) Following actions will cause huge power drops and reduce the riding distance:
1. Starting the bike by using the throttle.
2. Frequent braking.
3. Riding against the wind.
4. Overloading.
5. Insufficient tire pressure.
e) To extend the riding range:
1. Please use assist mode.
2. Brake only when necessary for safety, and don’t use the throttle to start the bike.
3. Don’t overload.
4. Before riding, please check the tire pressure and supply enough pressure.
f) When charging the e-bike, please make sure that there is nothing inside of the charging port. Connect the charger to the bike first and then to the AC power source to avoid sparking.
g) Please consult your insurance company or insurance broker on the insurance coverage of riding an electric bike.
h) Generally, people must be 16 years old to ride an e-bike or three-wheel electric bike. Please refer to local laws and regulations when using this product in your country.
i) Bicycles are vehicles with certain risks, brake the rear wheel first, and then the front wheel in emergency braking, especially when the cycling speed is too high, you may fall over if you use the front brake suddenly. Please ride carefully.

Safety Guidelines

1. Always ride with both hands on the handle.
2. Do not park in building doors, evacuation staircases, walkways, and safety exits.
3. Do not charge inside residential buildings and park
4. Stay away from the combustible when charging.
5. Please charge according to the suggested time, do not charge for too long.
6. Use and store the batteries correctly; batteries should never be disassembled.
7. Read all warning terms before riding or charging, only use the original charger.
8. When adjusting the saddle position, do not exceed the safety line on the supporting

Bike Diagrams

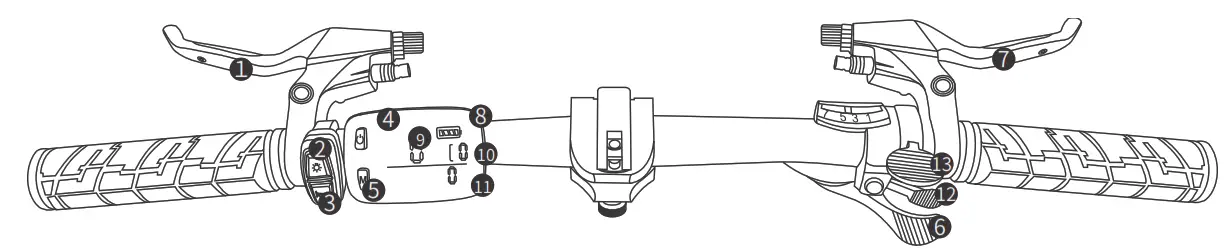

(Note: The bike will automatically shut down when it is stationary if not used within 10 minutes.)

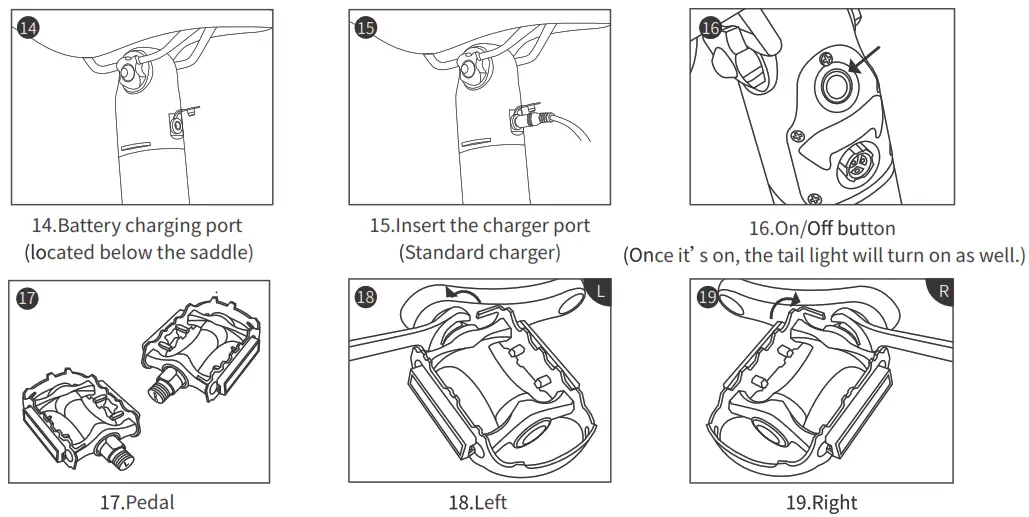

Use a 15mm spanner to screw the pedal spindle into the threaded hole and tighten it in the direction of the arrow (left counterclockwise, right, and clockwise, as shown).
(Note: When installing the pedal, be aware of the left and right, align the installation horizontally to prevent the pedal from slipping out of the crank.)

How to adjust the saddle height

Battery seat tube:

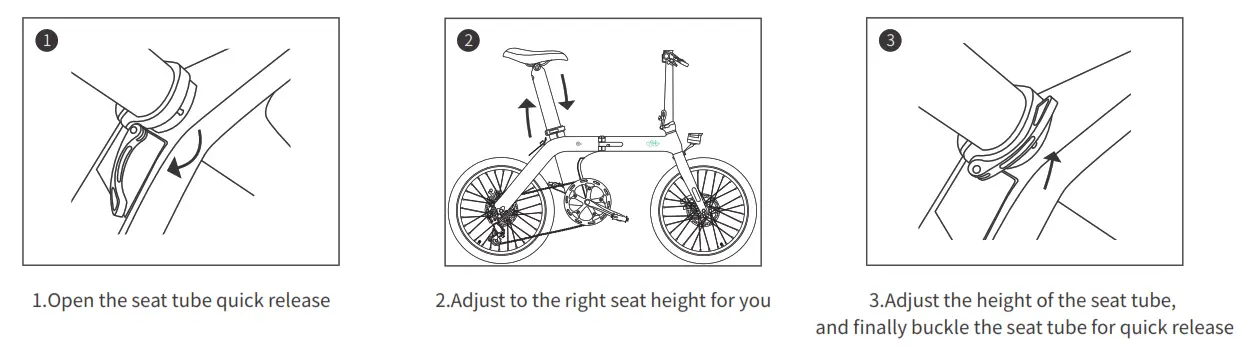

Open the seat tube quick release(Figure 2), pull the battery seat tube out of the frame, and adjust the height of the battery seat tube up and down according to your needs. When you adjust the height of the battery seat tube, then buckle the seat tube quick release.

Unfolding Instructions

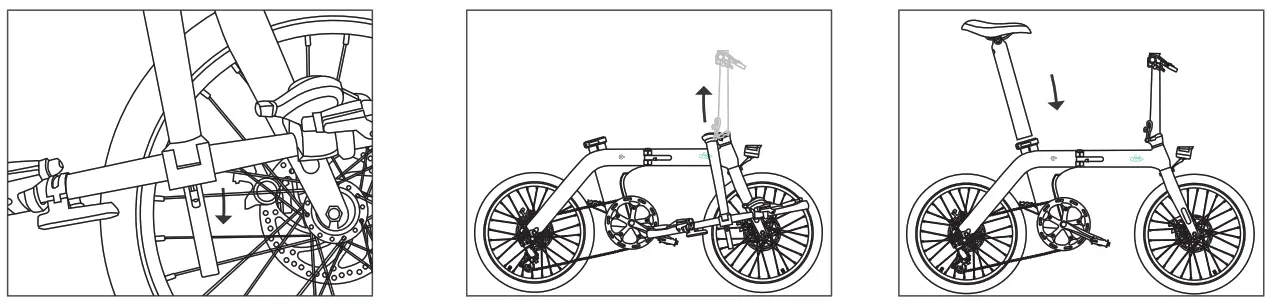

1. Unfold the D12 bike frame to straightened position and tighten the frame folding handle and safety clasp.

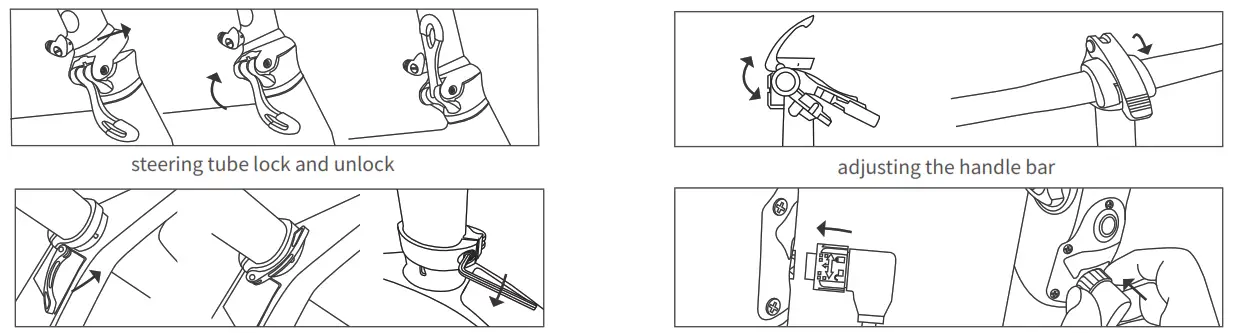

2. Unfold the handlebar tube to the upper position, lock the raised tube into position, and tighten the safety clasp. Adjust the T-handle bar into a riding position.
3. To insert the seat post clamp into position, first open the Seatpost clamp located on the bike frame, then insert the Seatpost and adjust the tube into position (note the marked lines on the Seatpost). Adjust the bike seat height until you find the perfect riding position, then tighten the seat post clamp to lock into position.

4. For your safety, double-check the following items are in position before riding: Frame/seat/handle tube locking positions, brake system function,
   tires inflated, battery charge, and your safety gear.
5. Enjoy your D12 and have a fun ride on the world’s best electric bike.
   Note: Both the Rise and the Seat Tube are marked with a safe (MAX or MIN). For safety reasons, please use them in a safe range.
   Note: Please make sure the seat post clamp should be tightened by Allen key insert to charge.

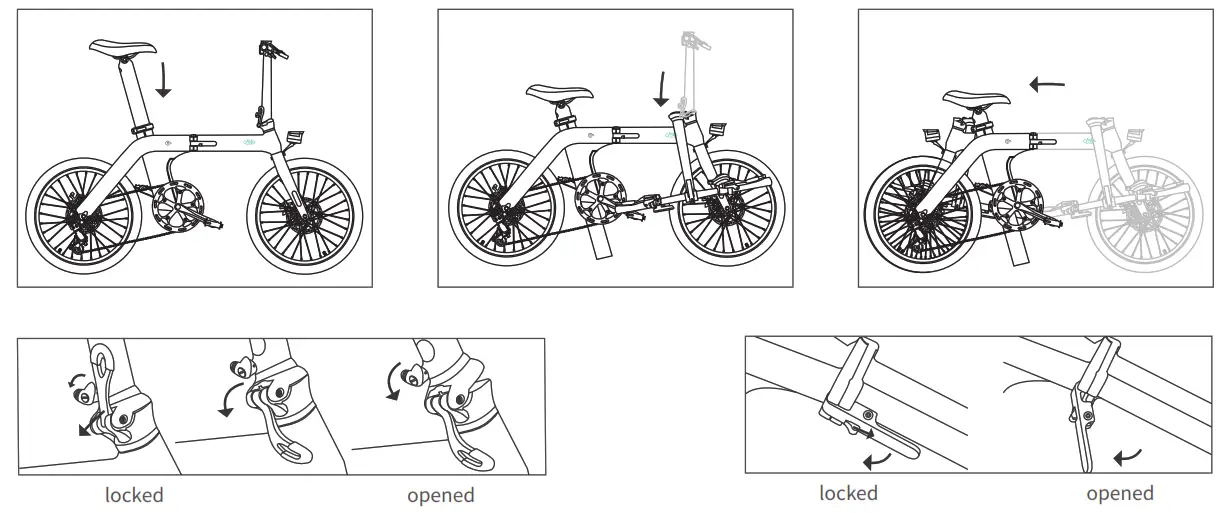

Step 1. Open up the lock at the base of the seat post, then gently lower the seat to the bottom, and then close the clamp to lock it in position.
Step 2. Open up the lock at the base of the steering tube, then gently fold down the tube and handlebar.
Step 3. Open up the lock in the center of the bike frame, and then fold the D12 in half.

Specifications

* The above data allow for 5% manufacturing tolerances.
* After receiving the goods, there may be some differences between individual accessories and display drawings, which are different due to the different batches, and do not affect the use.

Daily maintenance and basic troubleshooting

* When the battery is used up, it should be fully charged in time. The green light on the charger indicates a full charge. Long-term underpowered storage will affect the performance of the battery.
* When cross the pool, water section, please pay attention to the wading height is not higher than the hub, prevent motor damage due to water inflow.Do not use high-pressure water gun to clean, so as not to damage the electronic components and wiring due to humidity.
* Add some lubricating oil to the chain and flywheel of the bike to avoid wading and rusting
* It is best to charge the battery in a ventilated, dry place. Direct sunlight or rain can have a bad effect on the performance of batteries and chargers. When charging, the battery and charger should be away from other sources of heat.
* Connect the battery before charging, and then plug it into the electric supply. After charging, pull out the electricity first, and then pull out the battery end.If do not follow the steps, it will cause a fire when connecting the battery end.
