Laotie D4s Pro Electric Bike User Manual

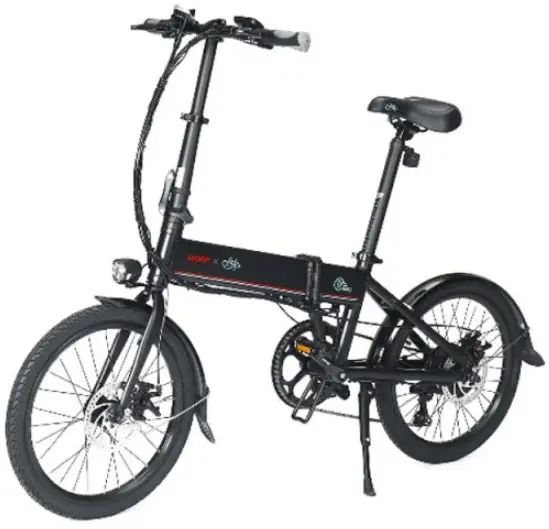

LAOTIE D4s Pro Electric Bike

D4s Pro Electric Bicycle Catalogue

1. Note
   This manual includes important safety performance and service information. Please make sure you have read the following warnings before the first time you use our product.
   1. If you lend your electric bicycle to other people, please let the user read this manual, it could be helpful to decrease the risk of accident.
   2. Please wear the suitable and safe helmet before riding, please wear the clothes with fluorescent and reflective stripes when you ride at night. Don’t exceed speed limit, it is a main reason of traffic accident, we should abide by the traffic rules.
   3. Don’t touch the charging hole on the bike, or use metal touch it, otherwise, it will cause short circuit.
   4. Zero starting, frequent braking, riding against the wind, carry people or anything when tire pressure is insufficient, insufficient air pressure on the tires. all of these will consume much electric energy, and then reduce the endurance mileage. if you want to achieve the longest endurance mileage:
      1. power assist mode.
      2. For your safety, please don’t brake frequently or use zero starting.
      3. Don’t overload.
      4. Before riding, please check the pressure of the tire, and supply enough pressure.
   5. Our Ebike should avoid prolonged exposure to the sun or rain , avoid storage in places with high temperature or corrosive gas,so as to avoid electroplating parts and paint surface by chemical corrosion and electrical parts damage, resulting in operational failure and accidents.
   6. Our e-bike should avoid long-term exposure to sunlight or rain, and avoid storing them in places with high temperature or corrosive gas, so as not to avoiding chemical corrosion and electrical component damage to electroplated parts and painted surfaces, which may lead to operational failure and accident.
   7. When the electric bicycle is not used for a long time, please turn off the main switch in time and charge it . Keep the battery fully charged, please don’t store the battery when power off to avoid severe power failure.
   8. Your current insurance business may not cover the situation you may encounter when riding a electric bike, please contact your insurance company or insurance broker for relevant consultation.
   9. According to the law, people must reach the age of 16 to ride e-bike or three-wheeled electric bike. If you use this product in other countries, please refer to the local laws and regulations.
   10. Bicycles are vehicles with certain risk fact factor , please be sure to abide by the traffic rules. At the same time, When emergency braking, brake the rear wheel firstly then the front wheel if cycling speed is too high. If the front wheel is suddenly braked, you may fall over, please ride carefully.
2. Instruction Illustration

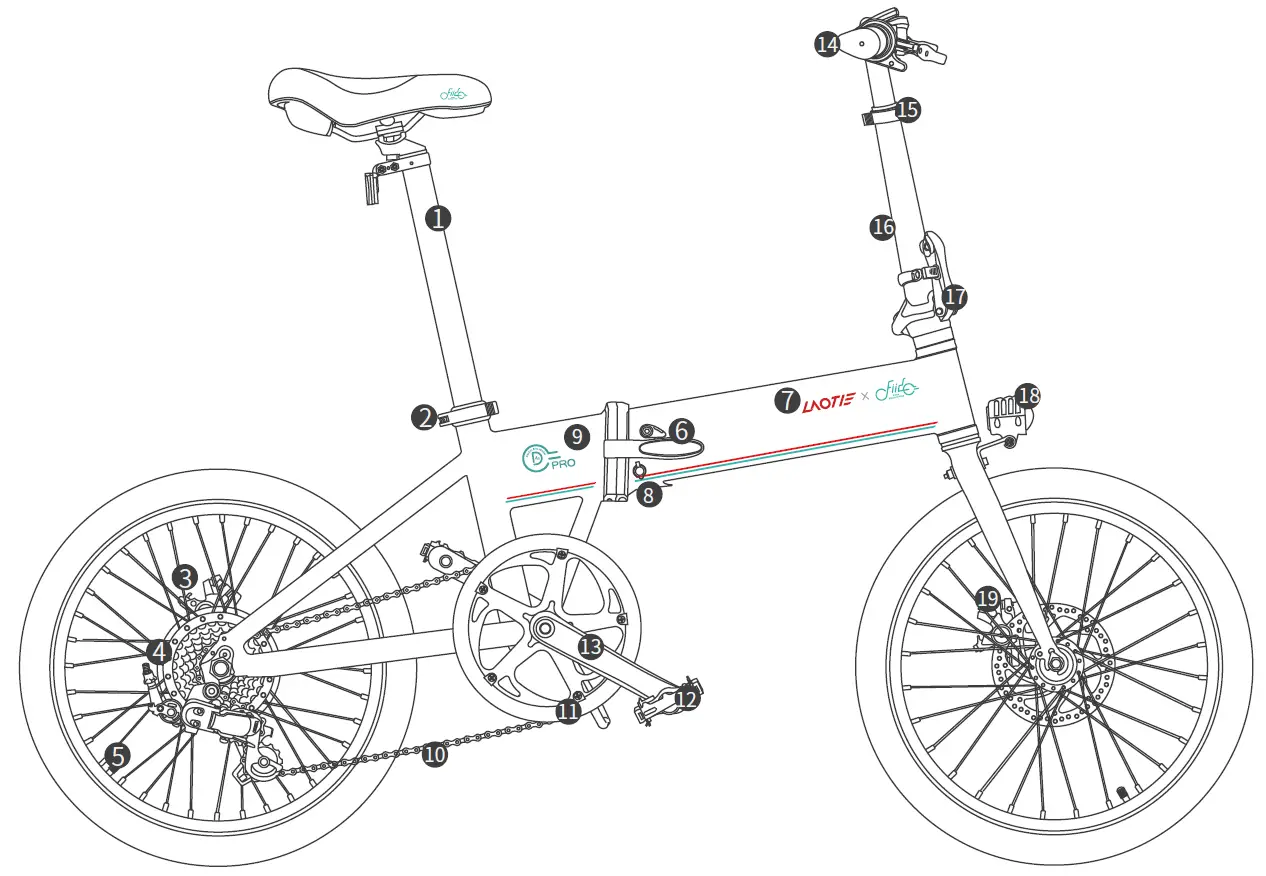

   1. Seat tube
   2. Quick lock
   3. Brake disc
   4. Motor
   5. Valve
   6. Folding system
   7. Battery box
   8. Charge port
   9. Controller box
   10. Chain
   11. Chain wheel
   12. Pedal
   13. Crank
   14. Handle bar
   15. Quick lock
   16. Stem
   17. Folding system
   18. Headlight
   19. Brake disc

1. Brake power off system
2. Light/horn button
3. Horn
4. Power on/off button(Long press on or off)
5. Power adjustment
6. Speed regulation
7. Power off brake
8. Speed-up rotating handle
9. Battery Level
10. Speed
11. Electric assist gear
12. Use mileage
    (Note: After the car is stationary, it does not run for 10 minutes to enter the sleep mode and automatically shut down)

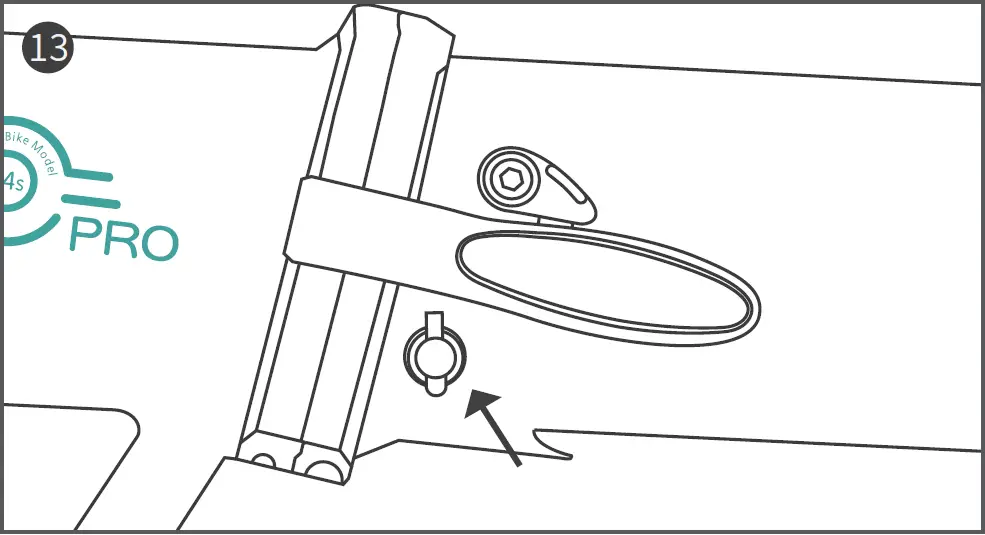

13. Battery charging port (located below the main beam of the frame)

14. Pedal
15. Left

16. Right

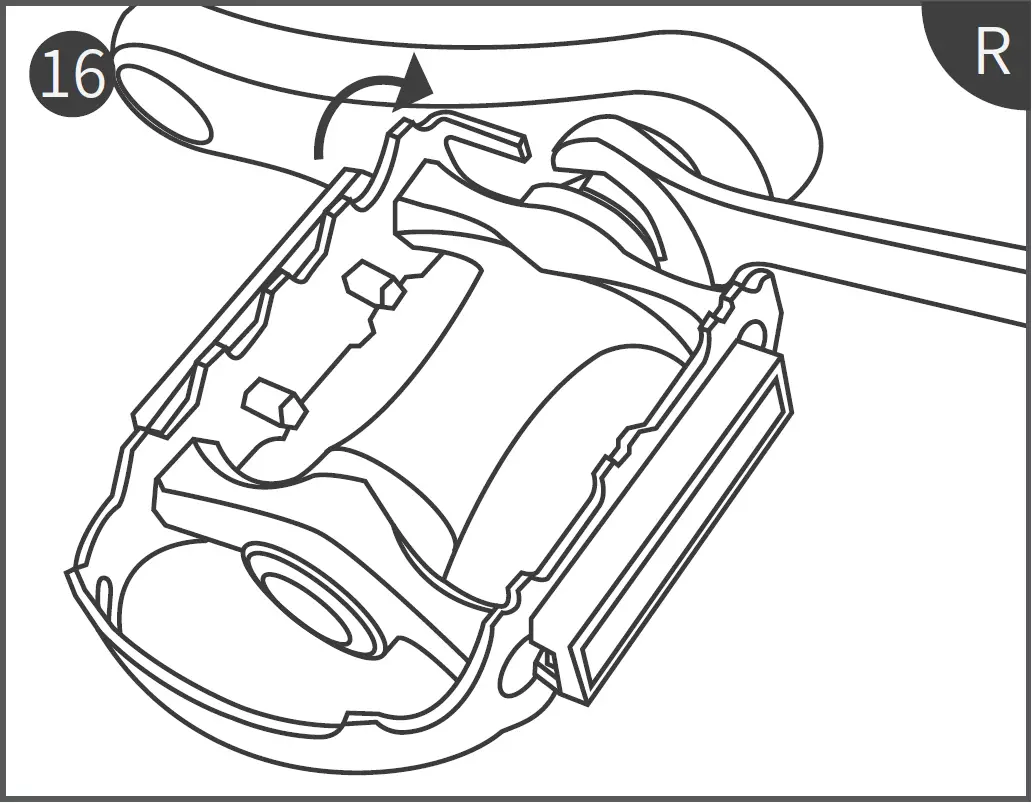

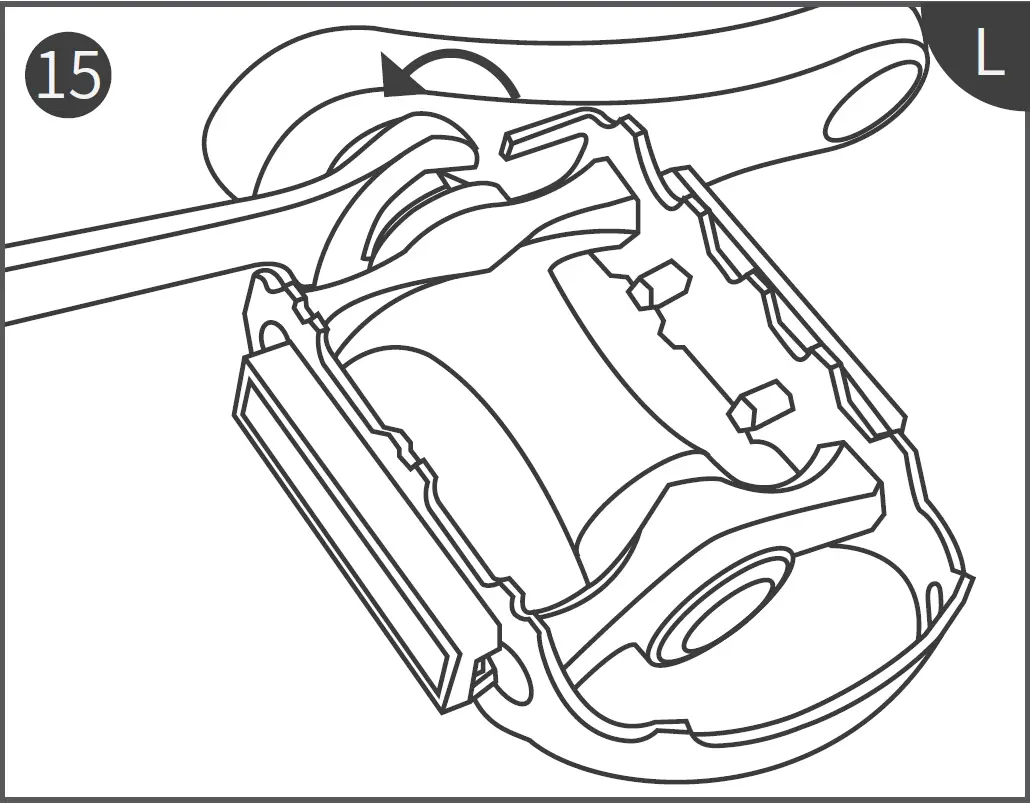

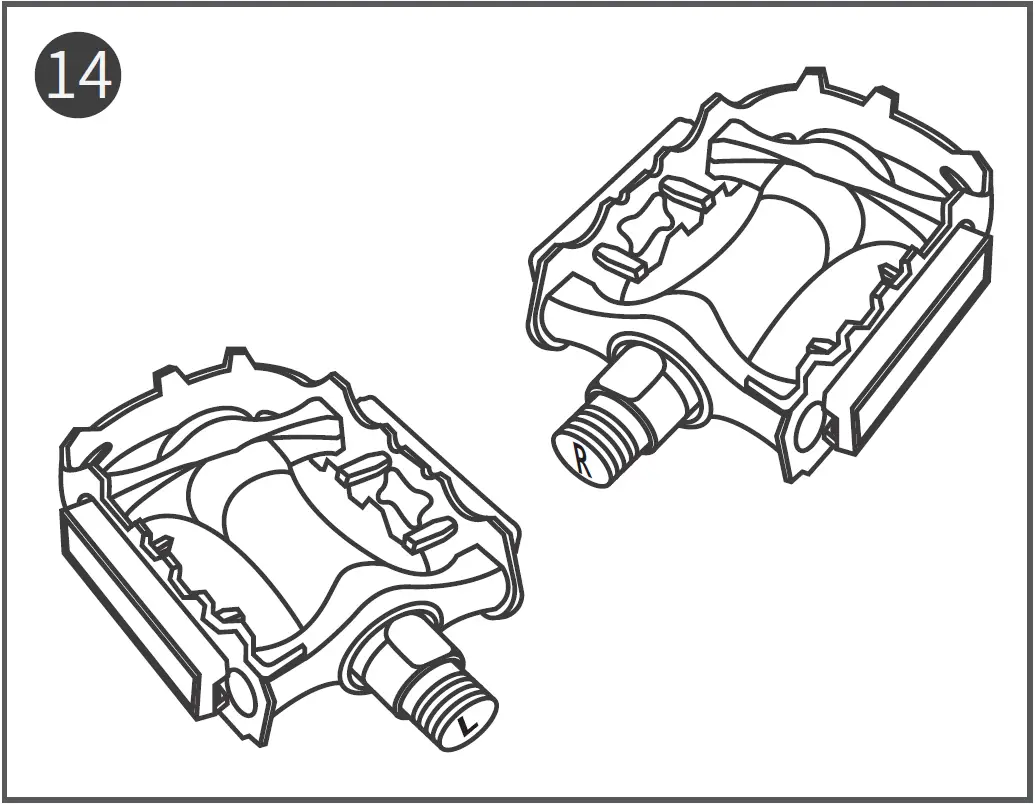

Use a 15mm open spanner to clamp the pedal shaft core and tighten it in the direction of the arrow (left counterclockwise, right clockwise, as shown).(Note: When installing the pedal, be aware of the left and right, align the installation horizontally to prevent the pedal or crank slip)

3. Installation Instruction
   1. Unfold the frame, lock the frame folding handle, and lock the frame folder safety clasp.

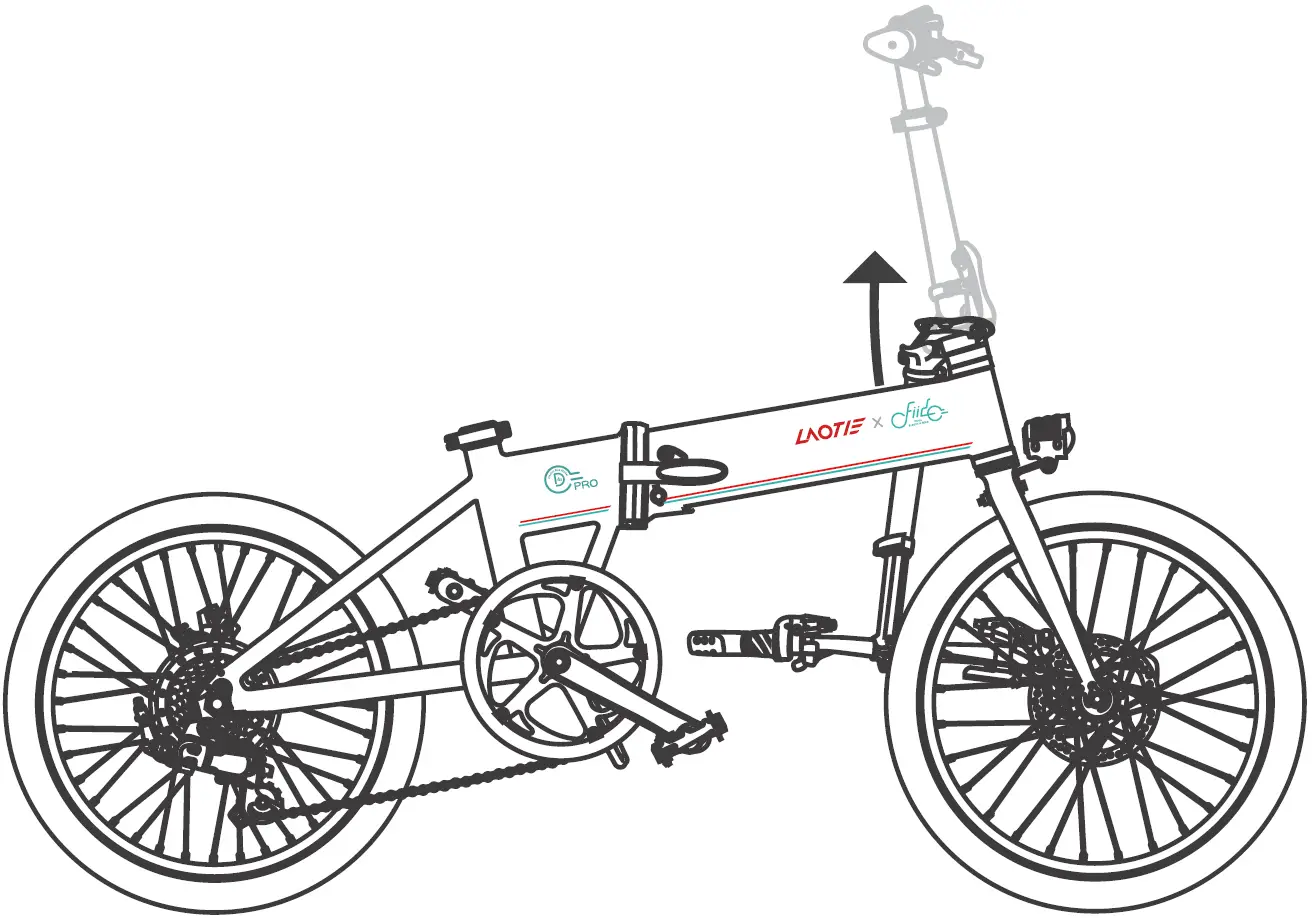

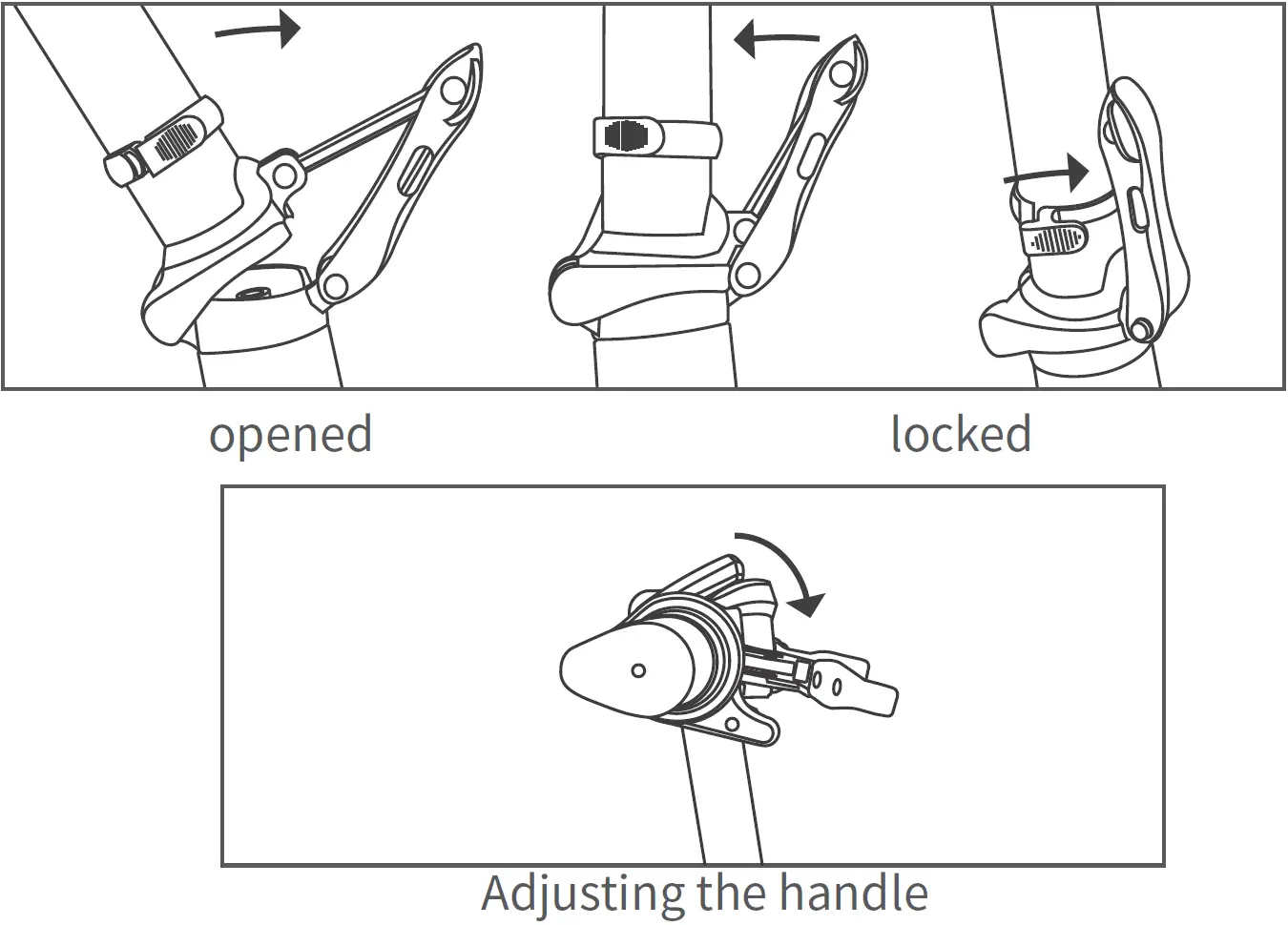

   2. Fold the riser to the upper end, lock the riser folding handle, adjust the riser safety hook to the tightening state, and adjust the position of the T handle.

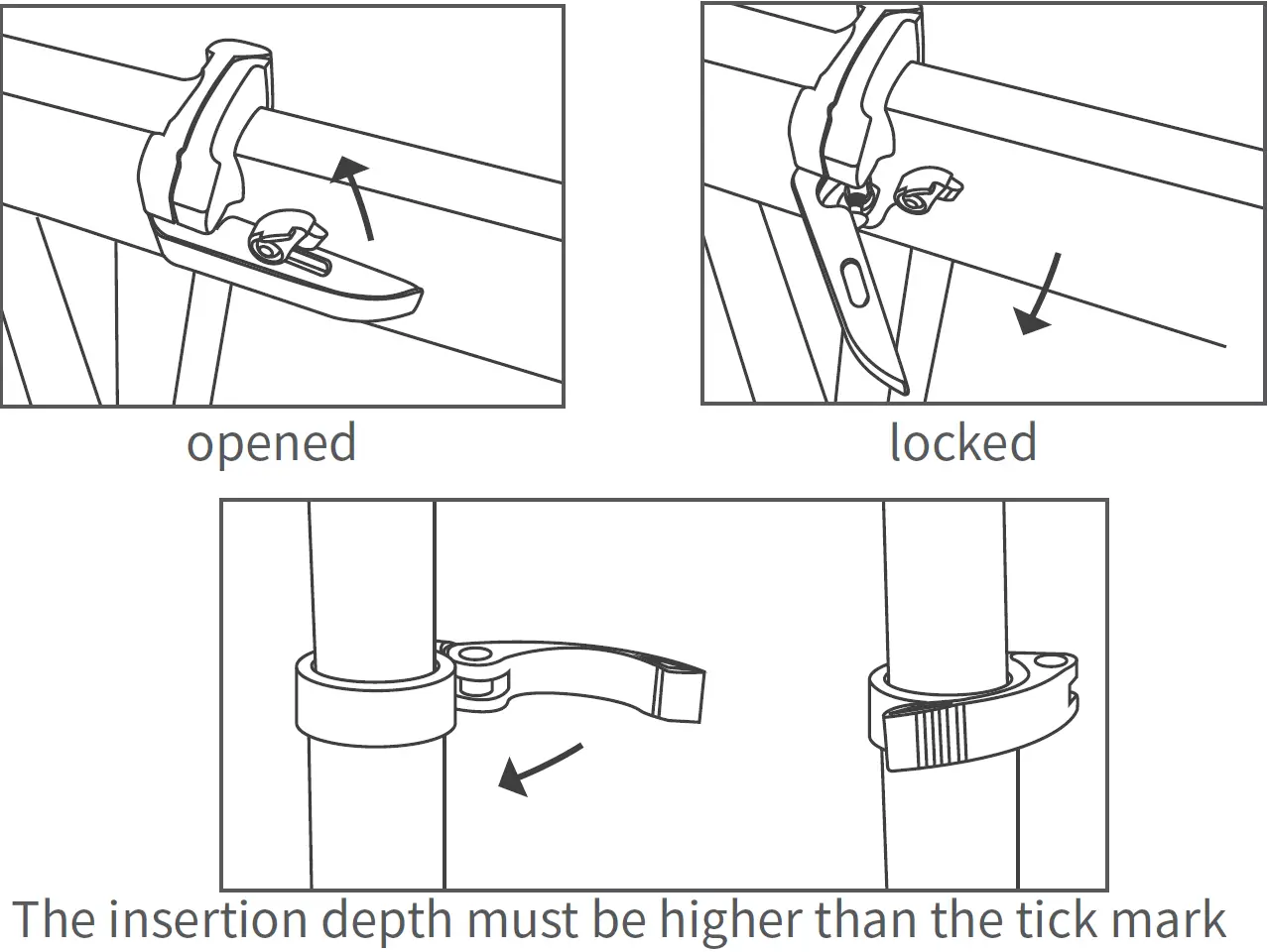

   3. Open the clip on the seat tube clamp and insert the seat tube into the position within the marking line on the seat tube. Adjust the seat to the comfortable height according to individual needs, and fasten the seat tube clip.



   4. Please confirm the following items before riding: frame lock, standpipe lock and seat tube lock are locked.
   5. Brake system is normal. Tires are adequately inflated. All these are important for a safe and comfortable riding.

4. Folding instructions

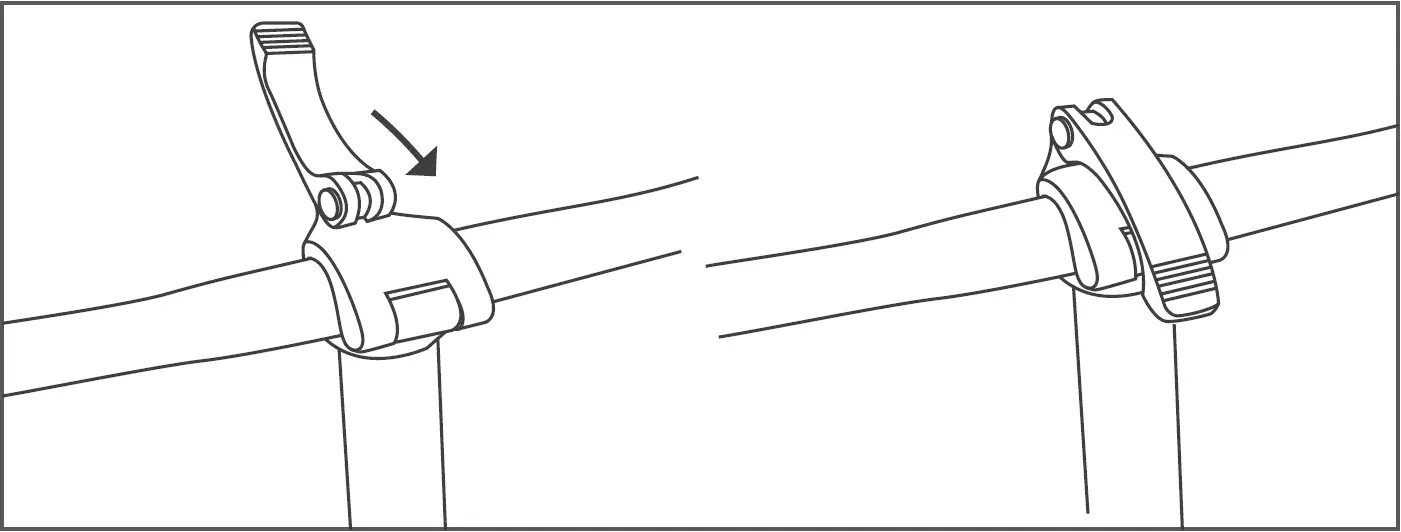

   Step 1. Open the quick lock on the head end, to let the handle be perpendicular to the care frame.

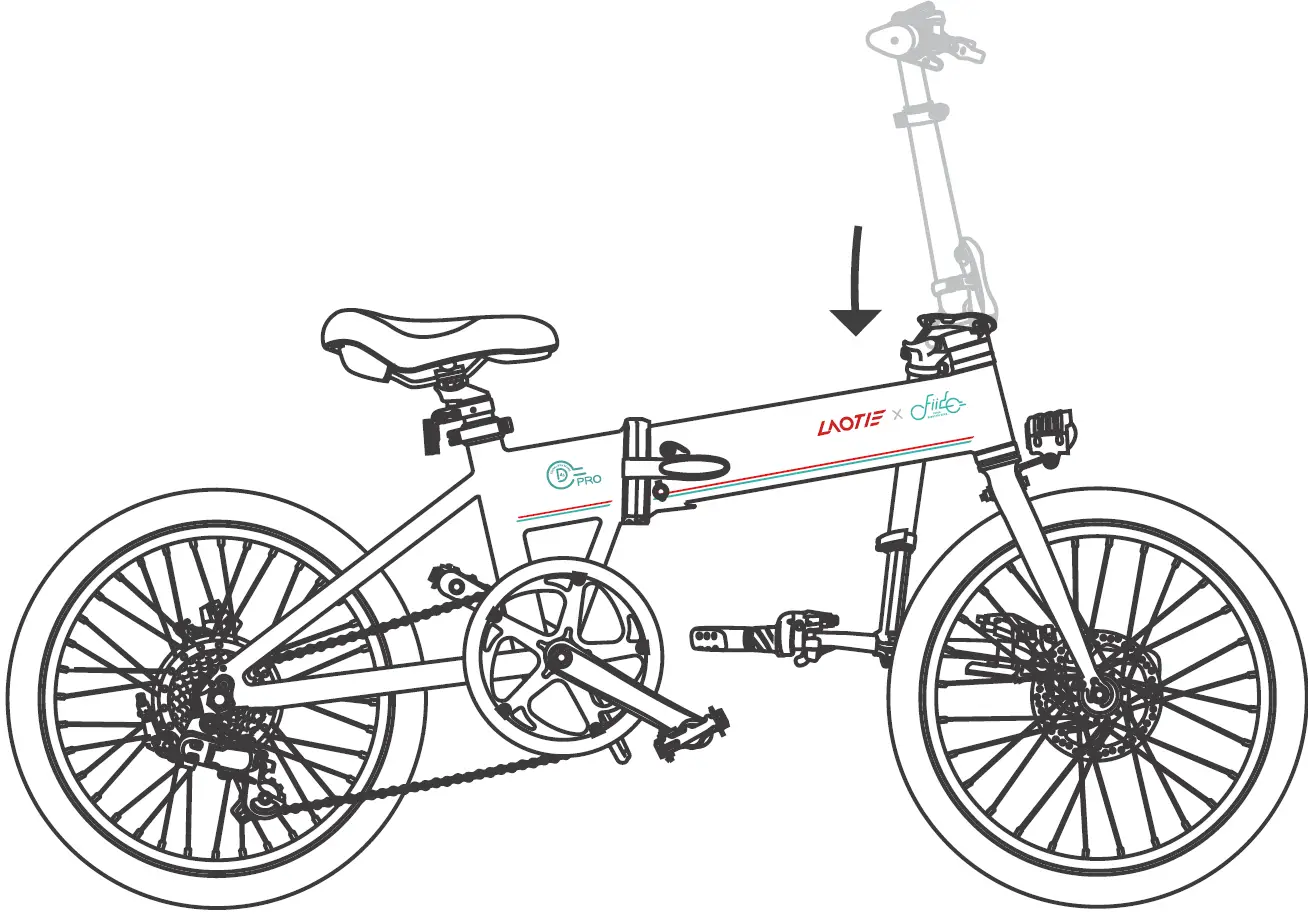

   Step 2. Open the quick lock on the Stem, lower the riser, as well as locking the quick lock.

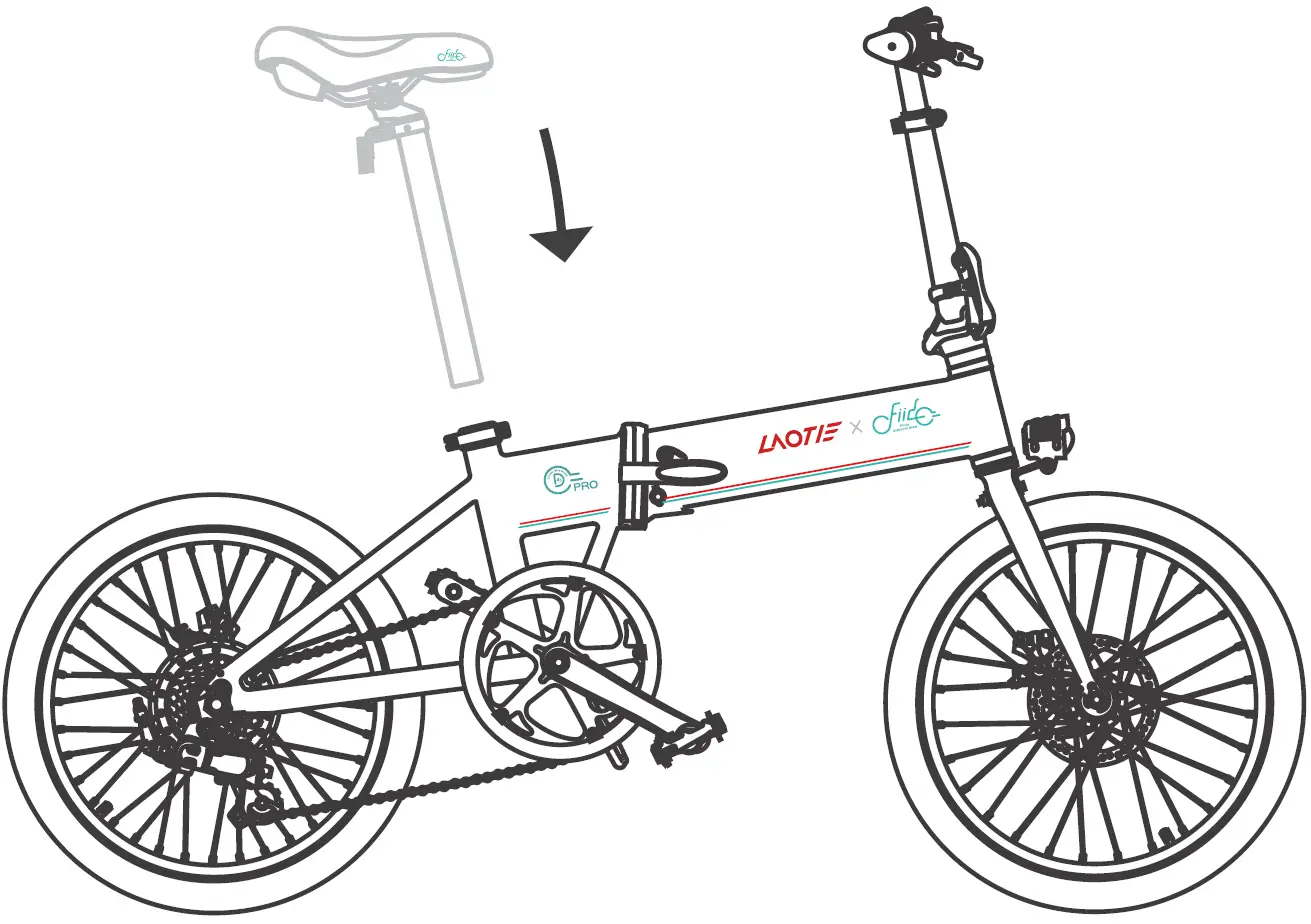

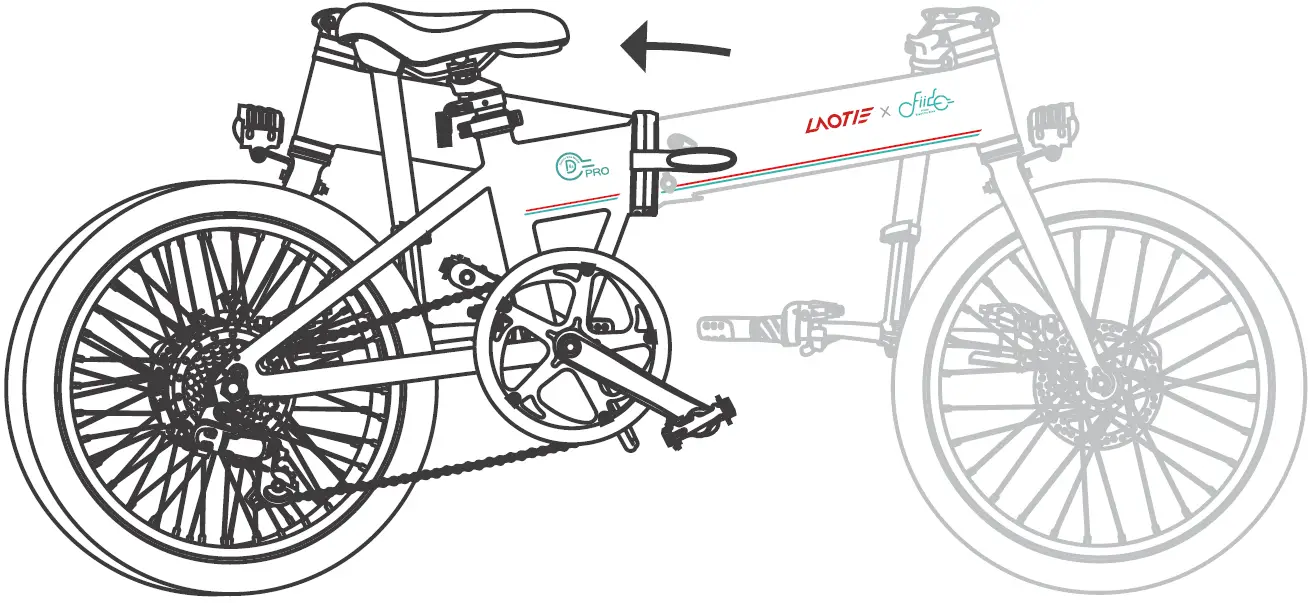

   Step 3. Open the Seat Tube quick lock, decentralized seats, as well as locking the quick lock .
   Note: Both the Rise and the Seat Tube are marked with a safe (MAX or MIN). For safety reasons, please use them in a safe range.

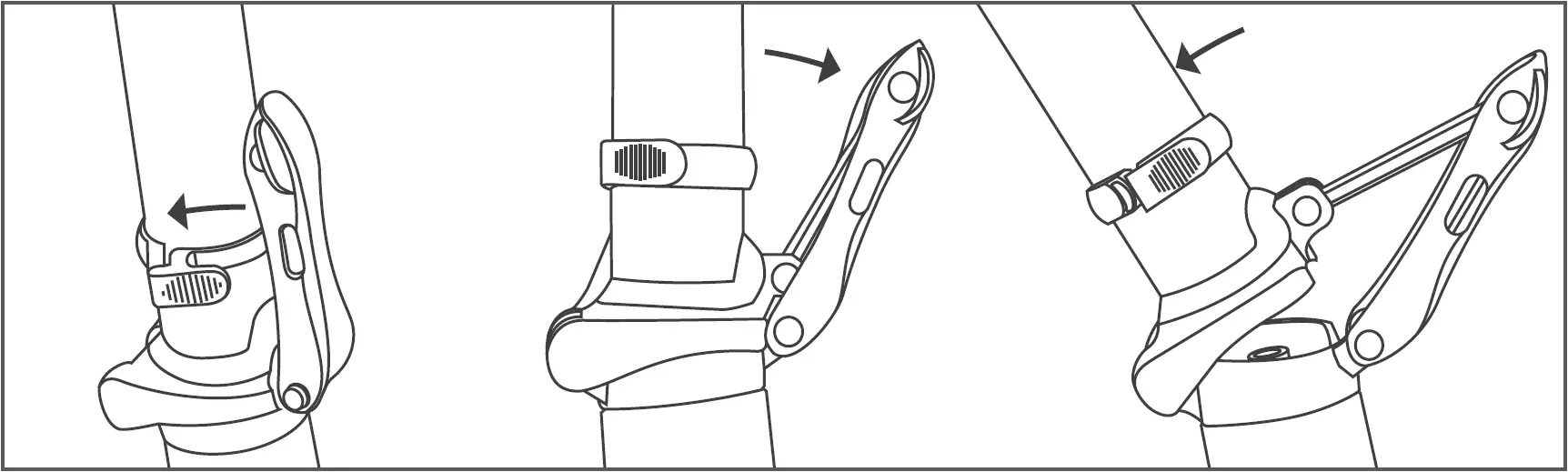

   Step 4. Turn the buckle on the Standpipe clockwise and pull down the fold and fold down the front.

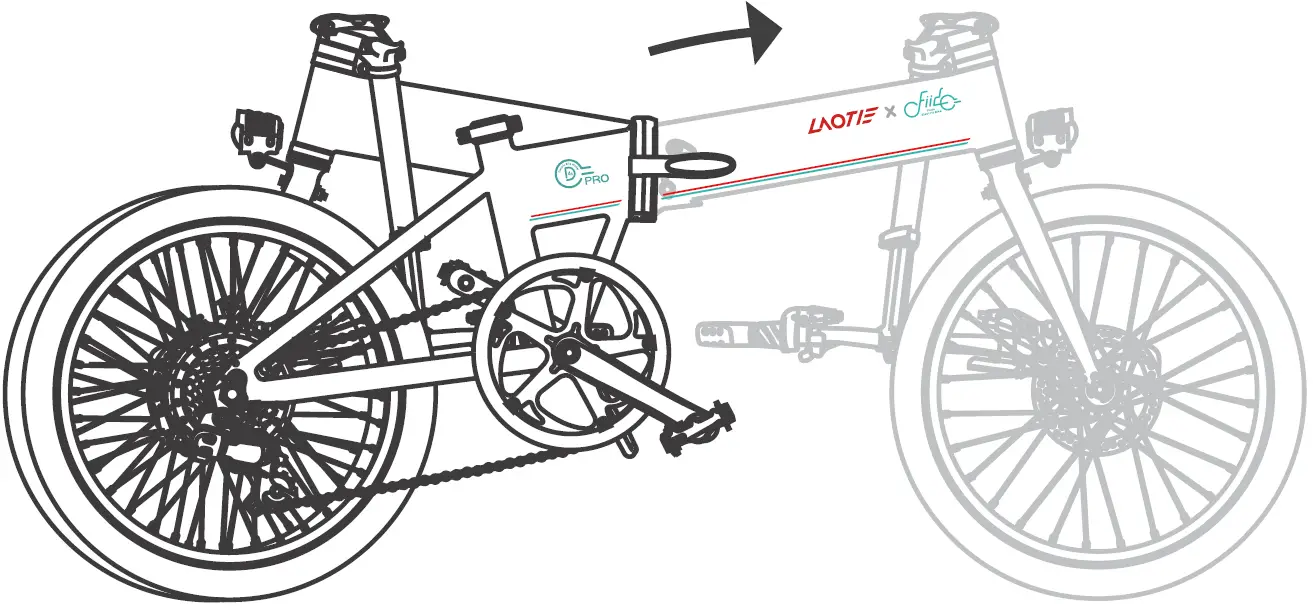

   Step 5. Open the frame holder of the fuse buckle, pull the fold, and the frame.

5. Specifications

* The above data allow for 5% manufacturing tolerances.
* After receiving the goods, there may be some differences between individual accessories and display drawings, which are different due to the different batches, and do not affect the use.
