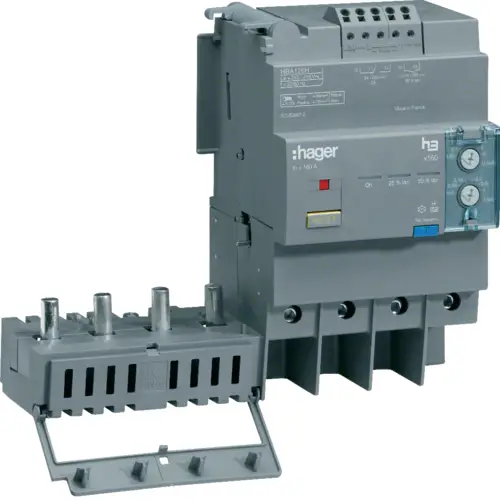

hager 125A RCD add-on-block
hager 125A RCD add-on-block
RCD add-on-block 125 A – 160 A
User instructions

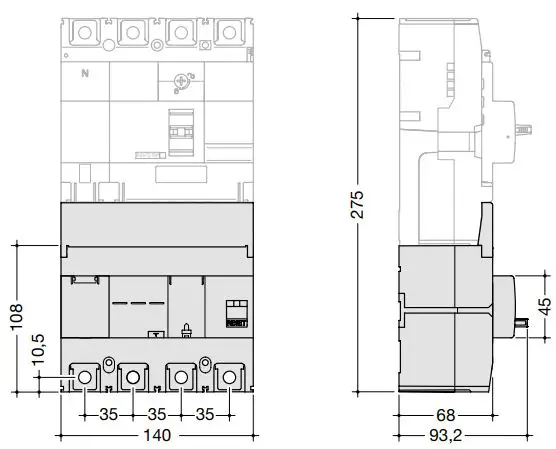

RCD add-on-block mounting bolt drilling plan

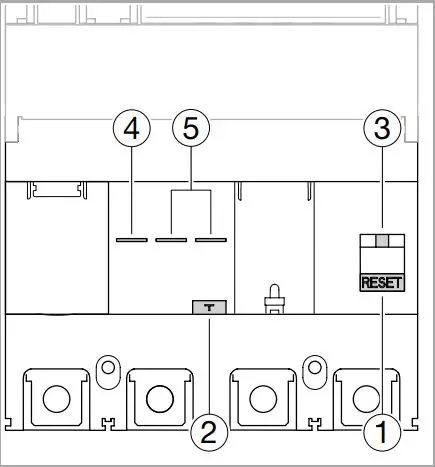

- button for reset and signalisation of residual current tripping
- Test button
- exclusion of internal circuit for insulation tests
- led = in running
- signalization of leakage-current in the installation as 25% – 50% IΔn

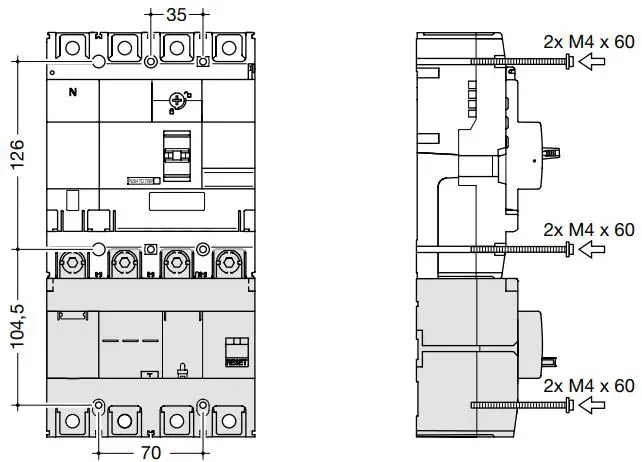

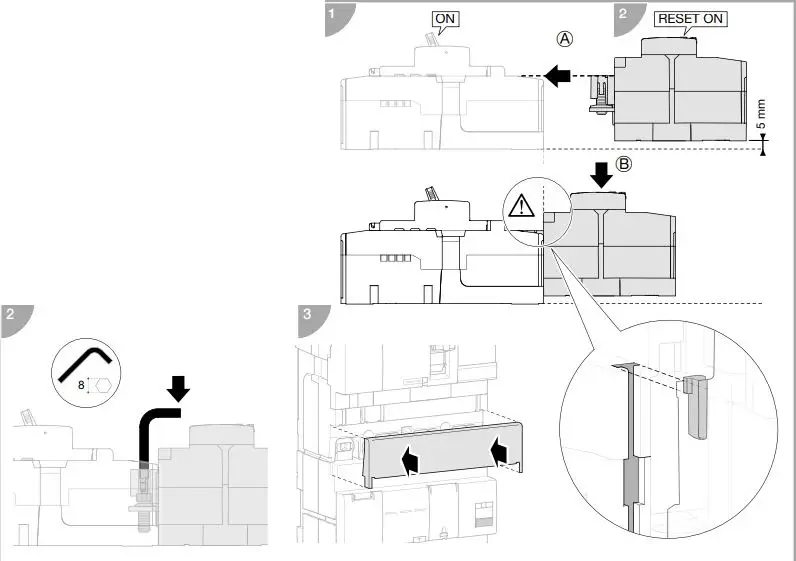

Fitting RCD on MCCB

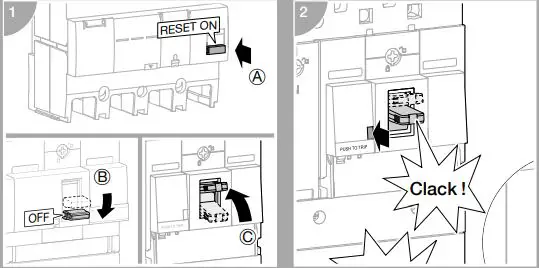

Check the correct assembly

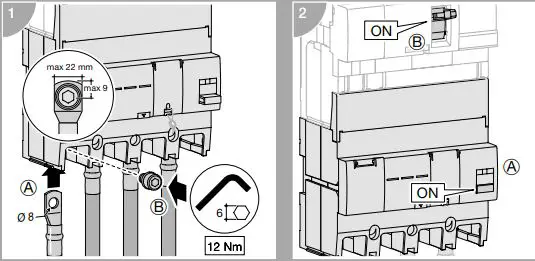

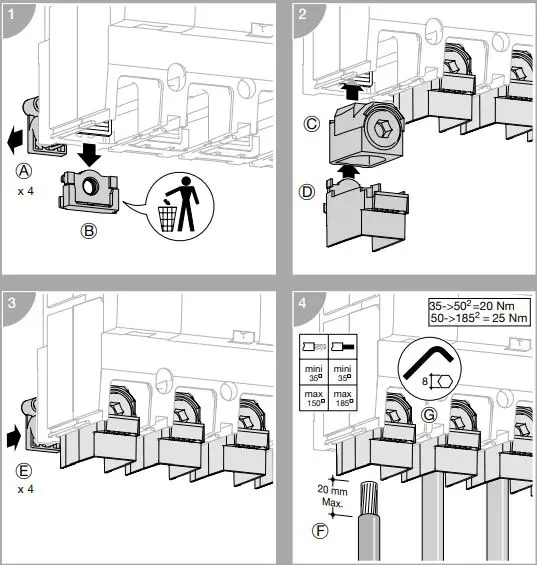

Connection

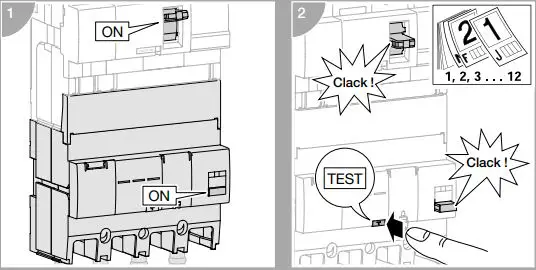

Test monthly

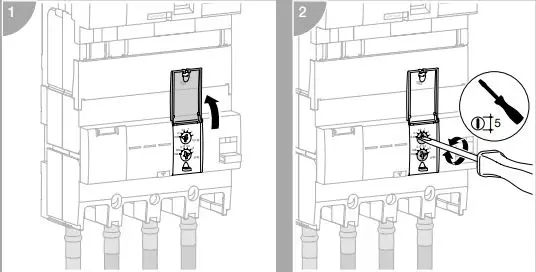

Trip unit settings IΔn and Δt

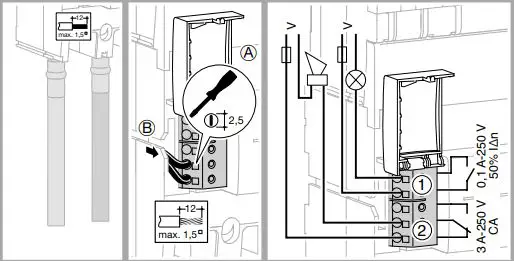

Remote signalisation :
- Leakage-current as 50 % IΔn,
- Leakage

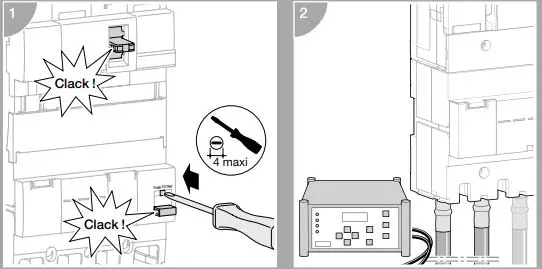

Dielectric test
Assembling collar Al

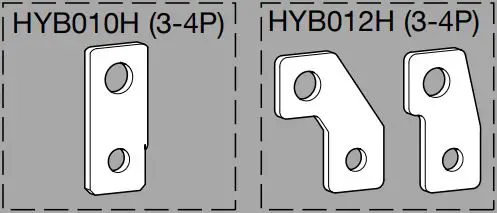

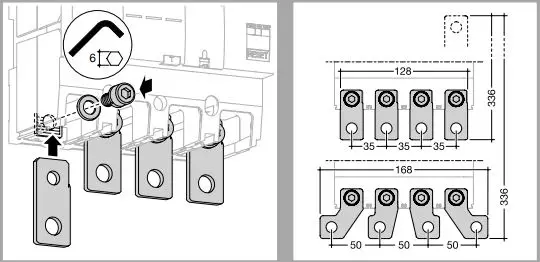

Extended connections and spreaders
