APlusLift ABJ-40 4000LB Sliding Bridge Jack

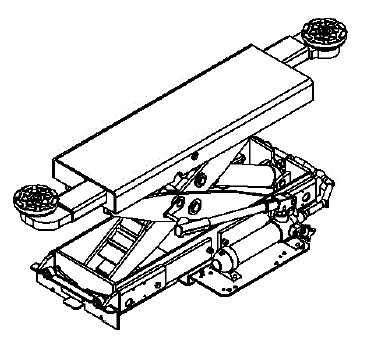

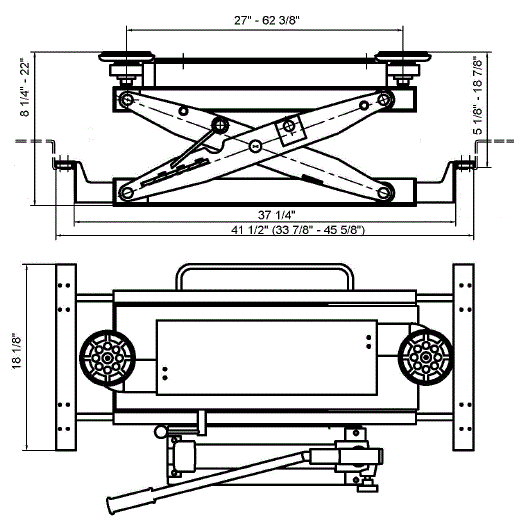

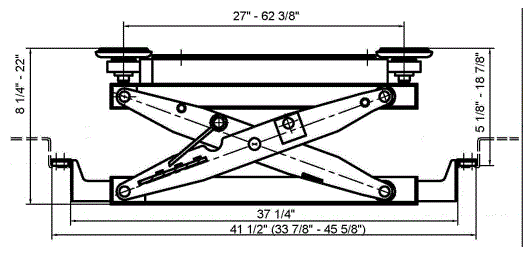

Outer dimension
Hand Pump and Pneumatic Pump for Choice

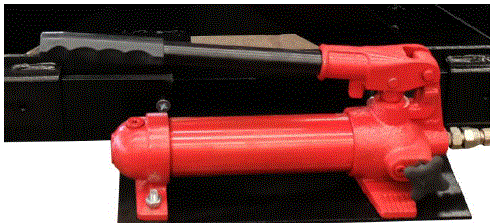

Hand Pump
Pneumatic Pump
Installation
- It is strictly forbidden to operate this secondary lift without authorized and trained personnel.
- Place the secondary lift on the side tracks of the two runways
Safety operation
- capacity of the jacking beam ≤2500Kg
- The second lift is put to the lowest position and the car can enter the maintenance runway.
- Move the secondary lift to the part to be lifted. (front or rear wheel)
- When lifting the front wheel, use the tire wedge to lock the rear wheel. Similarly, lift when the rear wheel is used, the front wheel is locked with a wedge to prevent the vehicle from moving when it rises.

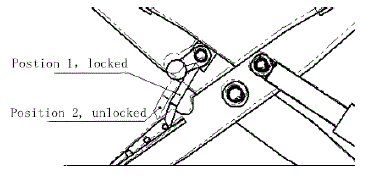

- Tighten the control valve bolt clockwise, push the handle up and down till the top lock position. (position 1, locked)
- Decrease: press the handle to rise 5~10mm, move the safety handle to unlock, then slowly release the control valve bolts.(position 2, unlocked)

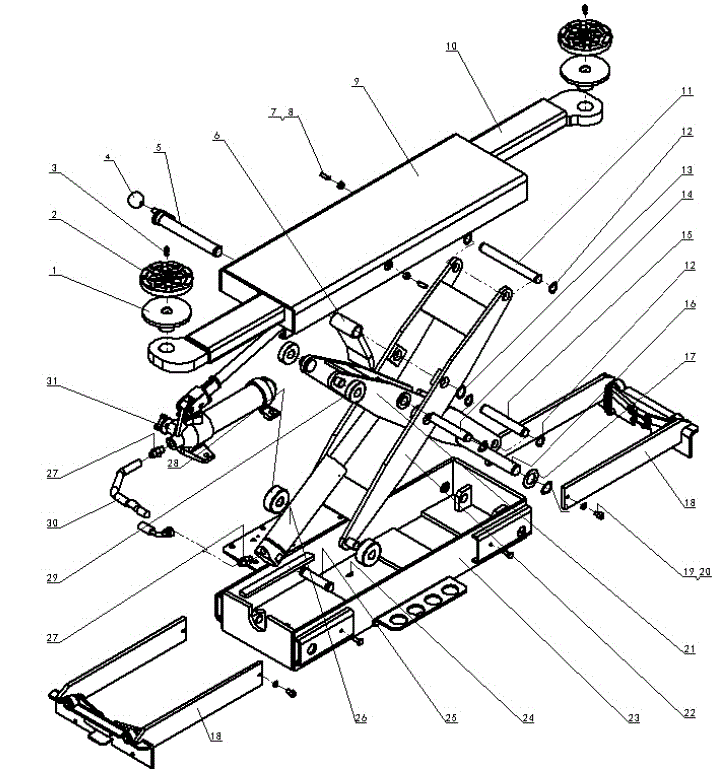

Exploded drawing
| NO. | Code | Part Name | Qty | Remark |
| 1 | QJY3.0-D6-05-3-0 | pad weldment | 2 | |
| 2 | QJY3.8-G1-05-13 | rubber pad | 2 | |
| 3 | M6×12 GB/T70.1 | M6*12 bolt | 2 | |
| 4 | QJY3.0-D1-3-14 | plasti ball | 1 | |
| 5 | 4QJY3.5-B-09-3-8-0a | axle | 1 | Φ 25 |
| 6 | 4QJY3.5-B-09-3-7-0a | safety latch | 1 | |
| 7 | M8×15 GB/T79-1985 | M8*15 bolt | 2 | |
| 8 | M8 GB/T41 | M8 nut | 2 | |
| 9 | 4QJY3.5-B-09-8-1-0a | platform | 1 | |
| 10 | 4QJY3.5-B-09-5-1-0a | arm | 2 | |
| 11 | 4QJY3.5-B-09-3-6 | axle | 1 | Φ 20 |
| 12 | d20 GB/T894.1 | d20 ring | 6 | |
| 13 | d25 GB/T894.1 | d25 ring | 3 | |
| 14 | 4QJY3.5-B-09-9 | axle | 1 | Φ 20 |
| 15 | 4QJY3.5-B-09-2-2 | axle | 1 | Φ 20 |
| 16 | 4QJY3.5-B-09-3-3 | middle axle | 1 | Φ 25 |
| 17 | QJY3.5-G4-10-05 | washer | 2 | |
| 18 | 4QJY3.5-B-09-6-00A | supporting frame | 2 | |
| 19 | M8×12 GB/T79-1985 | M8*12 bolt | 4 | |
| 20 | d8 GB/T93 | d8 spring washer | 4 | |
| 21 | 4QJY3.5-B-09-2-0 | inner scissor arm | 1 | |
| 22 | 4QJY3.5-B-09-3-0 | outer scissor arm | 1 | |
| 23 | 4QJY3.5-B-09-1-00 | bottom frame | 1 | |
| 24 | M6×15 GB/T79-1985 | M6*15 bolt | 2 | |
| 25 | 4QJY3.5-B-09-8 | cylinder axle | 1 | |
| 26 | 4QJY3.5-B-09-7-0a | cylinder | 1 | |
| 27 | 4QJY3.5-B-09-22a | fitting | 2 | |
| 28 | 4QJY3.5-B-09-3-2 | bottom pulley | 2 | |
| 29 | 4QJY3.5-B-09-2-3 | upper pulley | 2 | |
| 30 | 4QJY3.5-B-21a | hydraulic hose | 1 | L=420 |
| 31 | hand pump | 1 |
