ALMAREN Kitchen Mixer Tap WITH Pull Out Spout Stainless Steel

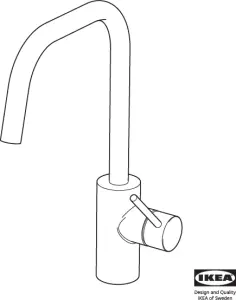

mixer tap

ÄLMAREN

Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

Switch off main shut-off valve before changing mixer tap.

kitchen mixer tap

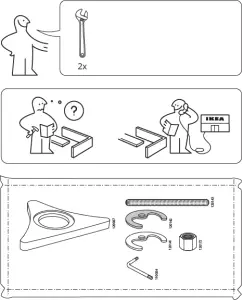

installing kitchen parts

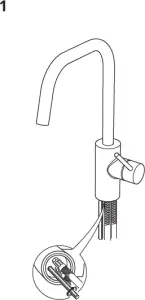

install hose

Seal the open surfaces with silicone to prevent water from penetrating the worktop upon any leaks. Silicone is not included.

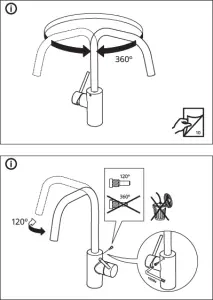

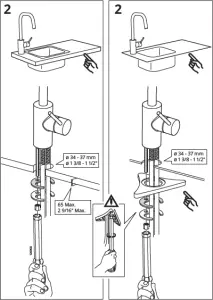

install fosetmoving foset

Flow Guide
Before use: Unscrew the Aerator/Flow Guide with
a coin and allow the water to run freely for a few
minutes. Then screw the Aerator/Flow Guide back
in place up to the stop DO NOT OVER TIGHTEN.

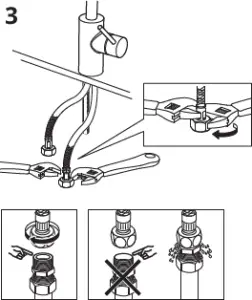

hose washerhose
IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.

Check at regular intervals to make sure that the installation is not leaking.

© Inter IKEA Systems B.V. 2016
2021-03-17
AA-1898728-13
