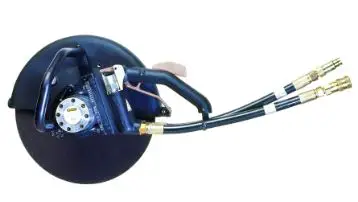

STANLEY CO25 Cut Off Saw

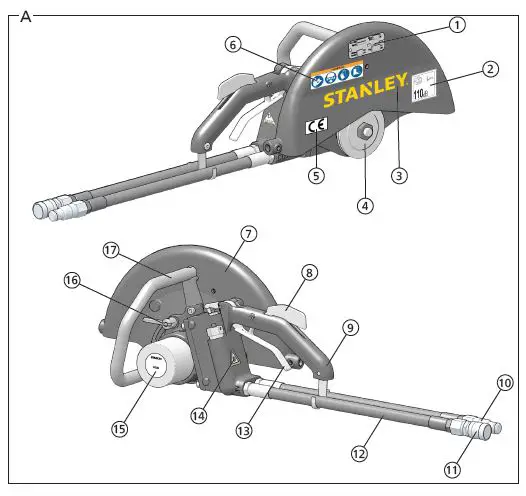

PRODUCT OVERVIEW

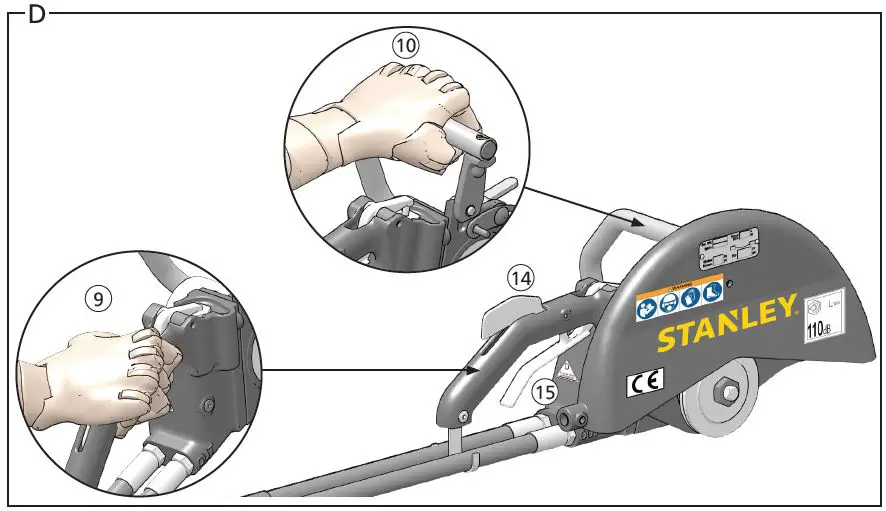

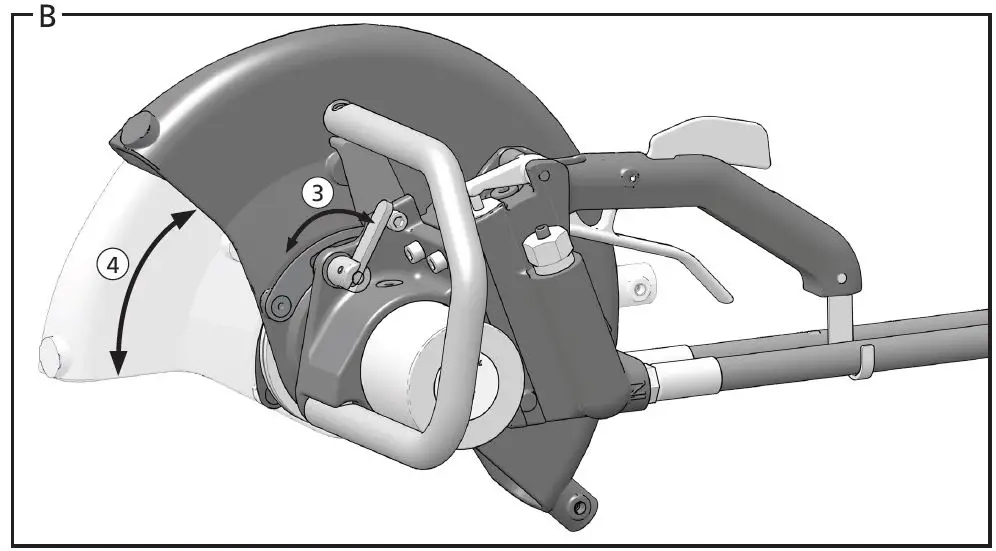

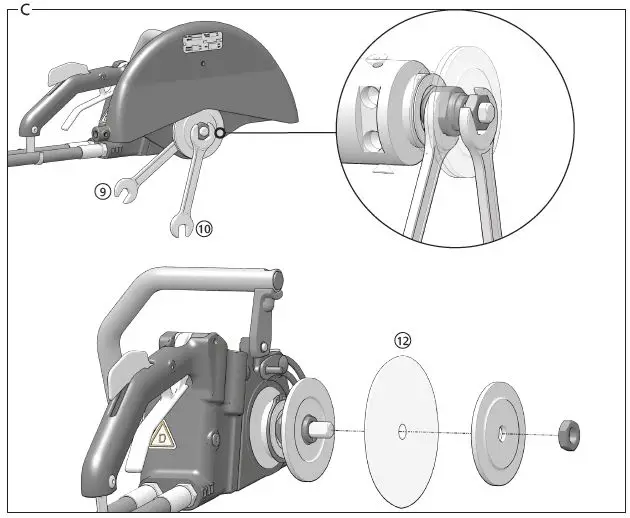

ASSEMBLE

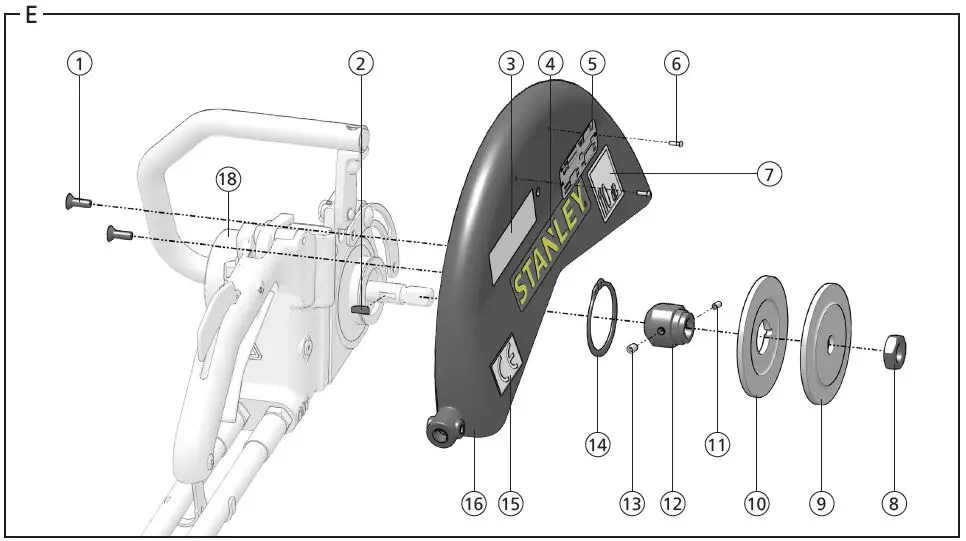

| CO25 Wheel Guard & Retainer Illustration – Detail E | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 05071 | Cap Screw – Loctite 243 |
| 2 | 00772 | Woodruff Key |
| 3 | 88349 | Composite Safety Decal |
| 4 | 74770 | STANLEY Logo Decal |
| 5 | 76610 | Tool Information Plaque |
| 6 | 02004 | Screw |
| 7 | 81434 | Sound Power Level Decal |
| 8 | 01714 | Jam Nut |
| 03012 | Jam Nut – Models CO2554101, CO25541 | |
| 9 | 62291 | Outside Collar |
| 10 | 62290 | Inside Collar |
| 11 | 00563 | Roll Pin |
| 12 | 04673 | Thrust Collar |
| 13 | 00720 | Set Screw |
| 14 | 03013 | Retaining Ring |
| 15 | 28322 | CE Decal |
| 16 | 32436 | Wheel Guard |
| 17 | 31845 | Seal Kit (not shown) – *In seal kit |
| 18 | 88345 | Importer Decal |

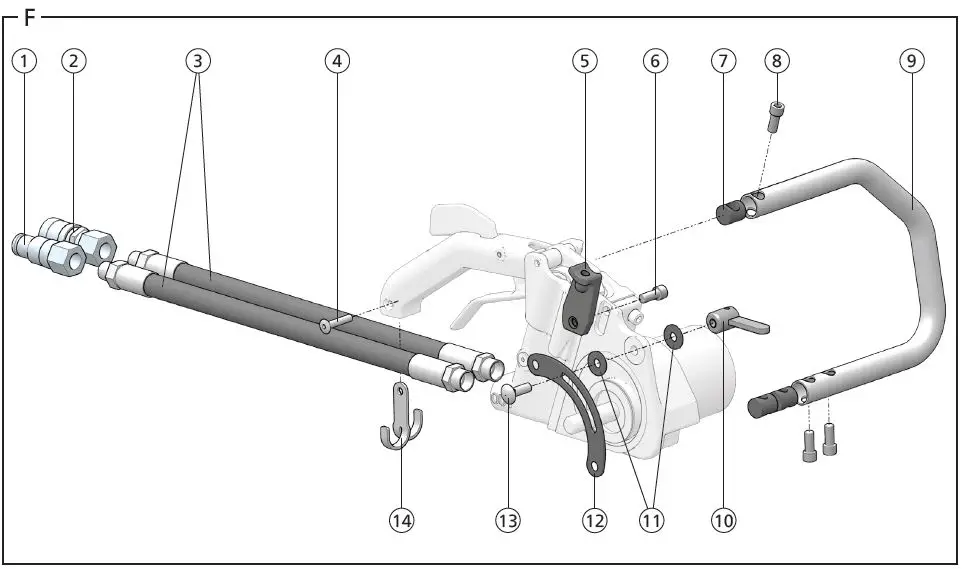

| CO25 Assist Handle and Hose Illustration – Detail F | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 03973 | Male Coupler |
| 2 | 03972 | Female Coupler |
| 3 | 56725 | Hose |
| 4 | 35963 | Screw |
| 5 | 20461 | Handle Strut |
| 6 | 02688 | Cap Screw |
| 7 | 02649 | Handle Bar Retainer |
| 8 | 02688 | Cap Screw |
| 9 | 02654 | Assist Handle |
| 10 | 03050 | Guard Adjustment Knob Assembly |
| 11 | 01594 | Washer |
| 12 | 32445 | Guard Clamp |
| 13 | 03025 | Carriage Bolt |
| 14 | 02911 | Hose Clip |
| 15 | 31845 | Seal Kit (not shown) – *In seal kit |

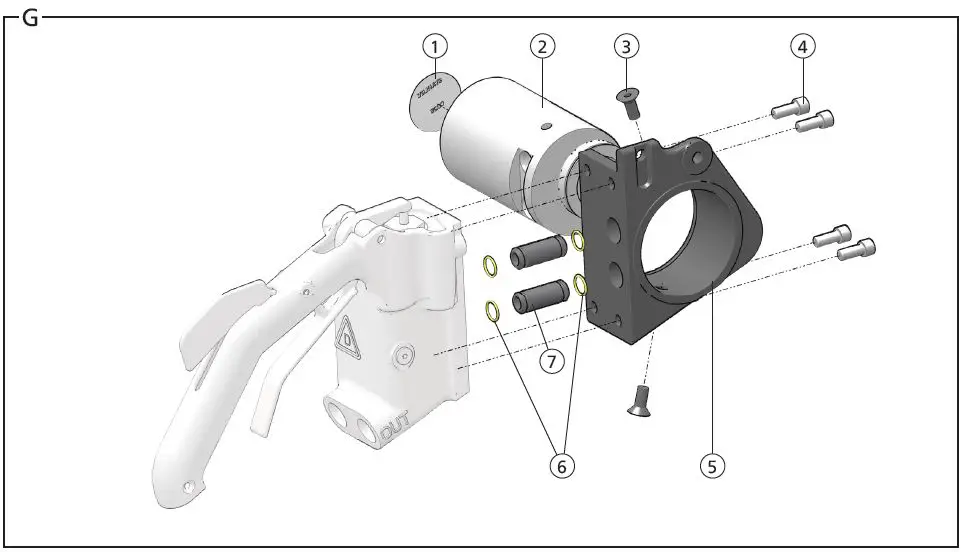

| CO25 Motor Assembly – Detail G | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 74823 | Tool Name Tag |
| 2 | 73441 | Motor |
| 73440 | Motor – Models CO25541, CO2554101 | |
| If resealing the motor, torque motor bolts to 15-17 ft. lbs. (20-23 Nm). | ||
| 3 | 03006 | Cap Screw |
| 4 | 02688 | Cap Screw |
| CO25 Motor Assembly – Detail G | ||
| ITEM | P/N | DESCRIPTION |
| 5 | 02950 | Motor Housing |
| 6 | 00175 | O-ring* |
| 7 | 02912 | Oil Tube |
| 8 | 31845 | Seal Kit (not shown) – *In seal kit |

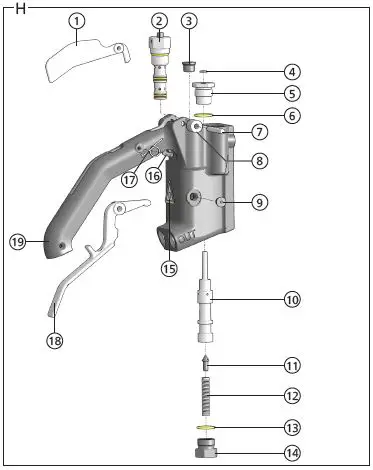

| CO25 Trigger Handle Illustration- Detail H | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 22704 | Trigger Lock |
| 2 | 31854 | Flow Regulator Cartridge |
| 3 | 08104 | Hex Plug |
| 4 | 00112 | O-ring* |
| 5 | 02931 | On-Off Valve Cap |
| 6 | 01604 | O-ring* |
| 7 | 17681 | Spring Pin |
| 8 | 02920 | Spacer |
| 9 | 350023 | Hex Plug |
| 10 | 32026 | Valve Spool |
| 31138 | Valve Spool – Models CO25541, CO2554101 | |
| 11 | 31186 | Poppet |
| 12 | 02916 | Spring |
| 13 | 01604 | O-ring* |
| 14 | 31137 | Plug |
| 15 | 11207 | Circuit Type “D” Decal – Models CO2514101, CO2554101 |
| 09612 | General Caution Decal – Models CO25141, CO25141D, CO25541 | |
| 16 | 17668 | Roll Pin |
| 17 | 22701 | Spring |
| 18 | 22707 | Trigger |
| 19 | 28552 | Valve Handle |
| 20 | 31845 | Seal Kit (not shown) – *In seal kit |
