STANLEY DS06 Diamond Chain Saw

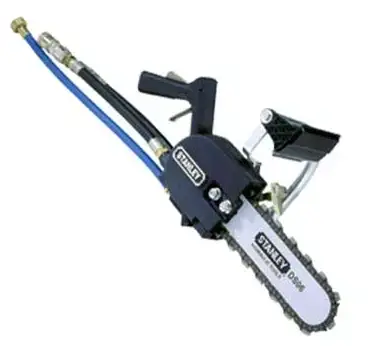

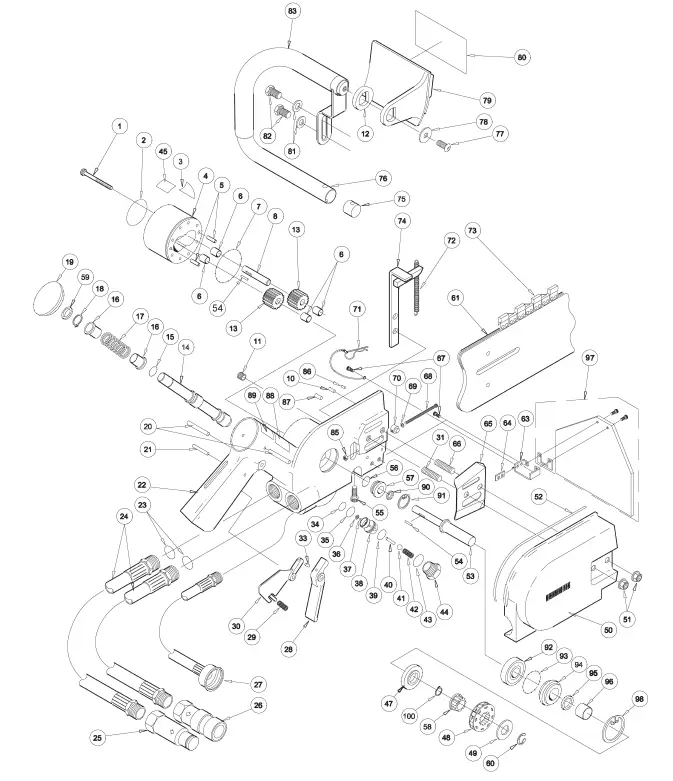

PARTS ILLUSTRATION
PARTS LIST
| ITEM | PART NO. | QTY | DESCRIPTION |
| 1 | 00753 | 8 | HSHCS 10-24 UNC ´ 1-1/4 |
| 2 | 73659 | 1 | NAME TAG (5-GPM MODELS) |
| 74806 | NAME TAG (8-GPM MODELS) | ||
| 3 | 11207 | 1 | CIRCUIT D DECAL (8-GPM MODEL) |
| 11206 | CIRCUIT C DECAL (5-GPM MODEL) | ||
| 4 | 07652 | 1 | REAR GEAR HOUSING ASSY (INCL ITEMS 5–6, 8-GPM MODEL ONLY) |
| 07834 | 1 | REAR GEAR HOUSING ASSY (INCL ITEMS 5–6, 5-GPM MODEL ONLY) | |
| 5 | 00289 | 2 | DOWEL PIN |
| 6 | 04041 | 4 | BUSHING |
| 7 | 00020 | 1 | O-RING |
| 8 | 07612 | 1 | IDLER SHAFT |
| 9 | — | — | NO ITEM |
| 10 | 32190 | 1 | PIVOT PIN |
| 11 | 00961 | 1 | PIPE PLUG |
| 12 | 73583 | 1 | HAND GUARD SPACER |
| 13 | 04106 | 2 | DRIVE GEAR (8-GPM MODEL ONLY) |
| 07832 | 2 | DRIVE GEAR (5-GPM MODEL ONLY) | |
| 14 | 32207 | 1 | ON/OFF VALVE |
| 15 | 07626 | 1 | O-RING |
| 16 | 07609 | 2 | SPRING WASHER |
| 17 | 34119 | 1 | SPRING |
| 18 | 04512 | 1 | RETAINING RING, 1/2 EX |
| 19 | 07625 | 1 | PLUG BUTTON |
| 20 | 17668 | 2 | ROLL PIN |
| 21 | 07624 | 1 | ROLL PIN, 3/16 ´ 1 |
| 22 | 73656 | 1 | VALVE HANDLE ASSY (INCL ITEMS 6, 31, 66) |
| 23 | 01605 | — | O-RING (SUPPLIED W/ ITEM 24) |
| 24 | 01652 | 2 | PIGTAIL HOSE ASSY |
| 25 | 03973 | 1 | MALE COUPLER |
| 26 | 03972 | 1 | FEMALE COUPLER |
| 27 | 33443 | 1 | WATER HOSE ASSY |
| 28 | 58879 | 1 | TRIGGER |
| 29 | 07602 | 1 | SPRING |
| 30 | 34105 | 1 | SAFETY CATCH |
| 31 | 32197 | 1 | STUD (SUPPLIED W/ ITEM 22) |
| 32 | — | — | NO ITEM |
| 33 | 00072 | 1 | ROLL PIN |
| 34 | 07627 | 1 | O-RING |
| 35 | 00074 | 1 | O-RING |
| 36 | 33488 | 1 | SELF-LOCKING RETAINING RING |
| 37 | 05632 | 1 | O-RING |
| 38 | 58970 | 1 | WATER VALVE SLEEVE |
| 39 | 01403 | 1 | O-RING |
| ITEM | PART NO. | QTY | DESCRIPTION |
| 40 | 33380 | 1 | PIN |
| 41 | 36259 | 1 | STEEL BALL, 3/8″ DIA. |
| 42 | 32188 | 1 | SPRING |
| 43 | 04052 | 1 | O-RING |
| 44 | 32189 | 1 | SEAL CAP |
| 45 | 28323 | 1 | CE DECAL |
| 46 | — | — | NO ITEM |
| 47 | 38898 | 1 | SEAL SPACER |
| 48 | 09098 | 1 | SPROCKET |
| 49 | 41765 | 1 | WASHER |
| 50 | 73658 | 1 | CHAIN GUARD |
| 51 | 32203 | 2 | NUT |
| 52 | 35181 | 1 | CORD STOCK, 3/16″ DIA. |
| 53 | 43690 | 1 | MOTOR SHAFT (SEE ITEM #60 FOR SERIAL NO. BREAK) |
| 54 | 04044 | 2 | NEEDLE ROLLER |
| 55 | 02688 | 1 | HSHCS 5/16 -18 UNC ´ 3/4 |
| 56 | 60804 | 1 | O-RING |
| 57 | 19215 | 1 | SEAL BACK-UP WASHER |
| 58 | 43689 | 1 | SPROCKET ADAPTER |
| 59 | 58969 | 1 | WIPER SEAL |
| 60 | 66299 | 1 | SPIRAL RETAINER RING |
| 61 | — | — | SAW BAR (SEE ACCESSORIES) |
| 62 | — | — | NO ITEM |
| 63 | 32196 | 1 | FLAP MOUNT |
| 64 | 33219 | 1 | SPACER |
| 65 | 32192 | 1 | CHAIN GUIDE PLATE |
| 66 | 32245 | 1 | STUD (SUPPLIED W/ ITEM 22) |
| 67 | 58968 | 2 | HSHCS 1/4 -20 UNC ´ 5/8 |
| 68 | 02687 | 1 | MACHINE SCREW |
| 69 | 32191 | 1 | STAT-O-SEAL |
| 70 | 32198 | 1 | BAR ADJUSTMENT NUT |
| 71 | 33481 | 1 | WALL WALKER CLEVIS PIN |
| 72 | — | — | SPRING (INCL W/ ITEM 74) |
| 73 | — | — | CHAIN (SEE ACCESSORIES) |
| 74 | 32206 | 1 | WALL WALKER |
| 75 | 02649 | 1 | HANDLE BAR RETAINER |
| 76 | 33229 | 1 | HANDLE WELDMENT |
| 77 | 33260 | 1 | BHCS 1/4 -20 ´ .625 ZINC |
| 78 | 33261 | 1 | FENDER WASHER |
| 79 | 73582 | 1 | HAND GUARD |
| 80 | 12412 | 1 | ELECTRICAL WARNING DECAL |
| 81 | 12175 | 2 | WASHER |
| 82 | 33454 | 2 | HHCS 5/16 -18 ´ 5/8 ZINC |
| 83 | 33263 | 1 | HANDLE GRIP |
| ITEM | PART NO. | QTY | DESCRIPTION |
| 84 | — | — | NO ITEM |
| 85 | 17134 | 1 | NUT, 1/4 -20 HHD LT SST |
| 86 | 31614 | 1 | SPIROL PIN |
| 87 | 30635 | 1 | SPIROL PIN, 5/16 ´ 7/8 |
| 88 | 28409 | 1 | COMPOSITE DECAL (CE) |
| 89 | 81438 | 1 | SOUND POWER LEVEL DECAL (CE) |
| 90 | 00173 | 1 | QUAD RING |
| 91 | 04856 | 1 | RETAINING RING |
| 92 | 35965 | 1 | BEARING |
| 93 | 00621 | 1 | O-RING |
| 94 | 38897 | 1 | SEAL WASHER |
| 95 | 39070 | 1 | V-RING |
| 96 | 38700 | 1 | SEAL RING |
| 97 | 65797 | 1 | FLAP KIT DS06 |
| 98 | 07324 | 1 | RETAINING RING |
| 99 | 37793 | 1 | EXTENSION SPRING ANCHOR |
| 100 | 41764 | 1 | RETAINING RING |
| 33360 | 1 | SEAL KIT |
