Super SVQ Return Set
Part Number: 71002-AZ001
This item is exclusively for P/N 71004-AZ008, 71007-AZ008, and
71008-AZ008 (SSQV for Mazdaspeed 3).

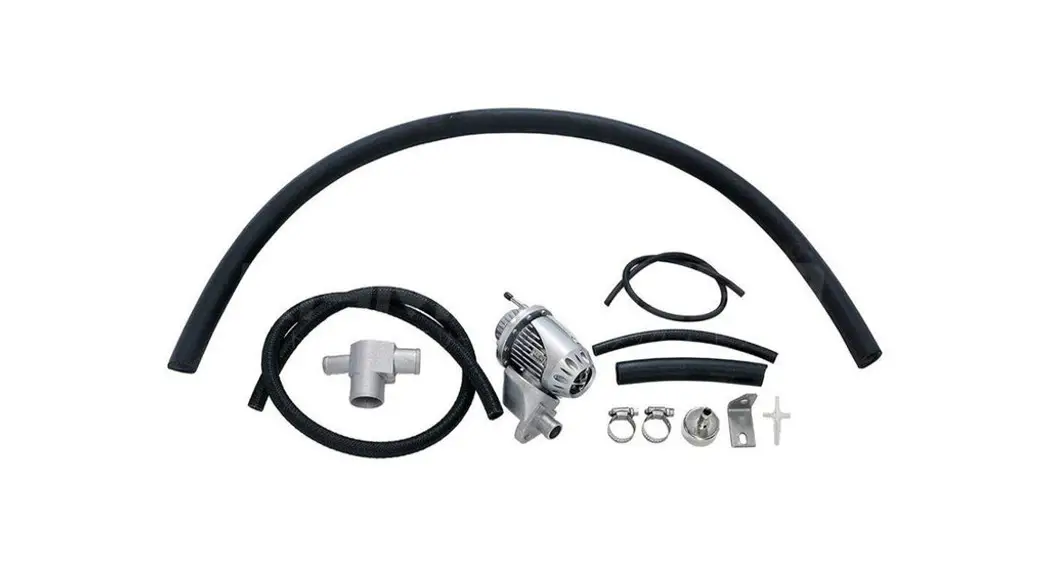

Parts List
Return Hose ……………………………………… 1
Hose Clamp (#16) ……………………………. 2
Installation Manual …………………………… 1
Manual Number: E04533-Z67020-00
Published on November 20 2020 by HKS Co., Ltd. (Unauthorized reproduction is strictly prohibited.)
Installation of SSQV Return Kit
- Remove the factory intercooler cover and the factory suction hose referring to the SSQV installation manual.
- Install the Recirculation Fitting to the SSQV assembly referring to the SSQV installation manual.

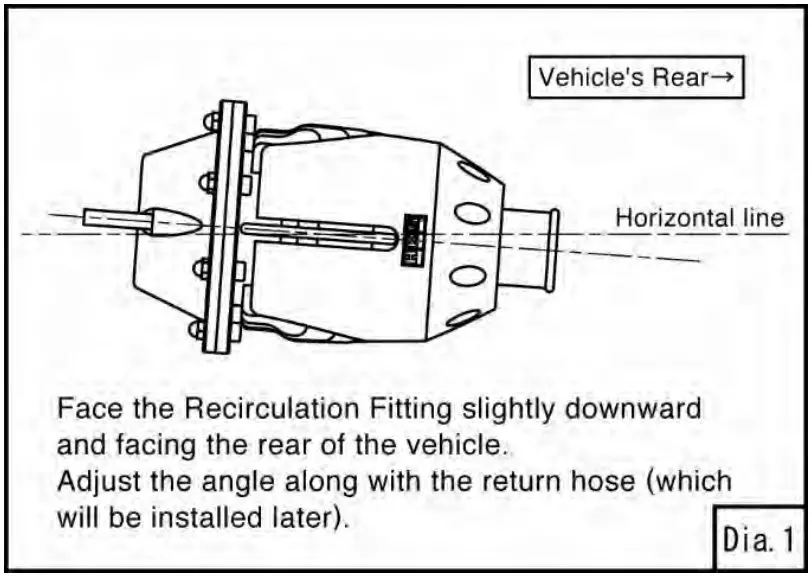

- Release the C-clip off the SSQV assembly. Rotate and adjust the angle of the SSQV on the SSQV adapter. (Dia.1)
NOTE

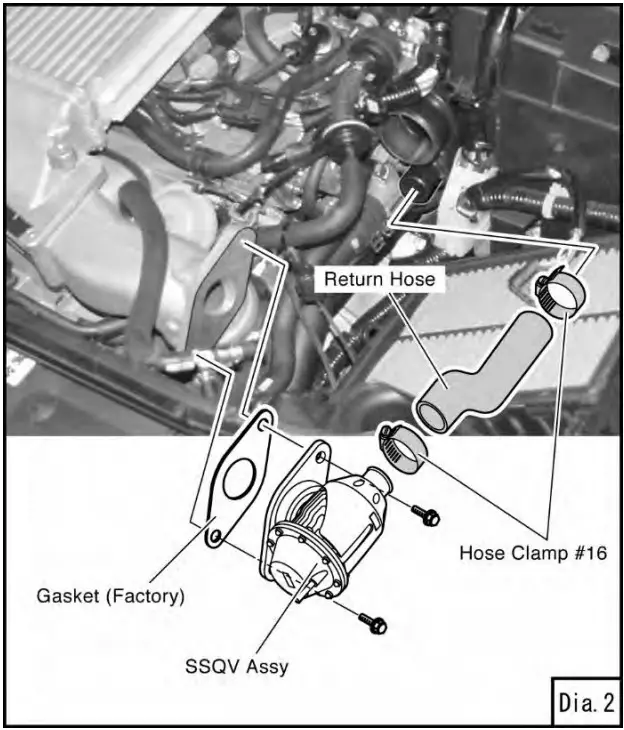

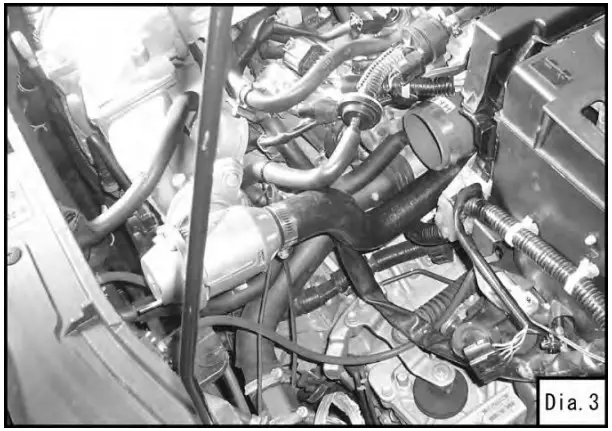

The C-clip must be loosened before rotating the valve. Failure to do so may damage the valve. - Install the SSQV assembly referring to the SSQV installation manual. (Dia.2,Dia.3)

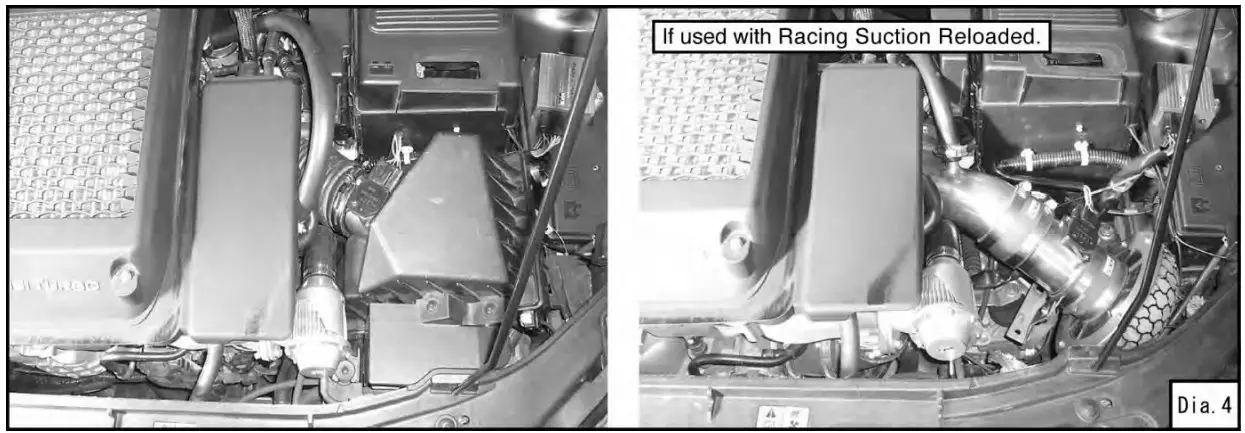

- Re-install the factory intercooler cover and the factory suction hose.
