PHOENIX CONTACT UM-BASIC-KIT-B108-L80-7035 Housing Set
Housing set – UM-BASIC-KIT-B108-L80-7035 – 1300353
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user’s documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download).

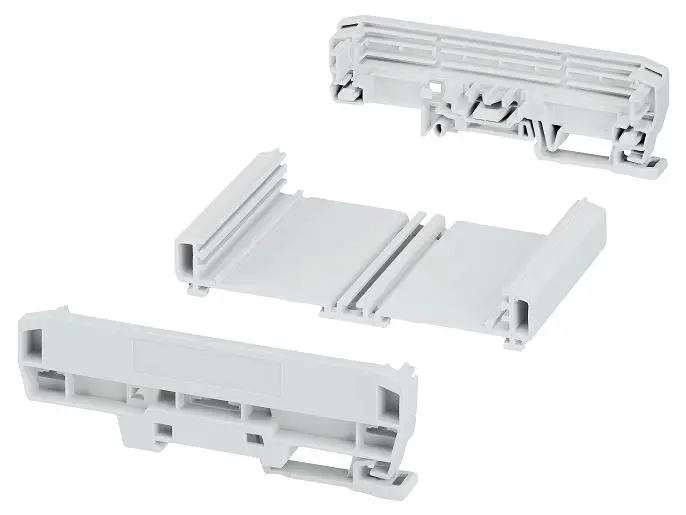

- Profile housing (PVC),
- mounting type: DIN rail mounting,
- color: light gray (7035),
- dimensions on the DIN rail: width: 83.8 mm,
- height: 127.8 mm, depth: 39.45 mm,
- incl. 2 lateral elements (PA),
- color: light gray (7035),
- for PCBs with width: 108 mm,
- length: 80 mm,
- PCB surface: 6570 mm²
Key Commercial Data
| Packing unit | 1 pc |
| GTIN | |
| GTIN | 4063151544621 |
| Custom tariff number | 39169010 |
Technical data
Product properties
| Brief article description | Housing set |
| Type | UM-BASIC-KIT-B108-L80-7035 |
| Item no. | 1300353 |
| Housing type | Profile housing |
| Housing series | UM-BASIC |
| Type | incl. 2 lateral elements |
| Mounting type | DIN rail mounting |
Dimensions
| Width | 83.8 mm |
| Height | 127.8 mm |
| Depth | 39.45 mm |
| Depth from top edge of DIN rail | 32.45 mm |
Specifications
PCB specifications
| Number of PCB holders | 3 |
| Dimensions | 108 mm x 80 mm (PCB dimensions) |
| PCB surface, maximum | 6570 mm² |
| PCB thickness | 1.4 mm…. 1.8 mm |
| Mounting position | parallel to the DIN rail |
| Type of PCB mount | Insertion/securing with additional elements |
Material specifications – Profile
| Material | PVC |
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Material specifications – Lateral elements
| Material | PA |
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C … 50 °C |
| Ambient temperature (assembly) | -5 °C … 50 °C |
| Ambient temperature (operation) | -15 °C … 50 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 95 % |
General information
| Type of note | Assembly instruction: |
| Note | Please observe the assembly instructions available in the download area. |
Packaging specifications
| Type of packaging | packed in cardboard |
| Pieces per package | 1 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27182701 |
| eCl@ss 11.0 | 27182701 |
| eCl@ss 9.0 | 27182701 |
Approvals
Approval details
