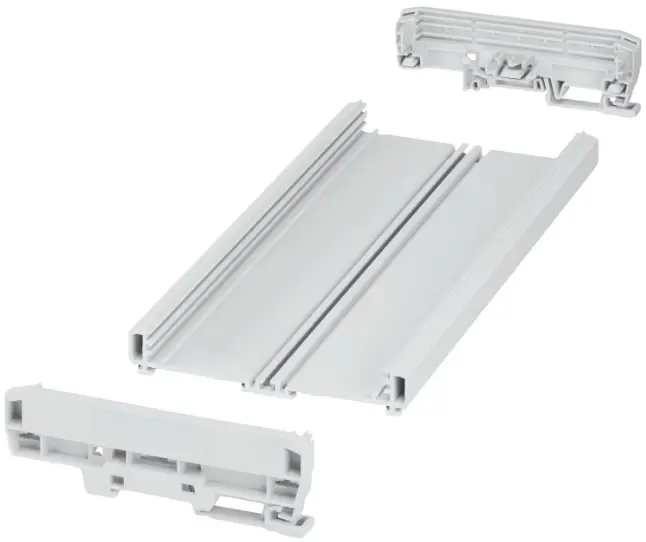

PHOENIX CONTACT UM-BASIC-KIT-B108-L250-7035 Housing Set
Key Commercial Data
| Packing unit | 1 pc |
| GTIN | |
| GTIN | 4063151544072 |
| Custom tariff number | 39169010 |
Technical data
Product properties
| Brief article description | Housing set |
| Type | UM-BASIC-KIT-B108-L250-7035 |
| Item no. | 1300359 |
| Housing type | Profile housing |
| Housing series | UM-BASIC |
| Type | incl. 2 lateral elements |
| Mounting type | DIN rail mounting |
PCB specifications
| Number of PCB holders | 3 |
| Dimensions | 108 mm x 250 mm (PCB dimensions) |
Technical data
PCB specifications
| PCB surface, maximum | 24080 mm² |
| PCB thickness | 1.4 mm… 1.8 mm |
| Mounting position | parallel to the DIN rail |
| Type of PCB mount | Insertion/securing with additional elements |
Material specifications – Profile
| Material | PVC |
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Material specifications – Lateral elements
| Material | PA |
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C … 50 °C |
| Ambient temperature (assembly) | -5 °C … 50 °C |
| Ambient temperature (operation) | -15 °C … 50 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 95 % |
General information
| Type of note | Assembly instruction: |
| Note | Please observe the assembly instructions available in the download area. |
Packaging specifications
| Type of packaging | packed in cardboard |
| Pieces per package | 1 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27182701 |
| eCl@ss 11.0 | 27182701 |
| eCl@ss 9.0 | 27182701 |
Approval details
- UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.html FILE E 240868 - Phoenix Contact 2021 © – all rights reserved http://www.phoenixcontact.com
