RAM DT1500/TRX MIRRORS
ORACLE PART #5914
INSTALLATION GUIDE
RAM DT1500 LED Off-Road Side Mirror
TOOLS NEEDED:
FLAT HEAD SCREWDRIVER
PANEL TOOL
T-20 TORX BIT
10MM SOCKET
ELECTRICAL TAPE
STEP: 1A
SCAN GR CODE TO WATCH FULL INSTALL VIDED
https://vimeo.com/836222114
STEP: 1B)
SCAN GR CODE TO WATCH DOOR PANEL REMOVAL
https://vimeo.com/838024557

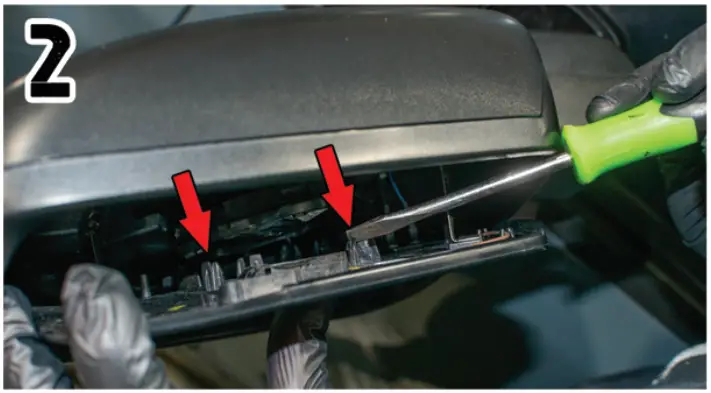

USE A FLAT HEAD SCREWDRIVER TO DEPRESS THESE CLIPS. THIS WILL RELEASE THE MIRROR GLASS.
UNPLUG ANY CONNECTORS YOU MAY HAVE CONNECTED TO THE MIRROR GLASS.

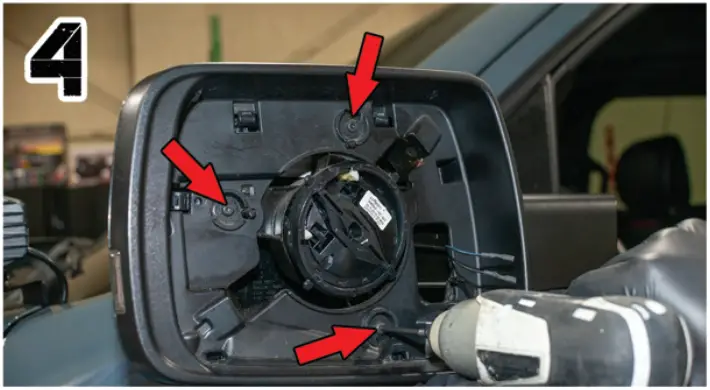

REMOVE THE (3) T-20 SCREWS BEHIND THE MIRROR GLASS.

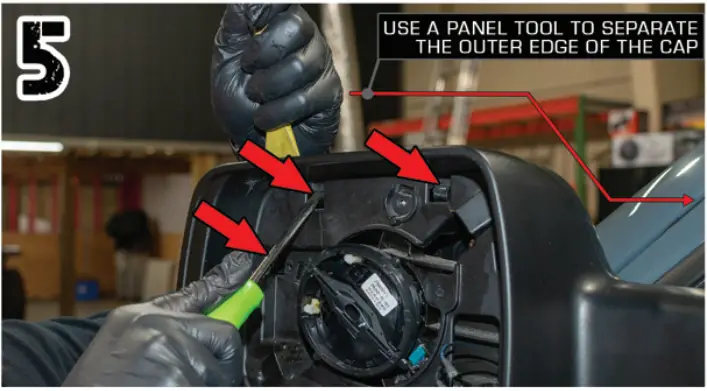

DEPRESS THESE (3) CLIPS TO SEPARATE THE UPPER MIRROR CAP FROM THE HOUSING.

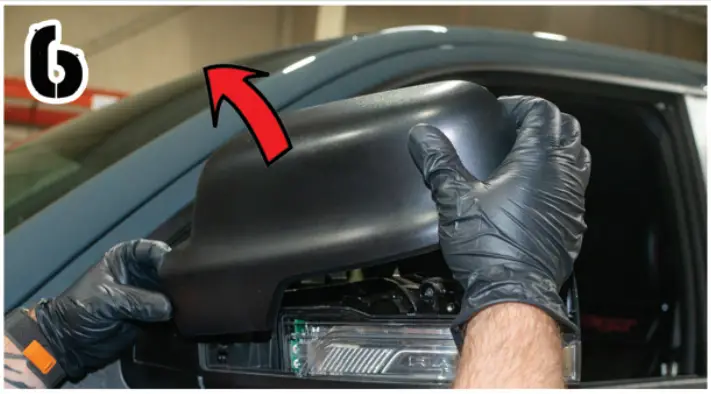

NOW REMOVE THE UPPER MIRROR CAP FROM THE HOUSING.

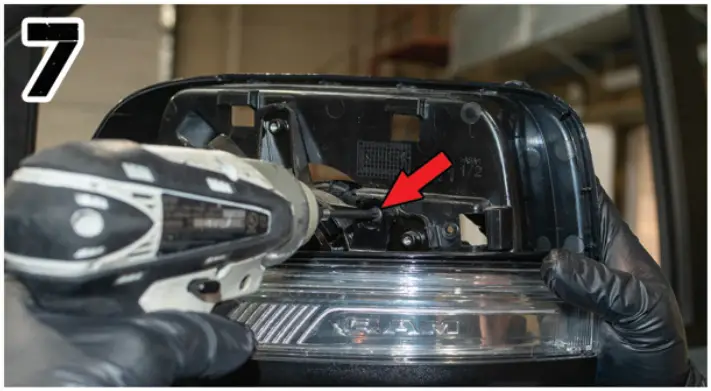

REMOVE THIS T-20 SCREW ON THE LAMP MODULE,

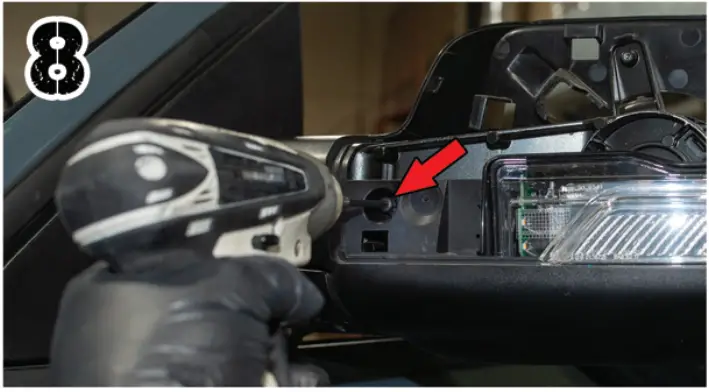

NEXT, REMOVE THIS T-20 SCREW ON THE LAMP MODULE.

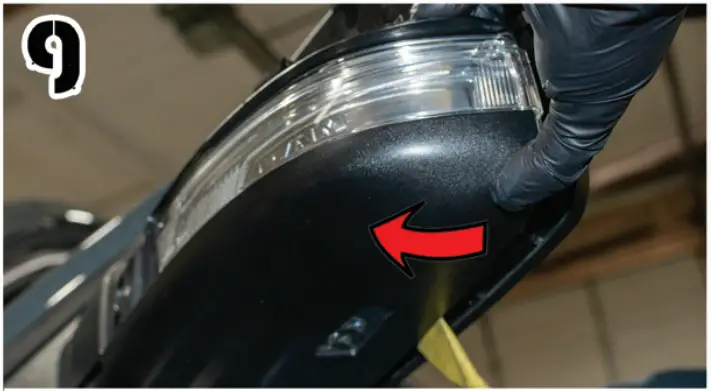

USE A PANEL TOOL TO REMOVE THE LOWER MIRROR CAP.

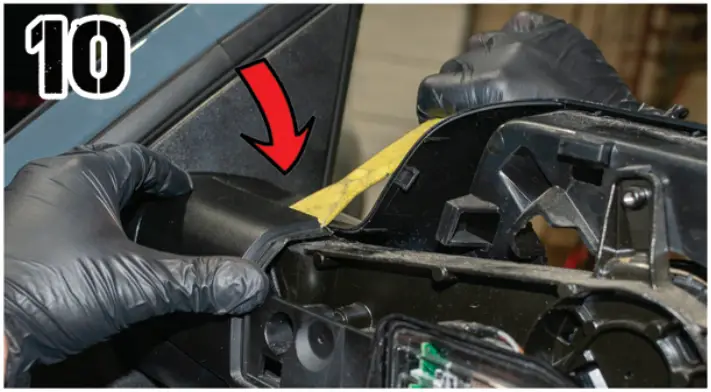

USE A PANEL TOOL TO SEPARATE THE LOWER MIRROR CAP.

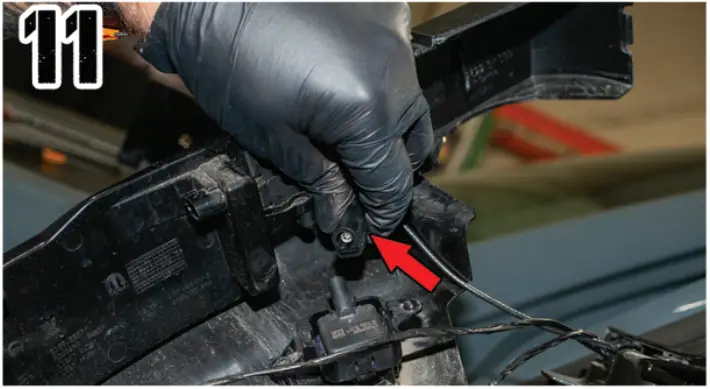

ON THE LOWER MIRROR CAP LOCATE THIS CONNECTOR AND DISCONNECT.

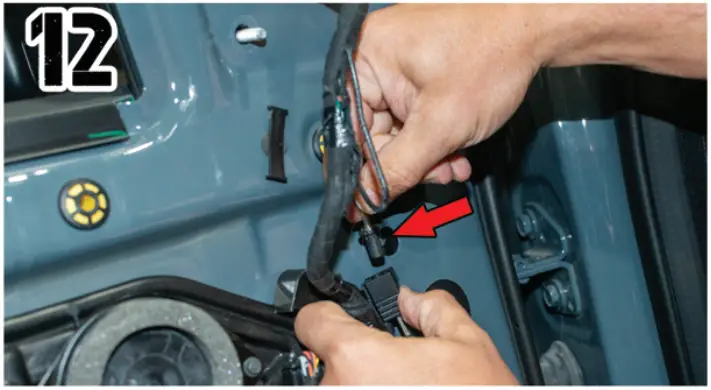

LOCATE AND DISCONNECT THE SAME CONNECTOR ON THE INSIDE OF THE DOOR PANEL FROM STEP 11

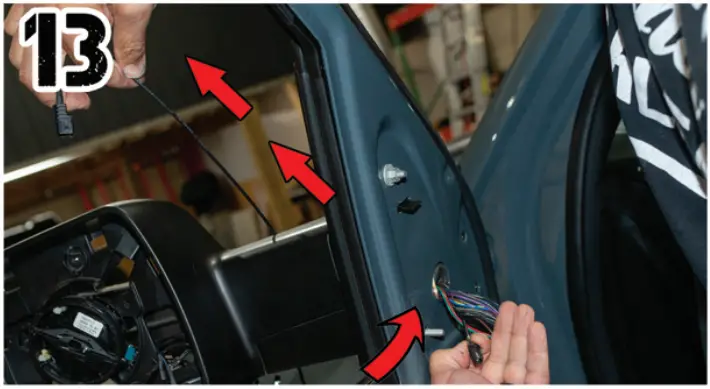

PULL THE SLACK OF THE CABLE THROUGH DOOR HARNESS.

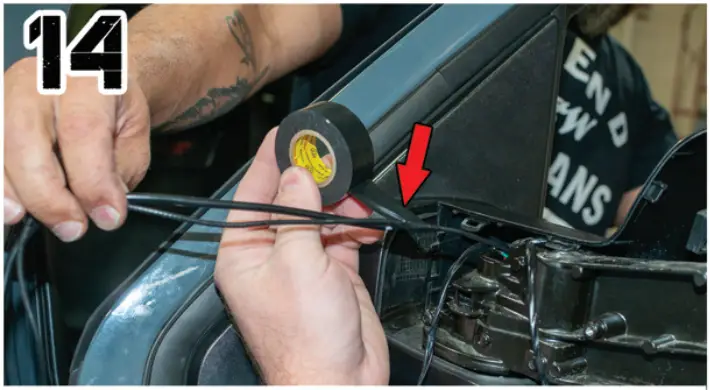

USE ELECTRICAL TAPE TO ATTACH THE ORACLE LED MODULE CABLE TO THE CABLE FROM STEP 11.
PULL THE SLACK OF THE CABLE BACK THROUGH THE DOOR HARNESS WITH THE ORACLE CABLE ATTACHED.

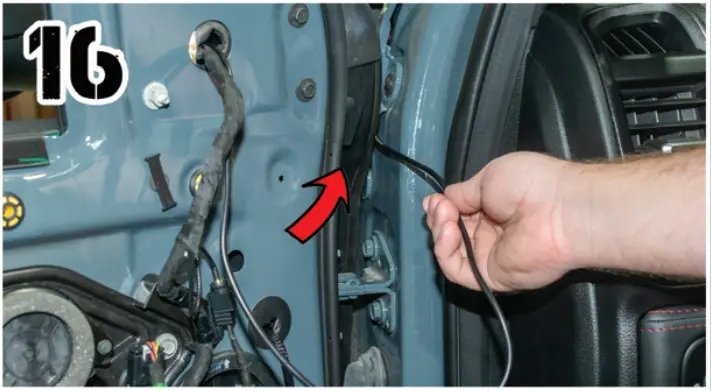

FEED THE ORACLE MIRROR POWER CABLE THROUGH THE SIDE OF THE DOOR.

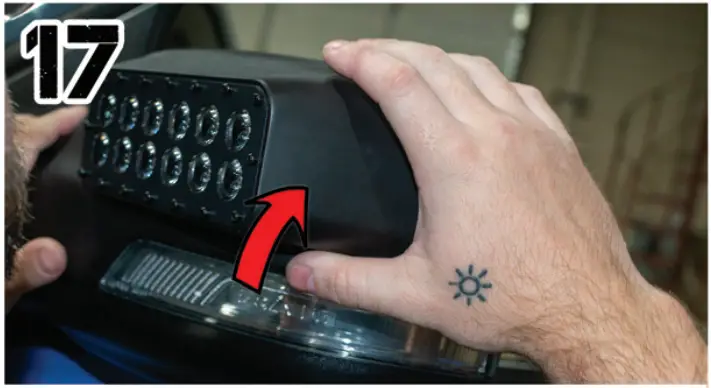

INSTALL THE ORACLE MIRROR CAP. FOLLOW STEPS 1-12 IN REVERSE.

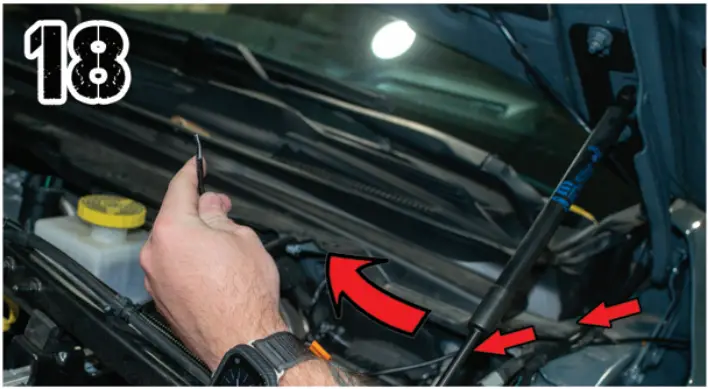

RUN POWER WIRE INTO THE ENGINE BAY. CONNECT TO DESIRED AUX SWITCH OUTPUT.
www.orclelights.com
© 2023 ORACLE LIGHTING
4401 Division St
Metairie, LA 70002
FORADDITIONAL TECHNICAL SUPPORT PLEASE CALL US 1(800)407-5776
