OB30SD17PLX1 17 Function Self Cleaning Oven
User Guide
Series 7 | Contemporary
Stainless Steel

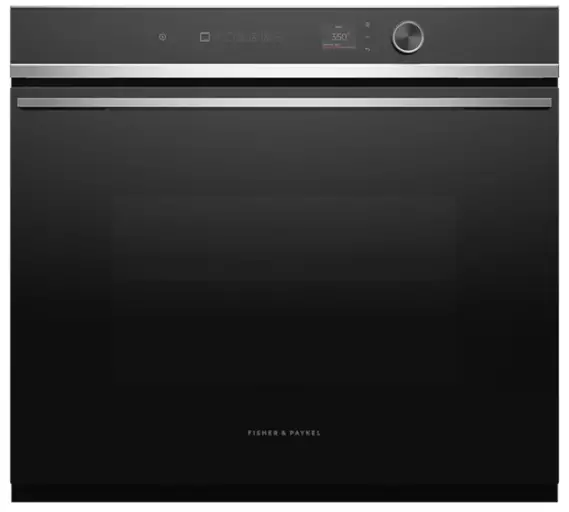

OB30SD17PLX1 17 Function Self Cleaning Oven
With beautiful Contemporary styling and a generous 4.1 cu ft total capacity capacity, this built-in oven helps to ensures that every dish you create is cooked to perfection.
- 4.1 cu ft total capacity with 17 oven functions including Air Fry and Dehydrate
- Even heat circulation with AeroTech™, ideal for multi-shelf cooking
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Guided cooking capability offers helpful tips for different food types

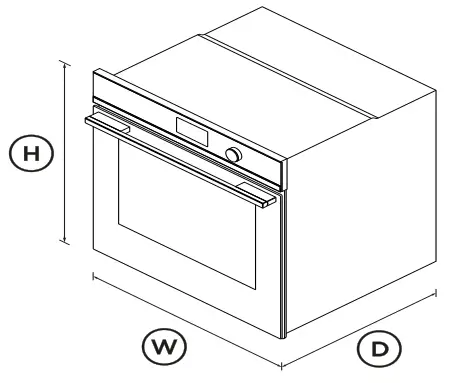

DIMENSIONS
| Height | 27 3/16″ |
| Width | 29 15/16″ |
| Depth | 23 15/16″ |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
Each function has been perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. This built-in oven has 17 functions including Pastry Bake, Roast, Fan Grill, Dehydrate and Rapid Proof, allowing you to use a variety of cooking styles.
GENEROUS CAPACITY
With an incredible 4.1 cu ft total capacity in each oven, you can create several perfectly cooked dishes at once using multiple shelves.
COOK WITH CONFIDENCE
The intuitive 2.4″ screen provides an intuitive guided cooking experience that helps to deliver perfect results, whether you’ve been cooking all your life or are just starting out. Cook by food type and allow your oven to guide you through steps, or change temperature and heat type automatically, depending on your selection.
EXCEPTIONAL PERFORMANCE
AeroTech™ circulates heat evenly for a consistent temperature throughout the cavity, helping you ensure perfect results even when cooking on multiple shelves.
SELF-CLEANING
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and detailing to support a cohesive, considered kitchen design.
SAFE AND SOUND
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Broil grid | 1 |
| Broil pan | 1 |
| Broil rack | 1 |
| Full extension telescopic | 3 sets |
| Pyrolytic proof shelf runners | • |
| Wired temperature sensor | 1 |
| Capacity | |
| Total capacity | 4.1cu ft |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Adjustable audio and display | • |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Halogen lights | • |
| Multi-language display | UK English, US English, |
| Sabbath mode with Star K | • |
| True convection oven | • |
| Turned stainless dials with | • |
| Wi-Fi connectivity | • |
| Functions | |
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Classic bake | • |
| Dehydrate | • |
| Maxi Broil | • |
| Number of functions | 17 |
| Pastry Bake | • |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Self-clean | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Broil power | 4400W |
| Power requirements | |
| Amperage | 16.6 – 19.4A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
| Product dimensions | |
| Depth | 23 15/16″ |
| Height | 27 3/16″ |
| Width | 29 15/16″ |
| Safety | |
| ADA compliant | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 82578 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
