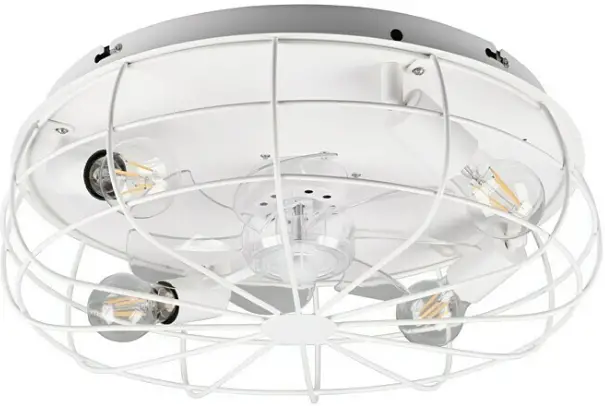

RL R610950XX, R61105032 Ventilator TRONDHEIM
INSTALLATION
SPECIFICATION
REMOTE
WARNING: Before assembling, please read carefully the safety instructions!
The fan has the following features as long as they are shown on the schematic drawing:
- The device has 2 different output levels.
- The device has 3 different output levels.
- The device has a water tank for humidifying the room air.
- The device is equipped with a touch display, which allows easy selection of the different settings.
- The device has a timer function
- The device is equipped with an oscillation function that allows the fan to oscillate with simultaneous ventilation.
- The fan may be tilted to a small extent.
- The device has a room humidifying function which contributes to an additional cooling effect.
Safety information
- Do not poke any objects or fingers through the protective screens.
- Do not place any objects, such as clothing, on the device.
- Be careful with long hair. These can be sucked in by the air flow. Keep sufficient distance.
- Keep all safety instructions and instructions for future reference.
Description of how the light works without the remote control unit
- On/Off: Light

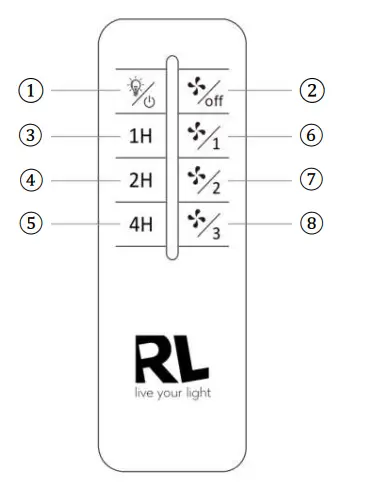

Description of how the light works with the remote control unit
- 1. On/Off: Light
Buttons for controlling the fan: - 2. Fan off
- 3. & 4. & 5. Setting working time , Timer is 1H,2H,4H
6. & 7. & 8. Fan on
The device has 3 different output levels.
Technical Information
- Power Rating: 40W
- Service Value: 0,9 (m³/min)/W
- Fan Sound Power Level: 45 // 50 // 58 dB(A)
- Max. Fan Flow Rate: 36 m³/min
- Stand By Power Consumption: 0,49 W
- Max. Air Velocity: 0,7 // 1,8 // 2,4 m/s
Reality Leuchten GmbH TRIO International Gmbh
Gut Nierhof 17 D-59757 Arnsbergg
www.reality-leuchten.de
- WEEE-Reg. Nr.: DE78273666
- TRIO Lighting Ibérica s.l.: RAEE 4544
- TRIO Lighting Italia s.r.l.: RAEE IT13020000007829
- TRIO Lighting Scandinavia Oy: WEEE PIR2005Y354114/2114
Developed in Germany by Made in PRC
