HOW TO SET UP YOUR GRIZZL-E CHARGER WITH AMP UP
Connect Grizzl-E to Wi-Fi
The following instructions are for all Grizzl-E Smart purchased January 31, 2022, and after.

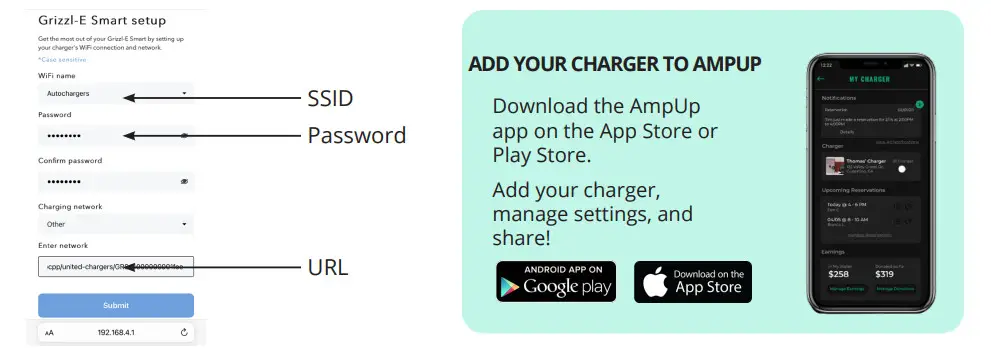

Step 1: Open the Wi-Fi Settings on your phone or desktop. Select the network UC_Smart_ [ChargerSerialin
Step 2: Open your browser page. Type in the IP address 192.168.4.1.
Step 3: Select the Wi-Fi SSID from the Wi-Fi Name field.
Step 4: Enter the Wi-Fi network password and confirm the password below.
Step 5: Select Other under Charging Network.
Step 6: Enter the following URL into the Enter Network field:
centralsystem.ampup.io/app/united-chargers/[ChargerSerial#]
Step 6: Select the Submit button.
Step 7: Verify that your device is connected. If the connection is successful the indicator light
Set Up Charger on AmpUp
 |  |  |

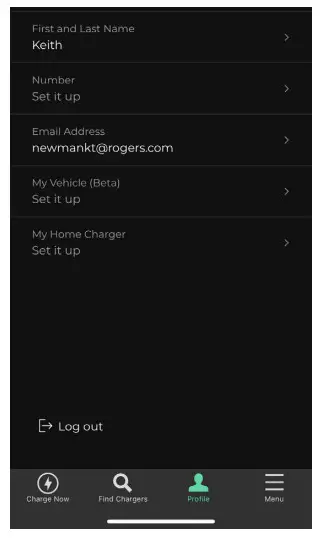

Step 1: From the home screen/login screen, select the Profile Screen.
Step 2: Select the My Home Charger field.
Step 3: Select the Add Charger button.
Step 4: Select Grizzl-E from the Charger Brand drop-down list.

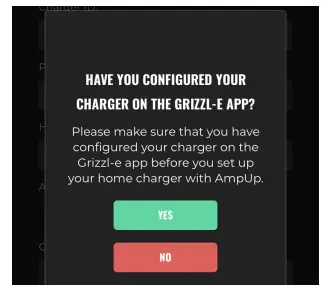

Confirm that you have configured your Grizzl-E Charger.
(Completed when the charger was connected to Wi-Fi).

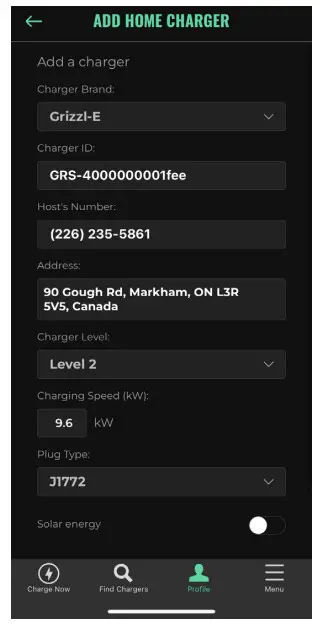

Step 5: Enter the following into Add Home Charger Form:
- Enter the Charger Serial Number in the Charger ID field.
- Enter your phone number in the Hosts Number field.
- Enter your address into the Address field.
- Select Level 2 for Charger Level
- Enter the Charging speed based on the units DIP Switches: 9.6kW for 40A, 7.7kW for 32A, 5.8kW for 24A, 3.8kW for 16A
- Select J1772 for Plug Type.
Step 6: Select the Next button.
Step 7: Review the information and select the Confirm button.
www.ampup.so
[email protected]
833-692-6787
