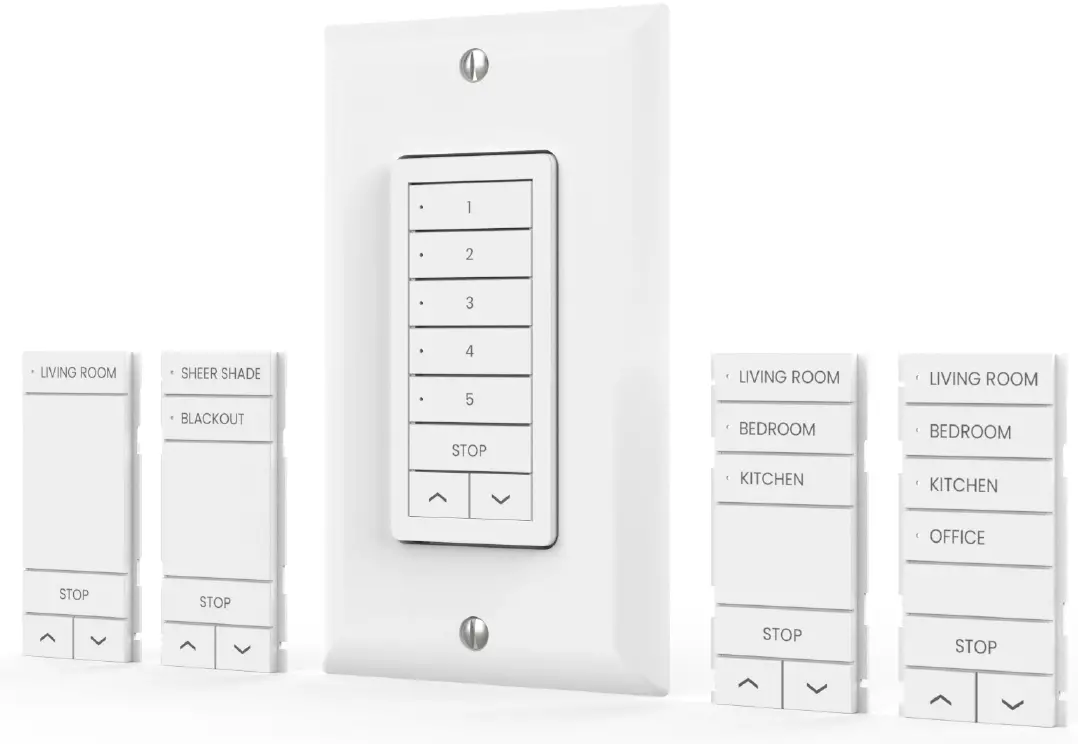

AUTOMATE MTRF-WS-15 5-Inch Decorator Wall RF Switch
The contemporary designed Automate 5CH Decorator Wall RF Switch (Flush) is perfect for internal motorized commercial shade applications which simply attaches to the wall (no cut-in) for easy installation. The button design can be customized to suit specific project requirements
FEATURES
CONFIGURABLE CHANNELS
Default five channels available to control individual shade or groups of shades.
REMOVABLE CONTROL PANEL
The inner control can be removed and act as a hand held device if required.
COVER PLATE
Available with two decorative plate options, one magnetic which allows the controller to be removed and used anywhere and one fixed offering a wall switch controller
RETROFIT
Easily attaches to the wall with no wiring required

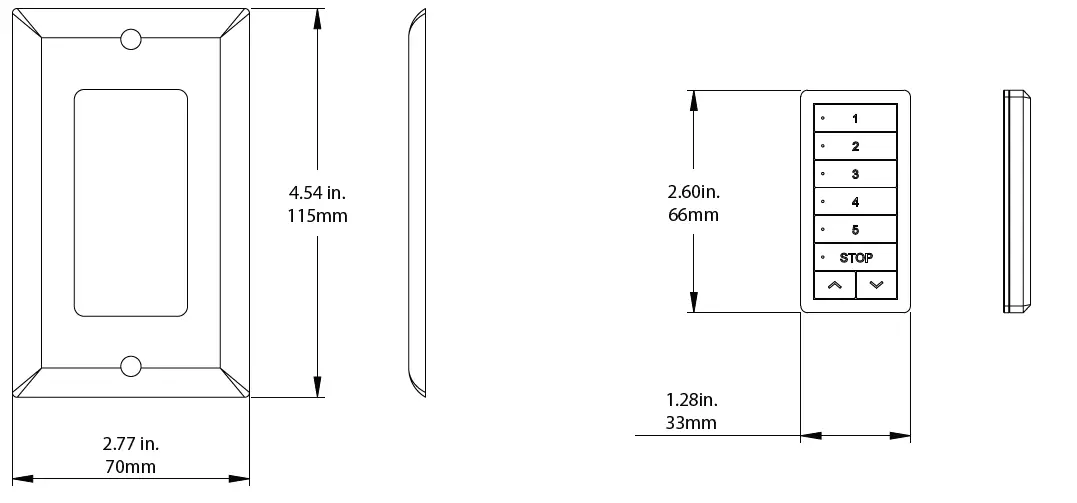

PRODUCT SPECIFICATIONS
Part #: MTRF-WS5-FLUSH – RF White 5CH Decorator Wall RF Switch (Flush)
| Voltage | 3V (CR2430) | Transmission Distance | up to 100m* |
| Radio Frequency | 433.92 MHz | up to 328 ft* | |
| Transmitting Power | 10 milliwatt | RF Modulation | FSK |
| Operating Temperature | -10°C to 50°C | Temp Working Range | Yes |
| 14°F to 122°F | IP Rating | 4X | |
| Legacy Option | NO |
APPLICATIONS
- Roller Shade
- Roman Shade
- Awning Shade
- Venetian Shade
- Curtain Shade

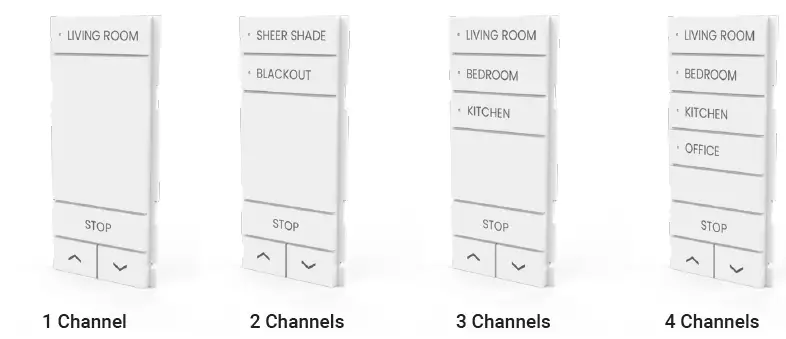

CUSTOMIZABLE FRAME BUTTON
- Part #: MT02-0202-069011 – 4CH Button Frame Kit for Flush Switch – Printed
- Part #: MT02-0202-069012 – 3CH Button Frame Kit for Flush Switch – Printed
- Part #: MT02-0202-069013 – 2CH Button Frame Kit for Flush Switch – Printed
- Part #: MT02-0202-069014 – 1CH Button Frame Kit for Flush Switch – Printed
