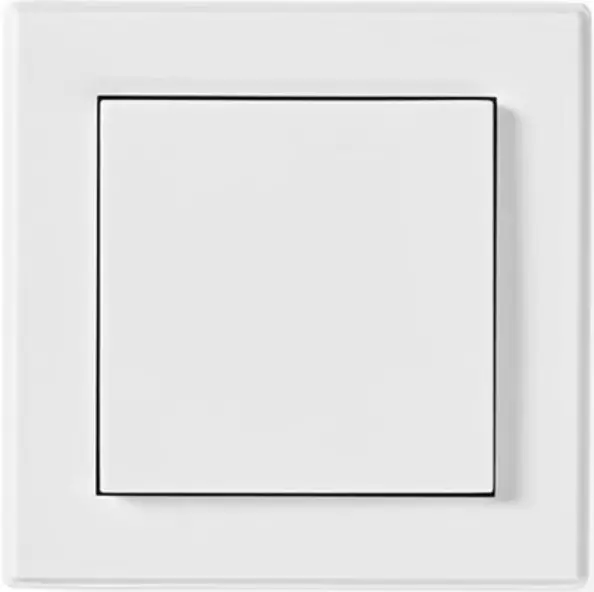

nedis RFWS10WT RF Smart On Wall Switch

RF Smart On Wall Switch
For more information see the extended manual online: ned.is/rfws10wt I ned.is/rfws20wt

Intended use

The Nedis RFWS10WT I RFWS20WT is a wireless on wall switch for Nedis RF Smart Products. The product is exclusively intended for switching Nedis RF Smart products on or off. The product is intended for indoor, domestic use only. Any modification of the product may have consequences for safety, warranty and proper functioning.

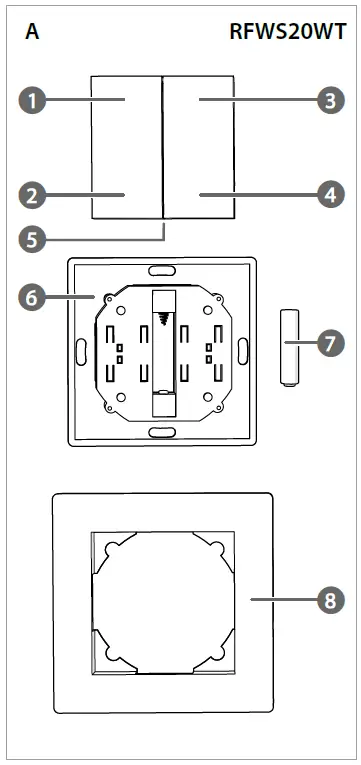

Main parts

On button channel 1
Off button channel 1
On button channel 2
Off button channel 2
Switch cover
Frame
Battery
Base plate

Safety instructions

WARNING

Only use the product as described in this manual.
Read the manual carefully before use. Keep the manual for future reference.
Do not use the product if a part is damaged or defective. Replace a damaged or defective device immediately.
Do not drop the product and avoid bumping.
Do not expose the product to water or moisture.
Do not use the product in damp places like patios and cellars or near flammable liquids such as solvents or paints.
For battery safety, consult the manual of the batteries.

Pairing to a Nedis RF Smart Product

Pair the Nedis RF Smart products before you install the product on a wall.

Hold the product close to a Nedis RF Smart product.
Activate the pairing mode on the Nedis RF Smart product (see the manual of the Nedis RF Smart product in question).
Press On button channel 1 A1 to pair the Nedis RF Smart product to channel 1 of the product.
For , repeat step 1 to 3 for A3 to pair a Nedis RF Smart product to channel 2.

A receiver can be paired to up to 5 different transmitters.
Do not pair two dimmable receivers or a dimmable and an on/off receiver to the same channel of a transmitter.

Installing the product

Keep a distance of at least 1 m between your Nedis RF Smart products.

Remove the switch cover A5.
Remove the frame A6.
Attach the base plate A7 to a wall.
Place back A6.
Place back A5.

Using the product

When the Nedis RF Smart product is connected to channel 1, you can control the product with A1 or A2.

For channel 1:

Press A1 to switch on the connected Nedis RF Smart product.
Press A2 to switch off the connected Nedis RF Smart product.

Controlling the light level of a dimmable lamp

Press A1 to switch on the lamp.
Press A1 again. The lamp will automatically decrease and increase in brightness.
Press A1 to select the desired brightness.

Specifications

Product	RF Smart On Wall Switch	RF Smart On Wall Switch
Article number	RFWS10WT	RFWS20WT
Transmission channels	1	2
Max. radio transmit power	10 dBm
Frequency	433.92 MHz (±150k)
Range	30 m
Battery	12V – 23A Alkaline
Working temperature	-10 – 40 °C
Humidity	0 % – 80 %

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product RFWS10WT I RFWS20WT from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: webshop.nedis.com/rfws10wt#support webshop.nedis.com/rfws20wt#support
For additional information regarding the compliance, contact the customer service:
Web: www.nedis.com
E-mail: [email protected]
Phone: +31 (0)73-5991055 (during office hours) Nedis B.V., de Tweeling 28
5215 MC ’s-Hertogenbosch, the Netherlands
