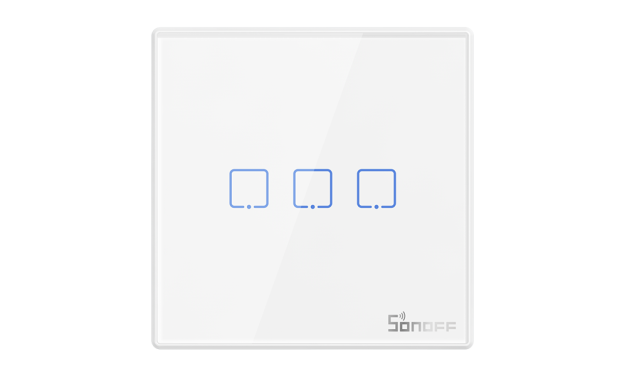

SONOFF TXT2EU-RF 433MHz Wireless Stick-on Smart Wall Switch

SONOFF-TXT2EU-RF-433MHz-Wireless-Stick-on-Smart-Wall-Switch-PRO

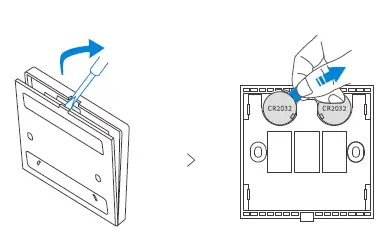

Pull out the battery insulation sheet

SONOFF-TXT2EU-RF-433MHz-Wireless-Stick-on-Smart-Wall-Switch-FIG-1

WARNING: The device has a version with a battery and without a battery.

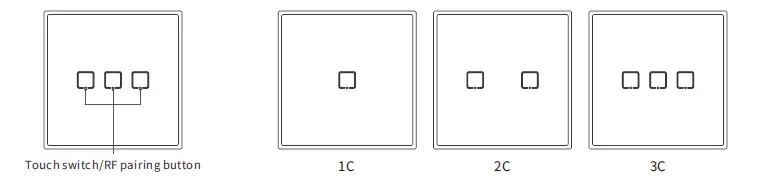

Product Introduction

  • This device is used with SONOFF TX Wi-Fi smart wall switches (with 433MHz) together, and also works with other 433MHz smart devices.

SONOFF-TXT2EU-RF-433MHz-Wireless-Stick-on-Smart-Wall-Switch-FIG-2

WARNING: The device only supports pairing one button at a time. Please refer to the switch user manual for the RF pairing and clearing method.

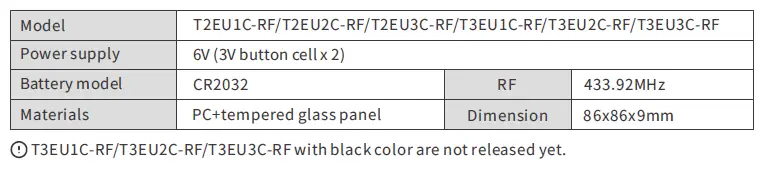

Product Specification

SONOFF-TXT2EU-RF-433MHz-Wireless-Stick-on-Smart-Wall-Switch-FIG-3

Supported SONOFF Devices

  • RFR2
  • BASICRFR3
  • SlampherR2
  • 4CHPROR3
  • TX EU/UK/US Wi-Fi smart wall switches (with 433MHz) series

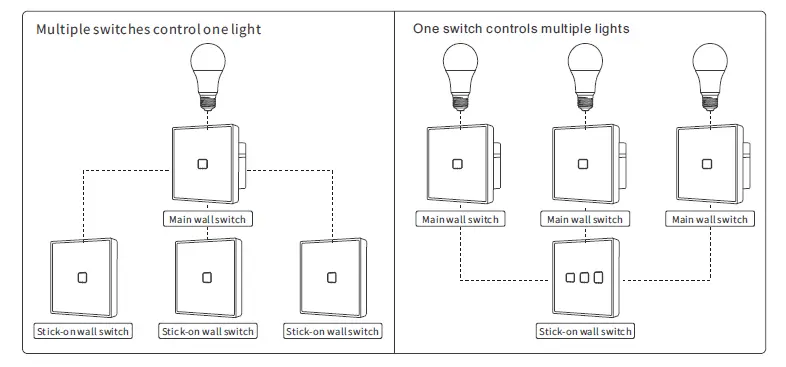

Control Ways

SONOFF-TXT2EU-RF-433MHz-Wireless-Stick-on-Smart-Wall-Switch-FIG-4

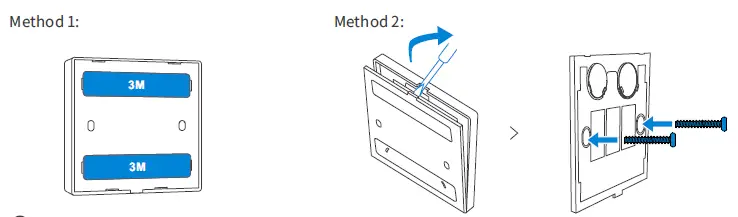

Installation Method

SONOFF-TXT2EU-RF-433MHz-Wireless-Stick-on-Smart-Wall-Switch-FIG-5

WARNING: The device’s weight is less than 1kg. The installation height of less than 2m is recommended

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
