Quick Installation Guide v2.0
Wi-Fi Smart Wall Switch

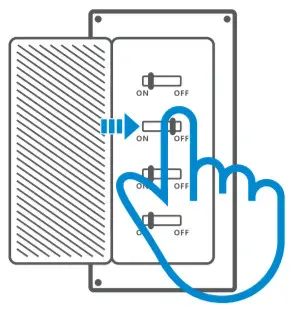

Power off
To avoid electric shocks, please consult the dealer or a qualified professional for help when installing and repairing.

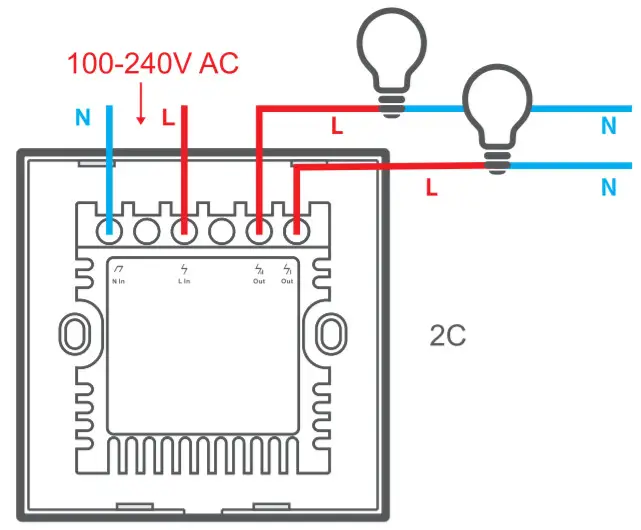

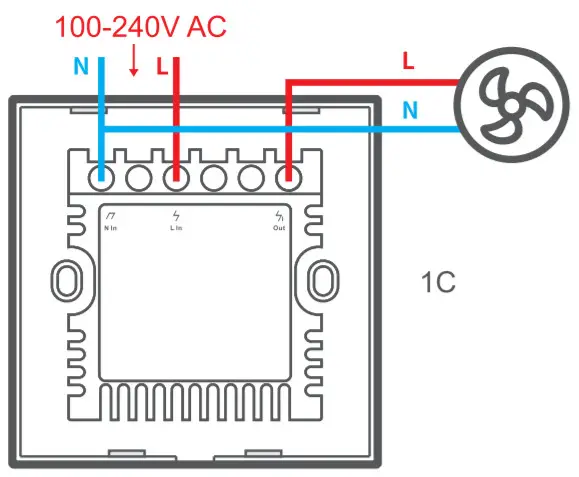

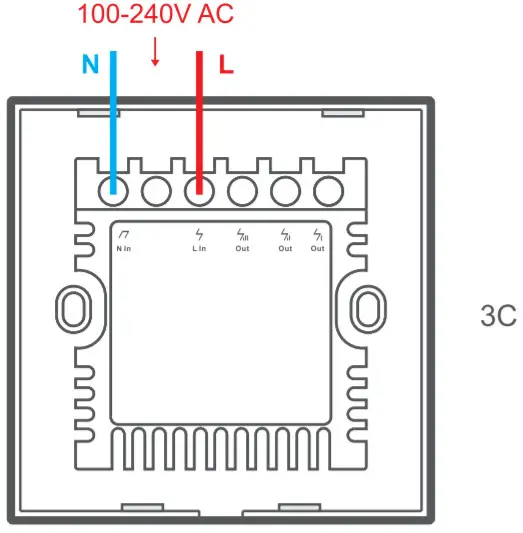

Wiring instruction
 |  |  |
| Neutral input | Live input | Live output |
| Light fixture wiring instruction | Appliance wiring instruction |
 |  |
Make sure the neutral wire and live wire connection are correct.
Download APP
Power on
After powering on, the device will enter the quick pairing mode (Touch) during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.
The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you want to enter this mode, please long press any configuration button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

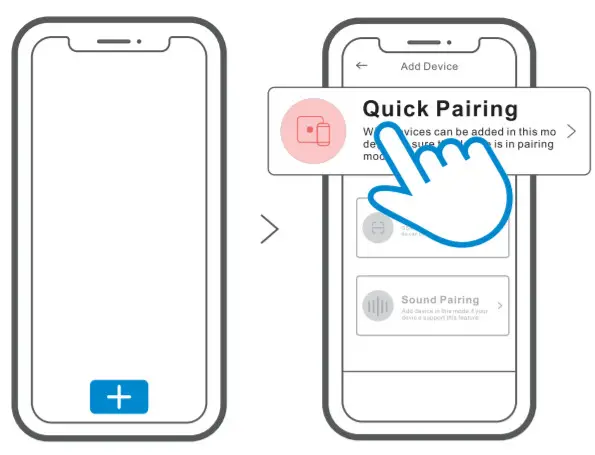

Add the device
User Manual
https://www.sonoff.tech/usermanuals
Scan the QR code or visit the website to learn about the detailed user guide.
Scan the QR code to read the voice control instruction for Amazon Echo and Google Home.
Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type S31/S31 Lite is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://sonoff.tech/usermanuals
TX Frequency: WiFi:2412-2472MHz
RX Frequency: WiFi: 2412-2472MHz
RF Output Power: 13.86dBm
Shenzhen Sonoff Technologies Co., Ltd.
1001, BLDG8, Lianhua Industrial Park, Shenzhen, GD, China
ZIP code: 518000
Website: sonoff.tech
MADE IN CHINA
