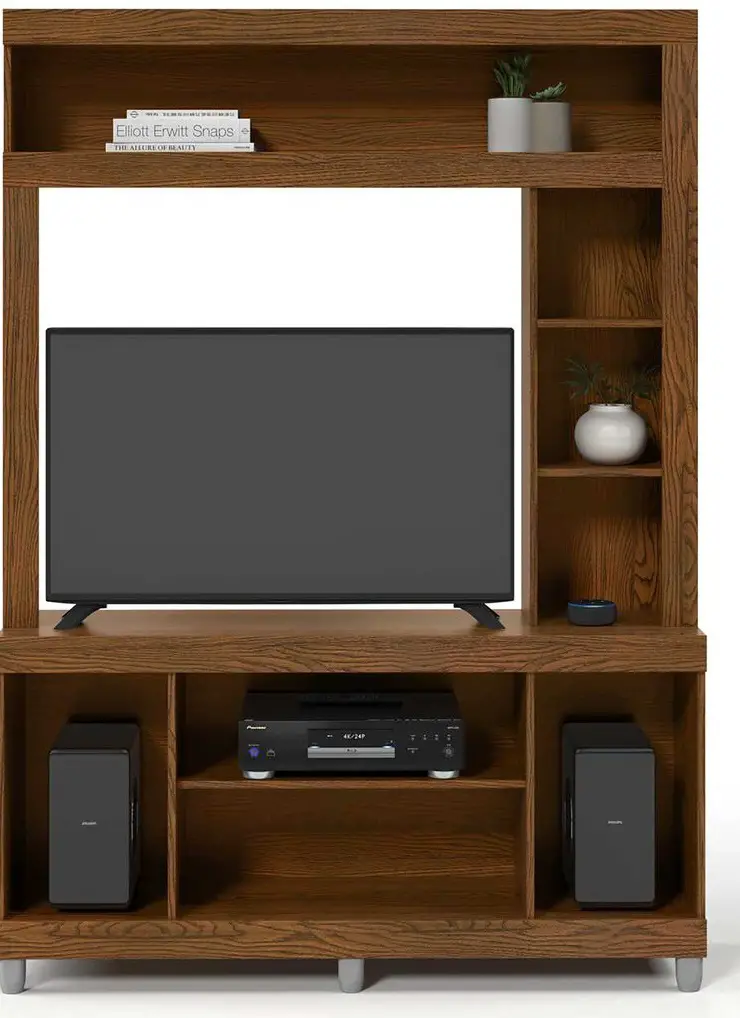

Rodler RD592 Rack Panel TV Instruction Manual

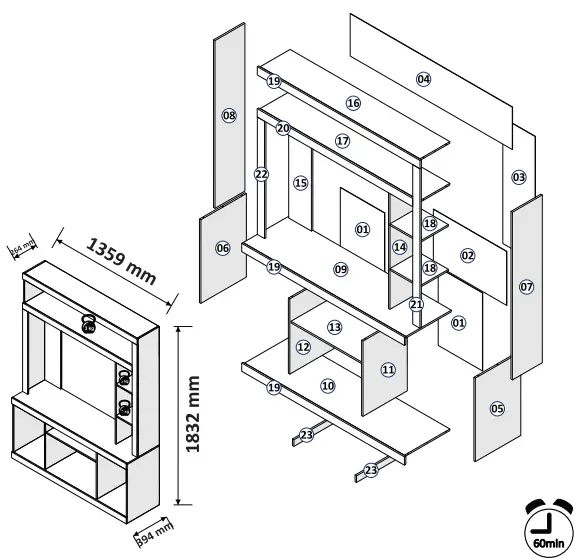

Detailling

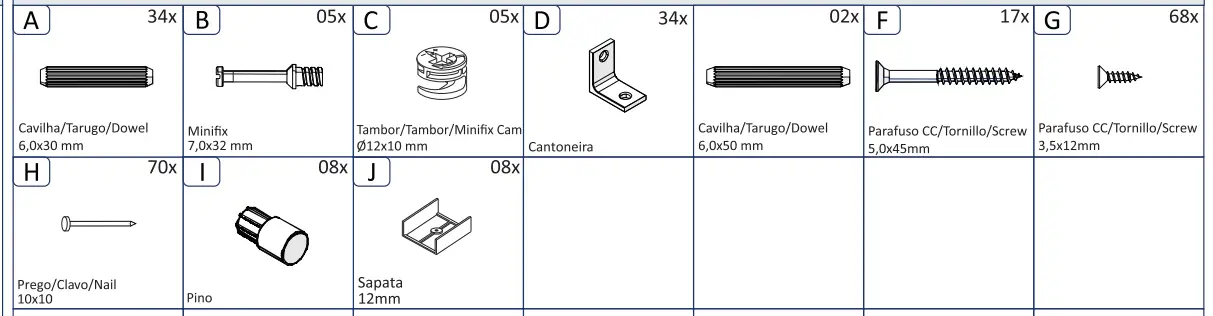

Hardware
| Dimensbes (mm) | ||||
| Description | Comp. | Larg. | Esp. | Qtd |
| Background | 370 | 565 | 2,5 | 2 |
| Background | 612 | 390 | 2,5 | 1 |
| Background | 910 | 270 | 2,5 | 1 |
| Background | 1365 | 257 | 2,5 | 1 |
| Lower Right Side | 605 | 380 | 12 | 1 |
| Lower Left Side | 605 | 380 | 12 | 1 |
| Upper Right Side | 1215 | 250 | 12 | 1 |
| Upper Left Side | 1215 | 250 | 12 | 1 |
| Cover | 1360 | 380 | 12 | 1 |
| Base Top | 1335 | 380 | 12 | 1 |
| Right Divider | 545 | 370 | 12 | 1 |
| left divider | 545 | 370 | 12 | 1 |
| Bigger Shelf | 600 | 360 | 12 | 1 |
| Upper Divider | 900 | 250 | 12 | 1 |
| Bottom platter | 900 | 250 | 12 | 1 |
| Top Top | 1335 | 250 | 12 | 1 |
| Intermediate Top | 1335 | 250 | 12 | 1 |
| Smaller Shelf | 250 | 250 | 12 | 2 |
| Front Tray | 1360 | 60 | 12 | 3 |
| Front Tray | 1300 | 60 | 12 | 1 |
| Front Tray | 1155 | 60 | 12 | 1 |
| Front Tray | 850 | 60 | 12 | 1 |
| Baseboard | 380 | 48 | 12 | 2 |
WARRANTY TERM This warranty shall be applied within the time limits specified herein, by presentation of this certificate and invoke. The warranty time shall be ninety (90) days, as provided in article 26 of the Consumer Code, as of the effective delivery of the product, provided that normal conditions of use and conservation are observed. This warranty covers manufacturing flaws.

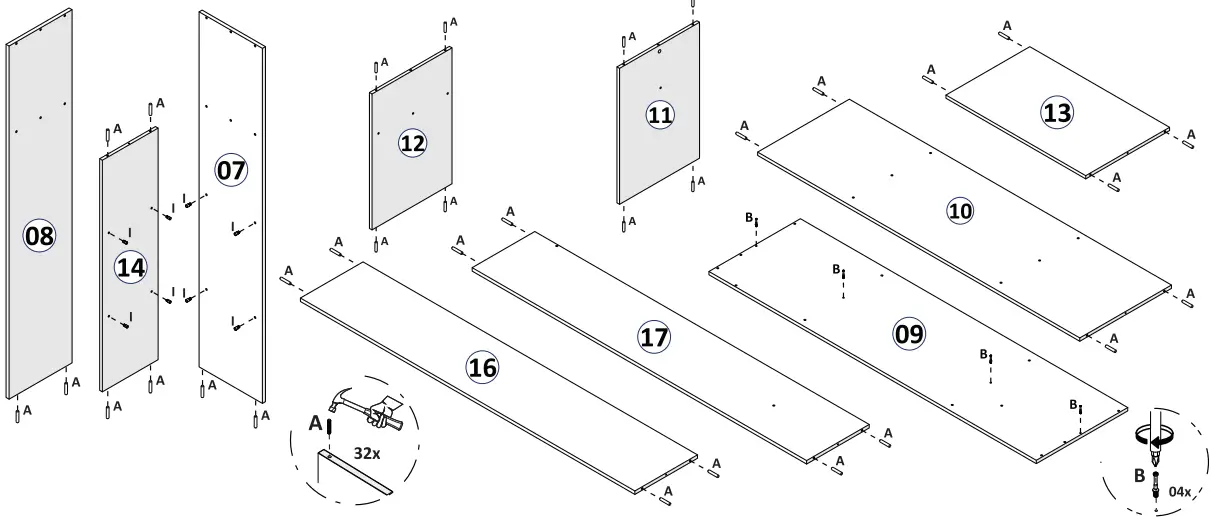

Parts

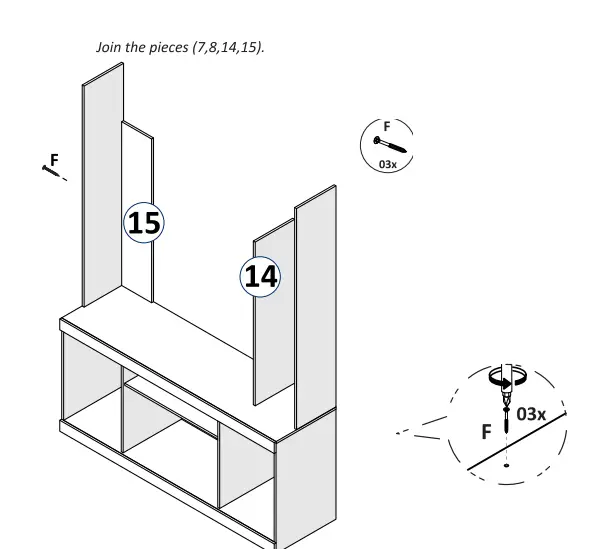

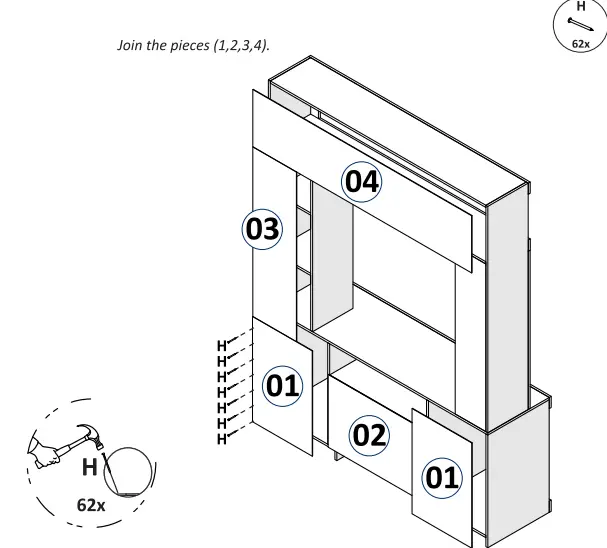

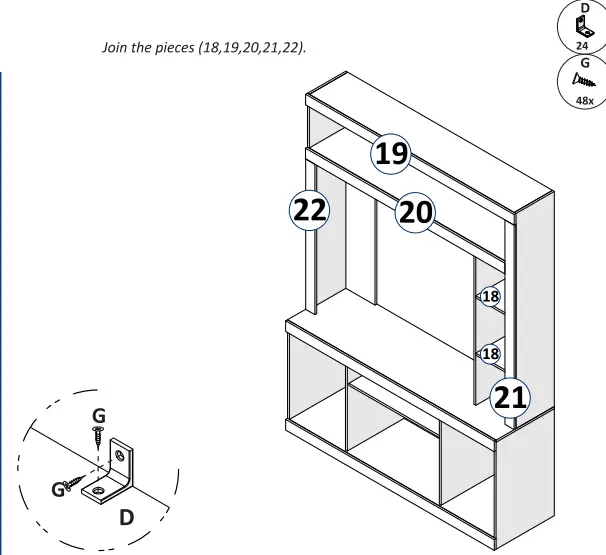

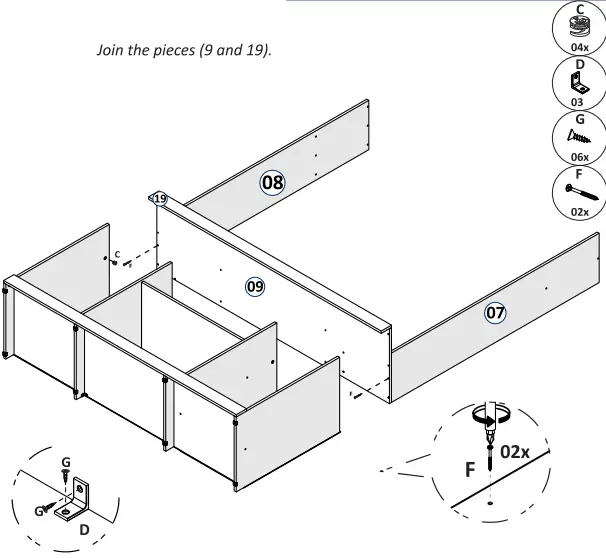

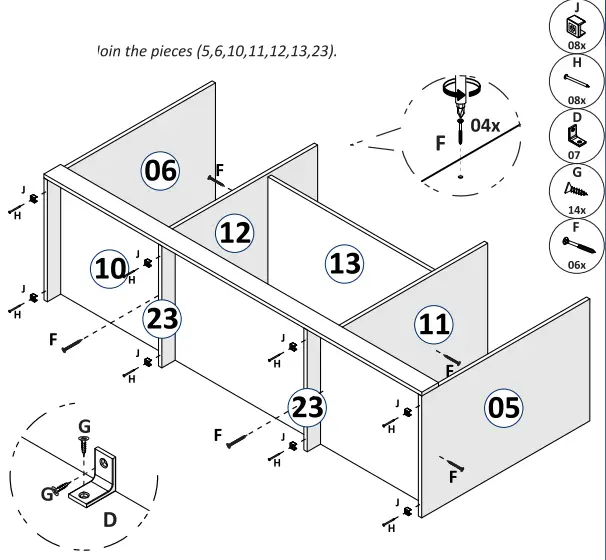

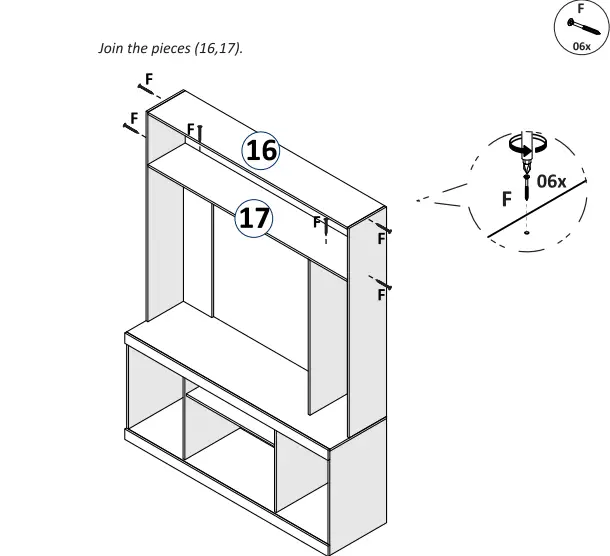

Assembly Instruction
