3370 IA TV Cabinet
Instruction Manual
Notice de montage
Assembling instructions Montageanleitung
3370 IA (Prod Ref.)

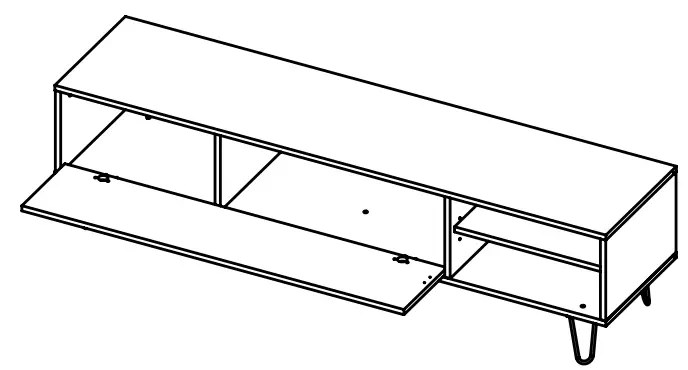

Meuble TV AERO 1650 x 400 x 432
3370 IA TV Cabinet

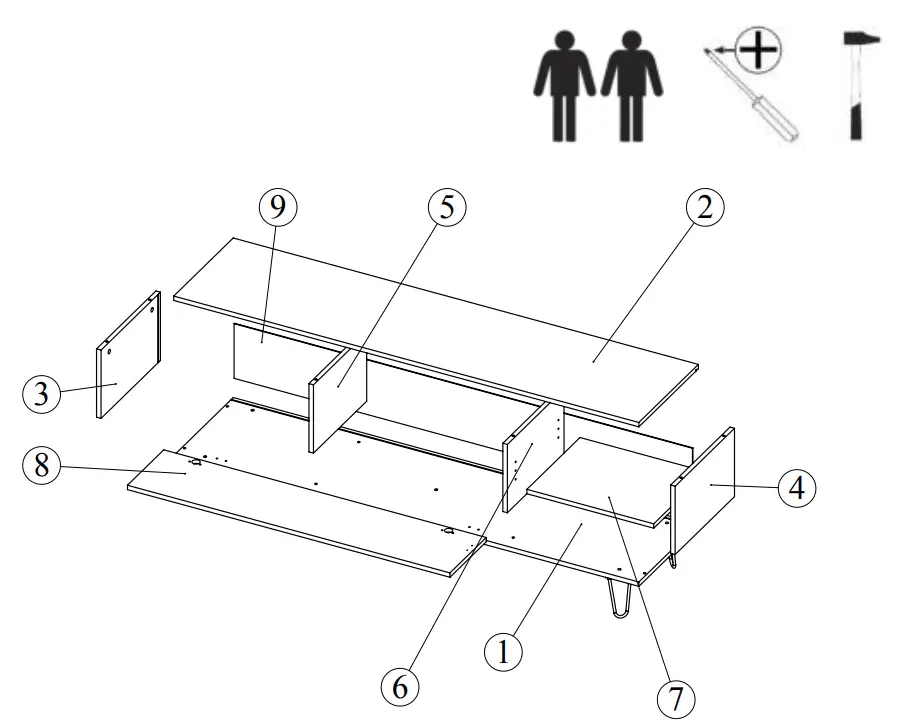

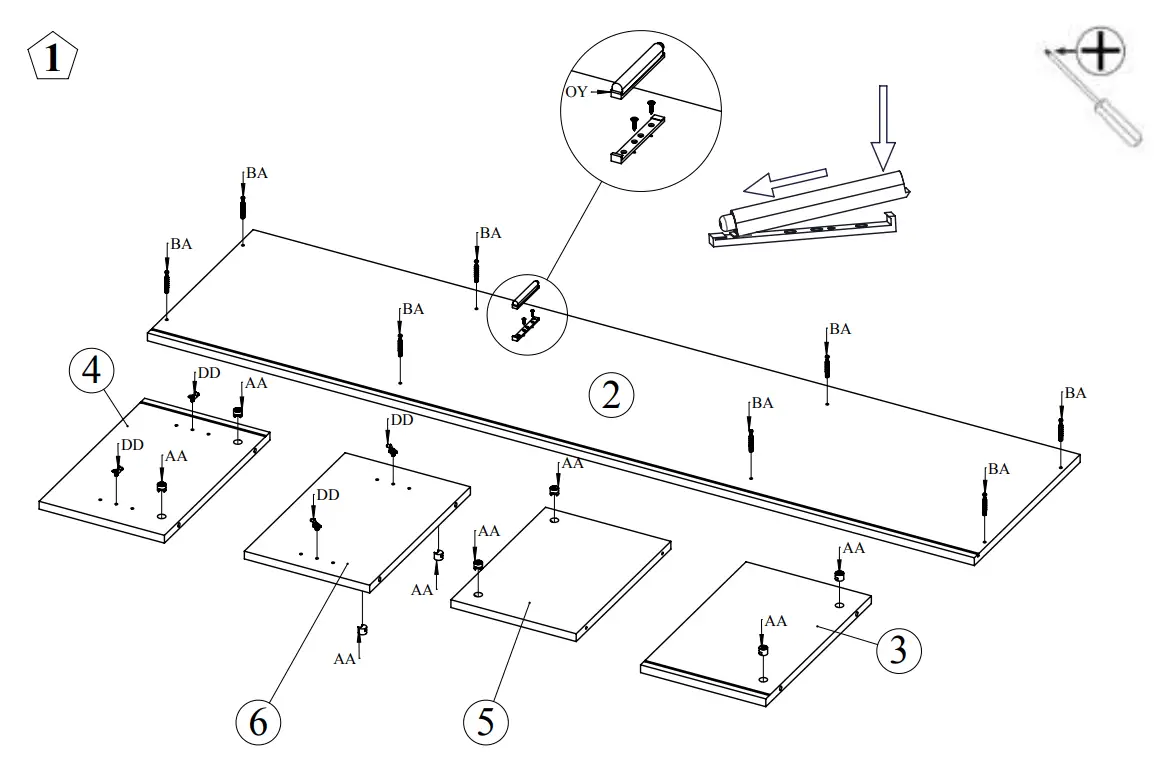

| N° Pièce | Qte | Dimensions |
| 1 | 1 | 1650 x 400 x 16 |
| 2 | 1 | 1650 x 400 x 16 |
| 3 | 1 | 250 x 399 x 16 |
| 4 | 1 | 250 x 399 x 16 |
| 5 | 1 | 250 x 358 x 16 |
| 6 | 1 | 250 x 381 x 16 |

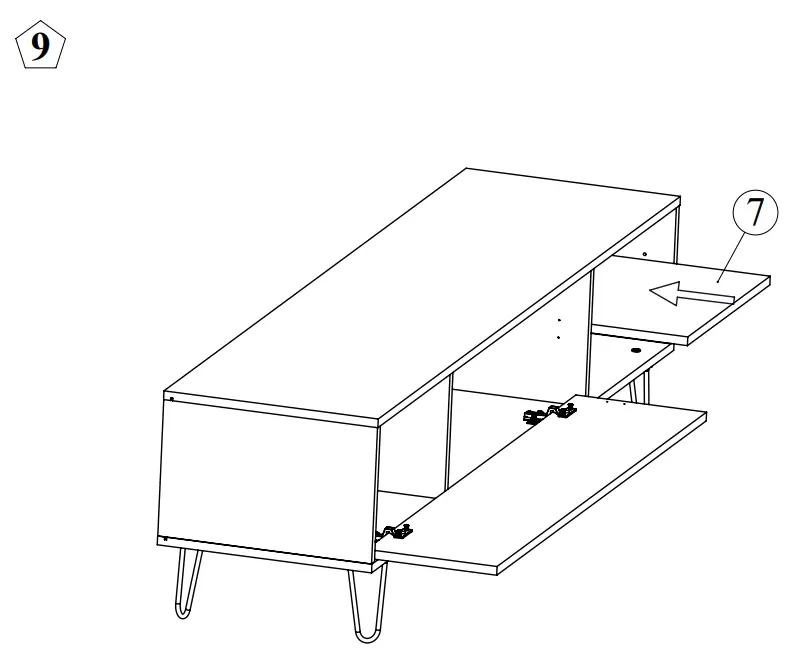

| 7 | 1 | 450 x 357 x 16 |
| 8 | 1 | 1144 x 244 x 16 |
| 9 | 1 | 1626 x 200 x 3 |
| Code | QTE | Image |
| AA | 8 |  |
| BA | 8 |  |
| FI | 5 |  6.3×13.5 mm |
| CA | 8 |  6.3×50 mm |
| GB | 7 |  3x20mm |

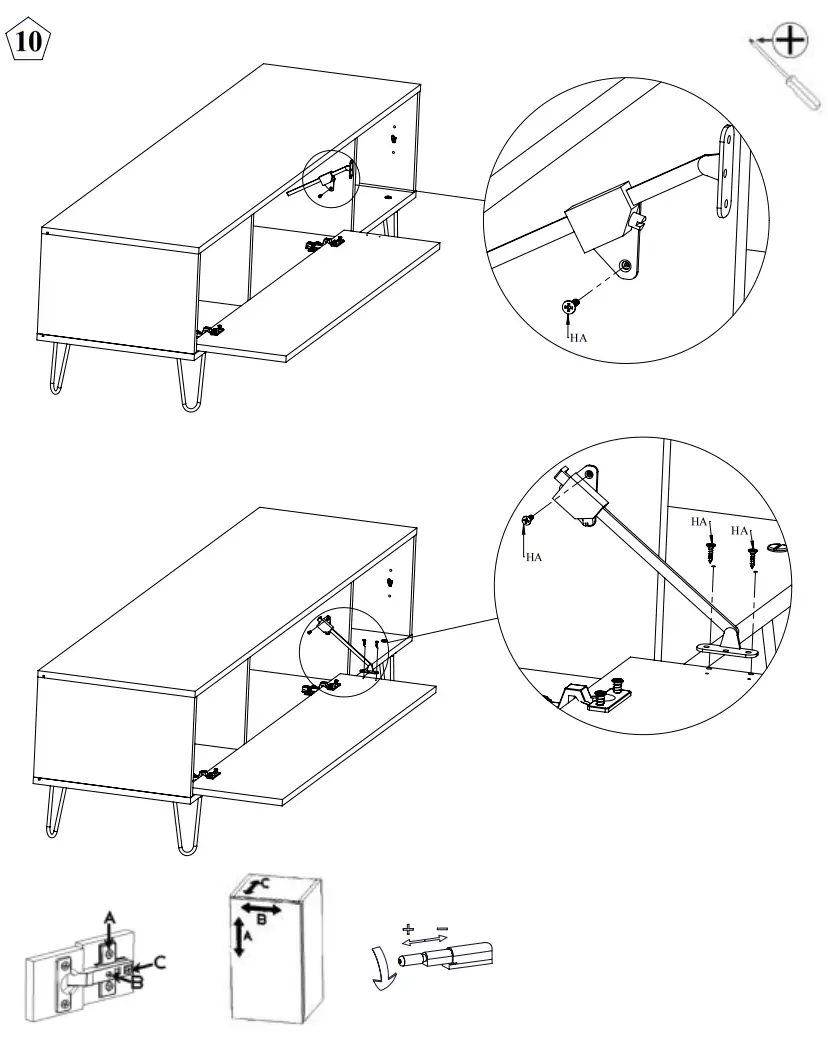

| HA | 4 |  3.5×15 mm |
| DD | 4 |  |
| KC | 2 |  |
| KL | 2 |  |
| NU | 5 |  |
| UE | 1 |  |
| OA | 2 |  |
| OB | 5 |  |
| OY | 1 |  |
| RV | 5 |  |
| AN | 5 |  8×15 mm |
| IJ | 10 |  4×15 mm |
| EDC | 5 |  |
| Clef | 1 |  |
| Code | QTE | Image |
| AA | 8 | |
| DD | 4 | |
| BA | 8 | |
| OY | 1 | |

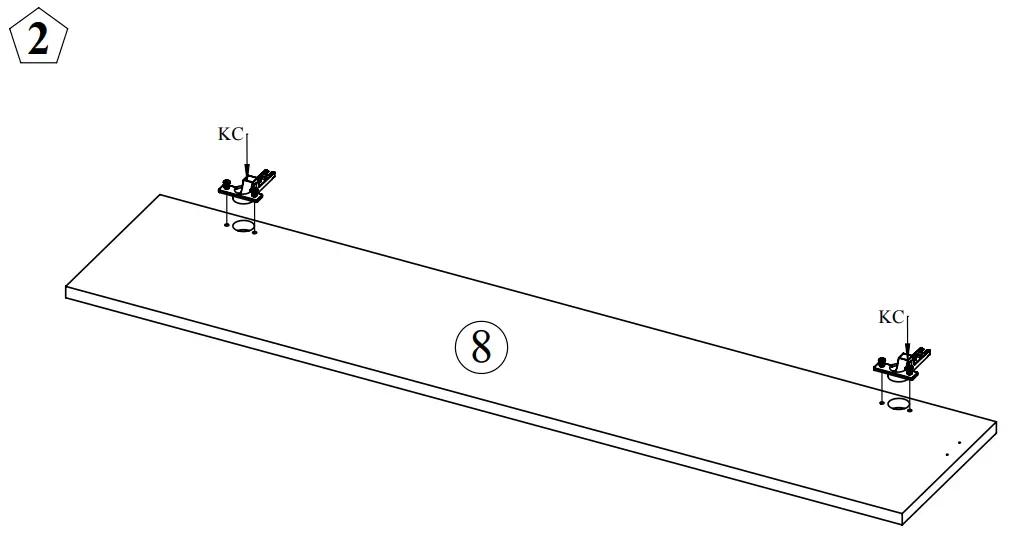

| Code | QTE | Image |
| KC | 2 | |

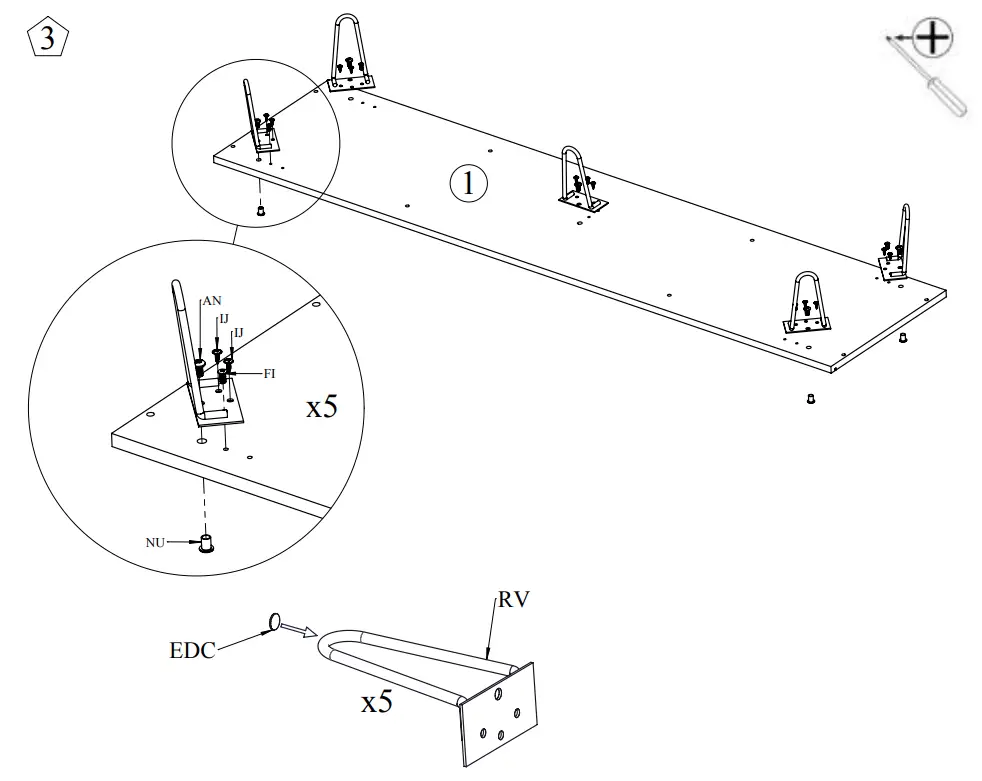

| Code | QTE | Image |
| NU | 5 | |
| FI | 5 | 6.3×13.5 mm |
| RV | 5 | |
| AN | 5 | 8×15 mm |
| IJ | 10 | 4×15 mm |
| EDC | 5 | |

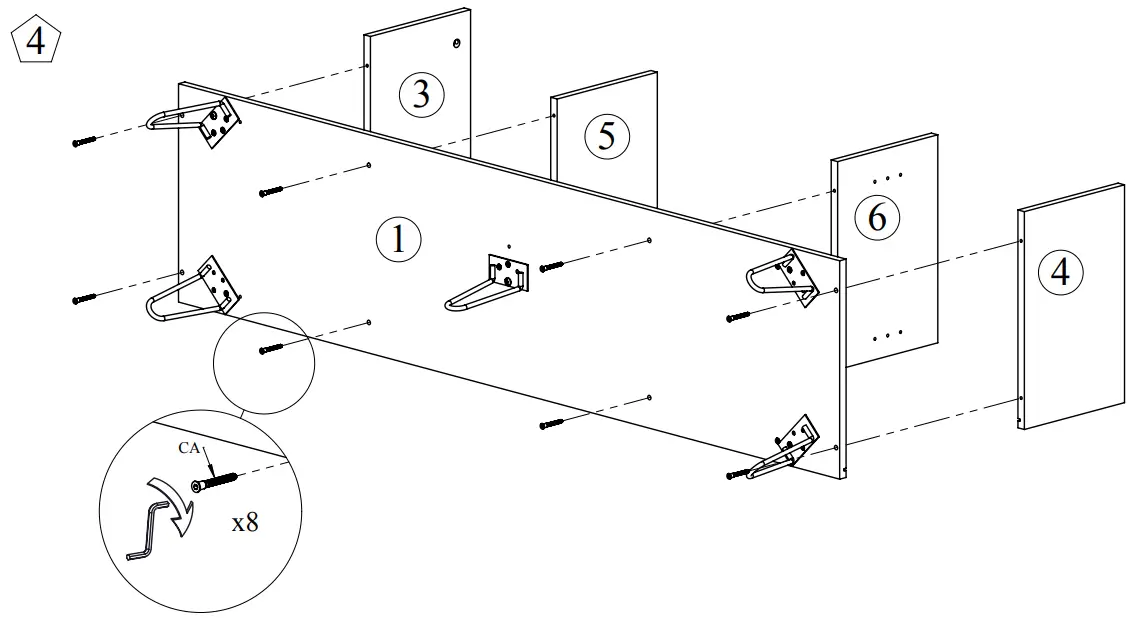

| Code | QTE | Image |
| CA | 8 | 6.3×50 mm |
| Code | QTE | Image |

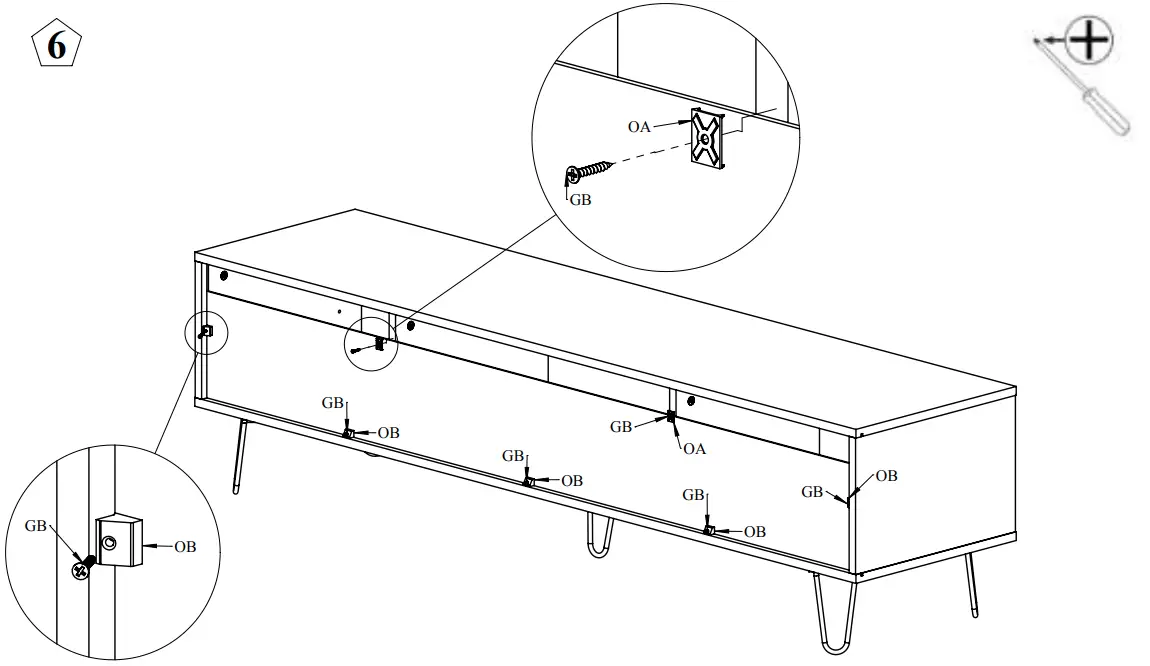

| OA | 2 | |
| OB | 5 | |
| GB | 7 | 3×20 mm |

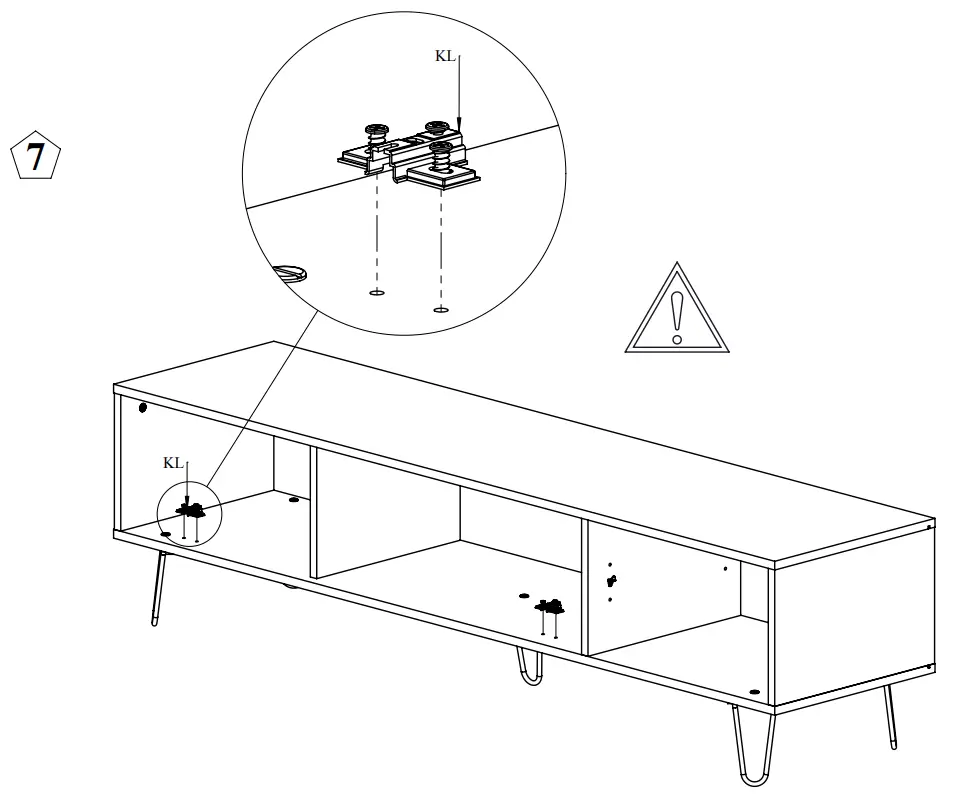

| Code | QTE | Image |
| KL | 2 | |
CARE AND CLEANING INSTRUCTIONS
Wash the surfaces with a soft cloth damped in a mild soap solution (max 1%).
NOTE! Do not use cleaners containing alcohol or abrasives.
Wipe the surface dry with a soft cloth.
Assistance / Help / Hilfe > email: [email protected]
Avec/with/mit Prod.Ref + N° Pièce/Part/ Teile
Symbiosis SAS
7 rue des vernaies 74230 Thônes
