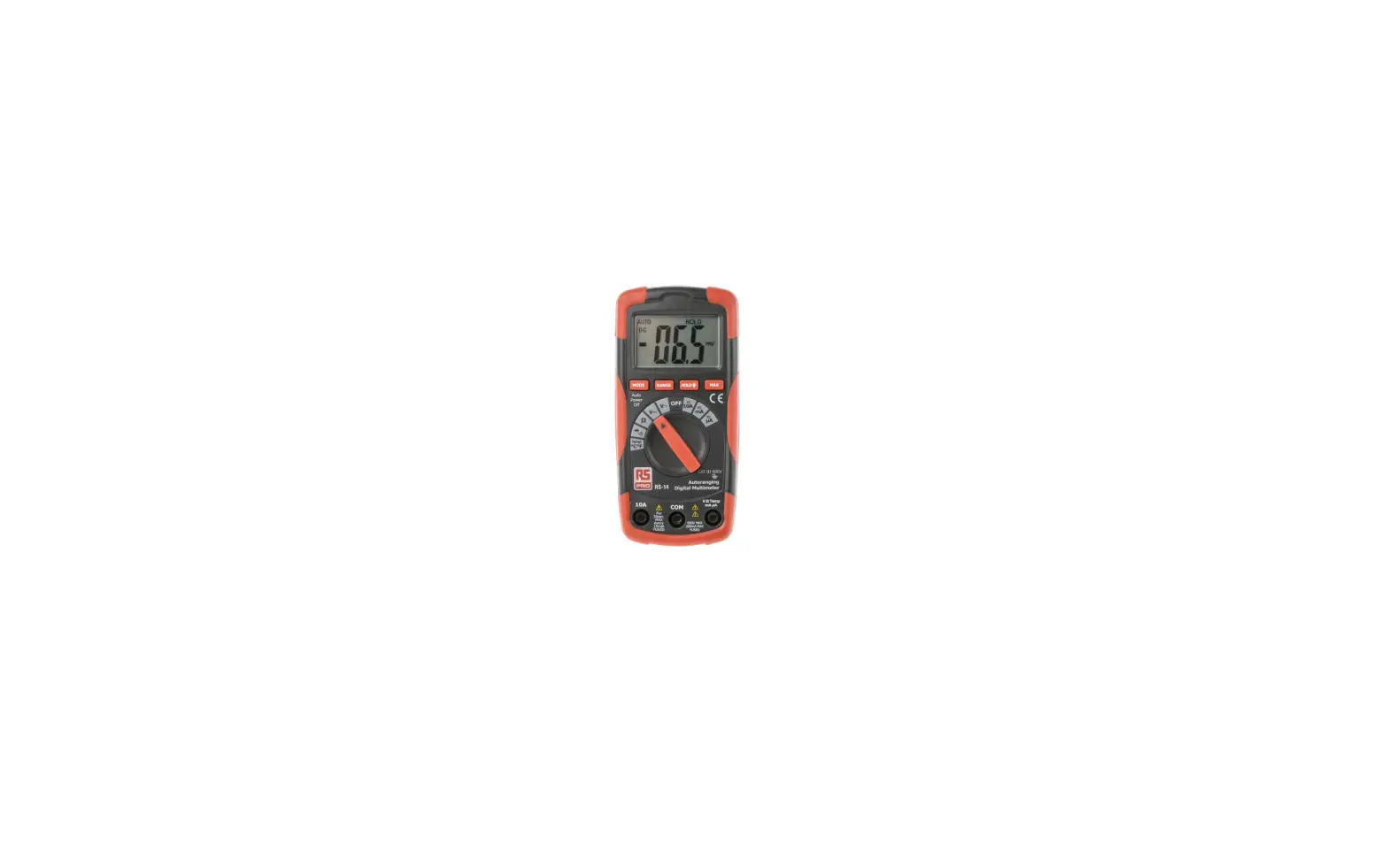

RS PRO RS14 Handheld Digital
RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
FEATURES
- Compact and handheld
- Digital 2000 count LCD display
- 3-year warranty
- 104 x 70 x 48mm dimension
- Continuity tester
- Functions measured: AC and DC Current, AC and DC Voltage, Resistance, Temperature Measurement
Product Description

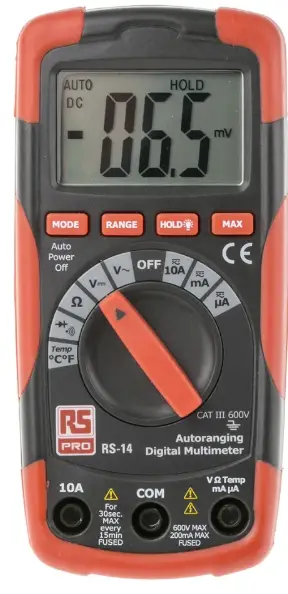

RS PRO RS14 Digital Multimeter
The RS PRO RS14 digital multimeter (DMM) is a handheld tool which can measure capacitance, voltage, electrical current and resistance with diode and continuity check. There is also a “hold” function available in the compact design making it very user-friendly. The multimeter is also CAT III rated for 600V.
General Specifications
| Model Number (p) | RS14 |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
| True RMS | NO |
| Display Type | LCD |
| Operating Temperature (Min to Max) | 0 °C to 50 °C (32 °F to 122 °F) at < 70 % relative humidity |
| Storage Temperature (Min to Max) | -20 °C to 60 °C (-4 °F to 140 °F) at < 80 % relative humidity |

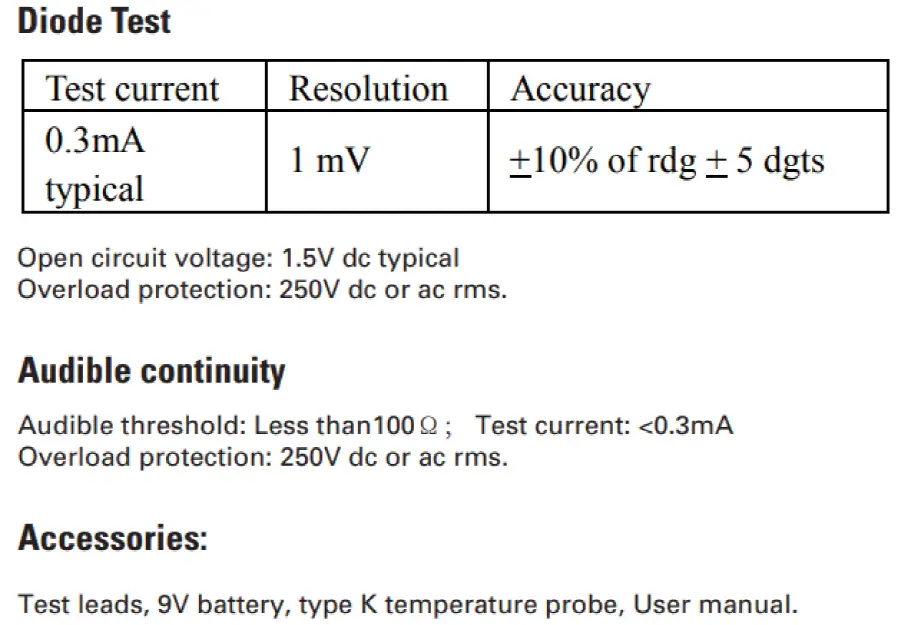

| Diode Test | Yes |
| Continuity Test | Yes |
| Auto power off | Yes，/ Approx. 15 minutes after last operation |
| Insulation | Class2, Double insulation. |
Measurement
| Type | Absolute Maximum Measurement | Resolution | Best Accuracy |
| DC Current | 10A dc | 0.1µA | ±1% ± 3 Digits |
| AC Current | 10A ac | 0.1µA | ±1.5% ± 5 Digits |
| Resistance | 20MΩ | 100MΩ | ±1% ± 2 Digits |
| DC Voltage | 600V dc | 0.1mV dc | |
| AC Voltage | 600V ac | 0.1mV ac | ±1.2% ± 3 Digits |
| Temperature | +1000 °C, +1832 °F | 1 °C, 1 °F | ±3% + 8 Digits, ±3% ± 5 Digits |
| Frequency | 60Hz |
Electrical Specifications
| Battery Type | IEC 6F22, NEDA 1604, 9V |
| Safety Category Voltage | 600 V, 1000 V |

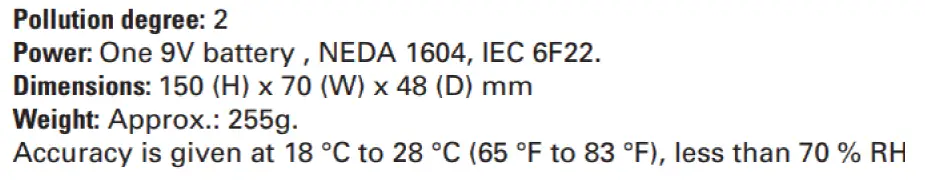

Mechanical Specifications
| Dimensions | 70 x 48 x 150mm |
| Width | 48mm |
| Length | 70mm |
| Height | 150mm |
| Weight | 255g |
Protection Category
| Safety Category Level | CAT III |
Approvals
| Declarations | RoHS Certificate of Compliance |
Similar Products
| Stock No. | Brand | Product Name | Multimeter Type | Functions Measured | Digit Resolution |
| 124-2010 | RS PRO | IDM505 Handheld Digital Multimeter With RSCAL calibration | Handheld | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature | |
| 161-1629 | RS PRO | Handheld Digital Multimeter | Handheld | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance |
SPECIFICATIONS

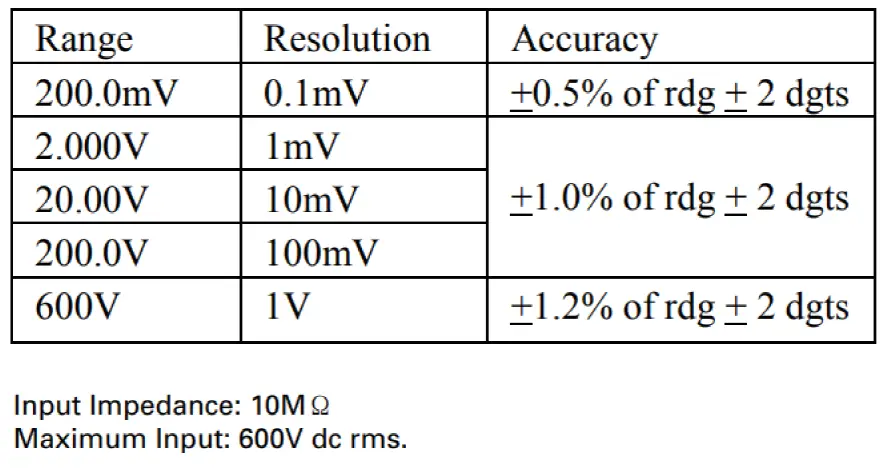

DC VOLTAGE

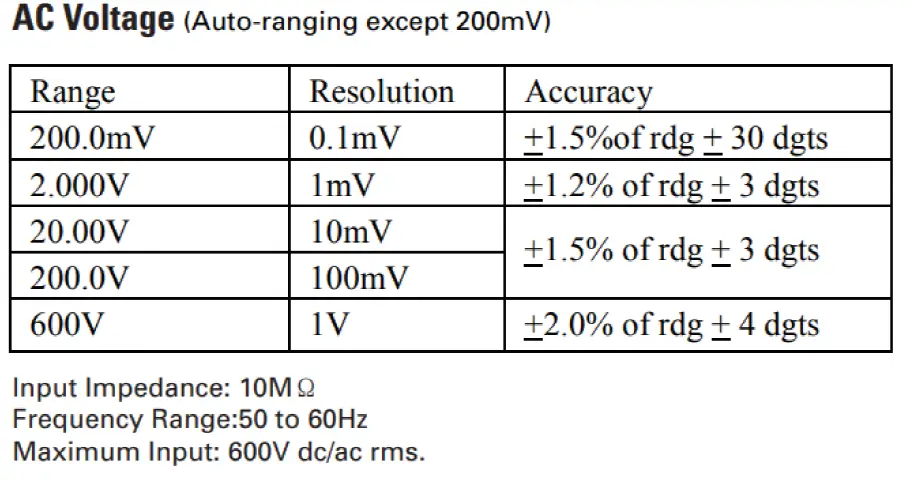

AC VOLTAGE

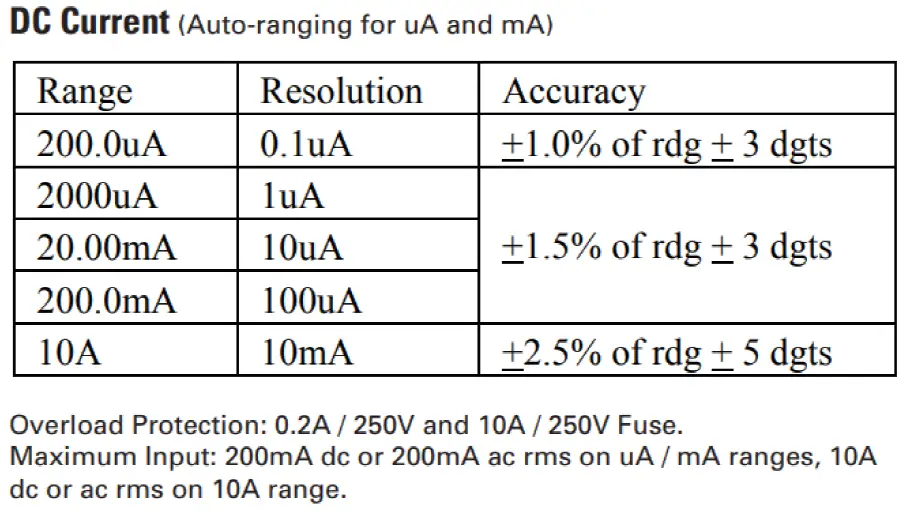

DC CURRENT

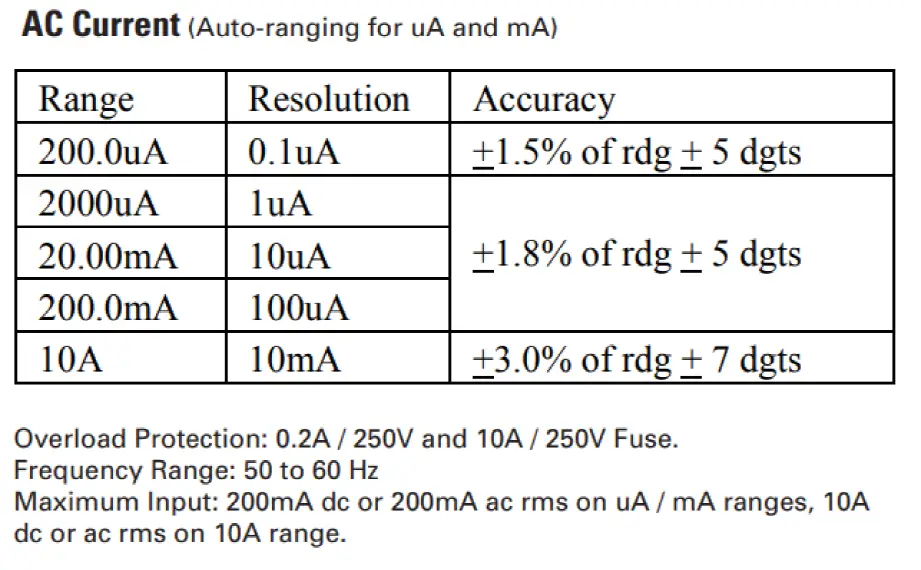

AC CURRENT

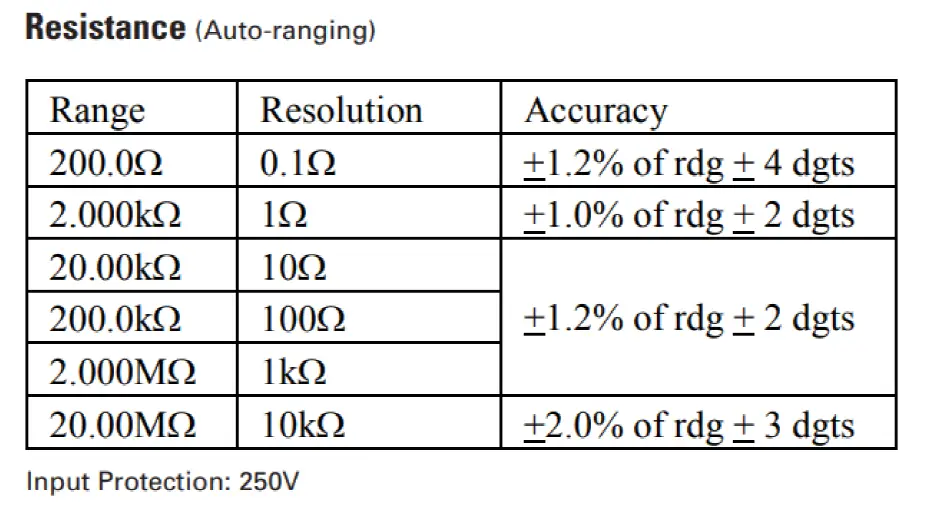

RESISTANCE

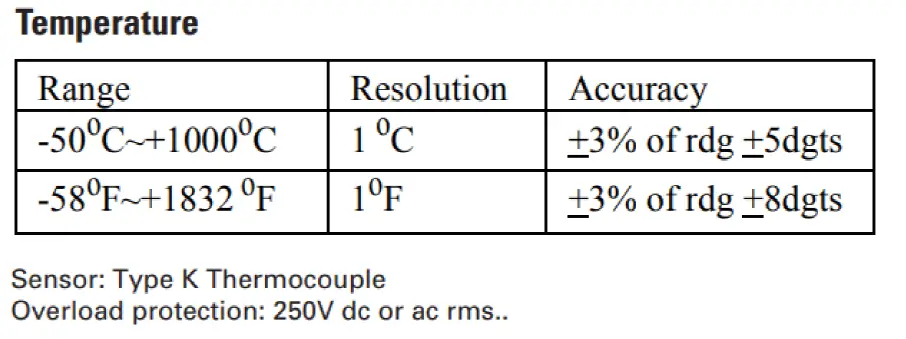

TEMPERATURE
