HANDS FREE DOOR SOLUTION™ (sdcsecurity.com)

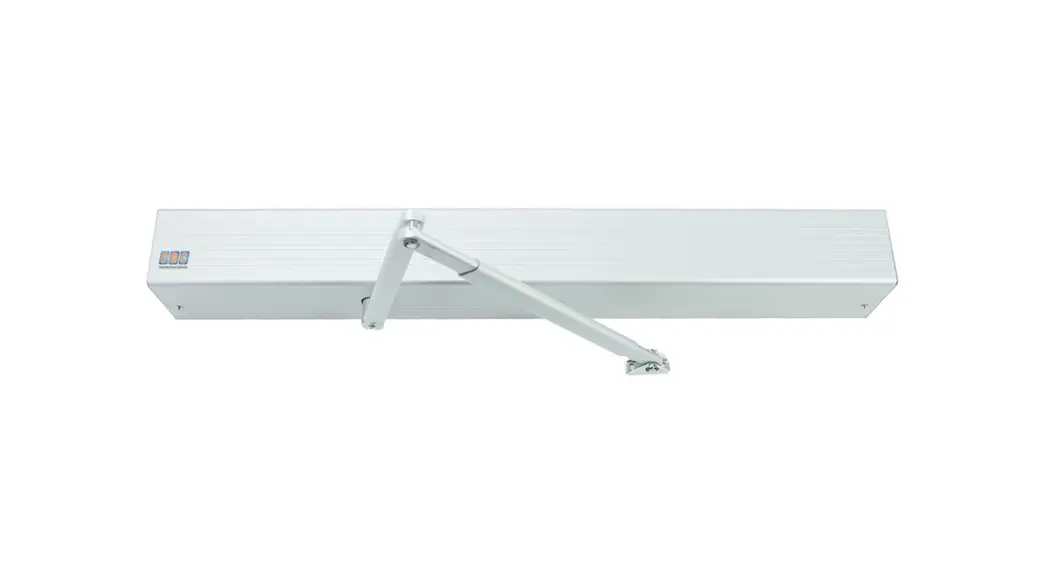

- Auto EntryControl™ – Low Energy Swing Door Operators (sdcsecurity.com)

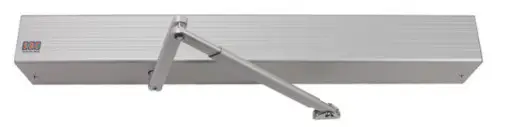

Low Energy Swing Door Operators
• Easy one-man installation
• Single button, self-tuning setup
• Built-in 1 Amp power supply
• On-board lock sequencing
• Hold open feature - 470 Series – No Touch Wave-To-Open Switches (sdcsecurity.com)
No Touch Switches
• WAVE-TO-OPEN
• IR sensing technology
• Wave activation up to 5”
• Illuminated dual-LED sensor (red/green) - Push Plate, Actuators & Touch Panels (sdcsecurity.com)
ADA Actuators
• PUSH-TO-OPEN plates
• HDPE antimicrobial options
• Single or double gang
• Round and narrow options
• Recessed, surface, and bollard mounting - EntryCheck™ 920 Series – Indoor/Outdoor Proximity Integrated Digital Keypads (sdcsecurity.com)
Access Control Keypads
• Built-in prox readers
• Indoor/outdoor use
• Surface or single-gang mount
• Heavy cast vandal resistant housing - S4000 Series – Commercial Exit Devices (sdcsecurity.com)
Commercial Exit Devices
• Factory installed electric latch retraction and REX
• Stainless steel construction – corrosion resistant
• Grade 1 exit device for durability
• Heavy cast vandal resistant housing
Requires power transfer device such as our PT-3
• Easy one-man installation
• WAVE-TO-OPEN
• PUSH-TO-OPEN plates

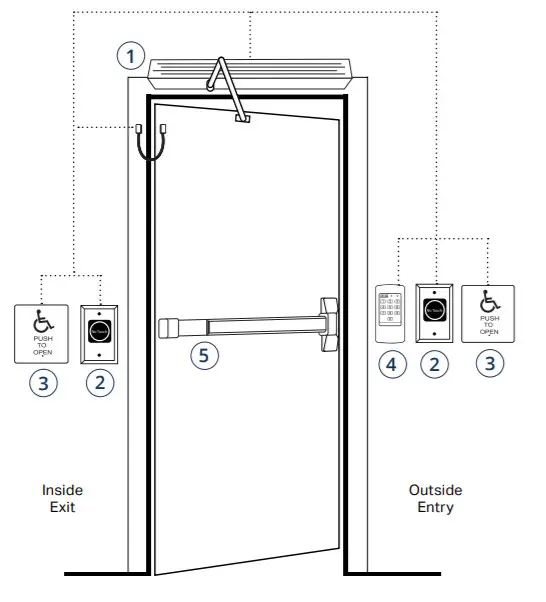

ADA Compliant Electrified Exit Device Application
HANDS FREE DOOR SOLUTION™ (sdcsecurity.com)
- Hands-Free convenience
- Hands-Free code compliance
- Hands-Free hygiene and contamination control
Even with national ANSI and ADA standards, building code enforcement relating to the automatic door and switch placement varies across the country. Consult your local authority having jurisdiction (AHJ) for compliance requirements.

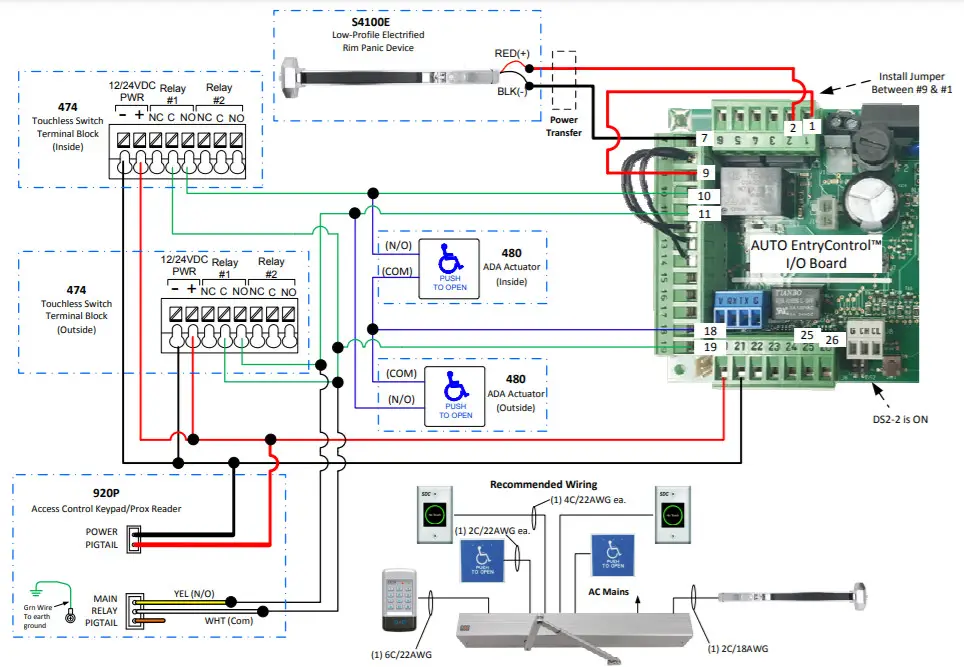

| PROJECT NAME | TITLE HANDS-Free Door Solution-s4100 | SO NO | REV- | |||
| LOCATION:_ | DIST: | CONTACT:_ | DATE:_ | DRAWN BY:- | DWG.NO: XXX | |
NOTE: ALL WIRING MUST BE REVIEWED AND APPROVED BY THE PROJECT ENGINEER ASSIGNED TO THE LOCATION FOR ITS CORRECTNESS AND SUITABILITY FOR THE APPLICATION IN THE WHICH THE EQUIPMENT IS INSTALLED AND OPERATED. ALL WIRING MUST CONFORM TO NATIONAL, STATE, AND LOCAL CODES FOR CLASS 2 FIRE PROTECTION AND CONTROL DEVICES.
