Storm Doors 4000 & 3000 Series Measure User Guide

STORM DOORS 4000 & 3000 Series MEASURE

STORM DOOR MEASURE GUIDE FOUR EASY STEPS

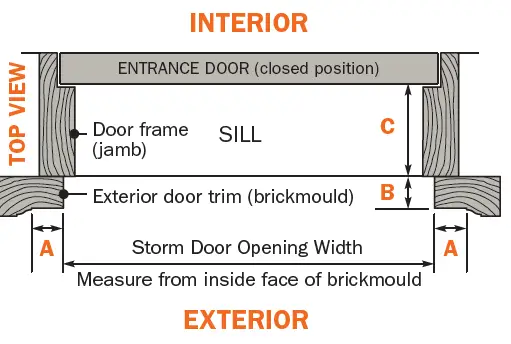

• Check to ensure door opening and trim allow enough space for a storm door
  • DIMENSION A: Minimum ¾” width flat trim surface required (Please Note: 75 Series and Forever® Storm Doors require a minimum of 1″)
  • DIMENSION B: Minimum 1″ trim (brickmould) depth required
  • DIMENSION C: Minimum of 21/2″ door frame (jamb) depth required*

Note: Depending on the depth and location of your entry door handle set, additional clearance may be needed.

• Measure door opening in order to determine the size storm door you need

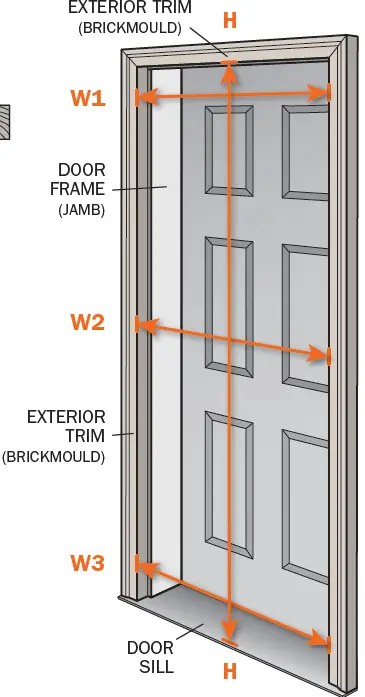

  • Measure the width of the door opening at the inside face of exterior trim on each side at top, center & bottom and record the shortest measurement. (see measure points W1, W2 & W3 in the illustration
  • Measure for the height from the sill to the underside of the brickmould at the top (see measure point H in the illustration

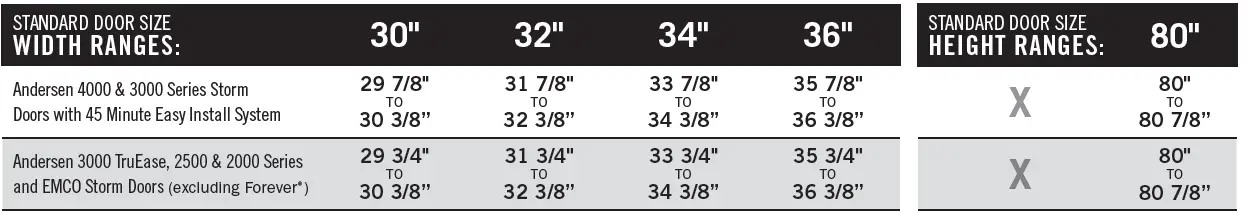

• Determine the size you need based on the door opening measurements and the storm door model that is selected

If your measurements are outside the standard width or height ranges shown above, you will require a custom size door

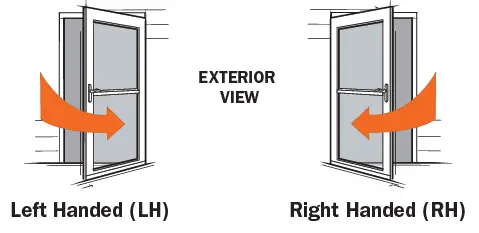

• Choose the door handing that works best for your entryway

  • If you choose an Andersen 4000 or 3000 Series Storm Door with the 45 Minute Easy Install System, handing will need to be specified at the time of purchase

NEED HELP

For additional measuring and installing tips visit stormdoors.com/measure or text MEASURE to 24587
