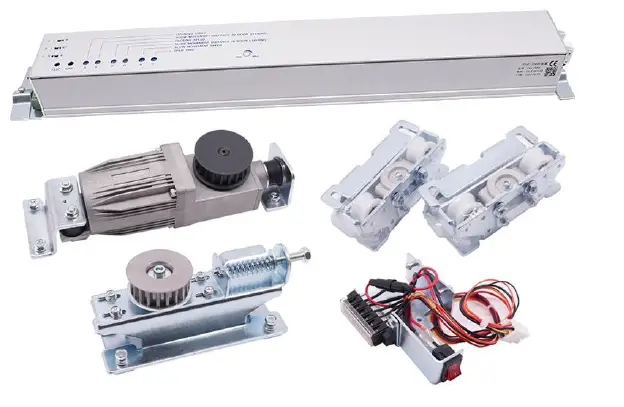

S4A Automatic Sliding Door Operator

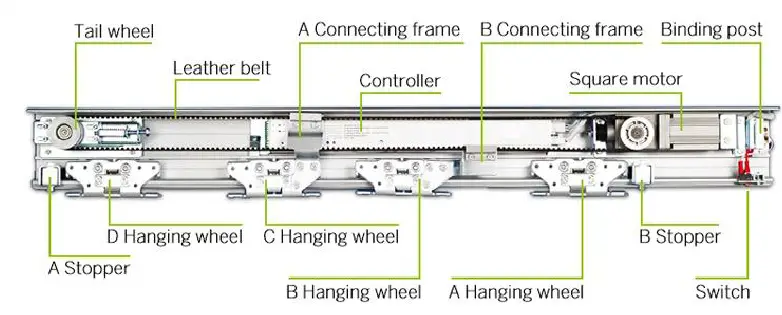

OVERVIEW
SPECIFICATION
| Specification | Series | |
| Door-leaf Type | Single-leaf | Double-leaf |
| Door-leaf Weight | Max.150Kg | Max.150Kg*2 |
| Door-leaf Width | DW=750-1600mm | DW=650-1250mm |
| Total Width | W=1500-3200mm | W=2600-5000mm |
| Mounting Type | Surface Mounting | |
| Power | AC90~240V, 50HZ | |
| Opening Speed | 15~46cm/s (adjustable) | |
| Closing Speed | 13~46cm/s (adjustable) | |
| Hold-Open Time | 0~8S (adjustable) | |
| Manual Push Force | <40N | <50N |
| Motor | DC24V Brushless Servo Motor | |
| Ambient Temperature | -20°C~50°C | |
| Weight | 10.58kg | |
