Q-sys Tsc-50t-g3 Tabletop Stand Accessory User Guide

Q-SYS TSC-50t-G3 Tabletop Stand Accessory

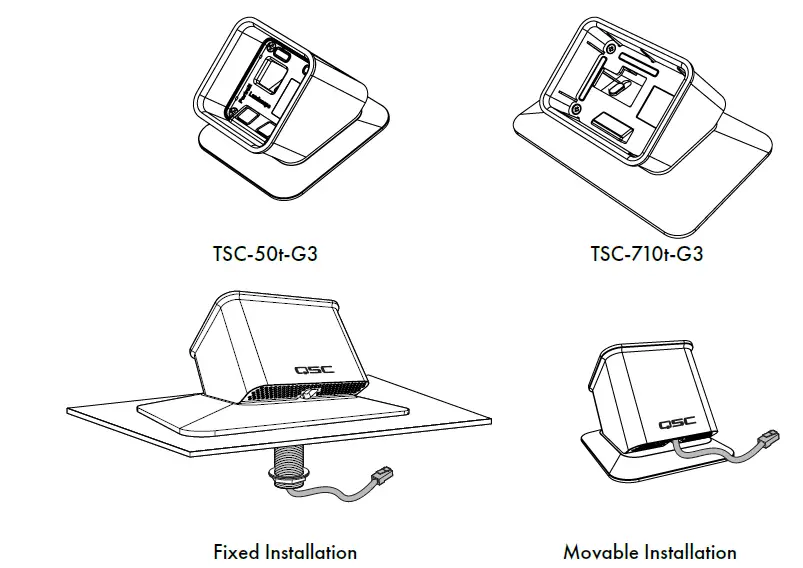

Tabletop Stand Accessory

TSC-50t-G3 (for TSC-50-G3)
TSC-710t-G3 (for TSC-70-G3 or TSC-101-G3)QSC Self Help Portal
Read knowledge base articles and discussions, download software and firmware, view product documents and training videos, and create support cases.
https://qscprod.force.com/selfhelpportal/s/
Customer Support
Refer to the Contact Us page on the QSC website for Technical Support and Customer Care, including their phone numbers and hours of operation.
https://www.qsc.com/contact-us/

Warranty

For a copy of the QSC Limited Warranty, visit the QSC, LLC., website at www.qsc.com.

Tabletop Features

• Tool-less assembly
• Portrait and landscape configurations
• Movable or fixed installation options
• Non-skid, low profile design

Specifications

• Dimensioned drawings and product specifications available online at www.qsc.com.
• QSC recommends using a category cable without a moulded strain relief boot. Refer to the Hardware User Manual for other cable requirements.

Movable Installation

TSC-50t-G3 / TSC-710t-G3
Caution: Do not attempt to assemble or disassemble the stand while the touch screen controller is attached.

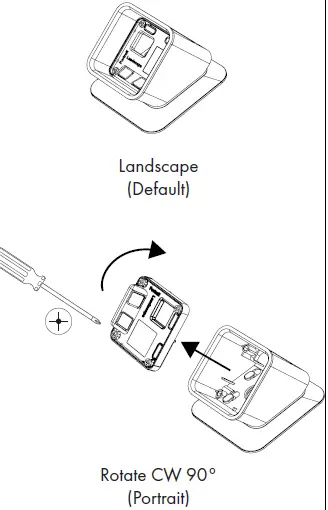

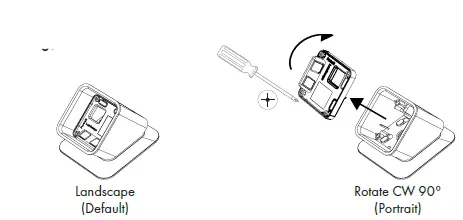

1. Orient Docking Plate 1 (TSC-50t-G3 Only)

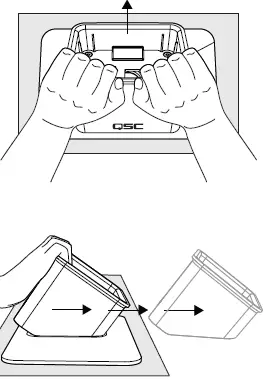

2. Remove Base 2 (Method 1)
   (Method 2)
3. Route Cable

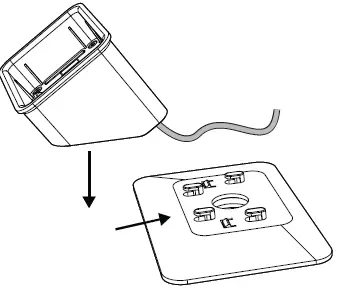

4. Install Base

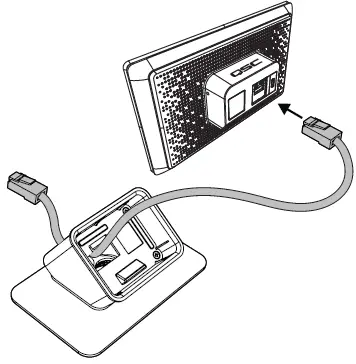

5. Connect Cable to Touchscreen Controller

Fixed Installation

TSC-50t-G3 / TSC-710t-G3

User Supplied Parts

These parts are required only for the fixed installation.

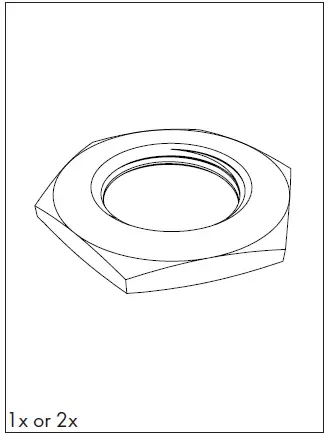

• Lock/Jam Nut (or Similar)
• Mounting Pipe (3/4″ NPS)

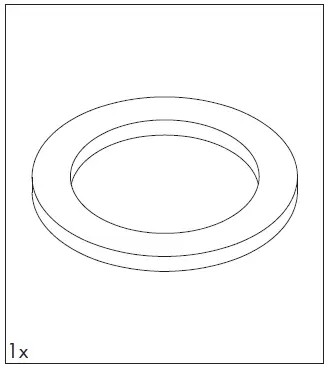

• Rubber/Foam Washer (Optional)

Assembly and Installation

1. Orient Docking Plate 1 (TSC-50t-G3 Only)

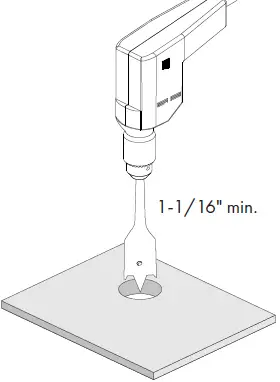

2. Drill Hole

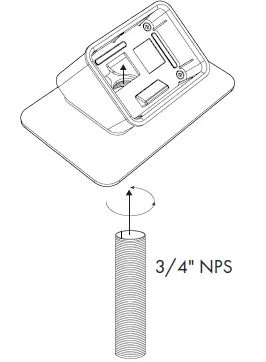

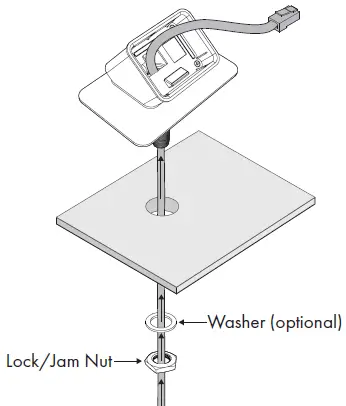

3. Install Threaded Pipe
4. Route Cable

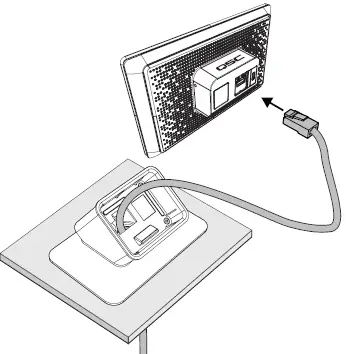

5. Connect Cable to Touchscreen Controller

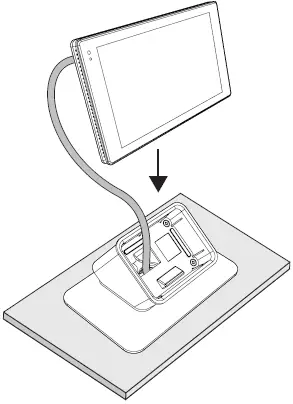

6. Assemble Touchscreen Controller to Stand
