FlexiTech SL Lens Optic 400lm CG-S
Target group: Skilled electricians
Intended application: Emergency lighting, not suitable for private use.
- White flexible material
- White flexible material
- For working on the installation, please ensure first the emergency lighting system is blocked, the battery operation is interrupted, and the mains is OFF.

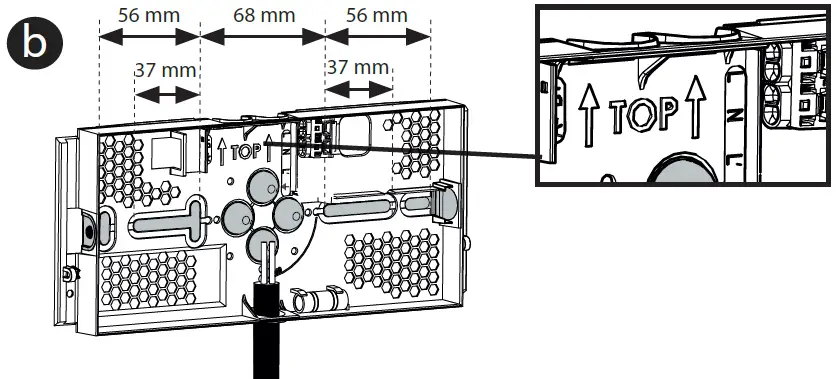

- If cable entry on the right

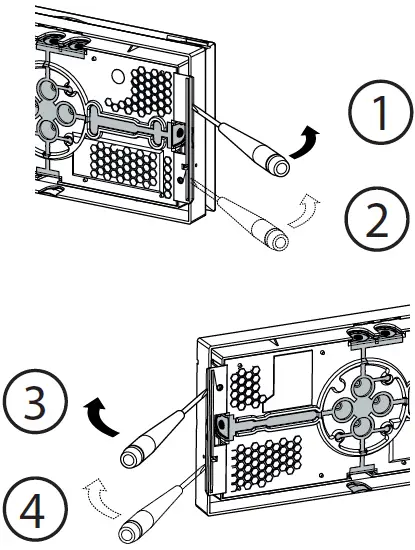

- Break a cable entry by using a screwdriver.

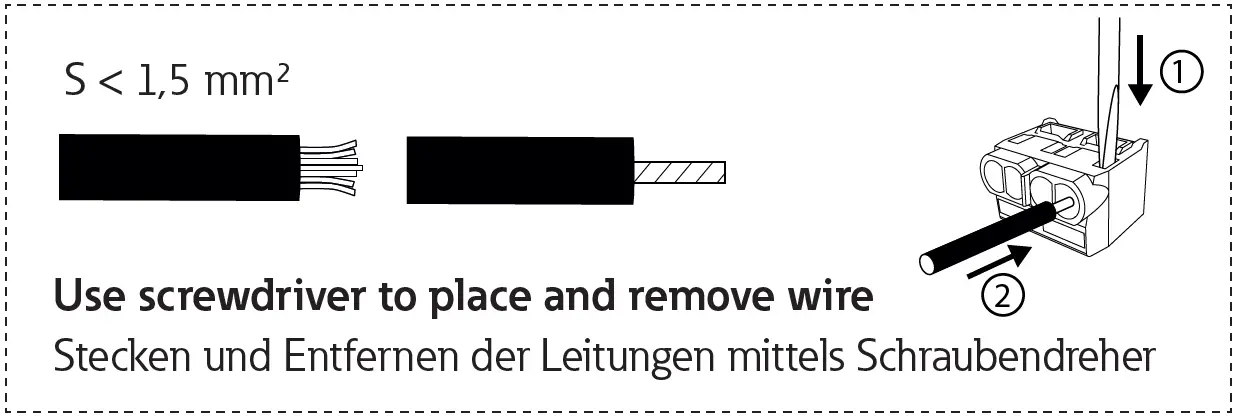

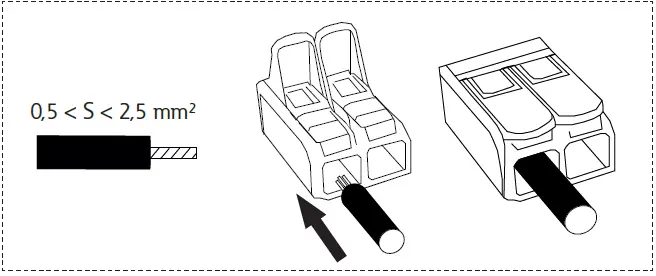

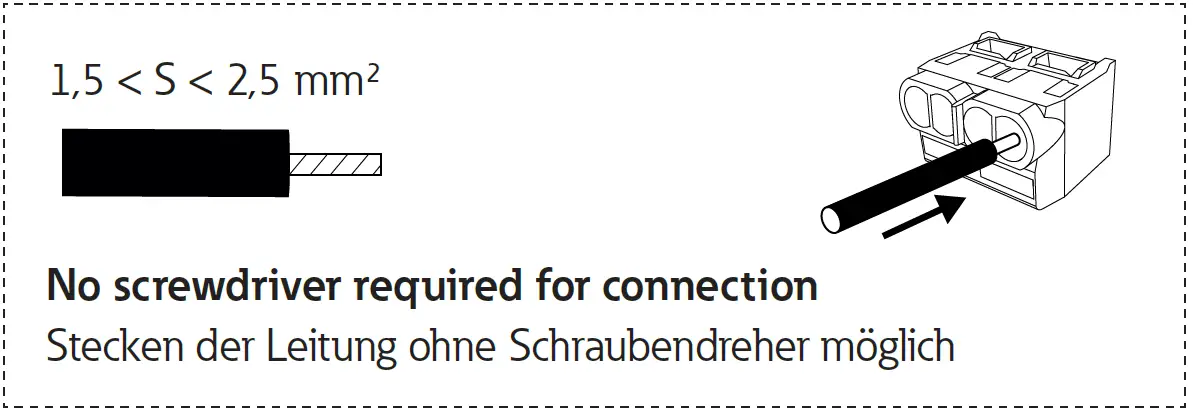

- Rigid or flexible wire

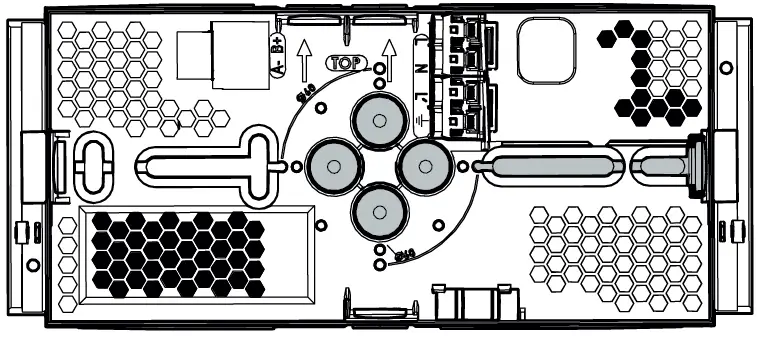

- Drill in the honeycomb zones (IP43) or in the 4 flexible material parts (IP65).
- Drilling zones to avoid
- Check the packaging for the whole cabling details.

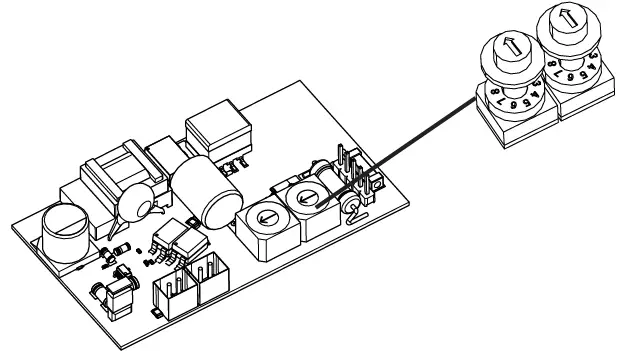

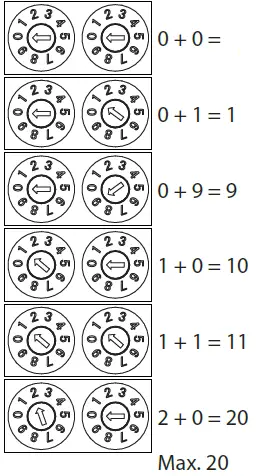

Addressing
No address (without CG-S monitoring)
Optional

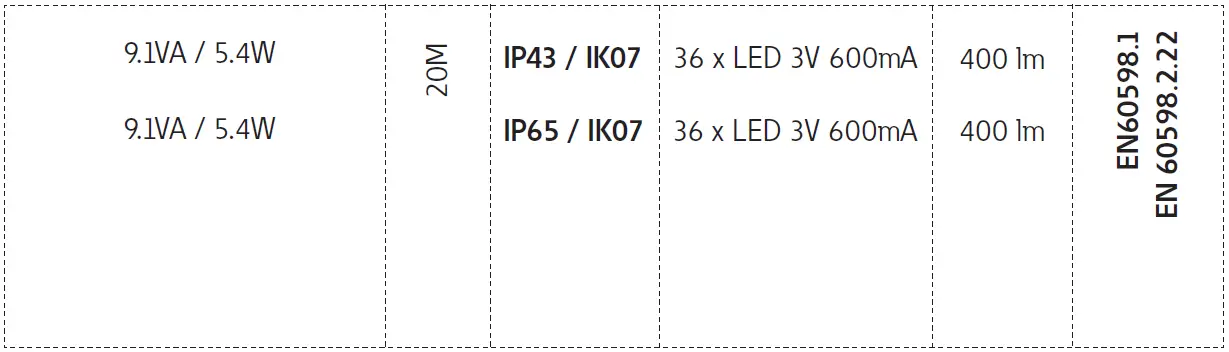

Power consumption mains operation
(apparent/effective power)
FT2SE400CGS
FT2SE400CGSIP
Not replaceable When the life time of light source is over, replace the luminaire.
