CF Pro Cine Lens
Instruction Manual
Information
- This product can be used on cameras with full-frame (or smaller) image sensors. (verify mount compatibility in these instructions)
- This product specification, configuration, and appearance are subject to change without prior notice.
Safety Notice
Warnings
- Do not use or store this product near devices generating heat such as heaters, thermal regulators, stoves and stereo amplifiers.
- Do not leave the lens in direct sunlight. Focused light may cause a fire.
- Do not look at the sun directly through the lens. It may cause injury or blindness.
Cautions
- Keep the lens out of children’s reach.
- Do not touch the surface of the lens or let it come into contact with sharp objects.
- Ensure the lens is securely attached to the camera during use.
If not, it may fall down and cause injury. - Do not expose to water/liquid or excessive humidity.
- Do not subject to extremes of temperature.
- Do not drop the lens.
- Do not expose to external shock or excessive weight to the lens attached to the camera. It may cause damage to the lens and camera mounts.
Be sure to hold the lens when operating or moving. - Do not modify or disassemble the lens.
There are no user-serviceable parts and your warranty may be affected. - If foreign material is stained on the surface of the lens, please use a lens cleaning kit only.

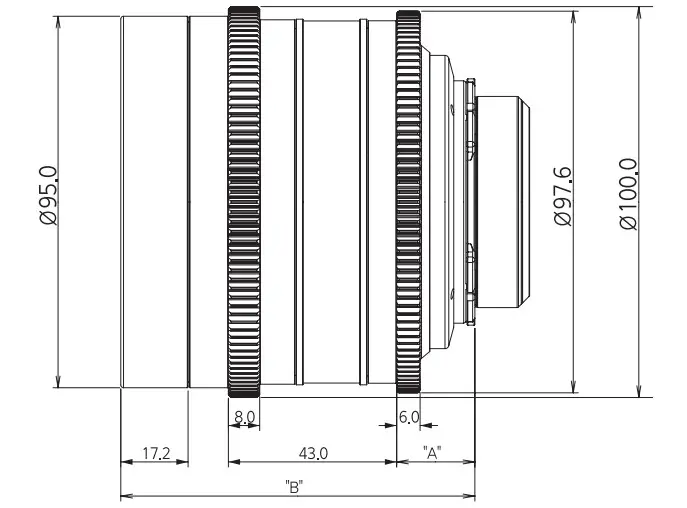

Dimensions
| Monture | A(mm) | B(mm) | |||||
| 16mm T2.6 | 24mm T1.5 | 35mm T1.5 | 50mm T1.5 | 85mm T1.5 | 135mm T2.2 | ||
| PL | 20.0 | 82. | 91. | 114. | 91. | 91. | 114. |
| EF for Canon | 28.0 | 90. | 99. | 122. | 99. | 99. | 122. |
| E for Sony | 54.0 | 116. | 125. | 148. | 125. | 125. | 148. |
Specifications
| Focal Length | 16mm | 24mm | 35mm | 50mm | 85mm | 135mm | ||
| Maximum T-stop | T2.6 | T1.5 | T1.5 | T1.5 | T1.5 | T2.2 | ||
| Image Circle | 043.3mm | 043.2mm | ||||||
| Angle of view | Full Frame’) | 107.0° | 84.1° | 63.1° | 46.2° | 28.4° | 18.8° | |
| Super 352) | 87.4° | 61.2° | 46.9° | 31.2° | 19.0° | 13.6° | ||
| Focusing range | 00 to 0.30m | 00 to 0.25m | 00 to 0.33m | ooto 0.45m | 00 to 1.12m | ooto 0.80m | ||
| ooto 1′ | ooto 10″ | ooto 11″ | ooto 1’6″ | ooto 3’9″ | ooto 2’7″ | |||
| Front Size | 0 95mm | |||||||
| Number of aperture blades | 11 | |||||||
| Rotation Angle of Focus Ring | 200° | 200° | 200° | 200° | 200° | 200° | ||
| Rotation Angle of Aperlure Ring | 32.5° | 40° | 40° | 40° | 40° | 35° | ||
| Size | PL | 0100.0 x 82.3mm | 0100.000.5mm | 0100.0 x 113.7mm | 0 100.0 x 93.5mm | 0100.0x 90.5mm | 0103.2×113.7mm | |
| Canon EF | 0 100.0 x 90.3mm | 0 100.0 x 98.5mm | 0100.0×121.7mm | 0 100.0x 98.5mm | 0 100.0x 98.5mm | 01031121.7mm | ||
| Sony E | 0100.0 x 1163mm | 0100.0 x 124.5mm | 0100.0 x 147.7mm | 0100.0 x 124.5mm | 0100.0 x 124.5mm | 0103.2×147.7mm | ||
| Weight (without Lens Cap) | PL | 0.9kg / 2.0Ibs | 0.9kg / 2.0Ibs | 1.1 kg / 2.4Ibs | 0.9kg / 2.0Ibs | 1.0kg / 2.2Ibs | 1.4kg / 3.1Ibs | |
| Canon EF | 0.9kg / 2.0Ibs | 0.9kg / 2.0Ibs | 1.1 kg / 2.4Ibs | 0.9kg / 2.0Ibs | 1.0kg / 2.2Ibs | 1.4kg / 3.1Ibs | ||
| Sony E | 1.0kg / 2.2Ibs | 1.0kg / 2.2Ibs | 1.2kg / 2.61bs | 1.0kg / 2.2Ibs | 1.1 kg / 2.4Ibs | 1.5kg / 3.3Ibs | ||
- Full-frame (aspect ratio 1:1.5, dimensions 36 mm x 24 mm/ 1.42″ x 0.94″)
- Super35 (aspect ratio 1:1.3, dimensions 24.9 mm x 18.7 mm 10.98″ 0.74″)
