Simpson Strong-tie Cdt10s Adhesive Dispensing Tools Instruction Manual

Simpson Strong-Tie CDT10S Adhesive Dispensing Tools

Product Information

The product is a range of Anchoring, Fastening Systems, and Restoration Solutions for Concrete and Masonry. The range includes Adhesive Accessories, Adhesive Anchors, and Adhesive Dispensing Tools. The Adhesive Dispensing Tools are heavy-duty and designed to work with the cartridges for trouble-free dispensing. There are four types of manual dispensing tools available: CDT10S Manual Dispensing Tool for Single Cartridge Adhesives, EDT22S Manual Dispensing Tool for 22 oz. Adhesive Cartridges, EDTA22CKT Battery-Powered Dispensing Tool for 22 oz. Cartridges, and EDTA22P Pneumatic Dispensing Tool for 22 oz. Cartridges. The range also includes a pneumatic dispensing tool for 56 oz. cartridges. The SET-3GTM High-Strength Epoxy Adhesive is an adhesive cartridge system that comes in two models: SET3G101 (8.5 ounces) and SET3G22-N1 (22 ounces). The cartridges are available in coaxial and side-by-side types.

Product Usage

The Adhesive Dispensing Tools are designed to work with the cartridges for trouble-free dispensing. The CDT10S Manual Dispensing Tool is used for single cartridge adhesives, while the EDT22S Manual Dispensing Tool is used for 22 oz. adhesive cartridges. The EDTA22CKT Battery-Powered Dispensing Tool is used for 22 oz. cartridges and does not require a hose or compressor.
The tool can be easily converted from dispensing a 22 oz., 1:1 ratio cartridge to a 16.5 oz., 2:1 ratio cartridge. The EDTA22P Pneumatic Dispensing Tool is used for 22 oz. cartridges, and the EDTA56P Pneumatic Dispensing Tool is used for 56 oz. cartridges.
The recommended operating air pressure for pneumatic tools is between 80 and 100 psi.

The SET-3GTM High-Strength Epoxy Adhesive is an adhesive cartridge system that comes in two models: SET3G101 (8.5 ounces) and SET3G22-N1 (22 ounces). The cartridges are available in coaxial and side-by-side types. One EMN21I mixing nozzle and one extension are supplied with each cartridge. Cartridge estimation guidelines are available at strongtie.com/apps.

The SET-3G Cure Schedule indicates the gel time and cure time for different concrete temperatures. The gel time for concrete temperature of 40 degrees Fahrenheit is 4 minutes, and the cure time is 120 hours. The gel time for concrete temperature of 50 degrees Fahrenheit is 10 minutes, and the cure time is 75 hours.
Maintenance tips, troubleshooting, and repair parts schematics are available at strongtie.com.

Adhesive Dispensing Tools

Our heavy-duty tools are designed to work with our cartridges for trouble-free dispensing. Each manual tool provides a 26:1 drive mechanism for easier dispensing of high-viscosity adhesive

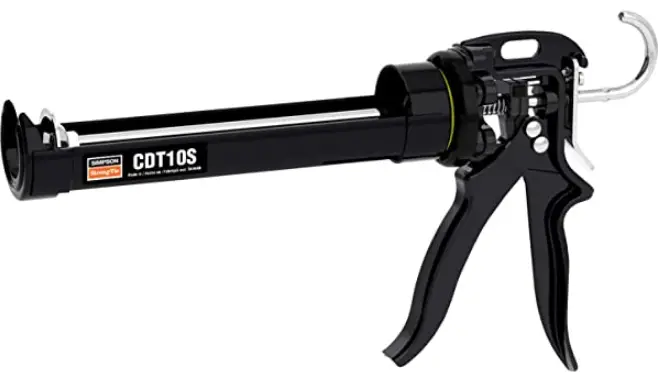

CDT10S
Manual Dispensing Tool for Single Cartridge Adhesives The CDT10S features a steel carriage for ultimate durability and is engineered for continuous, high-volume use, as well as double-gripping plates that help extend tool life.

EDT22S
Manual Dispensing Tool for 22 oz. Adhesive Cartridges The EDT22S epoxy adhesive tool features a steel carriage and is engineered for high-volume, continuous use. The tool can be easily converted (conversion parts included) from dispensing a 22 oz., 1:1 ratio cartridge to a 16.5 oz., 2:1 ratio cartridge.

EDTA22CKT
Battery-Powered Dispensing Tool for 22 oz. Cartridges The EDTA22C offers power dispensing of 22 oz., 1:1 ratio, dual-cartridge adhesives without the need for a hose or compressor. The 18V lithium-ion battery is 50% lighter than NiCad and offers 40% longer run time and 30-minute recharging. Tool converts to dispense 16.5 oz., 2:1 ratio dual-cartridge adhesives (conversion parts included).
The EDTA22CKT comes with the dispensing tool, two 18V lithium-ion battery packs and a charger.

EDTA22P
Pneumatic Dispensing Tool for 22 oz. Cartridges The EDTA22P tool features an optional suitcase handle adapter for the ultimate in tool configuration and dispensing convenience, enabling easier and time-saving groundlevel doweling. The heavy-duty tool comes with a custom, blow-molded plastic carrying case.

EDTA56P
Pneumatic Dispensing Tool for 56 oz. Cartridges The EDTA56P tool features an optional suitcase handle adapter for the ultimate in tool configuration and dispensing convenience, enabling easier and time-saving ground-level doweling. The heavy-duty tool comes with a custom, blow-molded plastic carrying case.

1. Air supply attachment is 1⁄4 –18 NPT (male) thread.
2. Recommended operating air pressure is between 80 and 100 psi.

Maintenance tips, troubleshooting and repair parts schematics available at strongtie.com.

SET-3G™ High-Strength Epoxy Adhesive

SET-3G Adhesive Cartridge System

1. One EMN21I mixing nozzle and one extension are supplied with each cartridge.
2. Cartridge estimation guidelines are available at strongtie.com/apps.
3. Use only Simpson Strong-Tie® mixing nozzles in accordance with Simpson Strong-Tie instructions. Modification or improper use of mixing nozzle may impair SET-3G adhesive performance.

SET-3G Cure Schedule1, 2

For SI: 1°F = (°C x 9/5) + 32.

1. For water-saturated concrete and water-filled holes, the cure times should be doubled.
2. For installation of anchors in concrete where the temperature is below 70°F (21°C), the adhesive must be conditioned to a minimum temperature of 70°F (21°C).

SET-XP® High-Strength Epoxy Adhesive

SET-XP Cartridge System

1. Cartridge estimation guidelines are available at strongtie.com/apps.
2. Detailed information on dispensing tools, mixing nozzles and other adhesive accessories is available at strongtie.com.
3. Use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions. Modification or improper use of mixing nozzle may impair SET-XP adhesive performance.
4. One EMN22I mixing nozzle and one nozzle extension are supplied with each cartridge.

Cure Schedule

For water-saturated concrete, the cure times must be doubled.

ET-HP® Epoxy Adhesive

ET-HP Package Systems

1. Cartridge estimation guidelines are available at strongtie.com/apps.
2. Detailed information on dispensing tools, mixing nozzles and other adhesive accessories is available at strongtie.com.
3. Use only Simpson Strong-Tie® mixing nozzles in accordance with Simpson Strong-Tie instructions. Modification or improper use of mixing nozzle may impair ET-HP adhesive performance.
4. One EMN22i mixing nozzle and one nozzle extension are supplied with each cartridge.

Cure Schedule

1. For water-saturated concrete, the cure times must be doubled.

SET Epoxy Adhesive

SET Cartridge System

1. Cartridge estimation guidelines are available at strongtie.com/apps.
2. Detailed information on dispensing tools, mixing nozzles and other adhesive accessories is available at strongtie.com.
3. Use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions. Modification or improper use of mixing nozzle may impair SET adhesive performance.
4. One EMN22I mixing nozzle and one nozzle extension are supplied with each cartridge.

Cure Schedule

For water-saturated concrete (including damp and water-filled holes), the cure times must be doubled.

In-Service Temperature Sensitivity

1. Percent allowable load may be linearly interpolated for intermediate base material temperatures.
2. °C = (°F–32) / 1.8

Adhesive Nozzle Accessories

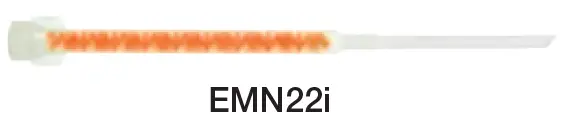

EMN22i
An 18-element mixing nozzle with integrated nut for use with 22 oz. and 56 oz. epoxy adhesive cartridges.

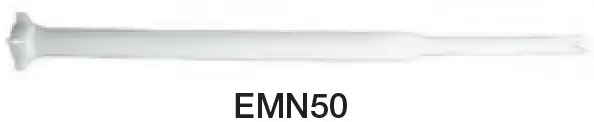

EMN50
A high-volume nozzle for 22 oz. and 56 oz. epoxy cartridges.

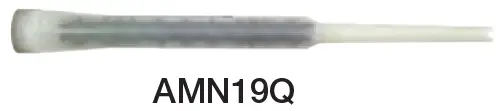

AMN19Q
A 19-element high-strength static mixing nozzle for use with all acrylic adhesive products.
