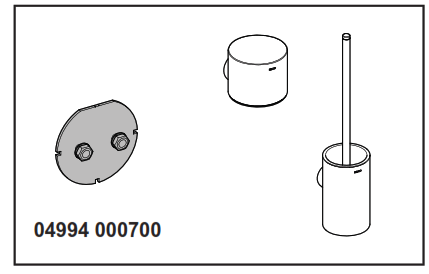

REVA 04994 000700 Adhesive Set
Instruction Manual
Mounting instruction
Bonding set

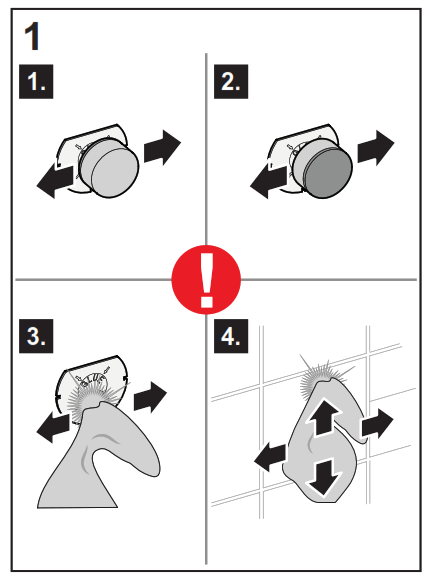

Sand the adhesive surface of the mounting plate with the abrasive fleece and then thoroughly clean the mounting plate and the tile surface with the i.CLEANER cleaning cloth.

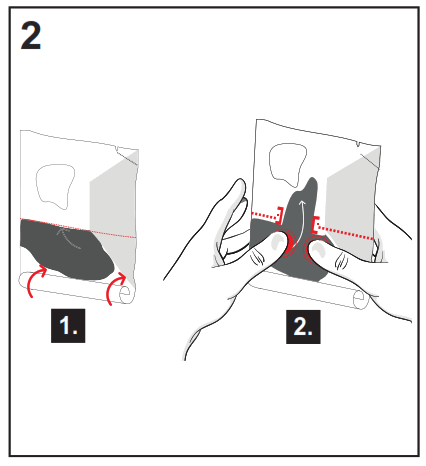

Roll up the space containing the adhesive, pushing the adhesive in the direction of the narrow reaction space until the dividing seam bursts open.

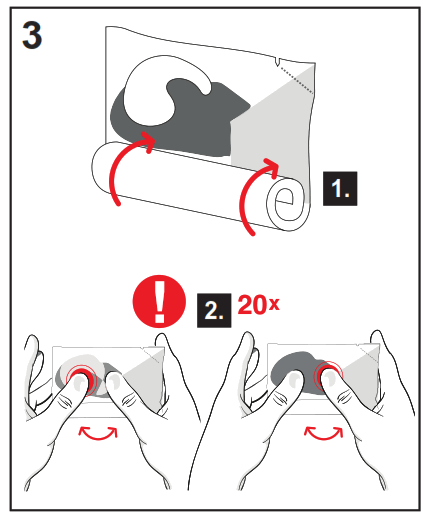

Push the adhesive into the reaction space by rolling up the pouch. Mix the adhesive together with the reactant in this space.

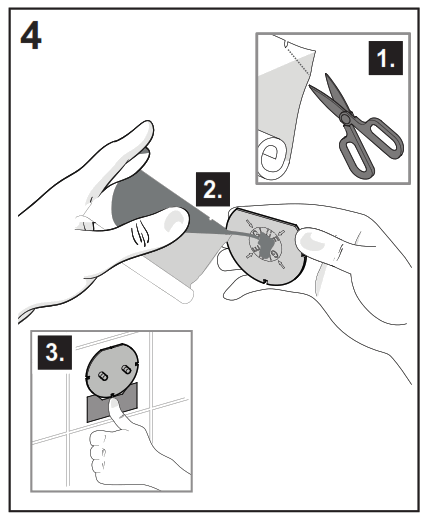

Cut open the pouch and squeeze an amount the size of a hazelnut out onto the centre of the mounting plate. Use cardboard if necessary to hold in place.
75873_000/09.2021
