H-1163
DOT SHOT® PRO GLUE DOT DISPENSER
1-800-295-5510 – uline.com
LOADING INSTRUCTIONS

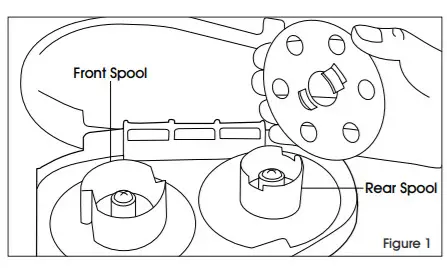

 | 1. Lift the cover and remove the rear cap. (See Figure 1) 2. Place glue dots roll onto the front spool. |
 | 3. Pull leader liner forward, winding over the first roller and under the second roller. Pull tightly over the top of the roll. Slide leader liner in and around slots on a rear spool. (See Figure 2) |

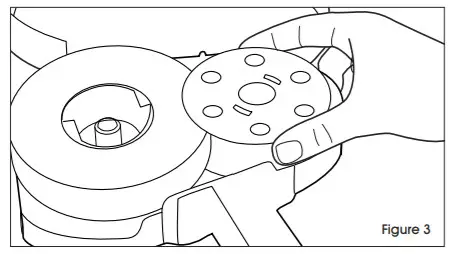

 | 4. Replace cap, lock into place, and turn several revolutions until the liner is tightly wound around the rewind spool. (See Figure 3) 5. Close cover. |
