TRUAudio IC-SUB-8 passive In-Ceiling Subwoofer User Manual
Why listen to half of the sound when you can listen to all of the sound!

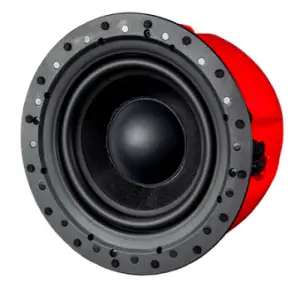

The TruAudio passive in-ceiling subwoofer (IC-SUB-8) has been designed to enhance any home audio distributed sound system. The IC-SUB-8 is a high output low frequency subwoofer designed to be used with our D16 high output multi channel amplifier with subwoofer out. (Can be used with other amplifiers) This subwoofer was designed to give full rich sound to your standard home audio distributed sound system. We have added the Quick Connect™ to the back or the subwoofer to aid in installation. The biggest issue customers have with their whole house audio systems is the lack of bass. You no longer need to put an expensive subwoofer / amplifier combo in each room to achieve great sound. Welcome to the sound of innovation!
Box Contents
- IC-SUB-8 passive In-Ceiling Subwoofer
- Cut-out Template
- Grill

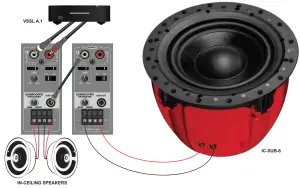

Basic Wiring using D16 Amplifier

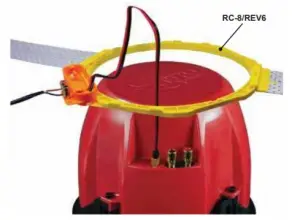

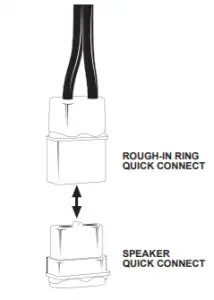

Quick Connect™ Compatible
Standard Wiring
The IC-SUB-8 can also be wired using the traditional speaker terminals.
IC-SUB-8
Speaker Type In-Ceiling Subwoofer
Driver 8” Polypropylene
Power 75-150W
Impedance 8Ω
Frequency Response 38-140Hz
Max dB Output 98
Grill Type Micro perforated
Tweeter None
Weight 6.7 lbs
Depth 7.9” (201 mm)
Cut Out Diameter 9.4” (238 mm)
Finish Diameter 10.6” (269 mm)
Family Universal
