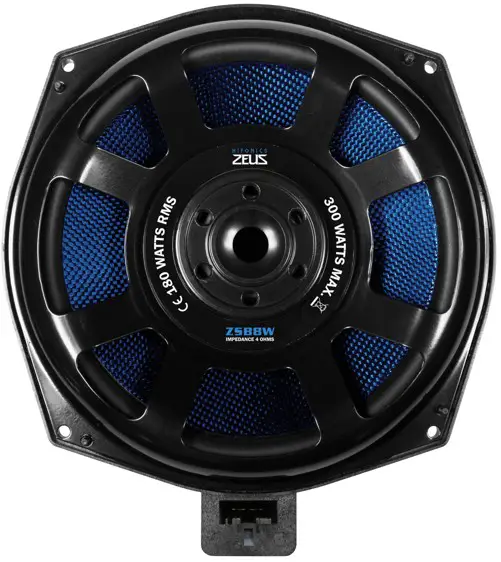

ZSB8W
Specifications:
- 200 mm (8”) Subwoofers
- 180 Watt RMS / 300 Watt MAX.
- Impedance 4 Ohms
- Frequency Response 30 – 300 Hz
- SPL 88 dB @ 1W/1m
- 50 mm (2“) Voice Coil
- Glass Fiber Cone, Nomex Spider
- Mounting Depth: 31 mm
- Mounting Diameter: 190 mm
Important Notes:
- Please treat all parts of the sound system and the components of your vehicle with caution.
- Follow under all circumstance the regulations of the vehicle manufacturer and do not make any modifications on the vehicle, which could interfere the driving safety.
- Always ensure the correct polarity of all connections.
Compatibility:
Refer to page 7
Legal Note:
- HiFonics or Audio Design GmbH is in no way affiliated with BMW or any of its subsidiaries or affiliated companies connected to, or is acting on its behalf or with its authorization.
- All registered product names, trade marks and brands are the property of their respective owners.
- The compatibility with the specified types of vehicles reflects the information available on January 2022
- Technical changes and errors reserved.
Customer Service:
In general, the assembly and installation of the sound system should be made by a trained and technically skilled specialists. If you nonetheless choose the self-assembly and you have any problems, contact your specialist dealer or the Audio Design Service Department under Tel. +49 7253 – 94 65 93 or by E-Mail to [email protected]
Installation:

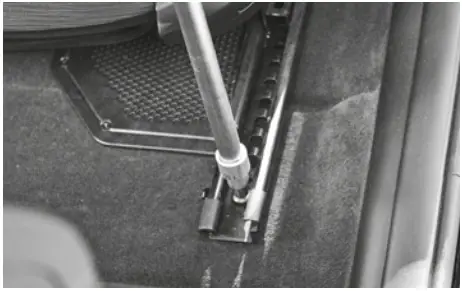

To install the subwoofers, the front seats have to be removed, which are secured with 4 screws. Loosen these screws and then remove the standard speaker grille. Then replace the original loudspeakers with the new HiFonics subwoofers.

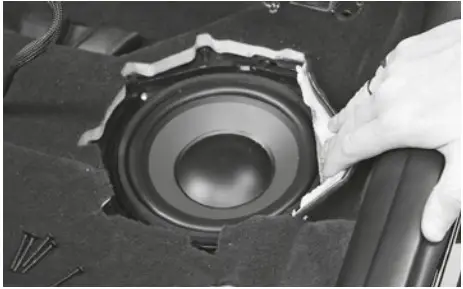

To ensure a optimal and a free movement stroke of the speaker, you may need to remove a portion of the foam. Set then the speaker cover back to its location, and retighten the screws of the seat, but please take care that these are tight.
BMW
| FRONT DOOR | REAR DOOR | SIDEPANEL REAR | REAR SHELF | HEADLINER / PILLAR | SUBWOOFER | |||
| 1er | E81 | 3–door | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | – | ZSB8W |
| E82 | Coupé | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| E87 | 5–door | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| E88 | Convertible | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | – | ZSB8W | |
| F20 | 5–door | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| F21 | 3–door | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| F40 | 5–door | – | – | – | – | – | ZSB8W |
| 2er | F22 | Coupé | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W |
| F23 | Convertible | – | – | – | – | – | ZSB8W | |
| F44 | Gran Coupé | – | – | – | – | – | ZSB8W | |
| F45 | Active Tourer | – | – | – | – | – | ZSB8W | |
| F46 | Gran Tourer | – | – | – | – | – | ZSB8W | |
| F87 | M2 | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W |
| 3er | E90 | Limousine / Sedan | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | – | ZSB8W |
| E91 | Touring | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | – | ZSB8W | |
| E92 | Coupé | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | – | ZSB8W | |
| E93 | Cabriolet / Convertible | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | – | ZSB8W | |
| F30 | Limousine / Sedan | – | – | – | – | – | ZSB8W | |
| F31 | Touring | – | – | – | – | – | ZSB8W | |
| F34 | Gran Turismo | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| F80 | M3 | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| G20 | Limousine / Sedan | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| G21 | Touring | – | – | – | – | – | ZSB8W | |
| G28 | Limousine / Sedan | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| G80 | M3 | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W |
| 4er | F32 | Coupé | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W |
| F33 | Cabriolet / Convertible | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| F36 | Gran Coupé | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| F82 | M4 | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| F83 | M4 Cabriolet / Convertible | – | – | – | – | – | ZSB8W | |
| G22 | Coupé | – | – | – | ZSB4.2C / ZSB42* | – | ZSB8W | |
| G23 | Cabriolet / Convertible | – | – | – | – | – | ZSB8W |
| 5er | E60 | Limousine / Sedan | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | ZSB8W |
| E61 | Touring | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | ZSB8W | |
| F07 | Gran Turismo | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | ZSB8W | |
| F10 | Limousine / Sedan | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| F11 | Touring | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | ZSB8W | |
| G30 | Limousine / Sedan | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| G31 | Touring | – | – | – | – | ZSB4.2C / ZSB42 | ZSB8W |
| 6er | E63 | Coupé | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | – | ZSB8W |
| E64 | Cabriolet / Convertible | – | – | ZSB4.2C / ZSB42 | – | – | ZSB8W | |
| F06 | Gran Coupé | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| F12 | Coupé | – | – | ZSB4.2C / ZSB42 | – | – | ZSB8W | |
| F13 | Cabriolet / Convertible | – | – | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | ZSB8W | |
| G32 | Gran Turismo | – | – | – | – | – | ZSB8W |
| 7er | E65 | Limousine / Sedan | ZSB4.2C / ZSB42 | ZSB42 | – | – | – | ZSB8W |
| E66 | Limousine / Sedan L | ZSB4.2C / ZSB42 | ZSB42 | – | – | – | ZSB8W | |
| F01 | Limousine / Sedan | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| F02 | Limousine / Sedan L | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| G11 | Limousine / Sedan | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W | |
| G12 | Limousine / Sedan L | – | – | – | ZSB4.2C / ZSB42 | – | ZSB8W |
| X1 | E84 | SUV | ZSB4.2C / ZSB42 | – | – | ZSB4.2C / ZSB42 | – | ZSB8W |
| F48 | SUV | – | – | – | – | – | ZSB8W | |
| F49 | SUV L | – | – | – | – | – | ZSB8W |
| X2 | F39 | SUV | – | – | – | – | – | ZSB8W |
| X3 | E83 | SUV | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | – | ZSB8W |
| F25 | SUV | – | – | – | – | ZSB4.2C / ZSB42 | ZSB8W | |
| G01 | SUV | – | – | – | – | – | ZSB8W |
| X4 | G02 | SUV | – | – | – | – | – | ZSB8W |
| F26 | SUV | – | – | – | – | – | ZSB8W |
| X5 | E70 | SUV | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | – | ZSB8W |
| F15 | SUV | – | – | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | ZSB8W | |
| F85 | SUV | – | – | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | ZSB8W | |
| G05 | SUV | – | – | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | ZSB8W** |
| X6 | E71 | SUV | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | – | ZSB8W |
| F16 | SUV | – | – | – | – | ZSB4.2C / ZSB42 | ZSB8W | |
| G06 | SUV | – | – | – | – | ZSB4.2C / ZSB42 | ZSB8W** |
| Z4 | E89 | Roadster | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | – | – |
| i8 | L15 | Roadster | – | – | ZSB4.2C / ZSB42 | – | – | ZSB8W |
* Harman Kardon Sound System
MINI
| FRONT DOOR | REAR DOOR | SIDEPANEL REAR | REAR SHELF | HEADLINER / PILLAR | SUBWOOFER | |||
| MINI | R60 | Countryman | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | – | ZSB8W |
| R61 | Paceman | ZSB4.2C / ZSB42 | ZSB4.2C / ZSB42 | – | – | – | ZSB8W | |
| F56 | 3-Türer / 3–door | – | – | – | – | – | ZSB8W | |
| F55 | 5-Türer / 5–door | – | – | – | – | – | ZSB8W | |
| F54 | Clubman | – | – | – | – | – | ZSB8W | |
| F57 | Cabrio | – | – | – | – | – | ZSB8W | |
| F60 | Countryman | – | – | – | – | – | ZSB8W |
Technical changes and errors reserved. Liability for consequential damage during installation in connection with the above information is excluded.
