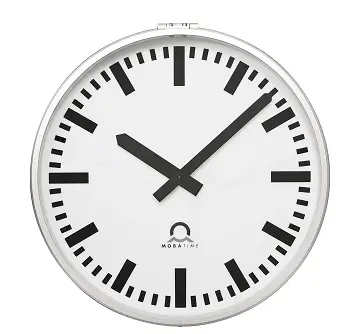

MOBATIME PL0 Profiline Analogue Outdoor Clock

Product Information

The Profiline is our premium analogue outdoor clock. It features an elegant, modular housing concept featuring a weather-resistant aluminum profile, a high-quality finish, and an easy-to-install, maintenance-friendly design.

The Profiline analogue clock is available with or without illumination. It comes in three different dial diameters, offering varying reading distances. It is also available in both single-sided and double-sided versions. The clock offers different time code variants, including power supply options, hands movement, max power consumption, accuracy, and loss of signal.

Product Usage Instructions

1. Decide if you want an illuminated clock. The Profiline comes in two options: with or without LED illumination. Choose the appropriate code: PL0 for no illumination or PL2 for LED illumination.
2. Determine the size of the clock you need. The Profiline is available in three dial diameters. Consider factors like reading distance, lighting, viewing angle, etc. Choose the appropriate code: 55-60m, 65-70m, or 85-90m.
3. Select the shape of the clock. The Profiline is available in single-sided and double-sided versions. Choose the appropriate code: R1 for round, single-sided or R2 for round, double-sided.
4. Select the desired time code variant. Consider factors like power supply, hands movement, max power consumption, accuracy, and loss of signal. Choose the appropriate code based on your requirements.

ANALOGUE OUTDOOR CLOCK PROFILINE

The Profiline is our premium analogue outdoor clock. It features an elegant, modular housing concept featuring a weather-resistant aluminum profile, a high-quality finish and an easy-to-install, maintenance-friendly design.

7 STEPS TO YOUR PROFILINE

To make sure your Profiline meets all your requirements, you can assemble the components individually. Naturally, our experts will be happy to help.

1. Are you looking for an illuminated clock?
   ILLUMINATION
   The Profiline is available with or without illumination:


   CODE	ILLUMINATION
   PL0	none
   PL2	LED

2. How big does your clock need to be?
   SIZE
   The Profiline is available in three dial diameters. The reading distance varies depending on the dial, lighting, viewing angle, etc. These are the options:

   Ø	READING DISTANCE
   50 cm	55-60m
   60 cm	65-70m
   80 cm	85-90m

3. What shape would you like?
   SHAPE
   The Profiline is available in single-sided and double-sided versions:

   CODE	SHAPE
   R1	round, single-sided
   R2	round, double-sided

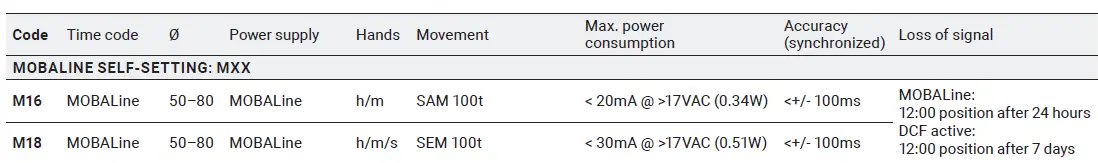

4. The Profiline analog clock offers a variety of time code variants. Pick yours:
   TIME CODE



   NTP (LAN) SELF-SETTING (WITH UNICAST AND MULTICAST): NXX
   N11	NTP	50–80	PoE	h/m	NBU 190t PoE                 PoEclass 2: <1.6W3 / <3.2W4 <+/- 50ms          12:00 position after 24 hours
   N13	NTP	50–80	PoE	h#mmm_s	NBU 190t S PoE
   N01	NTP	50–80	230V (24VDC)	h/m	NBU 190t 24 + PS24          < 60mA @ 24VDC (<1.44W)         <+/- 50ms          12:00 position after 24 hours
   N03	NTP	50–80	230V (24VDC)	h#mmm_s	NBU 190t S 24 + PS24
   POLARIZED IMPULSES: IXX



   SERIAL: SXX
   S01	Serial	50–80	230V	h/m	SU 190t 230	50mA @ 24VDC (<1.2W)          <+/- 100ms        12:00 position after 24 hours
   S03	Serial	50–80	230V	h#mmm_s	SU 190t S 230	12mA @ 230VAC (<3W)
   IRIG/AFNOR: TXX
   T51	IRIG/AFNOR	50–80	230V	h/m	ATBU 190t 230                10mA @ 230VAC (<2.3W)         <+/- 100ms        12:00 position after 24 hours
   T53	IRIG/AFNOR	50–80	230V	h#mmm_s	ITBU 190t S 230
   GPS / DCF 77 / MSF / WTD WIRELESS TIME DISTRIBUTION: RXX
   R01 R04	DCF / MSF2 DCF / MSF2	50–80 50–80	230V 230V	h/m h#mmm_s	BU 190t 230 BU 190t S 230	230VAC (<3W)	<+/- 100ms	12:00 position after 7 days

   R26	DCF 771	50–80	Lithium battery	h/m	FU 192t	–                                         <+/- 100ms	12:00 position after 7 days
   R29	DCF 771,5	50–80	Lithium battery	h/m	FU 192t + BU 192t + CC	–                                         <+/- 100ms	12:00 position after 7 days
   R30	DCF 771	50–80	Lithium battery	h/m	BU 192t + AD 192.5	–                                         <+/- 100ms	12:00 position after 7 days
   R31	DCF 771,5	50–80	Lithium battery	h/m	2x BU 192t + AD 192.5 + CC	–                                         <+/- 100ms	12:00 position after 7 days
   R51	GPS6	50–80	Lithium battery	h/m	GU 192t V2	–                                         <+/- 200ms	12:00 position after 53 days
   R54	GPS5 6	50–80	Lithium battery	h/m	GU 192t V2 + BU 192t + CC	–                                         <+/- 200ms	12:00 position after 53 days
   R80	WTD1	40–80	Lithium battery	h/m	BU 192t + RU	–                                         <+/- 100ms	12:00 position after 7 days
   R88	WTD1	50–80	230V (24VDC)	h/m	SAM 100t + RM + PS24 230VAC (<18W)                    <+/- 200ms        12:00 position after 24 hours
   R90	WTD1	50–80	230V (24VDC)	h#mmm_s	SEM 100t + RM + PS24
   QUARTZ: QXX
   Q02	Quartz	50–80	Lithium battery	h/m	QU 192t	–                                         <+/- 4min/y7	–
   Q03	Quartz5	50–80	Lithium battery	h/m	QU 192t + BU192t + CC	–                                         <+/- 4min/y7	–
   CLOCK CONTROLLER (WITH ILLUMINATION CONTROL): CXX

   C03 C09	MOBALine NTP	50–80 50–80	230 VAC 230 VAC/PoE	h#mmm_s h/m	SEM 100t + DCC SAM 100t + NCC	0.55A @ >230VAC (<20W)	<+/- 100ms <+/- 100ms	12:00 position after 24 hours DCF active:
   C11	NTP	50–80	230 VAC/PoE	h#mmm_s	SEM 100t + NCC	PoE, class 4, <22W	<+/- 100ms	12:00 position after 7 days

   1 internal antenna and receiver (only for clocks without illumination) 2 without antenna, external antenna required 3 single-sided clock 4 cascaded double-sided clock 5 for double-sided clocks, cascading cable included 6 mini magnetic antenna and receiver 7 without synchronization For special clockwork/time code variants, see document TE-800800 at www.mobatime.com in the Customers section

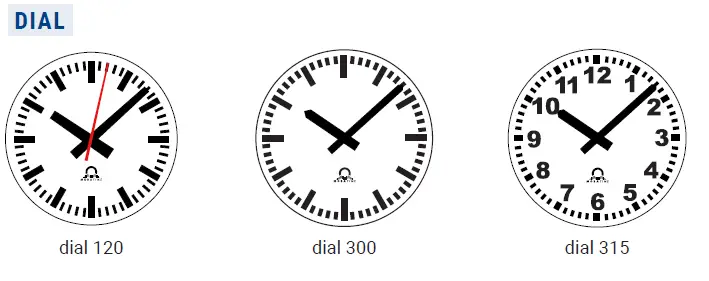

5. Choose your dial:


6. Which type of glass is the right one?
   GLASS TYPE
   Depending on the intended use, two glass options are available.
   Mineral glass (code 1)
   Ball-throw resistant (code 2)

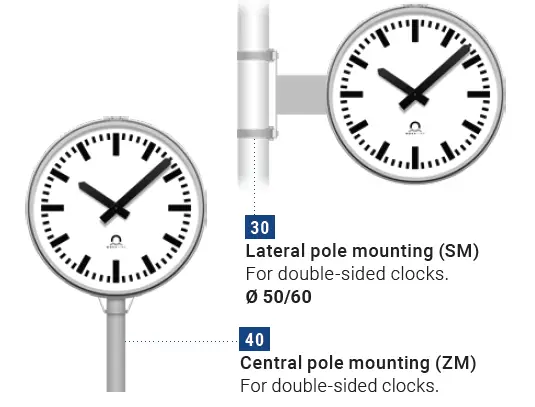

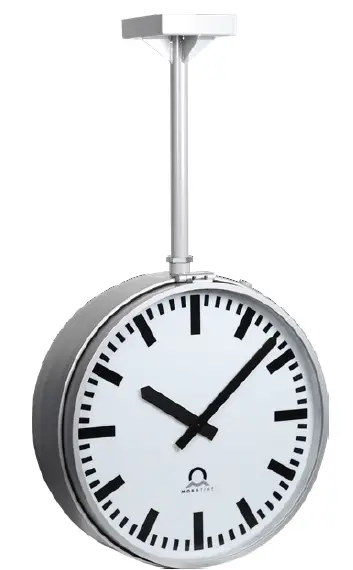

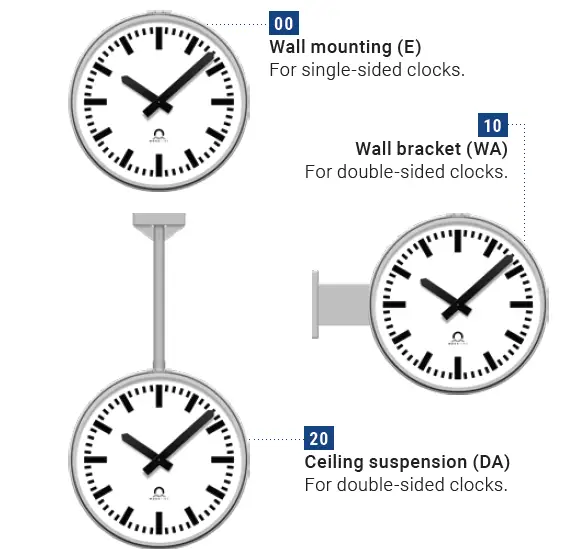

   Choose your installation:
   INSTALLATION


General properties
The following properties apply to all Profiline clocks:

• Housing : Aluminium, anodized

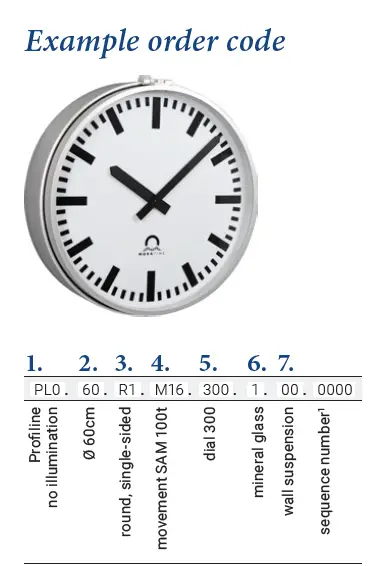

YOUR PROFILINE IS COMPLETE

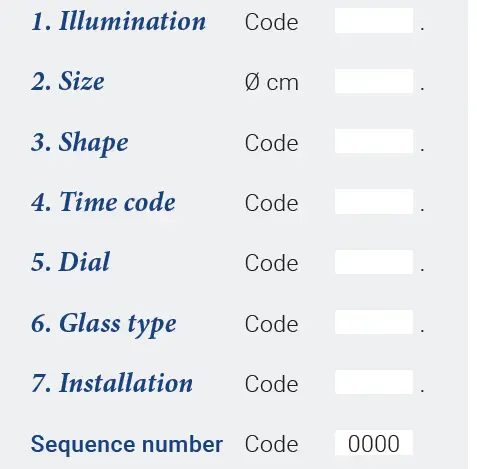

You can now order your Profiline and calculate the corresponding code. Enter the abbreviation for each component of your choice in the bright field and find your Profiline code. It serves as the order code or as the foundation for further steps.

The sequence number denotes special versions (e.g. clocks with a special dial). When ordering, please indicate the sequence number with 0000 (standard version); we will adapt this for any special version. Special versions can be reordered at any time stating the sequence number.

STANDARDS

Depending on the movement used in your Profiline clock, the following standards apply:

All Profiline clocks are compliant with CE, RoHS and REACH.

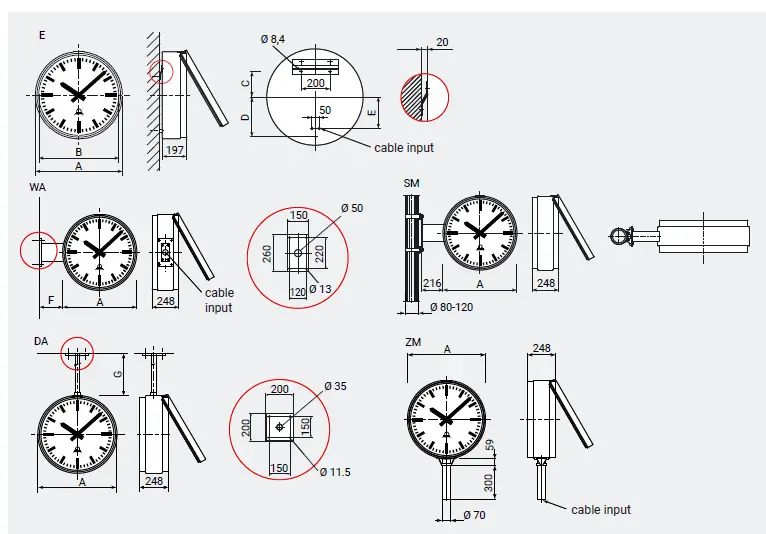

TECHNICAL DATA

All dimensions in mm and weights in kg.

Do you have any questions?
We are happy to help.

Moser-Baer AG
Spitalstrasse 7
CH-3454 Sumiswald
Tel. +41 34 432 46 46
Fax +41 34 432 46 99
[email protected]
www.mobatime.com
Product specifications are subject to change without notice.
