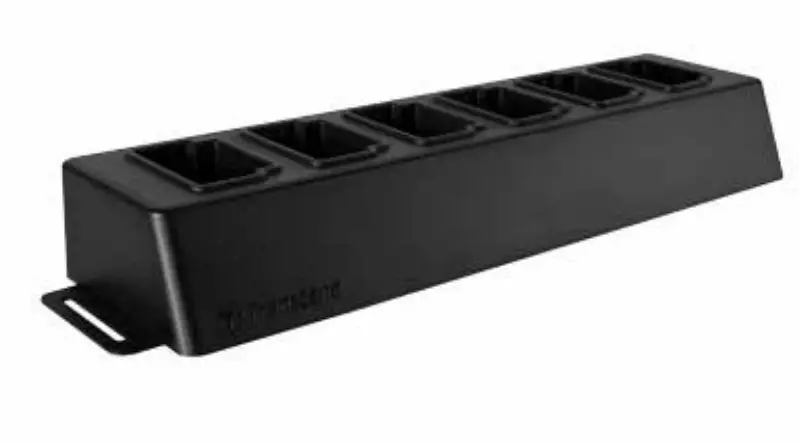

Transcend TS-DPD6N Docking Station
Docking Station TS-DPD6N
Designed exclusively for Transcend’s DrivePro Body 30 and DrivePro Body 60 body cameras, Transcend’ s TS-DPD6N docking station offers a complete camera charging and data upload solution. The six-port docking station is network-based, providing two Ethernet ports for scalability and fast deployment. A LAN port is used for administrative setup, whereas a WAN port is for data upload to a designated folder while charging. A USB 3.1 Gen 1 port is also included for storing video recordings and snapshots to external storage devices.

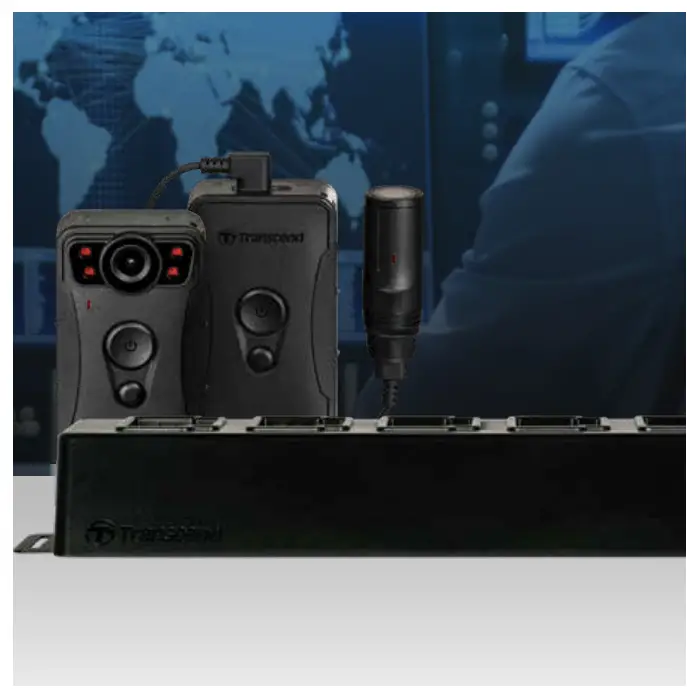

Made for Transcend’s DrivePro Body cameras
Designed exclusively for the DrivePro
Body 30 and DrivePro Body 60,
Transcend ‘s TS-DPD6N docking station offers a complete camera charging and data upload solution

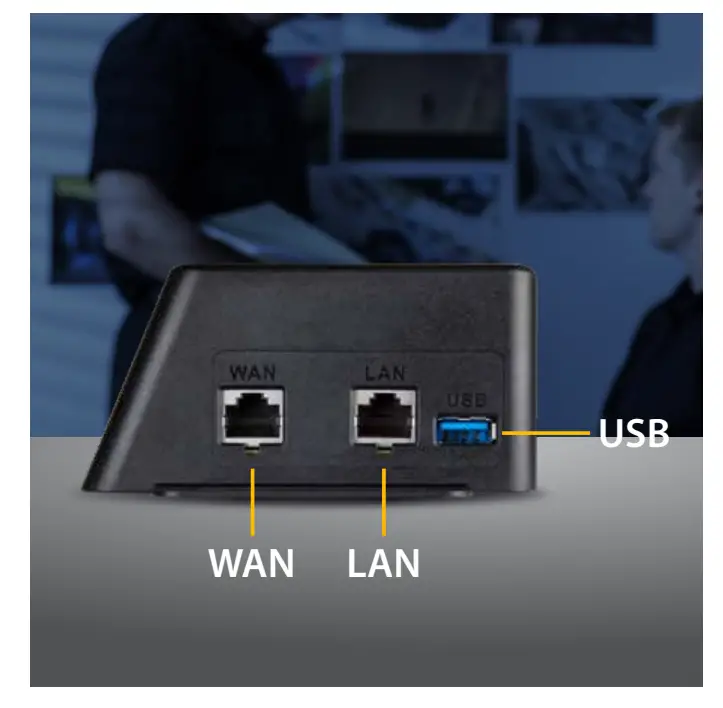

Multifunctional docking station
The networked docking station features both a LAN port for administrative setup and a WAN port for simultaneous upload of data to a designated folder. A USB port is also included for exporting videos and snapshots to external storage devices.

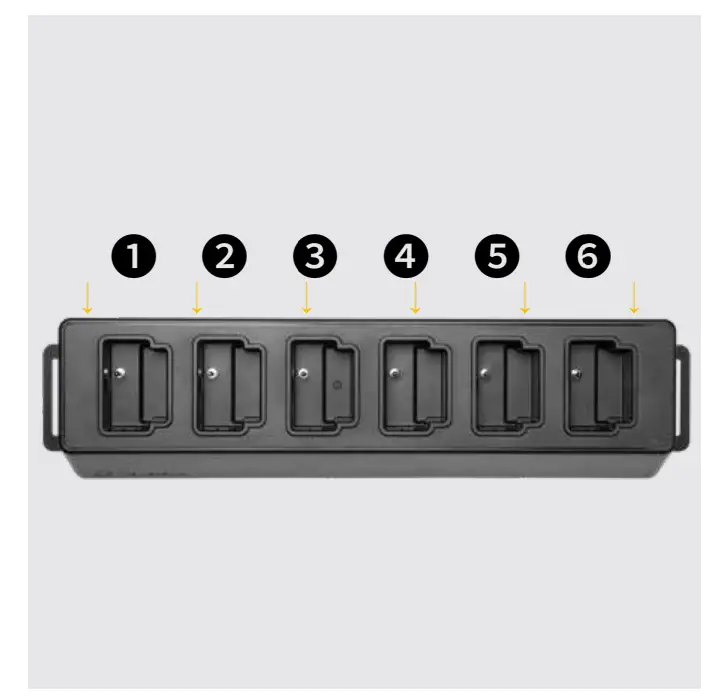

Charge and upload at once
The station’s six charging ports make for supreme efficiency. They can all be used simultaneously, and users can charge devices even while uploading data.
Docking Station TS-DPD6N
Features
- For Transcend’s DrivePro Body 30 & 60 cameras
- A complete camera charging and data upload solution
- Six charging ports for supreme efficiency
- Upload data simultaneously
- Auto backup and unlock
Specifications
| Appearance | |
| Dimensions | 423 mm x 105 mm x 54 mm (16.65″ x 4.13″ x 2.13″) |
| Weight | 980 g (34.57 oz) |
| Interface | |
| USB Type | USB Type-A |
| Connection Interface | USB 3.1 Gen 1 |
| Hardware | |
| Network Port | WAN: 10/100/1000 Mbps Ethernet LAN: 10/100 Mbps Ethernet |
| Power | |
| Power Supply (Max.) | 12V / 3A |
| Operating Environment | |
| Operating Temperature | 0°C (32°F) ~ 40°C (104°F) |
| Storage Temperature | 20°C (-4°F) ~ 70°C (158°F) |
| Warranty | |
| Certificate | CE / FCC / KC / EAC / RCM |
| Warranty | Two-year Limited Warranty |
| Ordering Information | |
| TS-DPD6N | For DrivePro Body 30 and DrivePro Body 60 |
Transcend Information, Inc.
