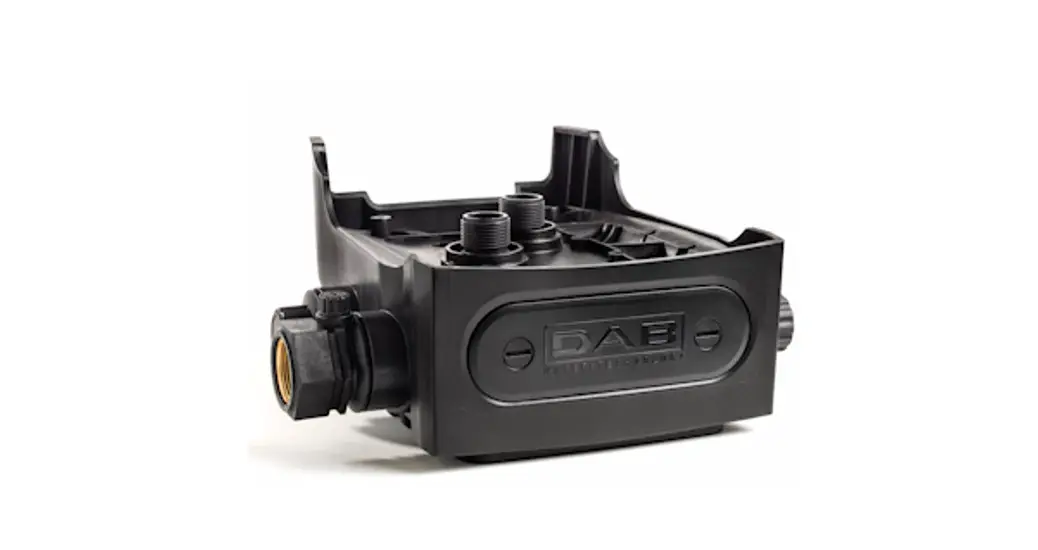

ESYDOCK Max Docking Station
Instruction Manual

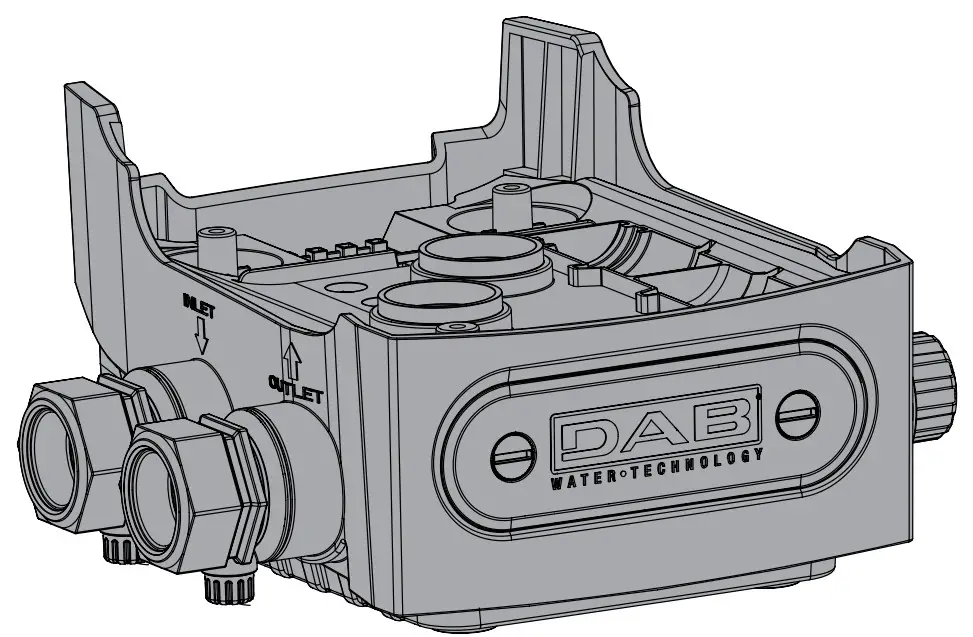

ESYDOCK Max Docking Station

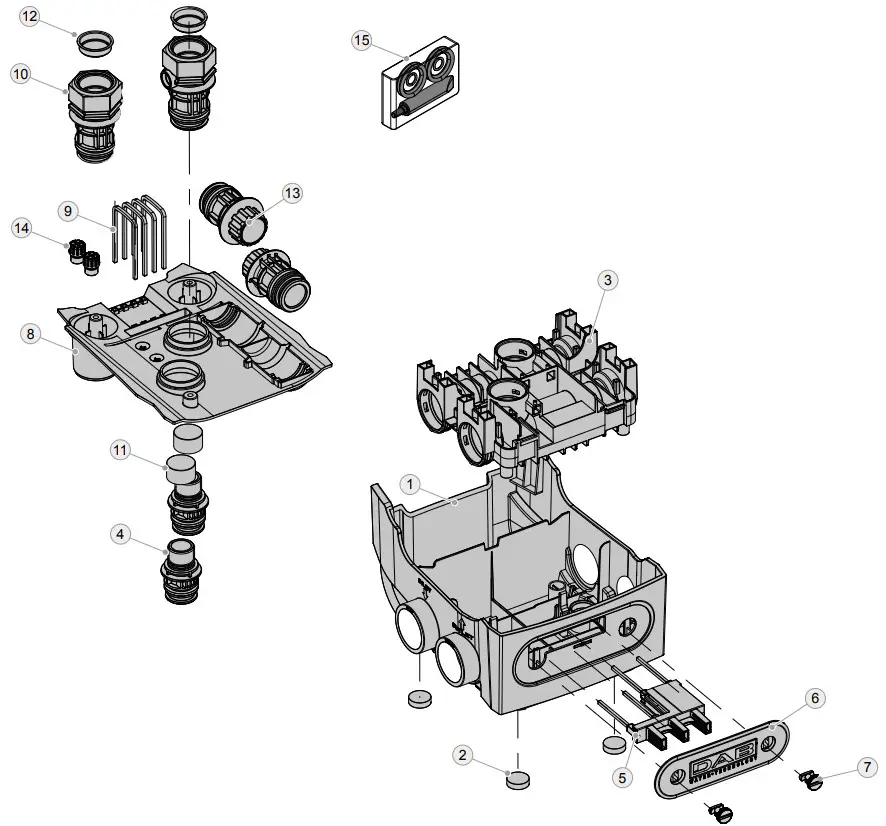

| Index | Q.ty | Description |
| 15 | 1 | KIT O-RING FCT |
| 14 | 2 | PLUG 3/8 BLACK CROSS -PA66+30GF |
| 13 | 2 | CONNECTION CUP FITTING FCT |
| 12 | 2 | THREAD GUARD PLUG D.1 1/4 |
| 11 | 2 | PLUG FOR PIPE 1 |
| 10 | 2 | FCT EXTERNAL FITTING |
| 9 | 4 | CLIP – SQUARE SECT.4 – SPAN 41,5 |
| 8 | 1 | FCT COVER |
| 7 | 2 | FCT LOGO PLATE STOPPER |
| 6 | 1 | FCT LOGO PLATE |
| 5 | 1 | FCT RETAINER DEVICE |
| 4 | 2 | FCT INTERNAL FITTING |
| 3 | 1 | FCT MANIFOLD |
| 2 | 4 | FCT RUBBER FOOT |
| 1 | 1 | FCT SUPPORT BASE |
