Haven Docking Light
Part#: 69382SS-XX
INSTALLATION INSTRUCTIONS
PARTS/TOOLS NEEDED:
 | Screws Provided |  | Butt Splices & Application Specific Sealant (not provided) |
| Docking Light | Drill & Hole Saw Bit |
IMPORTANT SAFETY INSTRUCTIONS.
READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.

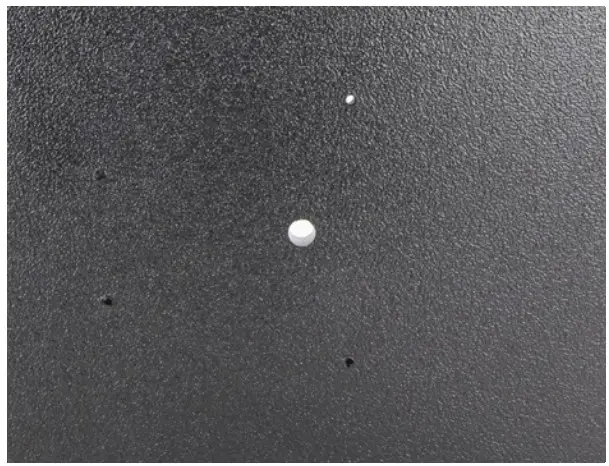

- Determine the installation location drill hole for wires then align the light in the wire hole and use the light to mark screw holes. Drill appropiate sized holes for mounting screws.

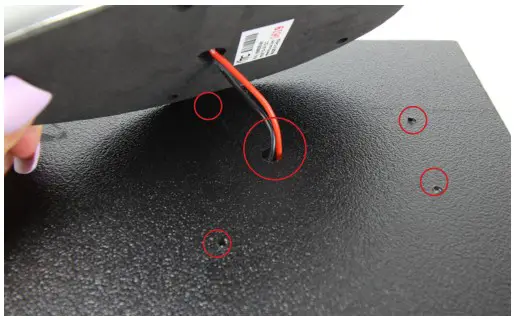

- Feed the wires back through the hole and use application specific sealant around wire and screw holes.

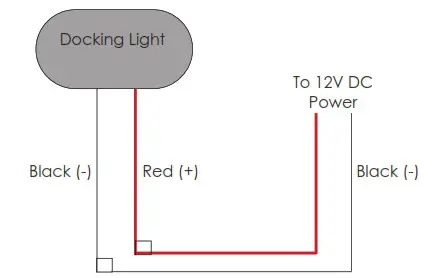

- Follow the wiring diagram below to wire the light to your system.

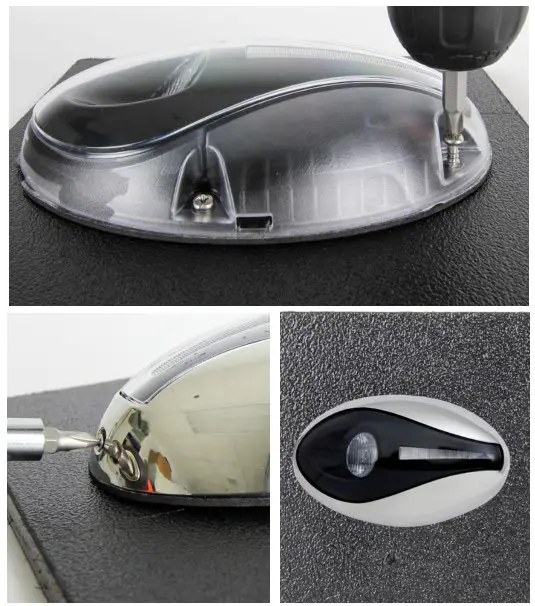

- Place the bezel on the light and use the provided screw to secure the bezel to the light.
3030 Corporate Grove Dr. Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00178 • Rev B •11/02/2022
