76-10164 XP 1000 2 Seat Skid Plate
User Manual
Always observe the warnings and precautions in this manual when using your Seizmik products. For best results, carefully follow the instructions in this manual and make no modifications.
If you have any questions, or comments, need assistance or are missing parts, please call 1-866-838-3366 between 9:00 AM and 5:00 PM EST. You can email us at [email protected]

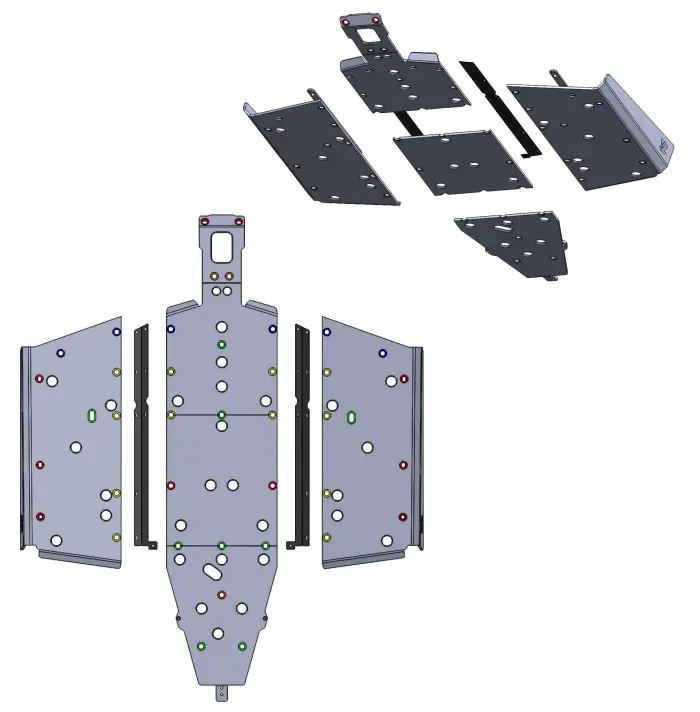

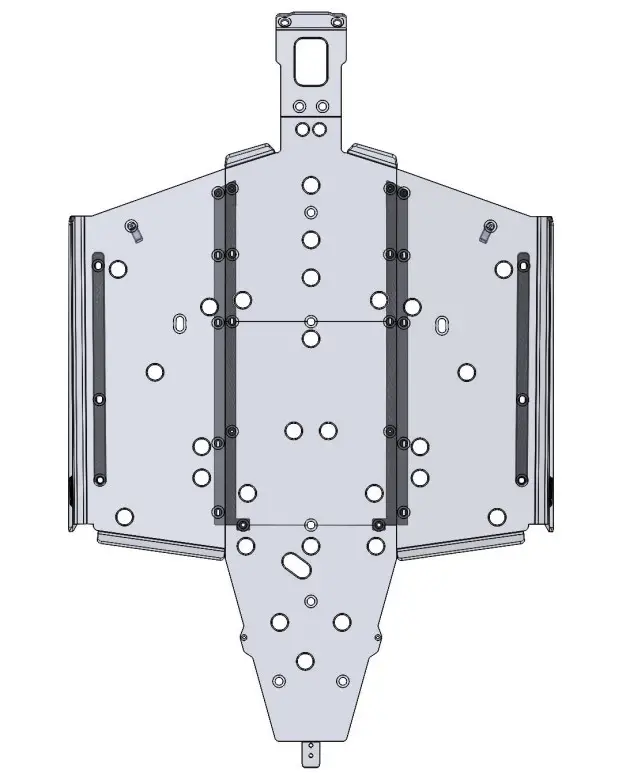

View looking up at the underside of the vehicle

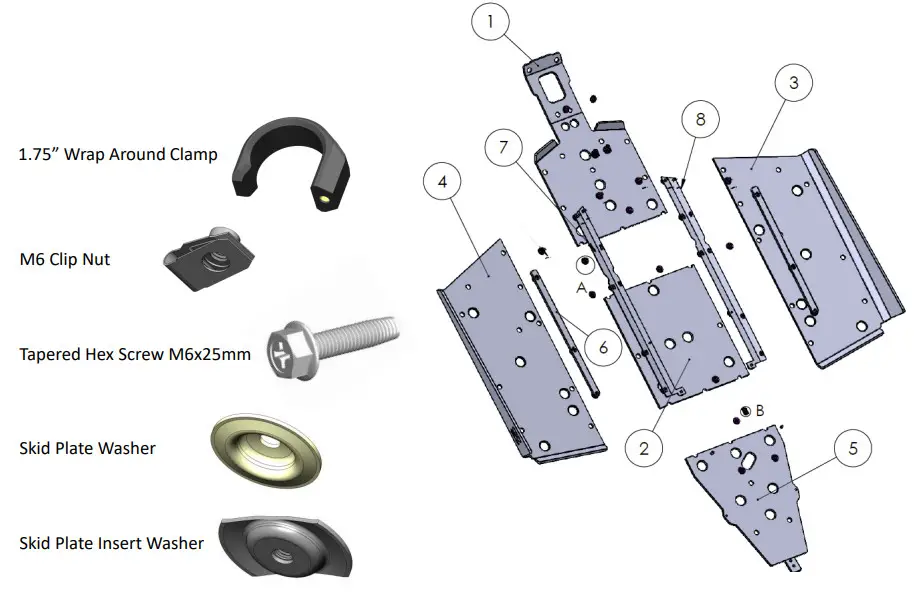

Parts List
| ITEM NO. | Description | Part Number | QTY. |
| 1 | SP_SK03_P1_04 Front Panel | 76-10199 | 1 |
| 2 | SP_SK03_P2_01 Middle Panel | 76-10200 | 1 |
| 3 | SP_SK03_P3_06 Pass Side Panel | 76-10201 | 1 |
| 4 | SP_SK03_P4_06 Drive Side Panel | 76-10202 | 1 |
| 5 | SP_SK03_P5_02 Rear Panel | 76-10203 | 1 |
| 6 | SP_SK03_P6_01 Side Spacer | 76-10204 | 2 |
| 7 | SP_SK03_B1_03 Driver Side Bracket | 76-10205 | 1 |
| 8 | SP_SK03_B2_03 Pass Side Bracket | 76-10206 | 1 |
| 9 | Skid Plate Washer | 54-96007 | 42 |
| 10 | Skid Plate Insert Washer | 54-96008 | 3 |
| 11 | Tapered Hex screw, M6 x 1.0 x 25mm | 54-96017 | 24 |
| 12 | Hex flange screw, M6 x 1.0 x 35mm | 99-10006 | 6 |
| 13 | Hex flange screw, M6 x 1.0 x 20mm | 99-10007 | 2 |
| 14 | M6 Locknut | 99-10003 | 2 |
| 15 | Self-Tapping Screw m6.3x38mm | 54-96015 | 10 |
| 16 | M6 Clip Nut | 54-96009 | 12 |
| 17 | 1.75″ Wrap Around Clamp | 54-96003 | 6 |

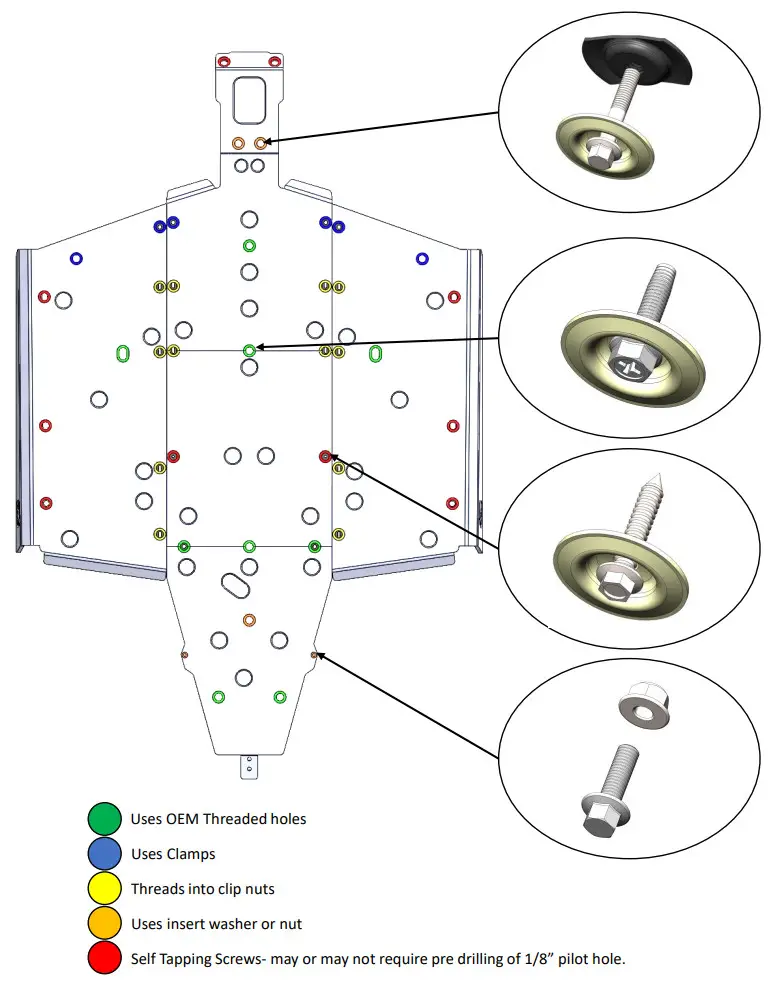

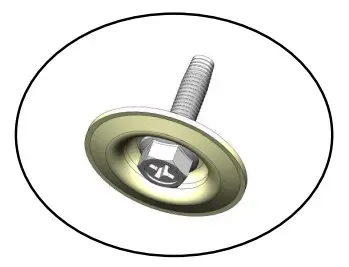

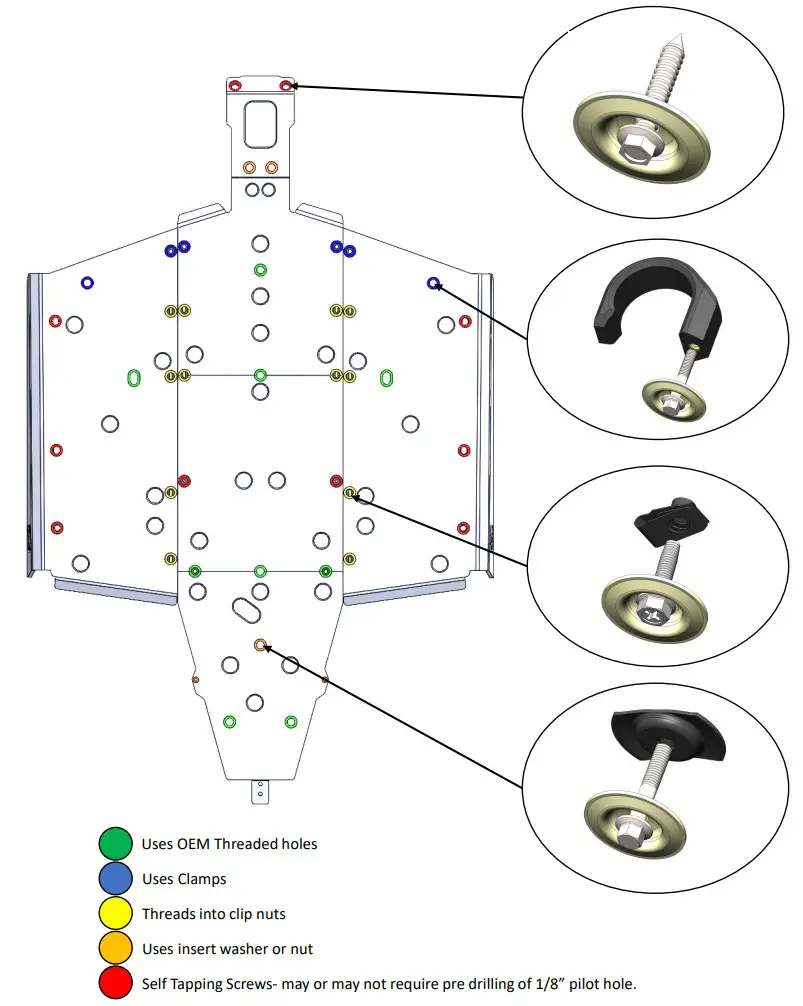

GREEN holes use M6x25mm tapered bolt and washer Into factory threaded holes unless called out otherwise.

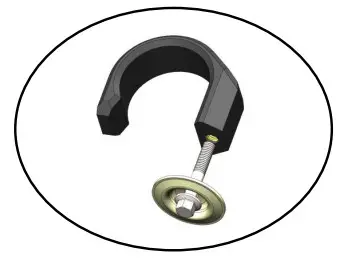

BLUE holes use to wrap around clamps.

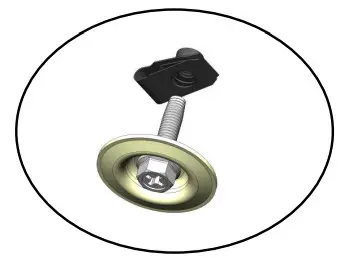

YELLOW holes use M6x25mm tapered bolt and washer into clip nuts attached to metal brackets unless called out otherwise.

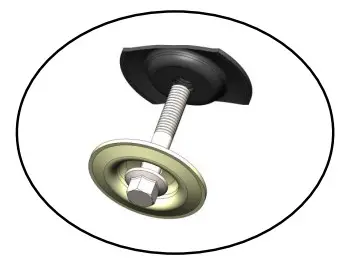

ORANGE holes use a bolt and an insert washer placed into the factory hole in sheet metal unless called out otherwise.
RED holes use Self Tapping Screws- Some locations may or may not require pre-drilling of a 1/8” pilot hole. (pre-drilling is recommended)

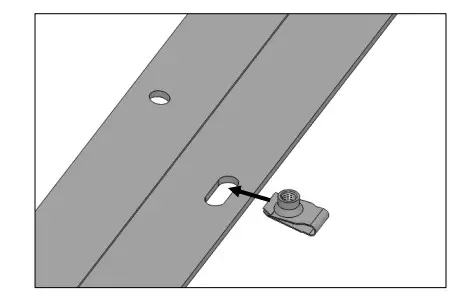

Attach all clip nuts to all slotted holes in metal brackets.
Threading should face upwards, toward the vehicle.
To start, remove the stock skid plate.

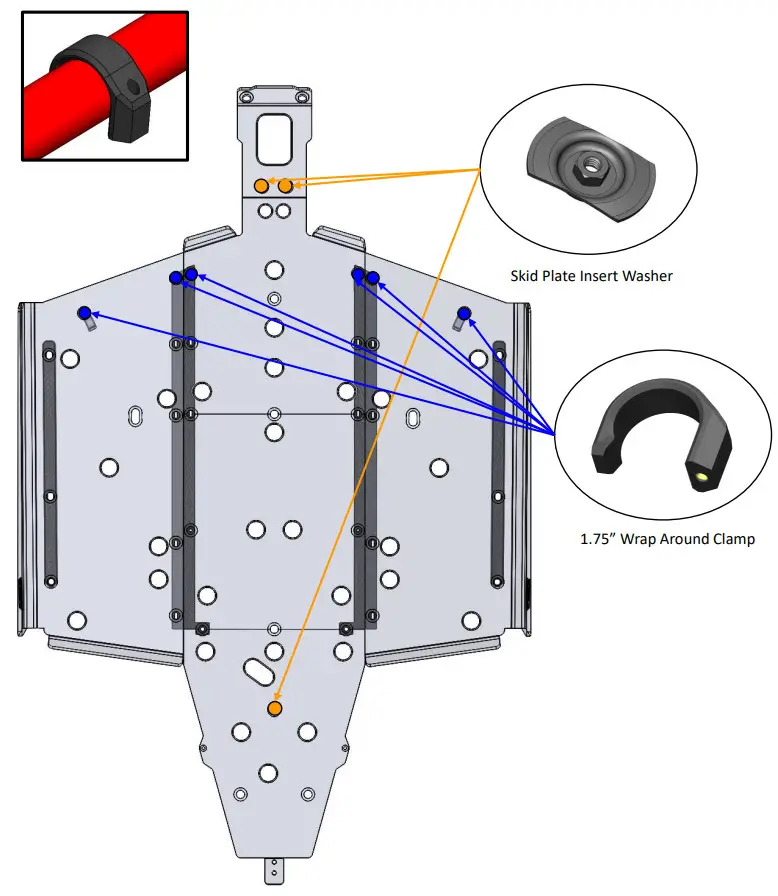

Snap 1.75” clamp around tubing in general locations shown (Shown in BLUE). The threading on the clamps should face outward.

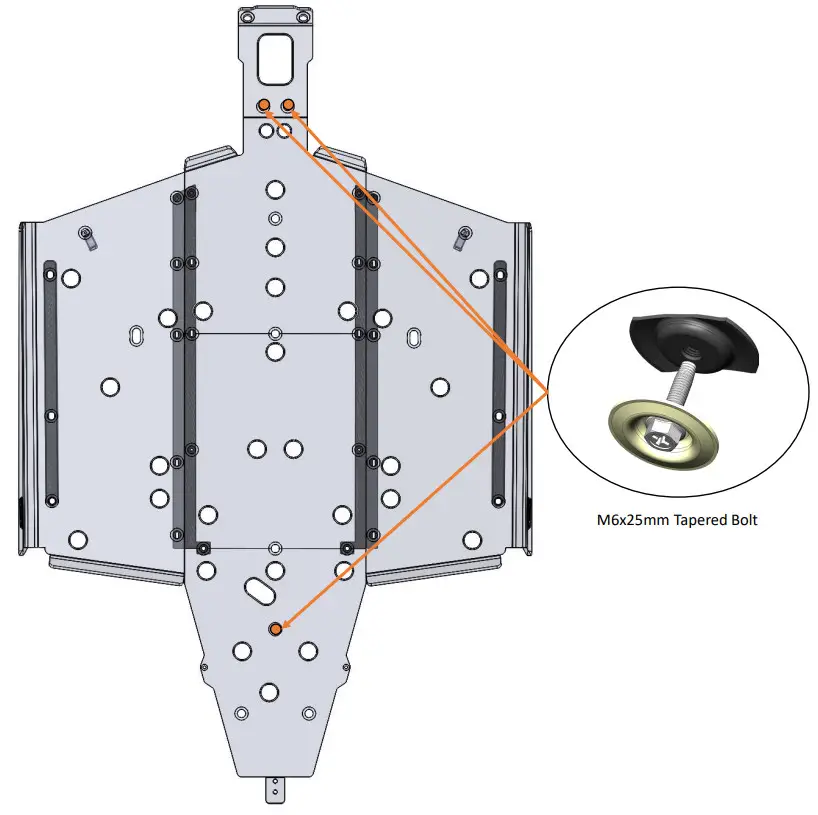

Place insert washers in Sheetmetal holes in vehicle (Shown in ORANGE). The side shown in the image faces upward, toward the vehicle.

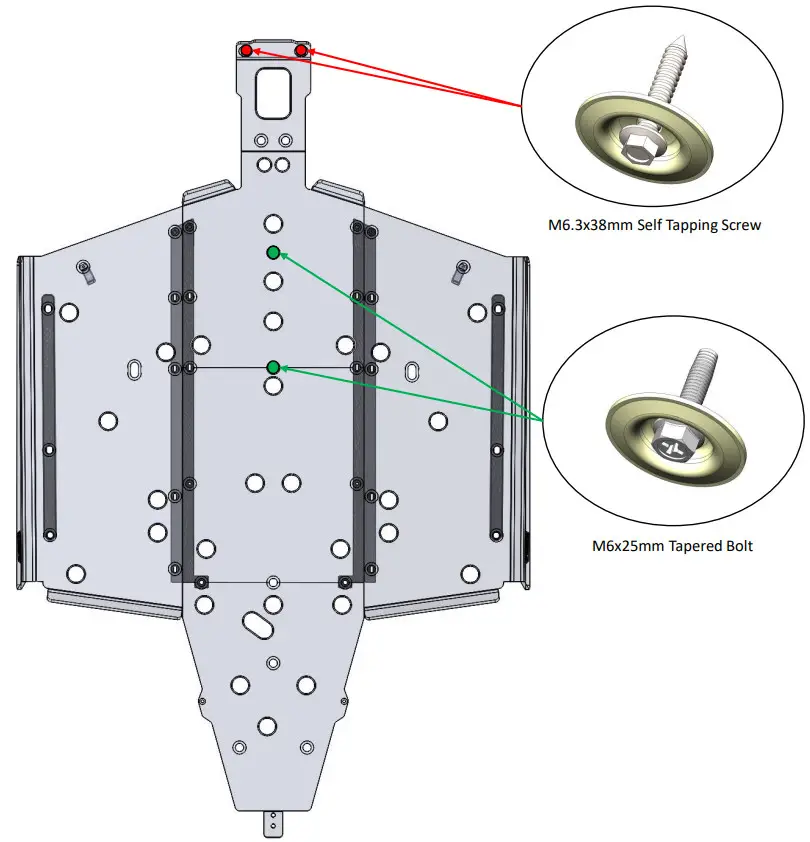

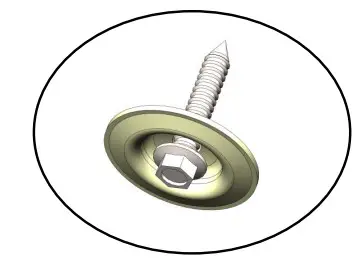

To start, place the front panel onto the vehicle’s underside and line up holes (Shown in Green) with the holes in the vehicle’s underside. Mark locations (Shown in RED) on vehicle Sheetmetal and pre-drill 1/8 inch holes. Then install M6.3x38mm Self Tapping Screws. Next, loosely install two M6x25mm tapered bolts (Shown in GREEN).
Loosely install the center bolt and washer (Shown in GREEN) so that the front and middle panels are held in place on their own.

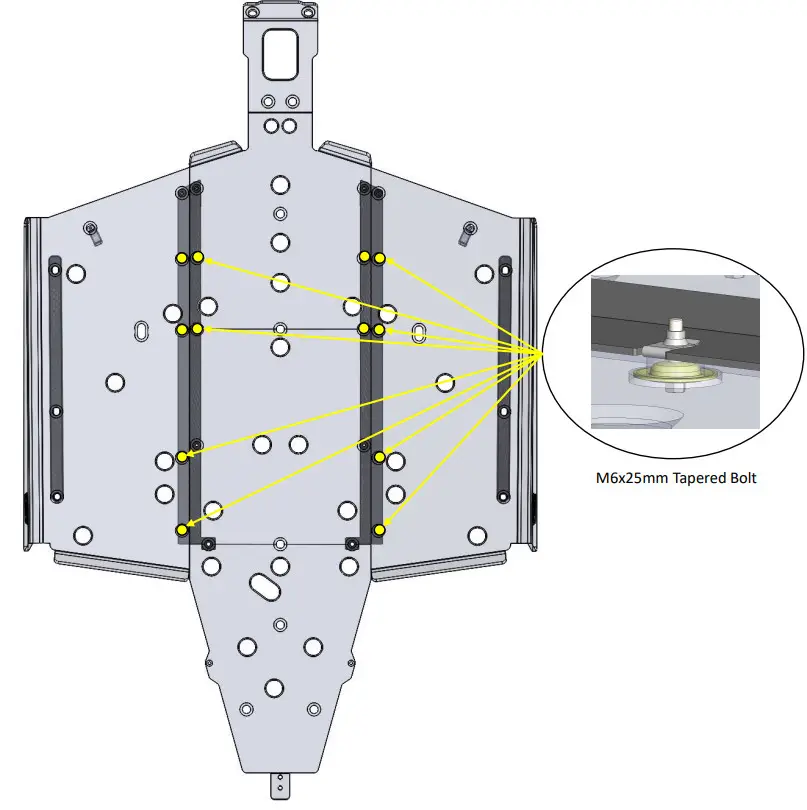

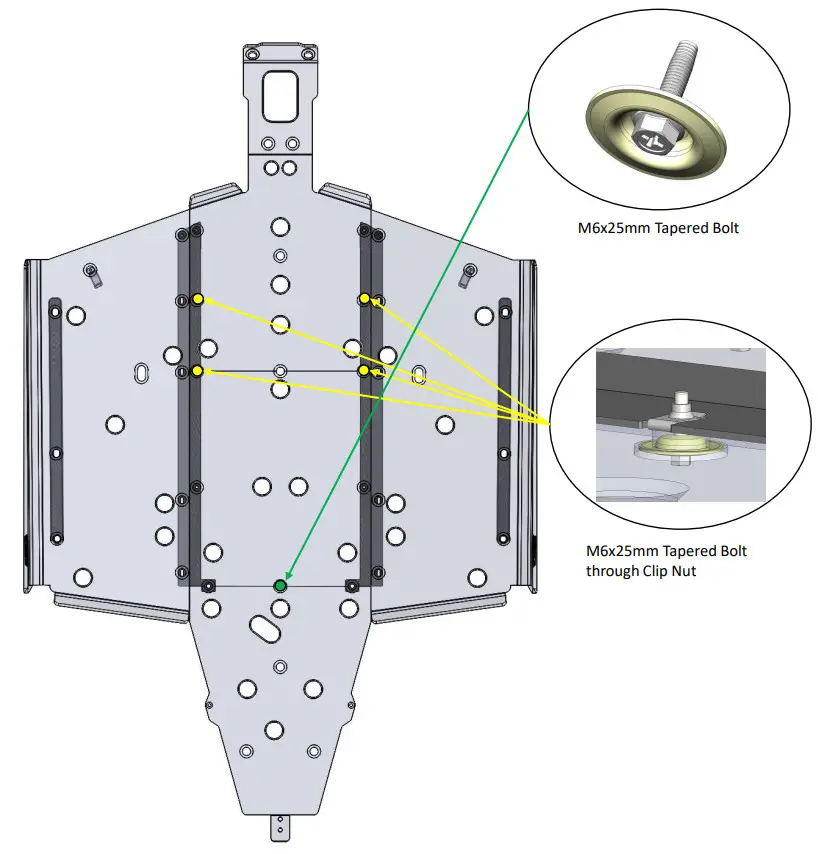

Next, loosely attach the metal brackets to the front and middle panels using 4 bolts and washers (Shown in YELLOW) into the clip nuts that you attached to the metal brackets. The metal brackets go between the panels and the vehicle frame. The panels will sandwich the brackets to the underside of the vehicle frame.
Note: Side spacers go in between vehicle underside and side panels. Do not install side panels before placing spacers.
Note: Side spacers go in between the vehicle underside and side panels. Do not install side panels before placing spacers.

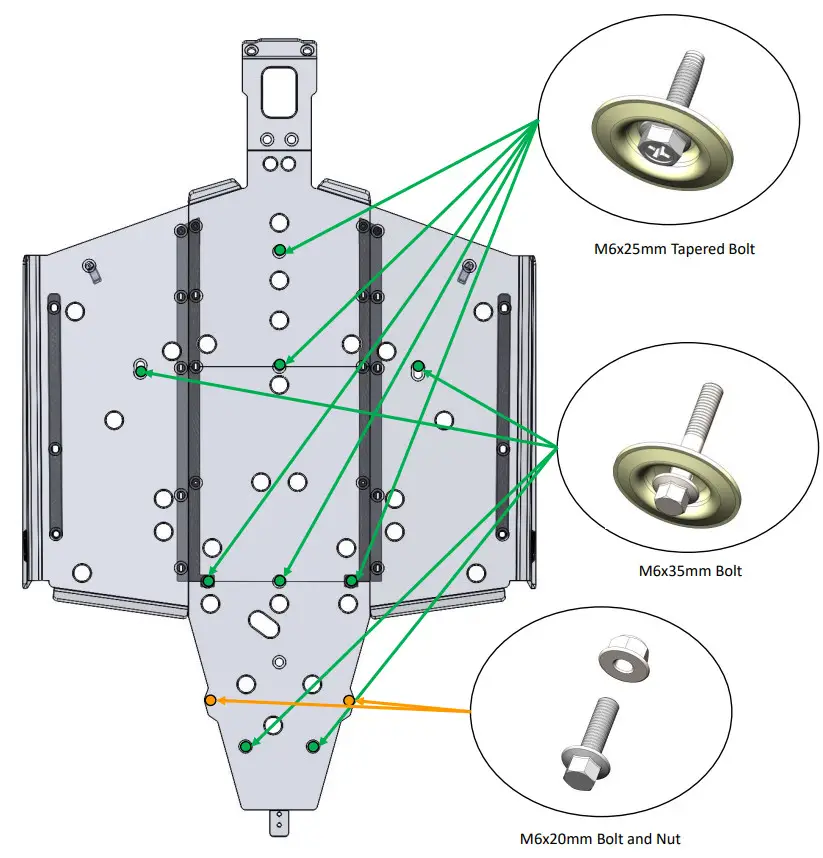

Some model years do not have a bracket here for the bolts. Disregard this mounting location if your vehicle does not have the brackets.
Note: Side spacers go in between the vehicle underside and side panels. Do not install side panels before placing spacers.

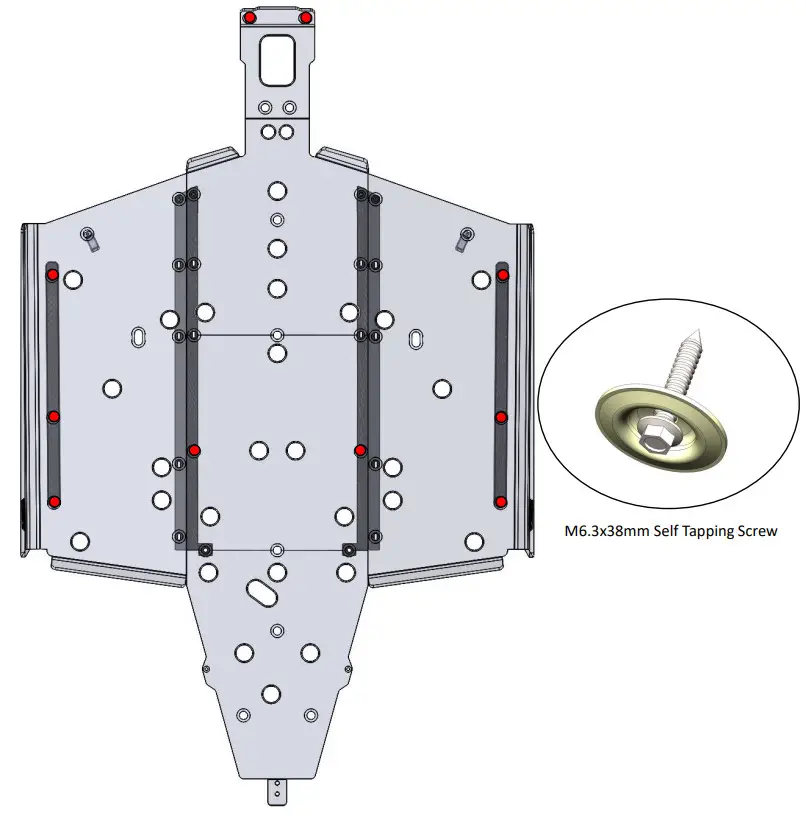

Note: Drilling a 1/8” pilot hole first will make installing the self-tapping screws much easier.
Note: Side spacers go in between the vehicle underside and side panels. Do not install side panels before placing spacers.
Install Self Tapping Screws after installing all other fasteners unless otherwise stated. Once finished installing, tighten all bolts.
