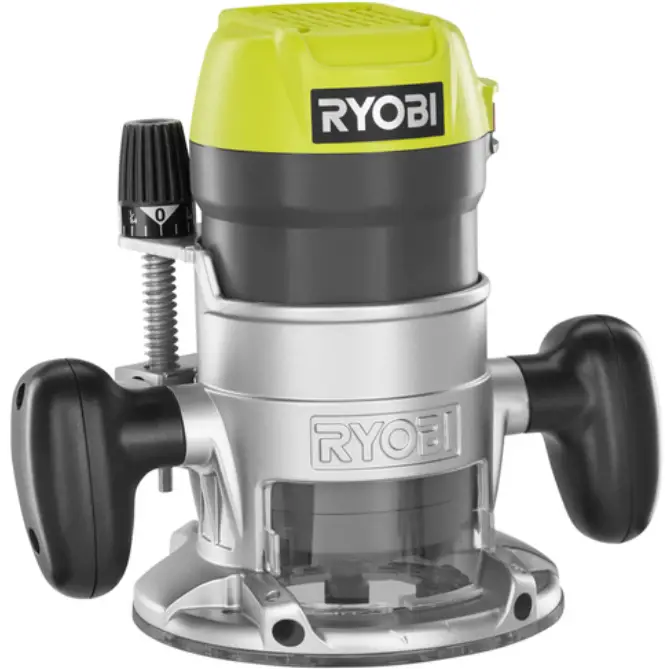

RYOBI R163 Fixed Base Router

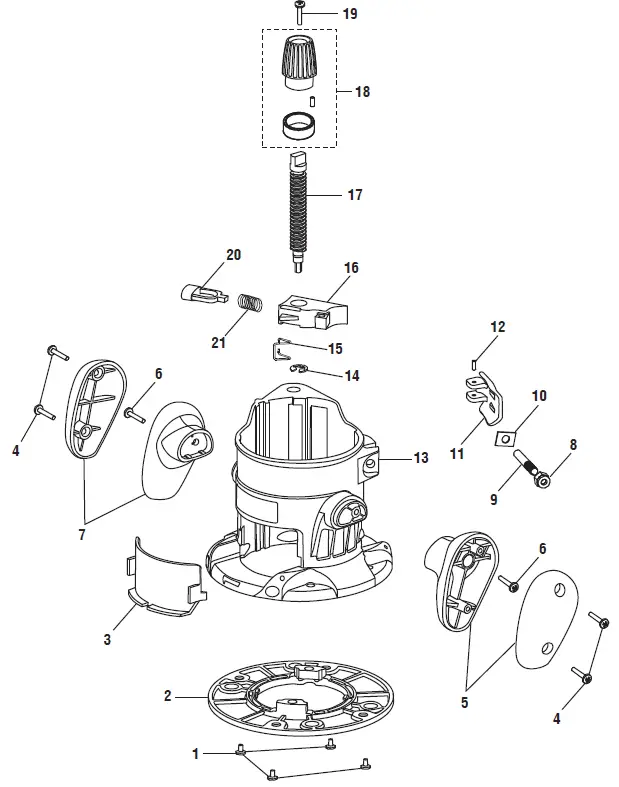

PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 660136001 | Screw (10-32 x 1/4 in.) | 4 |
| 2 | 200234020 | Subbase Assembly | 1 |
| 3 | 514415002 | Chip Shield | 1 |
| 4 | 660161001 | Screw (#8-10 x 5/8 in., Philips Pan Hd.) | 4 |
| 5 | 200244001 | Right Handle Assembly | 1 |
| 6 | 660062005 | Screw (#10-24 x 9/16 in., T orx Recess Pan Hd.) | 2 |
| 7 | 200235001 | Left Handle Assembly | 1 |
| 8 | 671243001 | Hex Lock Nut (1/4-20 ) | 1 |
| 9 | 671260001 | Lever Pin | 1 |
| 10 | 631421001 | Wear Plate | 1 |
| 11 | 641125002 | Lock Lever | 1 |
| 12 | 671247001 | Roll Pin | 1 |
| 13 | 200557002 | Router Base/Spindle Lock Actuator Kit (Inc. Key 3 on p. 4-5) | 1 |
| 14 | 671797001 | E-Ring | 1 |
| 15 | 671759001 | Torsion Spring | 1 |
| 16 | 641123002 | Height Adjustment Bar | 1 |
| 17 | 641124001 | Height Adjust Screw | 1 |
| 18 | 302148001 | Depth Adjust/Zero Reset Ring Assembly | 1 |
| 19 | 660440001 | Screw (M3.5 x 12 mm, Flat Hd.) | 1 |
| 20 | 514418002 | Quick Release Button | 1 |
| 21 | 671758001 | Compression Spring | 1 |
| Not Shown: | |||
| 903209070 | Tool Bag | ||
983000958 | Operator’s Manual (CN – 961153313) |

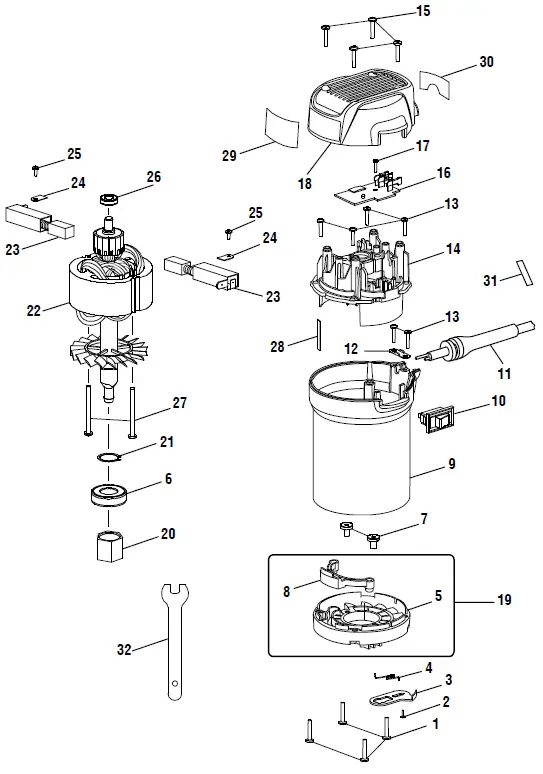

| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 660133010 | Screw (8-18 x 24 mm, Pan Hd.) | 4 |
| 2 | 660929001 | Screw (M3.5 x 14.5 mm, Pan Hd.) | 1 |
| 3 | 200557001 | Router Base/Spindle Lock Actuator Kit (Inc. With Key 13 on p. 2-3) | 1 |
| 4 | 672090001 | Torsion Spring | 1 |
| 5 | 514543001 | Bearing Frame | 1 |
| 6 | 680769003 | Ball Bearing (6003) | 1 |
| 7 | 660299021 | Screw (M5 x 13 mm, Wafer Hd.) | 2 |
| 8 | 290138021 | LED Work Light Assembly | 1 |
| 9 | 514412001 | Motor Housing | 1 |
| 10 | 760676001 | On/Off Switch | 1 |
| 11 | 290086037 | Power Cord Assembly | 1 |
| 12 | 5950101 | Cord Clamp | 1 |
| 13 | 660208052 | Screw (M4 x 16 mm, Pan Hd.) | 6 |
| 14 | 514413001 | Top Bearing Bracket | 1 |
| 15 | 660103001 | Screw (M0.17 x 3/4 in., Pan Hd.) | 4 |
| 16 | 280013103 | Circuit Board Assembly | 1 |
| 17 | 660182003 | Screw (6-19 x 5/16 in., Pan Hd.) | 1 |
| 18 | 200452001 | Upper Cap Assembly (Inc. Key Nos. 29-30) | 1 |
| 19 | 290286001 | LED Work Light and Frame (Inc. Key Nos. 5 & 8) | 1 |
| 20 | 690190002 | Collet Nut | 1 |
| 21 | 671399001 | Retaining Ring | 1 |
| 22 | 290147100 | Motor Assembly | 1 |
| 23 | 290069107 | Brush Assembly | 2 |
| 24 | 630801001 | Brush Tube Clamp | 2 |
| 25 | 660371002 | Screw (8-16 x 1/2 in., Pan Hd.) | 2 |
| 26 | 680966001 | Ball Bearing (CW 608RS) | 1 |
| 27 | 660928001 | Screw (M4.3 x 56 mm) | 2 |
| 28 | 514266001 | Chip | 1 |
| 29 | 940054128 | Logo Label | 1 |
| 30-CN | 941121220 | Data Label | 1 |
| 30-VN | 941122849 | Data Label | 1 |
| 31 | 940999110 | Cord Label | 1 |
| 32 | 671250001 | Wrench | 1 |
If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label.
CN = China
VN = Vietnam
WARNING: The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage to the System, service should be performed by your nearest authorized service center.

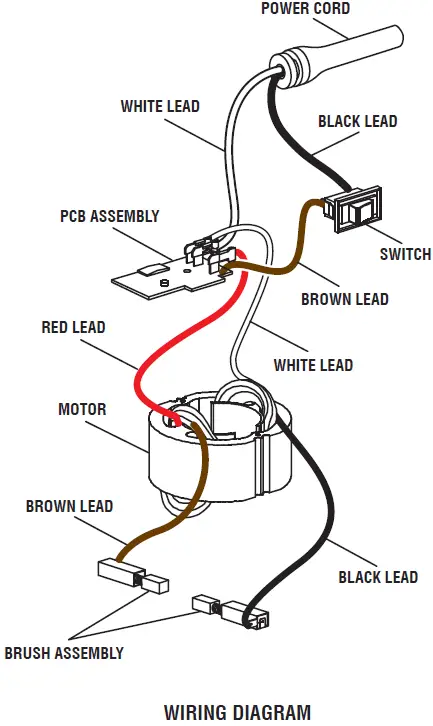

WIRING DIAGRAM
