TIGER 18R MKII
User Manual

Contents hide

1 SAFETY INSTRUCTIONS

2 UNPACKING INSTRUCTION

8 TECHNICAL SPECIFICATIONS

9 Documents / Resources

10 Related Posts

SAFETY INSTRUCTIONS

WARNING Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage, and maintenance of the unit.

Unpack and check carefully that there is no transportation damage before using the unit
Please read these instructions carefully and follow the instructions.
Observe all safety warnings. Never remove safety warnings or other information from the equipment.
Be sure that no ventilation slots are blocked; otherwise, the unit will overheat.
WARNING Before connecting the equipment to the power outlet, first, verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the main power values match. If the included power cord or the power adapter does not fit in your wall outlet, contact your elec trician.
After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
Always disconnect power from the mains, when the unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
Do not switch the unit on and off in short intervals.
Do not connect the unit to a dimmer pack.
Install the unit in a well-ventilated place.
Never place any material over the lens.
Never let the sunlight light directly to the front lens, even when the unit is not working.
Always allow free air space of at least 50 cm around the unit for ventilation.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.
For mounting height >100 cm, always fix the unit with an appropriate safety rope. Fix the safety rope at the correct fixation points only. The safety rope must never be fixed at the transport handles!
Never look directly at the light beam. Please note that fast changes in lighting, e. g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.
WARNING If the power cord of the unit is equipped with earthing contact, then it must be connected to an outlet with a protective ground.
Never deactivate the protective ground of a power cord.
Make sure that the unit is not exposed to extreme heat, moisture, or dust.
Clean the unit using a dry cloth.
Do not touch the unit bare-handed during its operation (the housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment – in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
Never attempt to bypass the thermostatic switch or fuses.
Do not dismantle or modify the unit.
For replacement use fuses/bulbs of the same type and rating only.
Repairs, servicing, and electric connections must be carried out by a qualified technician.
The ambient temperature must always be between -5° C and +45° C.
If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.
Plastic bags must be kept out of reach of children.
The unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local Civic Office, your household old waste disposal service, or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain the packing material for inspection if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packed. If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
POWERSUPPLY
The label on the backside of the unit indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.
RIGGING

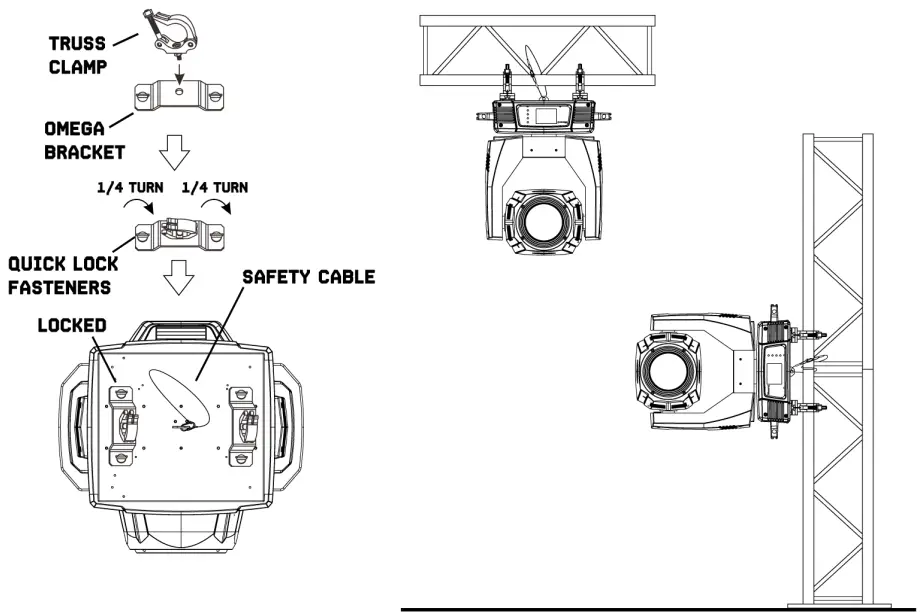

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see the below picture. For fixing, certified clamps with the correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times the unit’s weight. Secure the unit with a safety cable so that it cannot fall down. When carrying out any installation, always comply with European and national guidelines concerning rigging, truss, and all other safety issues. Always let the installation be checked out by an authorized dealer!

OMX512 CONTROL

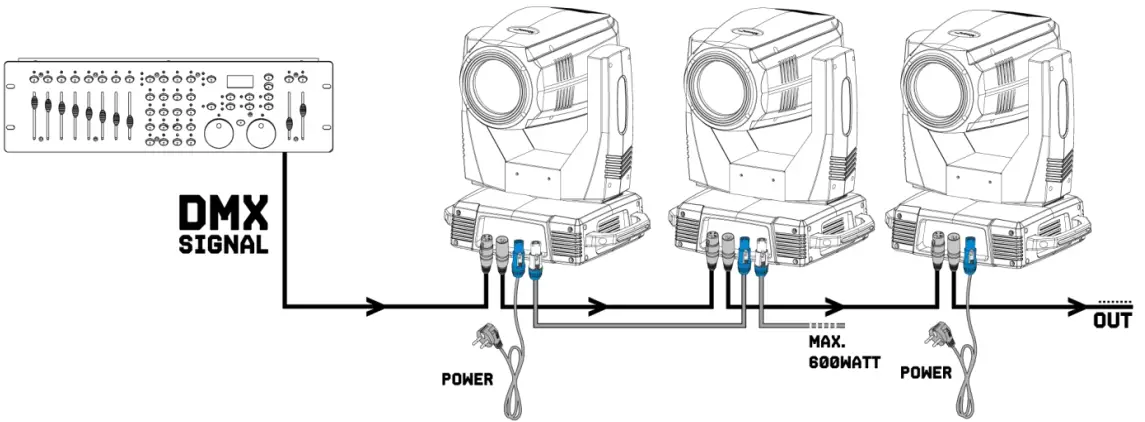

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

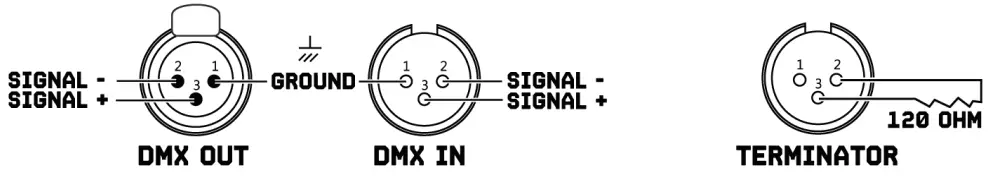

CAUTION At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

ROM CONTROL
This unit can communicate using RDM (Remote Device Management) via DMX512. RDM is a bi-directional communication protocol for use in DMX512 control systems, it is the open standard for DMX512 configuration and status monitoring. The RDM protocol allows data packets to be inserted into a DMX512 line without affecting the existing non-RDM equipment. The system allows a controller or special RDM controller to send and receive commands from specific fixtures. The RDM function allows you. for example to remotely set the DMX start address of your fixtures. This is especially useful when the fixture is installed in an inaccessible location. Each unit has an RDM UID (unique identification number).

DISPLAY

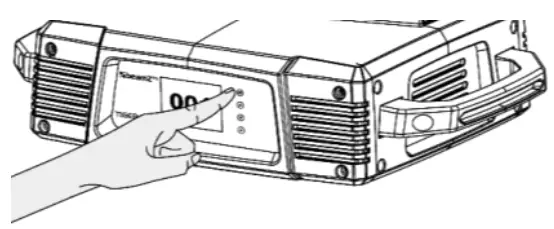

This unit has a touchscreen display as well as 4 control buttons. Navigate the menu structure by pressing the buttons on the side of the display, or touching the desired menu option on the display directly. The touchscreen can be calibrated through the display options in the menu.

	MENU	Exits from the current menu or function
	UP	Navigates upwards through the menu list or increases the numeric value when in a function
	DOWN	Navigates downwards through the menu list or decreases the numeric value when in a function
	ENTER	Enables the currently displayed menu or sets the currently selected value into the selected function

BATTERY POWERED DISPLAY
The display and control panel are powered by an onboard battery. This gives access to the most important functions in the control panel, including DMX addressing, when the unit is not connected to AC power. To activate the display when the unit is not connected to power, press and hold the Menu button for a few seconds. The display extinguishes after 60 seconds automatically when no activity.

TRANSPORT SECURITY

The unit is equipped with Pan/Tilt lock to prevent damage during transport.
WARNING! Pan/Tilt transport protection must be unlocked before the unit will be in use!
LOCK
Lock the unit by sliding the lock pin to the left (horizontally) for Pan or up ( vertically) for Tilt.
UNLOCK
Unlock the unit by sliding the lock pin to the right (horizontally) for Pan or down ( vertically) for Tilt.

EXCHANGING GOBOS
WARNING! Turn the unit off, disconnect the mains power supply and let the unit cool down sufficiently before you will start inserting or exchanging gobos.
If you wish to use other patterns as the standard gobos, make sure that the gobo which you want to insert or exchange has exactly the same size, please follow the instructions below:

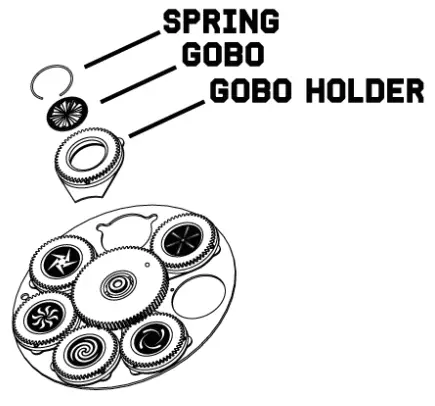

Remove the spring with an appropriate tool.
Remove the gobo and insert the new gobo.
Press the spring together and insert it in front of the gobo.

GLASS GOBO
Coated glass gobos are inserted with the coating against the rim of the holder (away from the spring). Textured gobos are inserted with the smooth side against the spring.

GOBO DIMENSIONS

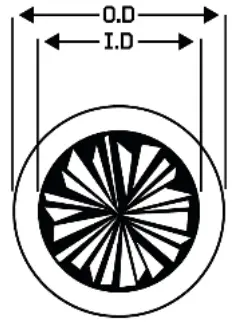

Outer Diameter (0.D): 24.8mm
Image Diameter (I.D) : 21mm
Max. thickness:1.1 mm

CLEANING
The buildup of dust, dirt, and other airborne particles will reduce the unit’s light output. It will also prevent the unit from cooling correctly, and this will reduce the unit’s lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, the use of smoke machines, airflow from ventilation systems, etc. The unit’s cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog. To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup. Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up. Use the following guidelines:

Disconnect the unit from power and allow it to cool completely before cleaning.
Do not use solvents, abrasives, or any other aggressive product to clean the unit.
Vacuum or use low-pressure compressed air to remove dust and lose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

REPLACING THE FUSE
If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug the main lead.
Procedure:

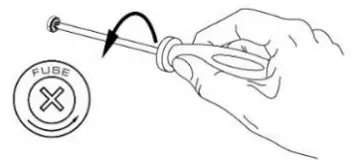

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.

TROUBLESHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product :

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from the unit.	No power to the unit. Fuse has blown or internal fault	Check that power is turned on. Check cables and connections. Replace the mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove the base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or services that are not described in this User Manual unless you have both authorizations from Beamz support or Beamz’s authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected. Bad DMX-line. DMX-line has no end resistance. Incorrect unit addressing. A unit is defective and is disturbing data transmission on the DMX line. Pin 2 and 3 are reversed in the XLR connection.	Connect controller. Inspect connections and cables. Correct poor connections. Repair or replace damaged cables. Insert DMX terminator plugin DMX output socket of the last unit on DMX-line. Check the unit address and DMX mode settings. Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained. Has the defective unit been serviced by an authorized technician? Inspect connections and cables. Install a phase-reversing cable between the units or swap pins 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	The effect requires mechanical adjustment.	Check the unit’s software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	A unit too hot. LEDs damaged. The power supply settings do not match local AC voltage and frequency.	Allow the unit to cool. Reduce ambient temperature. Ensure free airflow around the unit. Clean unit if necessary. Disconnect the unit and contact Beamz support or Beamz authorized service partner. Disconnect unit. Check settings and correct them if necessary.

CONTROL MENU

MENU			DESCRIPTION
ADDRESS	A000-Axxx		DMX address setting
WORK MODE	DMX Ctrl		Select operation mode
	Auto Run
	Sound Ctrl
	Scene Mode	Auto / Mode 1-10
	M/S Choose	Auto / Slave / Master	Master/Slave
	Light Switch	On / Off	Manual ignite of the bulb
DISPLAY	Screensaver	Mode 1, 2, 3 / Off	Select screensaver when the display is not active
	Screen Rot	Forward / Reverse	Display reverse
	DMX Indicate	Mode 1, 2, 3	Mode of DMX indicator LED
	Signal bright	10-Jan	The brightness of signal LED
	Screen Light	10-Jan	Brightness of display
	Touch Enable	On / Off	Touch screen activation
	Touch Rectify		Touch screen calibration
SENCE	Scene Select	10-Jan	Select the desired scene and make manual changes.
	Scene Time	000-255
	Pan	000-255
	Pan Fine	000-255
	Tilt	000-255
	Tilt Fine	000-255
	PT Spd	000-255
	Frost	000-255
ADVANCED	Pan Invert	ON / OFF	Pan invert
	Tilt Invert	ON / OFF	Tilt invert
	P/T Rectify	ON / OFF	Correction Pan Tilt
	Pan Offset	004-150	Manual correction of pan
	Tilt Offset	004-150	Manual correction of tilt
	Data hold	ON / OFF	Data hold when no DMX signal
	Lamp	PowerOn / Manual / Rst Done	Select way of igniting bulb
	Factory Setting		Factory defaults
STATUS	Stepper info		The operation status of the unit
	Error Logging
	Fixture Status
	Version
	Light time
ESCAPE	Total time		Leave menu

DMX CHANNELS

26 CHANNEL	23 CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	18	Pan	000-255	Pan movement by 540°
2	19	Pan fine	000-255	Fine control of pan movement
3	20	Tilt	000-255	Tilt movement by 270°
4	21	Tilt fine	000-255	Fine control of tilt movement
5	22	Pan Tilt Speed	000-255	From fast to slow
6	17	Frost	000-127	Open
6	17	Frost	128-255	Frost Filter
7	2	Dimmer	000-255	Dimmer intensity from 0% to 100%
8	3	Strobe	000-003	Shutter close
			004-103	Strobe, slow to fast pulse effect
			104-107	Shutter open
			108-207	From slow to ast
			208-212	Shutter open
			213-251	From slow to fast random
			252-255	Shutter open
9	4	Cyan Wheel	000-255	Linear Cyan movement
10	5	Magenta Wheel	000-255	Linear Magenta movement
11	6	Yellow Wheel	000-255	Linear Yellow movement
		Static colors Cyan Wheel	000-021	Open
			022-042	Red
			043-062	Yellow
			063-085	Light Blue
			086-106	Lime
			107-127	Blue
			128-190	Automatic color rotation, from fast to slow
			191-255	Automatic color rotation, from slow to fast
:3		Static colors Magenta Wheel	000-021	Open
			022-042	Magenta
			043-062	Yellow
			063-085	Cyan
			086-106	Lime
			107-127	Pink
			128-190	Automatic color rotation, from fast to slow
			191-255	Automatic color rotation, from slow to fast
14		Static colors Yellow Wheel	000-021	Open
			022-042	CTO 1
			043-062	CTO 2
			063-085	Cyan
			086-106	Orange
			107-127	Red
			128-190	Automatic color rotation, from fast to slow
			191-255	Automatic color rotation, from slow to fast

26 CHANNEL	23 CHANNEL	FUNCTION	VALUE	DESCRIPTION
15		Colour	000-007	Open
			008-013	Colour 1
			014-021	Colour 2
			022-025	Colour 3
			026-035	Colour 4
			036-042	Colour
			043-049	Colour 6
			050-056	Colour 7
			057-063	Colour 8
			064-070	Colour 9
			071-077	Colour 10
			078-085	Colour 11
			086-092	Colour 12
			093-099	Colour 13
			100-106	Colour 14
			107-113	Colour IS
			114-120	Colour 16
			121-127	Colour 17
			128-134	Colour 18
			135-141	Colour 19
			142-148	Colour 20
			149-155	Colour 21
			156-162	Colour 22
			163-170	Colour 23
			T71-177	Colour 24
			178-184	Colour 25
			185-191	Colour 26
			192-198	Colour 27
			199-205	Colour 28
			206-212	Colour 29
			213-219	Colour 30
			220-226	Colour 31
			227-233	Colour 32
			234-240	Colour 33
			241-247	Colour 34
			248-255	Colour 35
16		Gobo wheel 1	000-009	Open 1
			010-014	Open 2
			015-019	Open 3
			020-024	Open 4
			025-029	Bobo 1
			030-034	Gobo 2
			035-039	Gobo 3
			040-044	Gobo 4
			045-049	Gobo S
			050-054	Gobo 6
			055-059	Gobo 7
			060-064	Gobo 8
			065-069	Gobo 9
			070-074	Gobo 10
			075-079	Gobo Effect

26 CHANNEL	23 CHANNEL	FUNCTION	VALUE	DESCRIPTION
16	7	Gobo wheel 1	080-084	Open 1, Shake from slow to fast
			085-089	Open 2, Shake from slow to fast
			090-094	Open 3, Shake from slow to fast
			095-099	Gobo 1, Shake from slow to fast
			100-104	Gobo 2. Shake from slow to fast
			105-109	Gobo 3, Shake from slow to fast
			110-114	Gobo 4, Shake from slow to fast
			115-119	Gobo 5, Shake from slow to fast
			120-124	Gobo 6, Shake from slow to fast
			125-129	Gobo 7. Shake from slow to fast
			130-134	Gobo 8, Shake from slow to fast
			135-139	Gobo 9. Shake from slow to fast
			140-144	Gobo 10, Shake from slow to fast
			145-191	Gobo animation effect
			192-223	Rotation gobo wheel clockwise
			224-255	Rotation gobo wheel counter-clockwise
17	8	Gobo wheel 2	000-001	Beam
			002-010	Open
			011-020	Go bo 1
			021-030	Gobo2
			031-040	Gobo3
			041-050	Gobo4
			051-060	Go bo 5
			061-070	Gobo 6
			071-080	Gobo?
			081-090	Gobo 8
			091-100	Gobo 9
			101-110	Gobo 1, Shake from slow to fast
			111-120	Gobo2, Shake from slow to fast
			121-130	Gobo 3, Shake from slow to fast
			131-140	Gobo 4, Shake from slow to fast
			141-150	Gobo 5, Shake from slow to fast
			151-160	Gobo 6, Shake from slow to fast
			161-170	Gobo 7, Shake from slow to fast
			171-180	Gobo 8, Shake from slow to fast
			181-191	Gobo 9, Shake from slow to fast
			192-223	Rotation gobo wheel clockwise
			224-255	Rotation gobo wheel counterclockwise
18	9	Gobo wheel 3 (rotation)	0	Beam
			001-0009	Open
			010-020	Gobo 1
			021-030	Gobo2
			031-040	Gobo3
			041-050	Gobo4
			051-060	Go bo 5
			061-070	Gobo 6
			071-080	Gobo 7
			081-090	Gobo 1, Shake from slow to fast
			091-100	Gobo 2. Shake from slow to fast

			101-110	Gobo 3, Shake from slow to fast
111-120	Gobo 4, Shake from slow to fast

26 CHANNEL	23 CHANNEL	FUNCTION	VALUE	DESCRIPTION
18	9	Gobo wheel 3 (rotation)	121-130	Gobo 5, Shake from slow to fast
			131-140	Gobo 6. Shake from slow to fast
			141_150	Gobo 7. Shake from slow to fast
			151-199	Rotation gobo wheel clockwise
			200-202	Stop
			203-255	Rotation gobo wheel counter-clockwise
19	10	Gobo rotation	000-127	Rotation 0-360
			128-187	Fast to slow clockwise
			188-195	Stop
			196-255	Slow to fast counterclockwise
20	11	Prism 1	000-127	Open
20	11	Prism 1	128-255	Prism 1 effect
21	12	Prism 1 rotation	000-127	Rotation 0-360
			128-190	Fast to slow clockwise
			191-192	Stop
			193-255	Slow to fast counterclockwise
22	13	Prism 2	000-127	Open
22	13	Prism 2	128-255	Prism 2 effect
23	14	Prism 2 rotation	000-127	Rotation 0-360
			128-190	Fast to slow clockwise
			191-192	Stop
			193-255	Slow to fast counterclockwise
24	15	Zoom	000-255	Zoom from max. to min. beam angle
25	16	Focus	000-255	Focus from far to near
26	23	Reset	000-099	No function
			100-105	Turn off the light after more than 3 seconds
			110-115	Turn on the light after more than 3 seconds
			210-215	Reset pan and tilt after more than 3 seconds
			220-235	Reset effect after more than 3 seconds
			240-255	Reset completely after more than 3 seconds

TECHNICAL SPECIFICATIONS

Rated voltage		: 100-240VAC, 50-60Hz, 3.8-2.1A
Lightsource		: YODN MSD 18R 380
Illuminance		: 207.000lx @ 10m
Beam angle	Beam	: 2-9°
	Spot	: 21-62°
	Wash	: 23-64°
Flash rate		: 1-20 Hz
Pan movement		: 540°
Tilt movement		: 270°
Color wheel		: 12 colour / 2 CTO / 1 CTB / 1 CMY / semi-colour effect
Gobos	Wheel 1	: 9 gobos
	Wheel 2	: 10 gobos + 4 beam
	Wheel 3	: 6 gobos (interchangeable) + Glass effect
Prism		: 8 / 16 Facet
DMX Channels		: 23 / 26
Functions		: DMX, RDM, Automatic programs, Sound to light, and Master-Slave.
Dimensions per unit		: 420 x 450 x 550mm
Weight (per unit)		: 23,5 kg

Design and product specifications are subject to change without prior notice.

European Union Tronios B.V., Bedrijvenpark Twente Noord 18, 7602KR Almelo, The Netherlands 2014/35/EU 2014/30/EU 2011/65/EC	United Kingdom Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom S.I. 2016:1101 S.I. 2016:1091 S.I. 2012:3032

YOUR FUTURE
YOUR SKILLS
YOUR PLATFORM
YOUR PARTY
YOUR EVENToffers a wide range of high-performance lighting equipment and related accessories for the rental, entertainment, and architectural lighting markets. BeamZ Pro stands for performance, innovation, and value pricing!
BEAMZLIGHTING.COM
