Mircom FS-400 Wall Mount Led Strobes
Description

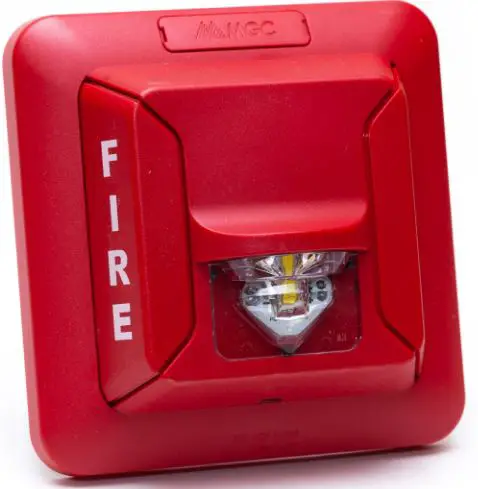

Mircom’s FS-400 wall mount strobes offer a visual solution that deliver exceptional energy efficiency in a compact design. Utilizing advanced LED technology, the FS-400 strobes provide a lower current draw which allows for more devices on a NAC circuit while reducing the number of external power supplies required.
The FS-400 strobes can be field-configured for 15, 15/75, 30, 75, 110, 185 cd. The candela setting is displayed through the front window for easy identification. The device settings are located on the back of the unit to prevent tampering.
The FS-400 strobes can be synchronized using a control panel with the Mircom sync protocol or the SDM-240 synchronization module.
The FS-400 strobes utilize a universal mounting plate that allows for mounting to a single gang, double gang, octagon, 4” junction or 4” square electrical box. The back plate allows the installer to mount the plate and connect the wire connections. The device attaches to the mounting plate and is secured by a single mounting screw. In addition, the FS-400 can mount to the Mircom BB-400 Series back box for surface mount applications.
Compliance
- UL 1971
- UL 1638
- ULC-S526
- NFPA 72 2016 Edition
Features
- Compact Design
- Advanced LED technology provides superior current draw performance
- Lower power consumption per device allows for more notification appliances per circuit and reduces the need for external power supplies
- Standard and High candela settings in one unit to meet virtually any application – 15, 15/75, 30, 75, 110, 185 c
- Device settings are located on the back of the unit to prevent tampering
- Includes shorting clip that allows installers to test the wiring before the device is installed
- Supports 12 to 22 AWG
- Mount to Mircom BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon and 4-inch junction boxes
- All units include universal mounting plate
- Red or white finish
- For indoor applications
Engineering Specifications
The strobe shall be a Mircom FS-400 notification appliance for wall mount applications. The strobe shall be of a low current draw design and operate at 24 VDC regulated or full wave rectified. The strobe shall incorporate a Light Emitting Diode (LED) as the light source and have six field selectable settings of 15, 15/75, 30, 75, 110, 185 candela. The candela selection shall be in a visible location. The candela settings shall be tamper resistant. The strobe shall be synchronized using a control panel with the Mircom sync protocol or the SDM-240 sync module. The strobe shall utilize a mounting plate that allows the installer to pre-wire the mounting plate. The mounting plate shall mount on a single gang, double gang, octagon, 4-inch square box or Mircom’s BB-400 series back box. The strobe shall be listed to UL standard 1638, Visible Signaling Devices for Fire Alarm and Signaling Systems and standard 1971, Signaling Devices for the Hearing Impaired. In addition, the strobe shall be listed to ULC S526, Visible Signal Devices for Fire Alarm Systems.
Specifications
General Specifications
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Humidity range | 0% to 93% |
| Strobe flash rate | 1 Hz |
| Nominal Voltage | Regulated 24 VDC / 24 VFWR |
| Operating Voltage Range (RMS) | 16 to 33 |
| Input terminal wire gauge | 22 AWG to 12 AWG |
| Installation environment | For indoor use only |
FS-400 Wall Strobe Operating RMS Currents (mA)
| Candela | Regulated 24 VDC | Regulated 24 VFWR |
| 15 | 25 | 64 |
| 30 | 39 | 106 |
| 75 | 102 | 189 |
| 15/75 | 93 | 189 |
| 110 | 105 | 189 |
| 185 | 179 | 241 |

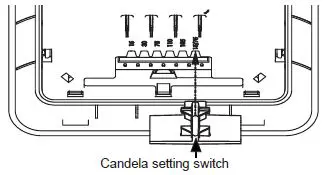

Candela Settings

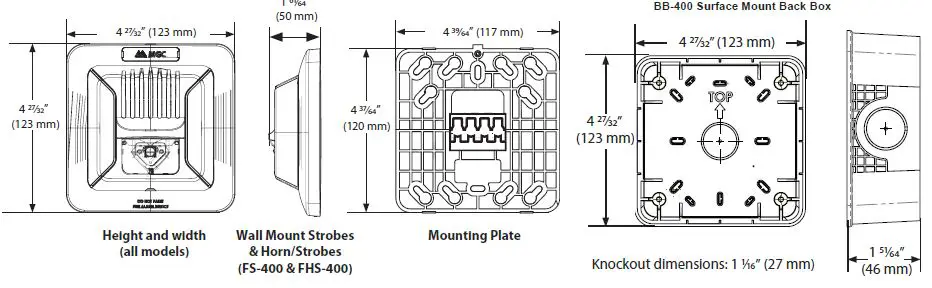

Dimensions
Light Output Dispersion
| Degrees | % of Candela Rating | |
| Horizontal Dispersion | Vertical Dispersion, Wall to Floor | |
| ±0 | 149 | 148 |
| ±5 | 146 | 149 |
| ±10 | 143 | 153 |
| ±15 | 138 | 135 |
| ±20 | 134 | 104 |
| ±25 | 128 | 101 |
| ±30 | 123 | 94 |
| ±35 | 116 | 92 |
| ±40 | 106 | 84 |
| ±45 | 99 | 75 |
| ±50 | 92 | 68 |
| ±55 | 87 | 65 |
| ±60 | 82 | 61 |
| ±65 | 78 | 58 |
| ±70 | 75 | 54 |
| ±75 | 73 | 49 |
| ±80 | 72 | 43 |
| ±85 | 81 | 40 |
| ±90 | 53 | 30 |
| Compound ±45° | 42 | |
Note: The values are shown as percentages of the rated light output at any candela setting.
Ordering Information
| Model Number | Description |
| FS-400-RR | Wall Mount Strobe, Red |
| FS-400-WW | Wall Mount Strobe, White |
| BB-400R | Surface Mount Back Box, Red |
| BB-400W | Surface Mount Back Box, White |
| SDM-240 | Synchronization Module |
NOT TO BE USED FOR INSTALLATION PURPOSES.
Canada
25 Interchange Way Vaughan, Ontario L4K 5W3 Telephone: (905) 660-4655 Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655 Fax Toll Free: (888) 660-4113
Web page: http://www.mircom.com
Email: [email protected]
