Strobe – 355 candela, Hazardous Location XB12
Description:
These high output certified strobes have been designed for use in potentially explosive atmospheres and harsh environmental conditions. The enclosures are suitable for use offshore or onshore, where light weight combined with corrosion resistance is required.
The strobe housing is manufactured completely from a U.V. stable, glass reinforced polyester. Stainless steel screws and mounting bracket are incorporated ensuring a totally corrosion free product.
Units can be painted to customer specification and supplied with identification labels.
Features*:
- UL Listed for USA and Canada
- Hazardous locations:
Class I, Div 2, Groups C & D.
Class I, Zones 1 & 2, AExd IIB T4 & T5.
- Ordinary locations: Visual-Signal Device - California State Fire Marshal (CSFM) Listed
- ATEX approved
- High Output 355 candela with clear lens
- NEMA 4x & 6, IP66 and IP67
- Certified temperature -67°F to +158°F (-55°C to +70°C)
- Corrosion resistant GRP
- Optional stainless steel backstrap
- Various lens colors
- Optional lens guard
- 4 wire monitored connection
- 24 VDC, 110 & 240 VAC
- Xenon
- Twin replaceable tubes
Architects and Engineers Specifications
Strobes for hazardous locations and harsh environments shall be UL and cUL listed for Class I, Division 2, Groups C&D, and Class I, Zones 1&2, AExd IIB T4/T5 applications and shall be listed under UL Standard 1638 for Indoor/ Outdoor use. They shall be constructed of lightweight, UV stable glass reinforced polyester, shall be corrosion resistant, and shall meet NEMA 4x, NEMA 6, IP 66 & IP 67 environmental requirements over a temperature range of -67°F to +158°F (-55°C to +70°C).
The strobes shall be rated to flash at 1 Hz with 355 candela per flash. Rated current draw shall not exceed 1400 mA at 24 vdc. The strobe shall be capable of direct surface mounting in any direction.
Note: Due to continuous development of our products, specifications and offerings are subject to change without notice in accordance with Cooper Wheelock standard terms and conditions.
| DC | AC50/60 Hz | ||
| Voltage | 24 | 110 | 240 |
| XB12 Tube Energy (Joules) | 21 | 21 | 21 |
| Peak Current Consumption (mA) | 1400 | 350 | 185 |
| Effective Intensity (Cd) | 355 | 355 | 355 |
| NOTE: The Cd figures are for a clear lens @ 1Hz flash rate. | |||
For Colored Lenses
| Color | Red | Blue | Amber | Green | Yellow |
| Multiplying Factor | 0.15 | 0.12 | 0.51 | 0.49 | 0.86 |
The photometric data has been verified by BSI. A report is available if required.

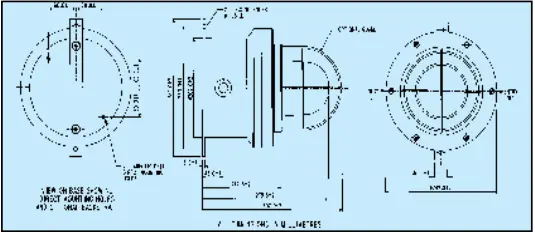

Specification
| Certification: | UL Listed for USA and Canada: – Hazardous locations: Class I, Div 2 Groups C & D. Class I, Zones 1 & 2 AExd IIB T4/T5. UL Listing No: E187894. – Ordinary locations: Visual-Signal Device. California State Fire Marshal (CSFM) Listed UL listing No. S8128. ATEX approved: EExd IIB T4/T5 Cert. No. 99 ATEX 2196 |
| Material: | Body: – Glass reinforced polyester (GRP). Lens: – Toughened Glass. Cover Screws + Backstrap: – Stainless steel 316 |
| Finish: | Natural black or painted to customer specification. |
| Weight: | 15.5 lb./7.0Kg. |
| Certified Temperature: | –67°F to +158°F (–55°C to +70°C) hazardous locations –67°F to +131°F (–55°C to +55°C) ordinary locations |
| Ingress Protection: | NEMA 4x & 6, IP66 & IP67. |
| Terminals: | 6 x 10 AWG |
| Labels: | Duty/Tag Label optional. |
| Entries: | 2 x 1/2″ NPT |
Configuration Options:
The following code is designed to help in the selection of the correct unit. Build up the reference number by inserting the code for each component into the appropriate box.
| A | |
| Certification UL UL (ordinary locations) | Code UL UW |
| B | |
| Voltage 24V d.c. 110V a.c. 240V a.c. | Code 024 110 240 |
| C | |
| Flash Rate 60/min Other flash rates available, please specify. | Code 06 |
| D | |
| Color Red Blue Green Amber Yellow Clear | Code R B G A Y C |
| E | |
| Guard None Yes | Code N Y |
| F | |
| Unit Fixing Direct Mounting Backstrap | Code D B |
| G | |
| Continuity None | Code N |
| H | |
| Label None Yes *(Please specify) | N Y* |
| I | |
| Options Blanking Plug None | Code P N |
| J | |
| Finish Natural Black Red Blue Yellow Grey White Special Finish | Code N R B Y G W S |
Standard Models
| Series | Model Number | Order Code | Description |
| XB12 | XB12UL02406RNBNNNR | 109204-001 | Strobe, Red Lens, 355 candela, 24 VDC, Red finish |
| XB12 | XB12UL02406CNBNNNR | 109204-002 | Strobe, Clear Lens, 355 candela, 24 VDC, Red finish |
| XB12 | XB12UL02406RNBNNNN | 109204-003 | Strobe, Red Lens, 355 candela, 24 VDC, Black finish |
| XB12 | XB12UL11006ANBNNNR | 109204-005 | Strobe, Amber Lens, 355 candela, 110VAC, Red finish |
| XB12 | XB12UL11006RNBNNNR | 109204-006 | Strobe, Red Lens, 355 candela, 110VAC, Red finish |
WE ENCOURAGE AND SUPPORT NICET CERTIFICATION 3 YEAR WARRANTY
XB12 07/07
NJ Location
273 Branchport Ave.
Long Branch, NJ 07740
P: 800-631-2148
F: 732-222-8707
www.coopernotification.com
FL Location
7565 Commerce Ct.
Sarasota, FL 34243
P: 941-487-2300
F: 941-487-2389
VA Location
P: 877-459-7726
F: 703-294-6560
Cooper Notification is Wheelock®
