Strobe, 21 Joules, Explosion Proof
XB4
Instruction Manual

Contents hide

1 Description:

2 Features*:

3 Specification

4 Configuration Options:

5 Documents / Resources

5.1 References

6 Related Posts

Description:

These high output (21 Joule) strobes have been designed for use in potentially explosive atmospheres and harsh environmental conditions. The marine grade alloy or stainless steel enclosures are suitable for use offshore or onshore, where light weight combined with corrosion resistance and strength is required. Units can be painted to customer specification and fitted with identification labels.

Features*:

UL Listed for USA and Canada
– Hazardous locations:
Class I, Div 1, Groups C & D
Class I, Zone 1, AExd IIB T4
– Ordinary locations: Visual-Signal Device
ATEX approved
Certified temperature –67°F to +158°F (–55°C to +70°C)
NEMA 4x & 6, IP67 and IP66
Various lens colors
Twin replaceable tubes
Tapered spigot flarepath.
4 wire monitored connection
Optional lens guard
24 VDC
110 & 240 VAC
Xenon
*Depending on version.

Architects and Engineers Specifications
Explosion-proof strobes shall be UL and cUL Listed for Class I, Division 1, Groups C&D, and Class I, Zone 1, AExd IIB T4 hazardous locations and shall be listed under UL Standard 1638 for Indoor/Outdoor use. The strobes shall be constructed of marine grade alloy with an epoxy paint finish and shall meet NEMA 4x, NEMA6, IP 66 and IP 67 environmental requirements over a temperature range of -67°F to 158°F (-55°C to 70°C) in hazardous and harsh environments.
The strobe shall be rated to flash at 1 Hz with 21 joules per flash. Rated current draw shall not exceed 1400 mA at 24 vdc. The strobe shall be capable of direct surface mounting in any direction.
Note: Due to continuous development of our products, specifications and offerings are subject to change without notice in accordance with Cooper Wheelock standard terms and conditions.

Specification

Voltage	DC AC 50/60 Hz
Voltage	24	110	240	254
Tube Energy (Joules)	21	21	21	21
Peak Current Consumption (mA)	1400	350	185	210
Effective Intensity (Cd)	355	355	355	355

FOR COLORED LENSES

Color	Red	Blue	Amber	Green	Yellow
Color Multiplying Factor (Approximate)	0.15	0.12	0.51	0.49	0.86

Certification:	UL Listed for USA and Canada – Hazardous locations: Class I, Div 1 Groups C-D Class I, Zone 1 AExd 11B T4 Listing No. E187894. – Ordinary locations: Visual-Signal Device. Listing No. S8128. ATEX approved: EExd IIC T5 Cert. No. Baseffa 02ATEX0224X
Certified Temperature:	–67°F to +158°F (–55°C to +70°C)
Ingress Protection:	NEMA 4x & 6, IP66 & 67
Terminals:	Up to 8 x 8 AWG
Entries:	Up to 3 x 1/2″ or 3/4″ NPT
Materials:	LM25TF Marine Grade Alloy body. Grade 316 ANC4B Stainless Steel body. Toughened Wellglass.
Weights:	LM25: 14.5lb./6.6kg. Stainless Steel: Add 18.5lb./8.5kg.
Finish:	Red epoxy paint finish as standard or to customer’s specification.

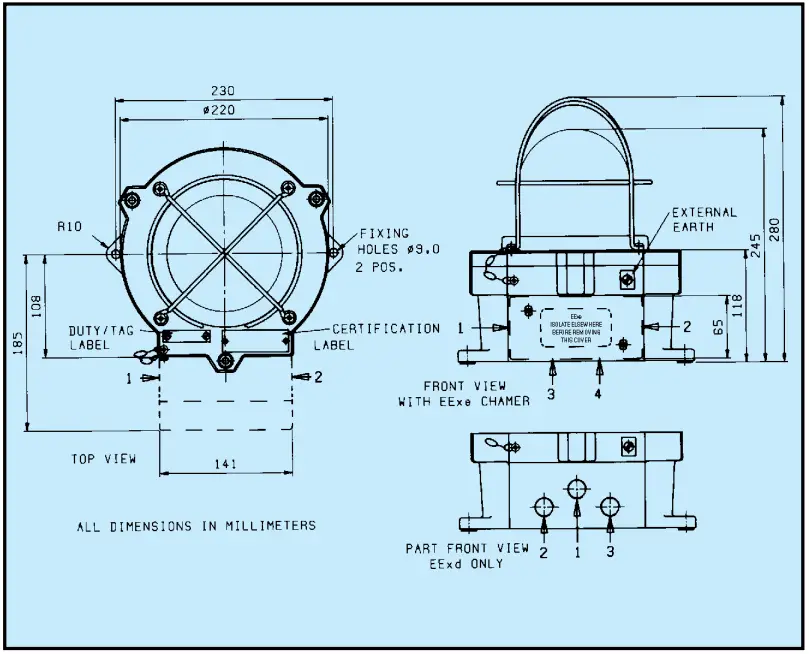

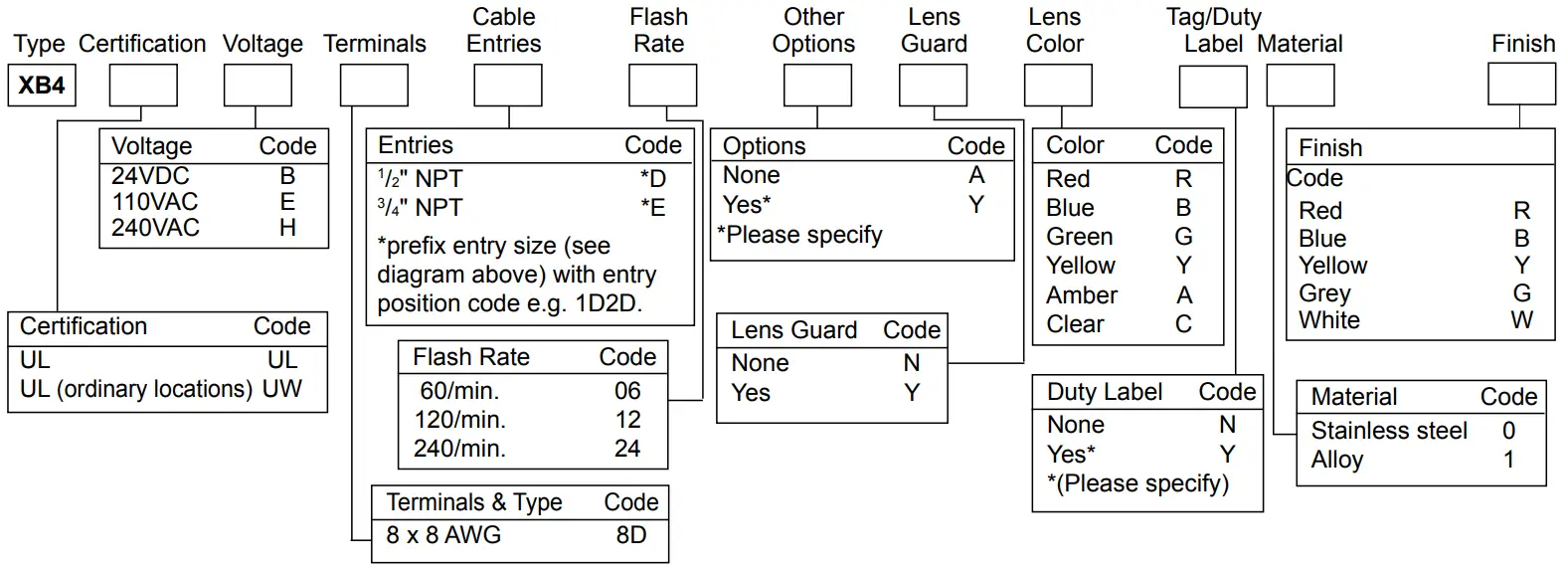

Configuration Options:

Standard Models

Series	Model Number	Order Code	Description
XB4	XB4ULB8D2E3E06ANRN1R	109205-001	Strobe, Red Lens, 21 Joules, 24 VDC, Red finish
XB4	XB4ULB8D2E3E06ANCN1R	109205-001	Strobe, Clear Lens, 21 Joules, 24 VDC, Red finish

WE ENCOURAGE AND SUPPORT NICET CERTIFICATION
3 YEAR WARRANTY
XB11 02/08
