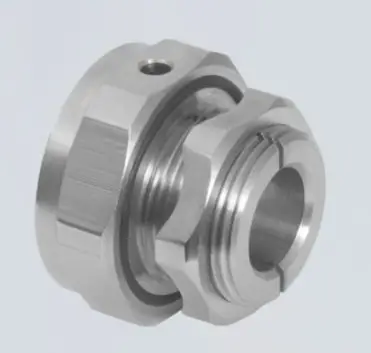

STAHL 255194 Breather
Installation
- Metal Ex e breathers
- Degree of protection: IP66, IP67, IP68
- Operating temperature range: -60 °C … +130 °C
- Worldwide certification, IECEx, ATEX und cCSAus
WebCode 781A
In conditions where there are temperature fluctuations and moisture, the metallic Ex e breathers from the 781 series protect electrical wiring from the effects of condensation inside the enclosure. They provide continuous pressure equalisation between the inside of the enclosure and the atmos-phere around the enclosure. There are two metric and two NPT thread versions available for this purpose. An integrated connection thread seal and a special fixture nut are included in the stand-ard version. They have worldwide certification according to IECEx, ATEX and cCSAus.
Technical Data
| Explosion Protection | |
| Application range (zones) | 1 2 21 22 |
| IECEx gas certificate | IECEx CML 18.0187U |
| IECEx gas explosion protection | Ex eb IIC Gb |
| IECEx dust certificate | IECEx CML 18.0187U |
| IECEx dust explosion protection | Ex ta IIIC Da |
| ATEX gas certificate | CML 18ATEX1327X |
| ATEX gas explosion protection | E II 2 G Ex eb IIC Gb |
| ATEX dust certificate | CML 18ATEX1327X |
| ATEX dust explosion protection | E II 1 D Ex ta IIIC Da |
| EAC certificate | TS RU S-GB.AA87.B.00487 |
| EAC gas explosion protection | 7 1 Ex e IIC Gb U |
| EAC dust explosion protection | 7 Ex ta IIIC Da U |
| Notes | The product certification and certificates can be downloaded from the manufacturer’s homepage |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +130 °C |
| Mechanical Data | |
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP |
| Material | Nickel-plated brass |
| Silicone-free | No |
| Width across corners | 33 mm |
| Mechanical Data | |
| Thread size | NPT1/2 |
| Thread pitch | 14 TPI |
| Nuts available | With nut |
| Packaging unit | 1 |
| Weight | 0.1 kg |
| Weight | 0.22 lb |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
