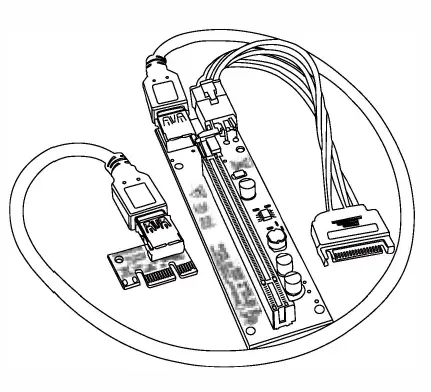

FEBSmart VER006C PCIE X1 to PCIE X16 Riser
Product Details
Product Description
Feb Smart VER006C high-performance PCI-E riser is specially designed for bitcoin and Ethereum mining rigs. It is a safe and reliable way to extend mother board PCIE X1 slot to PCIE X16 slot. The extended PCI-E X16 slot will light up more PCI-E X16 heavy GPUs.This GPU riser also designed 6Pin to SATA power cable will help users easy to pick up power from PSU.
Technical Specifications

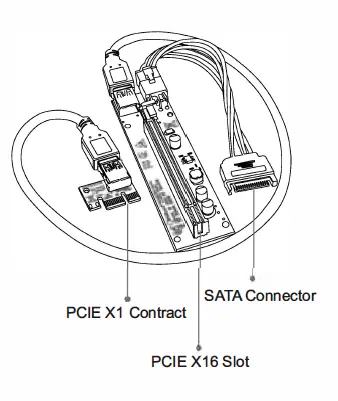

- The PCI-E X1 gold plate contracts provide stable and fast connection and synchronize PCI-E signal instantly.
- The 23.6in/60cm fully shielded USB 3.0 PCI-E signal extension cable provides super fast and 5Gbps data transfer speed.
- The 15Pin SATA to 6Pin GPU power supply cable makes sure miner rig GPUs easy to get adequate current, runs in full speed.
- The 3X high-quality solid capacitors can have stable voltage and currently to ensure miner GPUs works in stable condition.
- The electric circuit protector protects GPU rigs away from overcurrent, overheating or overvoltage

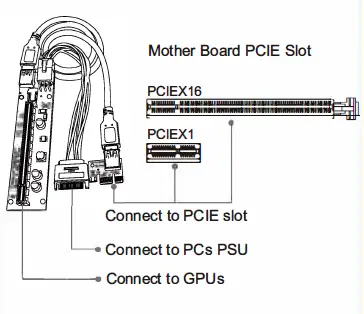

Connect the PCIE Riser
Must Connect Right with PCIE slot

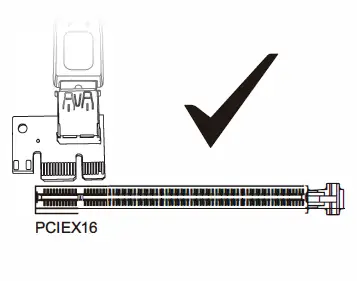

Right Connection
ATTENTION
If the PCIE X1 Connector Inserted Reversely, May Damage the Connected GPUs or PCIE Slots.

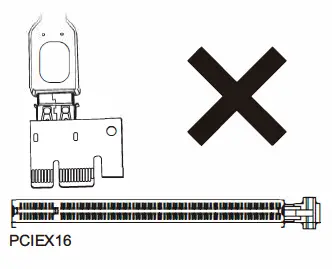

Wrong Connection
