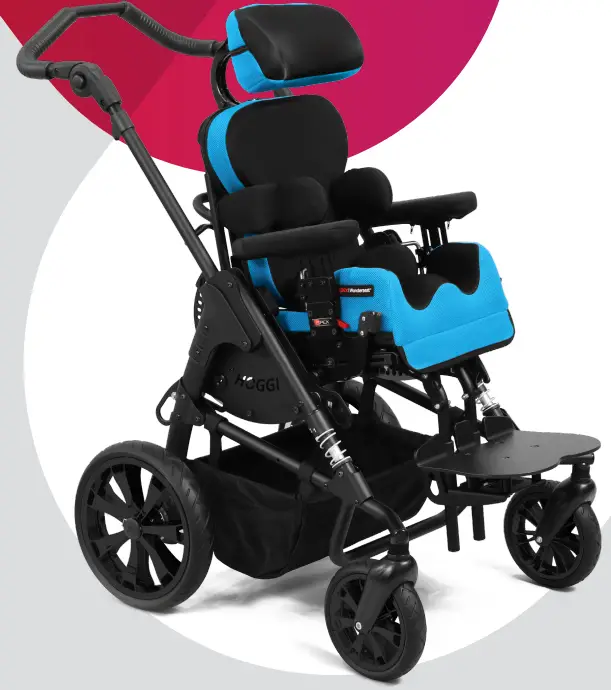

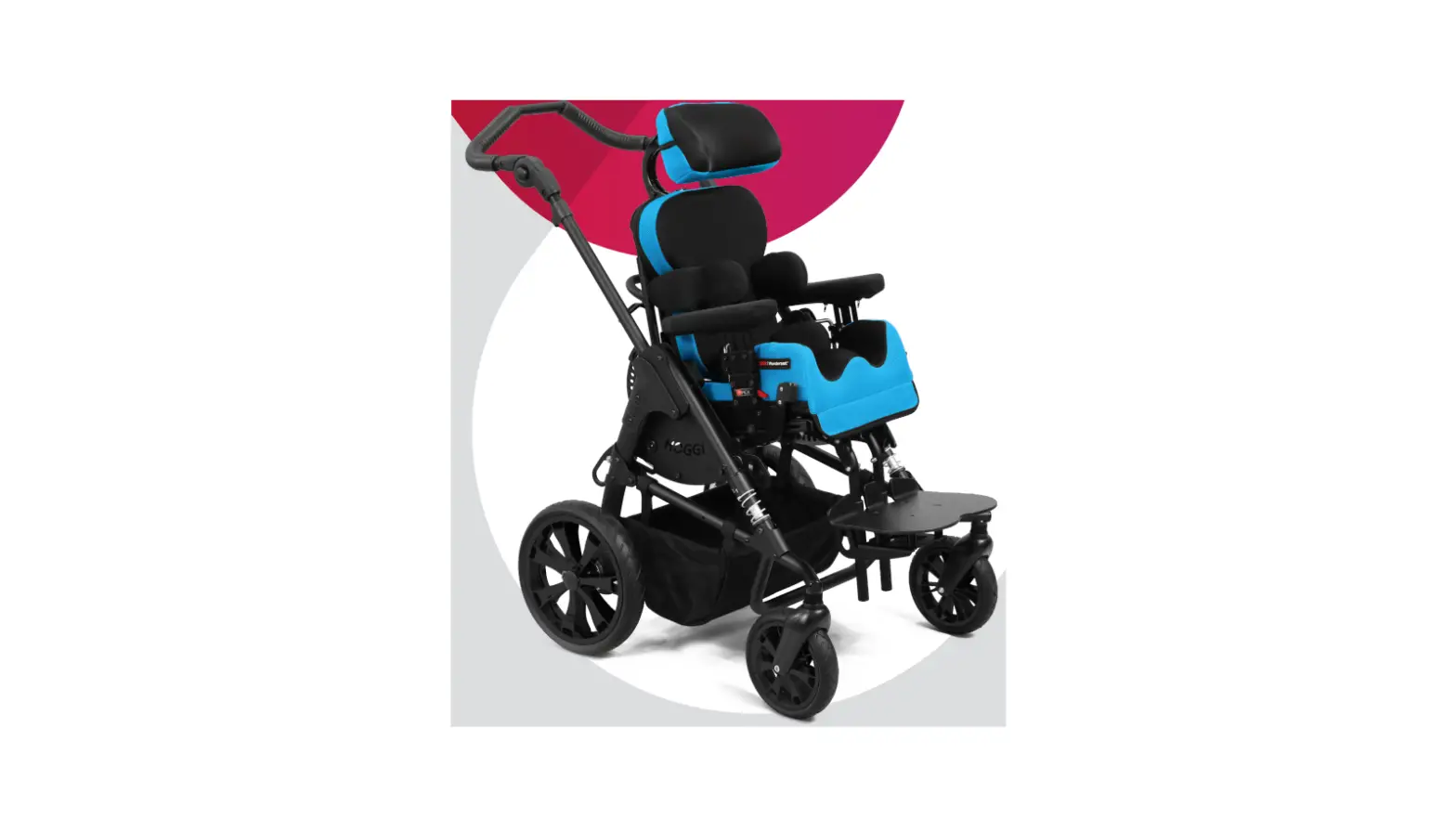

Spex HOGGI BINGO Evolution Special Needs Pushchair

COMPULSORY SELECTION ITEMS

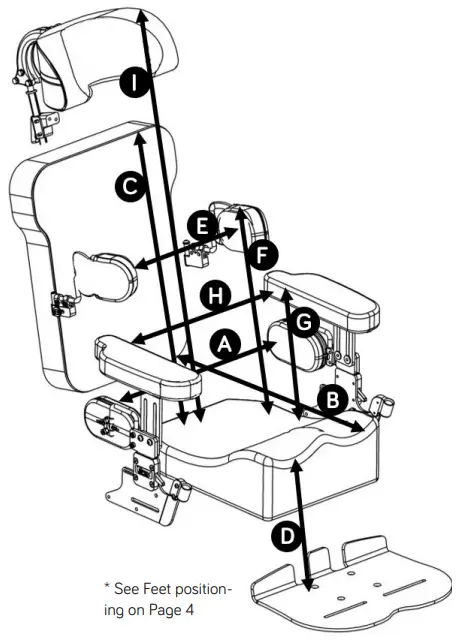

BINGO Stroller Size		Size 1		Size 2
BINGO Stroller Order Code		2885-0031-032		2885-0032-032
	A Hip width	17-28cm (6.5-11”)		22-33cm (8.5-13”)
	B Seat depth	18-23cm _(7-9”) 1.1 Cushion	23-30cm (9-12”) 1.2 Cushion	23-33cm (9-13”) 2.1 Cushion	28-38cm (11-15”) 2.2 Cushion
	C Back height	36-44cm (14-17”)		40-48cm (16-19”)
	D Lower leg length*	25-40cm (10-16″)		25-45cm (10-18″)
	E Trunk lateral width	12-28cm (5-11”)		15-30cm (6-12”)
	F Trunk lateral height	15-34cm (6-13.5”)		17-40cm (6.5-16”)
	G Arm support height	15-22cm (6-8.5”)		15-22cm (6-8.5”)
Seating specs	H Internal arm support width	20-32cm (8-13”)		28-38cm (11-15”)
	I Head support height	45-65cm (18-25.5”)		50-70cm (20-28”)

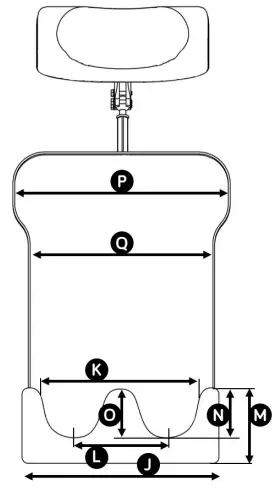

	J Cushion total width	33cm (13”) Size 1.1	33cm (13”) Size 1.2	38cm (15”) Size 2.1	38cm (15”) Size 2.2
	K Internal cushion width	23cm (9”) Size 1.1	28cm (11”) Size 1.2	28cm (11”) Size 2.1	33cm (13”) Size 2.2
	L Centre of thigh contours	15cm (6”) Size 1.1	17cm (6.5”) Size 1.2	18cm (7”) Size 2.1	20cm (8”) Size 2.2
	M Cushion side height	14cm (5.5”)		14cm (5.5”)
	N Thigh contour height	9cm _(3.5”)		9cm _(3.5”)
	O Abductor contour height	5cm _(2”)		5cm _(2”)
	P Back cushion width	33cm _(13”)		38cm _(15”)
	Q Trunk cushion width	26cm _(10”)		30cm _(12”)
	Frame seat depth capacity	18-30cm (7-12”)		20-38cm (8-15”)
	Frame back height capacity	36-46cm (14-18”)		41-55cm (16-22”)
Stroller specs	Backrest recline angle	90-160°
	Height of push bar	75-110cm (29.5-43”)
	Overall frame width	63cm _(25”)		68cm _(27”)
	Max load of seat unit	50kg (110lb) (body weight including other load)
	Base frame capacity	60kg (132lb)

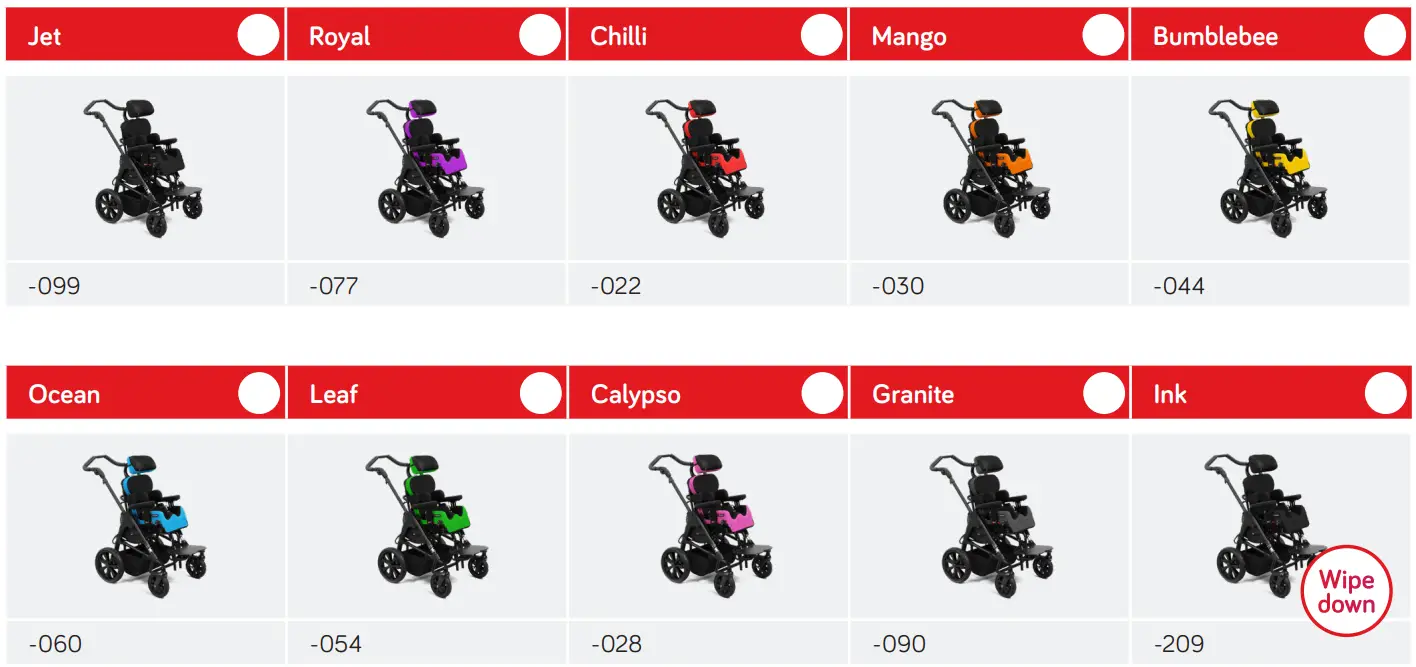

Colour Selection

Cushion Selection

Size 1.1
- 33cm (13”) total width
- 23cm (9”) internal width
- Fits BINGO Size 1
- 2885-0610
Size 1.2
- 33cm (13”) total width
- 28cm (11”) internal width
- Fits BINGO Size 1
- 2885-0611
Size 2.1
- 38cm (15”) total width
- 28cm (11”) internal width
- Fits BINGO Size 2
- 2885-0612
Size 2.2
- 38cm (15”) total width
- 33cm (13”) internal width
- Fits BINGO Size 2
- 2885-0613

Back Supports

Spex Contouring Back System

For Size 1 BINGO
2885-2012
For Size 2 BINGO
2885-2014

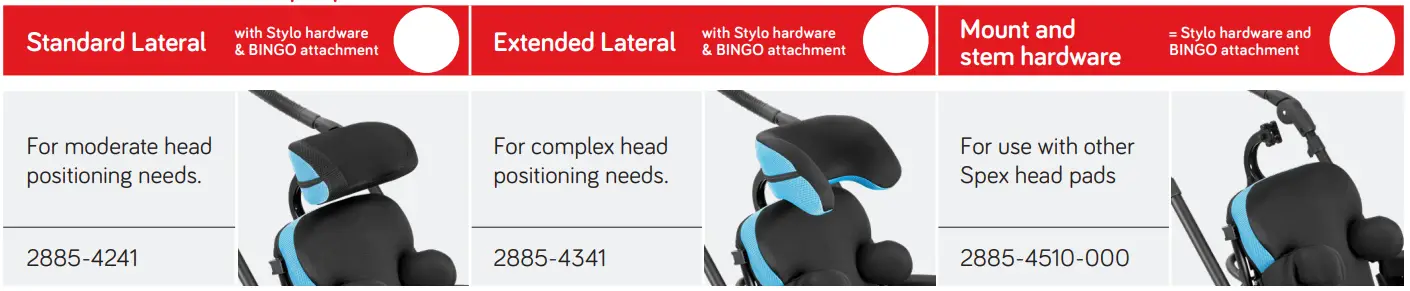

Head Supports

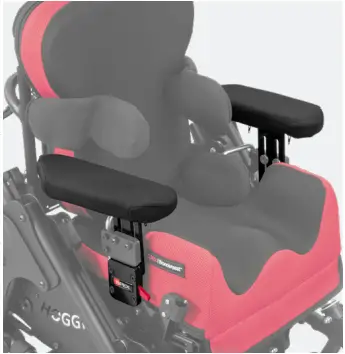

Arm Supports

Arm Supports

With height-adjustable, quick-release hardware and neoprene cover.
To fit Size 1
2885-5621-291
To fit Size 2
2885-5622-291

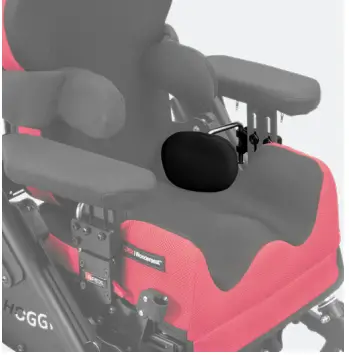

Pelvic Supports

Pelvic Supports

Mounts onto arm support bracket (pair) behind cushion troughing (arm supports must be selected).
To fit Size 1
2885-1111-000
To fit Size 2
2885-1112-000

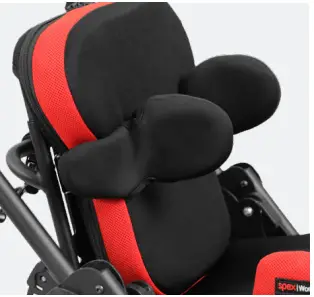

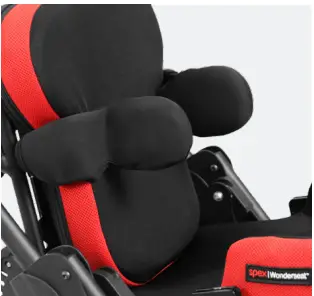

Lateral Supports

Narrow lateral supports
- Soft padding/neoprene cover (pair) with Axial Technology. Fits BINGO Size 1 and Size 2.
- 85mm high x 115mm deep
- 2885-3410-291
Broad lateral supports
- Soft padding/neoprene cover (pair) with Axial Technology. Fits BINGO Size 2.
- 105mm high x 130mm deep
- 2885-3431-291

Shoulder Harness

X-Small Centrepoint
- Fits BINGO Size 1 and Size 2
- Pad height 26cm, total pad width 22cm
- 1409-6660-017
Small Centrepoint
- Fits BINGO size 2
- Pad height 36cm, total pad width 32cm
- 1409-6661-017

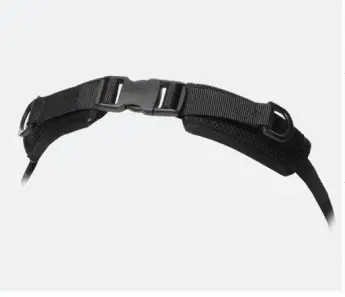

Hip Belt

2 Point Hip Belt
- 2-point, padded dual centre pull, side release buckle
- X-Small (Pad width 30cm)
  1405-6220-02
- Small (Pad width 36cm)
  1405-6221-027
4 Point Hip Belt
- 4-point, padded dual centre pull, side release buckle
- X-Small (Pad width 30cm)
  1406-6420-027
- Small (Pad width 36cm)
  1406-6421-027
