Distributed by
BINGO Mini
EARLY
INTERVENTION
ADAPTIVE STROLLER
SCRIPTING AND ORDERING GUIDE
Client Details
Client/User Name:
Date:
NDIS/Funding:
Notes
Product Details
| Size 0 | 2880-0008-000 |
| Conversion Kit from Mini to Size 1 (stroller and Cobra) Converts bingo mini frames to accept the bingo evo size 1 seat unit, extending the growth of the solution (size 1 seat unit must be purchased separately). | 2880-8080-086 |
| Seat Unit | |
| Seat width | 13 – 25 cm |
| Seat depth | 12 – 27cm |
| Lower leg length | 16 – 36 cm |
| Back support height | 37 – 51 cm |
| Height of slots for shoulder straps | 25.5 – 39.5 cm |
| Seat to floor height (dependant on tilt position of seat) | 50 cm |
| Backrest recline | 80-180° |
| Weight of seat including uphol- stery and standard accessories | 7.8kg |
| Load capacity of seat unit | 25kg |
| Weight of seat and mobility base combined including upholstery and standard accessories | 17.6kg |
| Mobility Base with swivelling wheels | |
| Push handle height | 75 – 110 cm |
| Overall width | 63 cm |
| Wheel diameter front (swivel) | 19 cm |
| Wheel diameter rear | 29 cm |
| Tilt in space (Forward and rear facing) | 45° |
| Folded size mobility base (with rear wheels on) | 80 x 63 x 38 |
| Folded size mobility base (with rear wheels removed) | 80 x 63 x 31 |
| Weight mobility base (swivelling front wheels) | 9.8kg |
| Load capacity mobility base | 60kg |

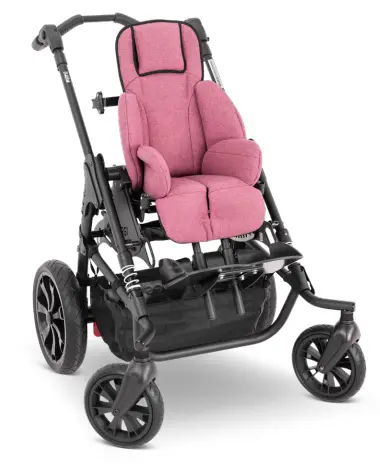

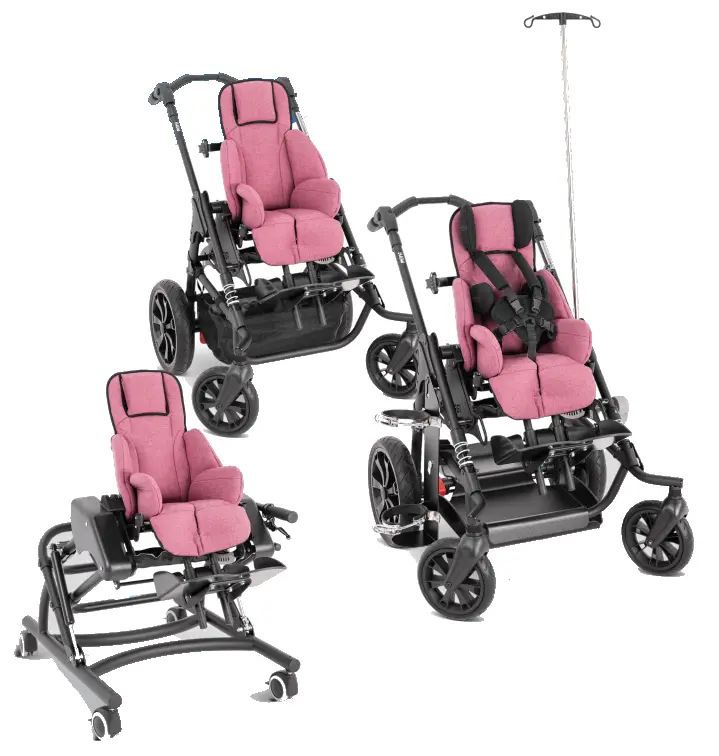

Stroller package includes:
- Matte black foldable stroller frame with black wheels
- Removable seat unit
- Tie-downs for transport
- Removable hip supports (width & depth adjustable)
- Fabric bag (max. 3kg)
- Adjustable suspension set
- Receiver for grab rail or therapy tray
- Elevating foot support hanger (angle adjustable 85-1800)
- Note: Upholstery not included in package.
Items outlined in blue are required as standard package
Upholstery Colour Options
Berry Soft
Seat Upholstery (required)
2880-8800-347
Turquoise Soft
2880-8800-349
Black
2880-8800-346
Berry Soft
Hip Support Upholstery (required)
2880-1074-347
Turquoise Soft
2880-1074-349
Black
2880-1074-346
Upholstery Upgrades
Upholstery Pressure Relief Foam Upgrades
Seat
2880-0391-000
Back
2880-2392-000
Head Supports
Head Support Pads
Required for Head Support
Size 0
2880-4470-346
Occipital Head Support
With thickness adjuster leaf and vertical Velcro attachment straps
Spacer Fabric
2010-4101-099
Wipe Down Cover
2010-4101-209

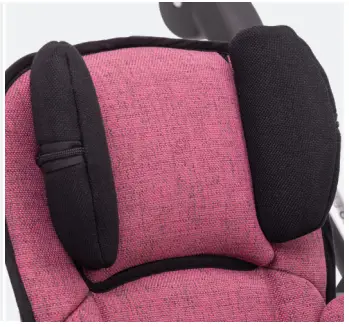

Standard Lateral Head Support
Spacer Fabric
2010-4201-099
Wipe Down Cover
2010-4201-209
Extended Lateral Head Support
Spacer Fabric
2010-4301-099
Wipe Down Cover
2010-4301-209

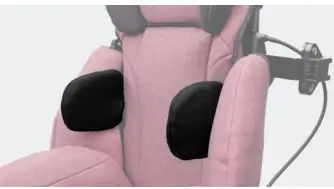

Lateral Supports

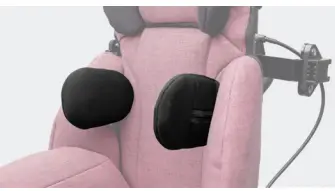

Standard Lateral Supports
Size 0
80mm high x 100mm deep
2880-3009-346
Spex Narrow Straight Lateral Supports
Size 0
85mm high x 115mm deep
2880-3007-100
Spex Broad Lateral Supports
Size 1
105mm high x 130mm deep
2880-3007-310

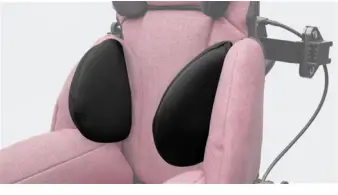

Spex Teardrop Lateral Supports
Size 0
150mm high x 105mm deep
2880-3007-500
Sacral Support
Sacral foam insert including Spacer
On velcro attachment. Also includes foam spacer which adheres behind Sacral insert where required. Spacer adds thickness – dimensions 10cmx18cm
2006-2510-000
Seat Options

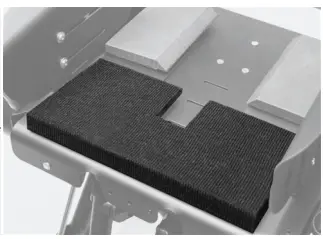

Thigh Wedge
Velcro attached under upholstery.
22.5cm (W) x 10.5cm (D).
Height: 2cm tapering down to 1cm
2006-0505-000

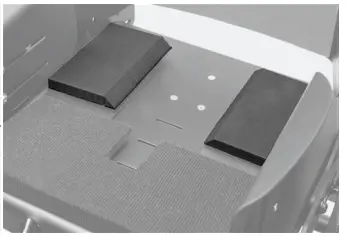

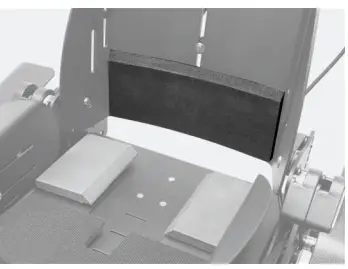

Trochanter Wedges
Option to contour standard flat cushion. Velcro attached under upholstery.
2006-0660-000

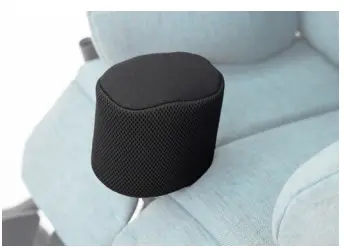

Abductor Pommel
Swing down abductor pommel for increased abduction of the legs
Size 1
9cm(D) x 6.5cm(W) x 9cm(H)
2880-1651-346
Harness
Spex 5-Point Harness
Must be worn when stroller is used for Vehicle Transportation
2006-6551-000
Foot Positioning
Footplate Neoprene Protection Cover
To protect feet from the hard footplate surface
2880-5305-000

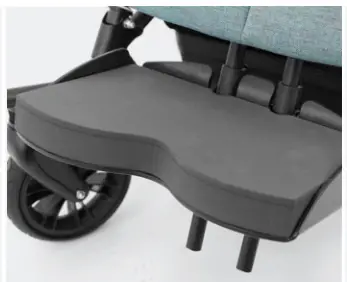

Footplate Spacer
Spacer block to reduce lower leg length by 4cm.
2880-5321-000
Ankle Footfasts
Strap inner circumference 15-23cm.
2880-6101-000
Tray & Grab Rail Options

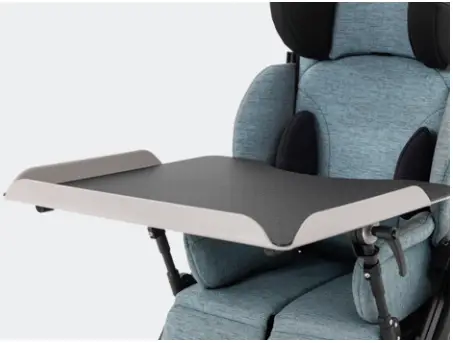

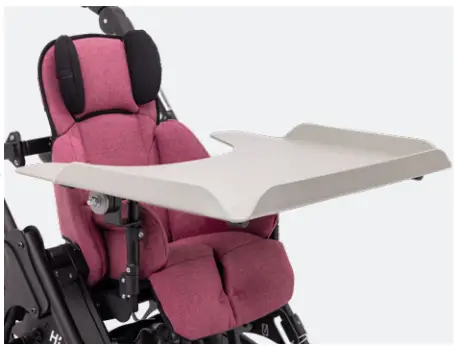

Therapy Tray
Cannot be used at the same time as Grab Rail
2880-7110-000
Therapy Tray Infill
For smaller trunk cut out.
2880-7180-000

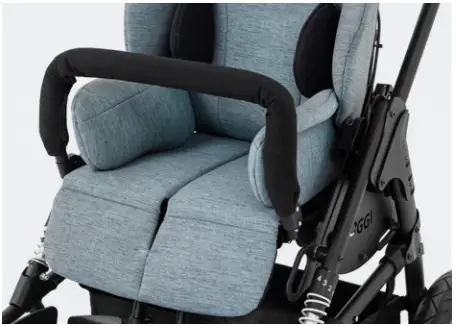

Grab Rail
Cannot be used at the same time as therapy tray
2880-7250-346
Critical Care Options
IV Pole
With mounting bracket for attachment to mobility base. Fits all sizes.
2880-8275-000

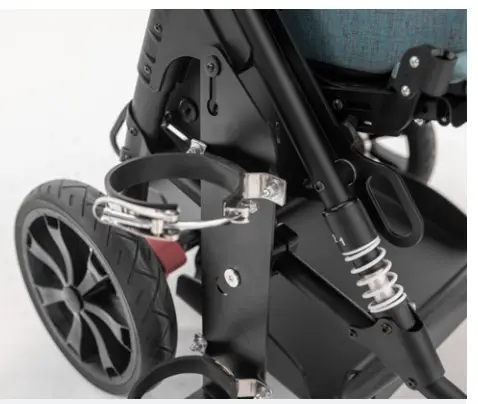

Oxygen Bottle Holder
With mounting bracket for attachment to mobility base. 120mm diameter for “C Type” bottle. Fits all sizes.
2880-8253-000
Extra Braket
For QR mounting of IV pole to second base (Cobra or other indoor base)
2880-8275-050

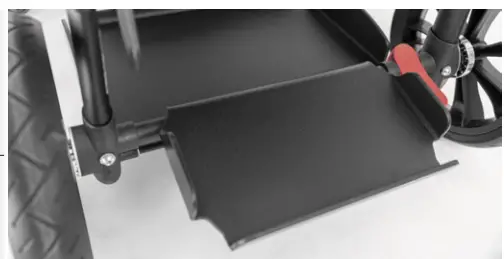

Chassis Mount Tray
Size 1
2880-8058-000

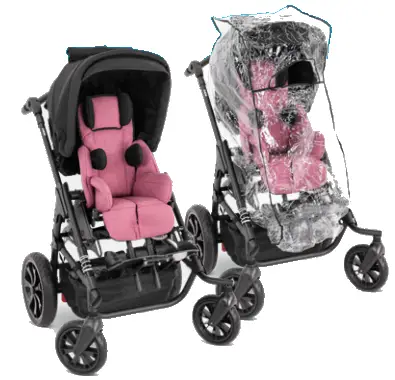

Canopy
Includes mini mounts and rain cover
2880-7501-346

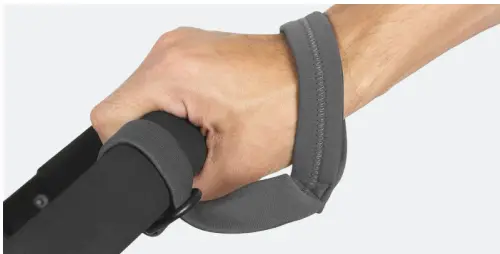

Hand Strap
Wrist safety tether strap
2005-6930-000

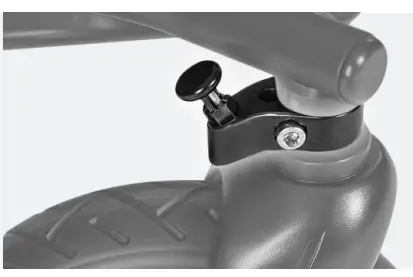

Swivel Lock
To hold castors straight when brisk walking
2880-8440-000

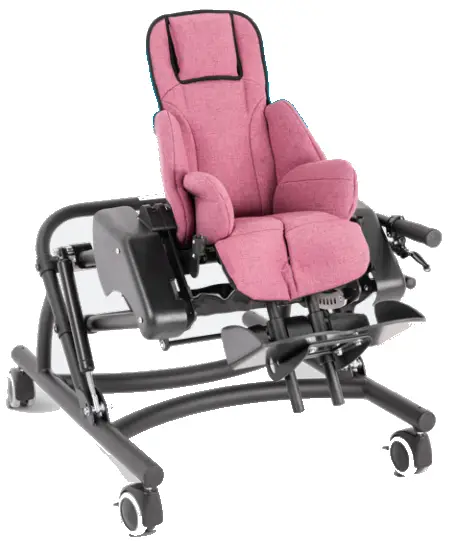

Cobra Indoor Base
Cobra Hi-Low Indoor Frame with 75mm Twin Castors
The seat unit easily transfers out of the stroller base and into the Cobra indoor base for feeding and activity times. Lower down the floor for playing and activities, and raise up to a table for meal time! Tilt settings can still be adjusted in the same way as the stroller base.
Size 0
2880-8720-000

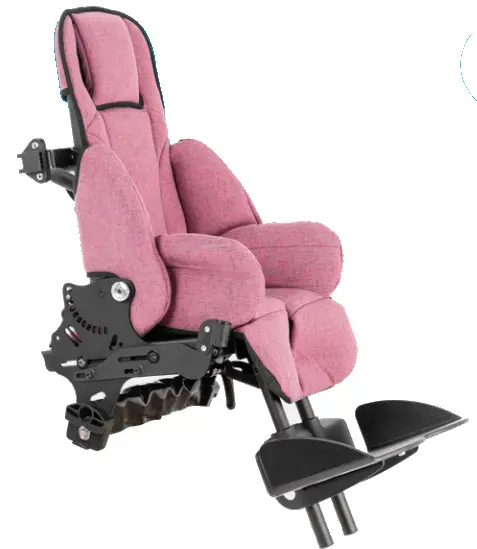

Separate Seat Unit
Use with Cobra Base
Separate seat unit for use with the Cobra Base if a combined stroller and seat unit is not purchased. This is also a great option if two seat units are preferred to avoid swapping the seat unit between the stroller and Cobra bases. Must be purchased with upholstery.
One Size
2880-0010-000

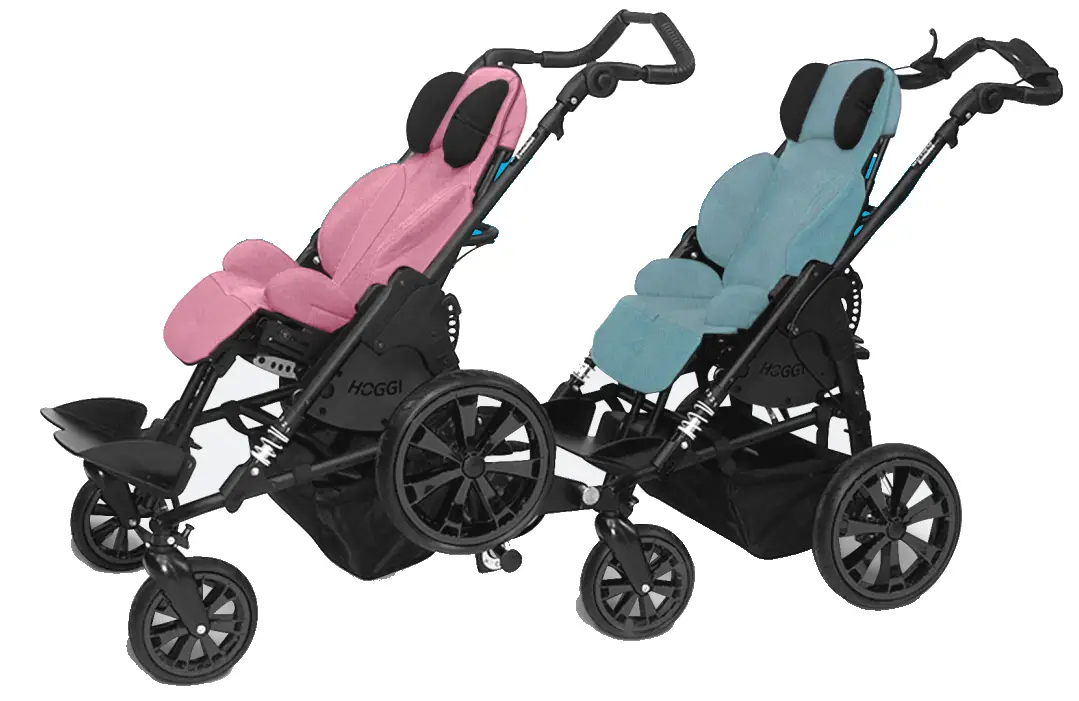

Twin Bingo Stroller
Connection mount that allows two strollers to be connected one in front of the other for an additional sibling. The strollers are able to be easily detached and used separately where required, providing flexibility when travelling with or without siblings.
This is not available for use with a size 3 Bingo Evo. This can be used to connect either: bases of the same size (and corresponding sized Bingo Spex strollers), or the Bingo Mini and Evo Size 1. It is not suitable for use between any other size combinations.
Please fill out an additional script form to order the 2nd stroller unit with a unique configuration and accessories.
Please note that this can only be fitted at the time of ordering both stroller units (Medifab cannot retrofit this attachment). 2880-8630-000
Attendant Brake
Recommended for purchase with Twin Stroller configuration due to the increased combined weight and inertia when both strollers are connected.
2880-8452-000
Distributed by Medifab Ltd
26 Pardoe Street,
East Devonport,
Tasmania, 7310
+61 3 6427 0105
[email protected]
www.medifab.com
DISTRIBUTED BY: Script: BINGO_Mini_20230213_AU
