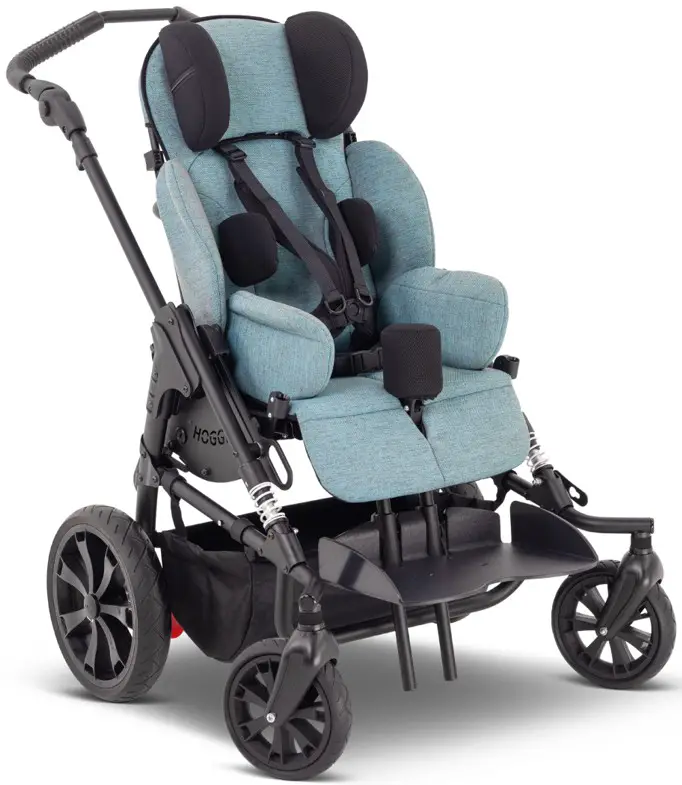

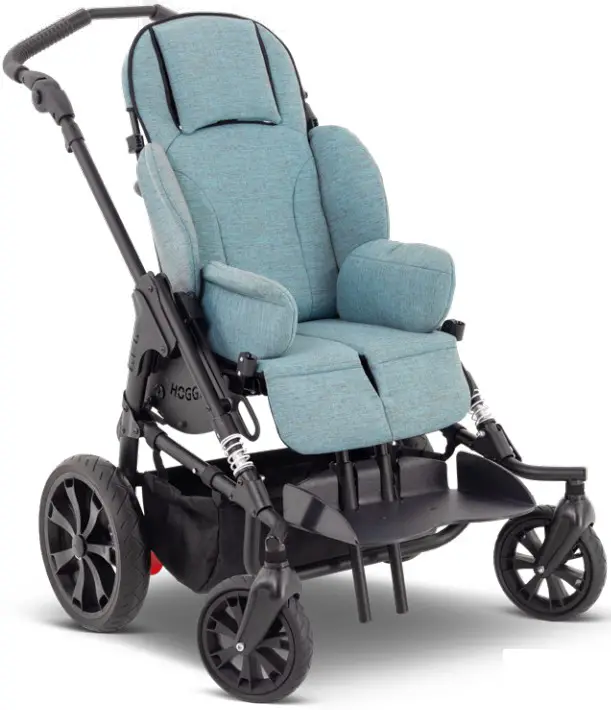

BINGO Evo
PAEDIATRIC
ADAPTIVE STROLLER
AUSTRALIAN
SCRIPTING AND ORDERING GUIDE
Client Details
Client/User Name:_________________
Date:__________________________
NDIS/Funding:___________________
Notes__________________________
| Measurements | Size 1 | Size 2 | Size 3 |
| BINGO Evo Order Code | 2881-0008-000 | 2882-0008-000 | 2883-0008-000 |
| Mobility Base with swivelling wheels | |||
| Push handle height | 75 – 110 | 75 – 110 | |
| Overall width | 63 | 68 | |
| Wheel diameter front (swivel) | 19 | 19 | |
| Wheel diameter rear | 29 | 29 | |
| Tilt in space (Forward and rear facing) | 45 0 | 45 0 (Forward facing only (Size 3)) | |
| Folded size mobility base (with rear wheels on) | 80 x 63 x 38 | 80 x 68 x 38 | |
| Folded size mobility base (with rear wheels removed) | 80 x 63 x 31 | 80 x 68 x 31 | |
| Weight mobility base (swivelling front wheels) | 8.6kg | 8.7kg | |
| Load capacity mobility base | 60kg | 60kg | |
| Seat Unit | |||
| Seat width | 18 – 30 cm | 23 – 35 cm | 23 – 35 cm |
| Seat depth | 16 – 34 cm | 22 – 40 cm | 30 – 45 cm |
| Lower leg length | 19 – 40 cm | 19 – 40 cm | 19 – 40 cm |
| Back support height | 45 – 63 cm | 54 – 75 cm | 62 – 83 cm |
| Height of slots for shoulder straps | 28 – 46 cm | 34 – 55 cm | 43 -64 cm |
| Seat to floor height (dependant on tilt position of seat) | 46 cm | 46 cm | 46 cm |
| Backrest recline | 90 – 1600 | 90 – 1600 | 90 – 1350 |
| Weight of seat | 6.4kg | 7.4kg | 8.4kg |
| Load capacity of seat unit | 50kg | 50kg | 50kg |
| Weight of seat and mobility base combined | 15kg | 16.1kg | 17.1kg |
Stroller package includes:
- Matte black foldable stroller frame with black wheels

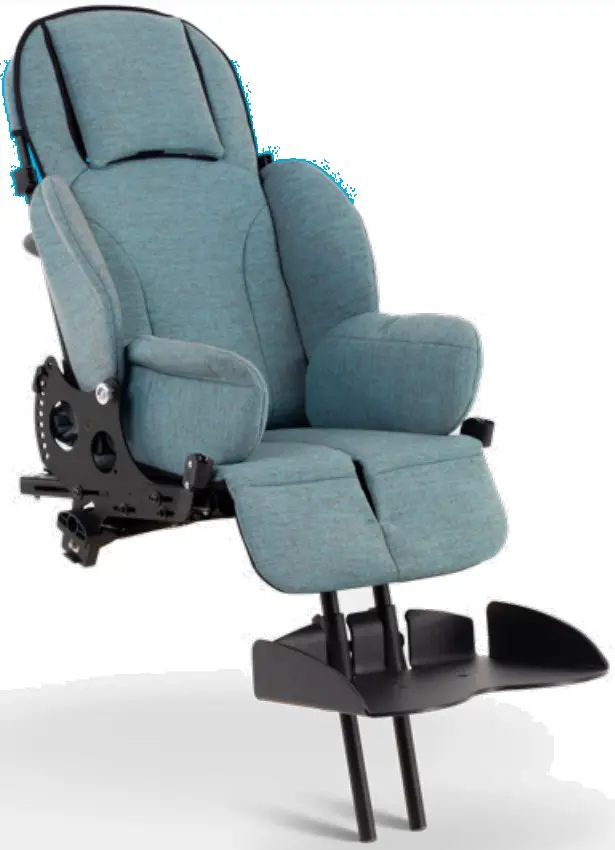

- Removable seat unit
- Tie-downs for transport
- Removable hip supports (width & depth adjustable)
- Fabric bag (max. 3kg)
- Adjustable suspension set
- Receiver for grab rail or therapy tray
- Elevating foot support hanger (angle adjustable 90-1600)
- Note: Upholstery not included in package

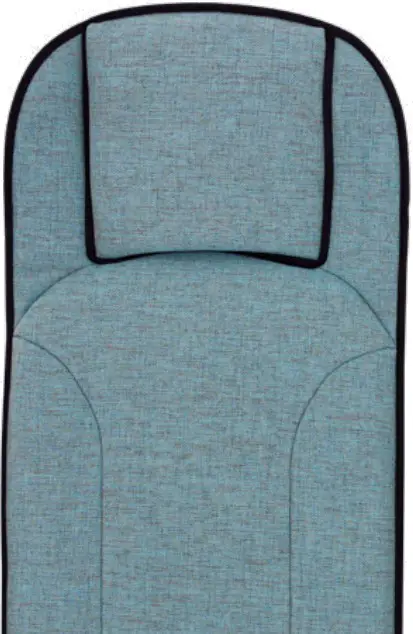

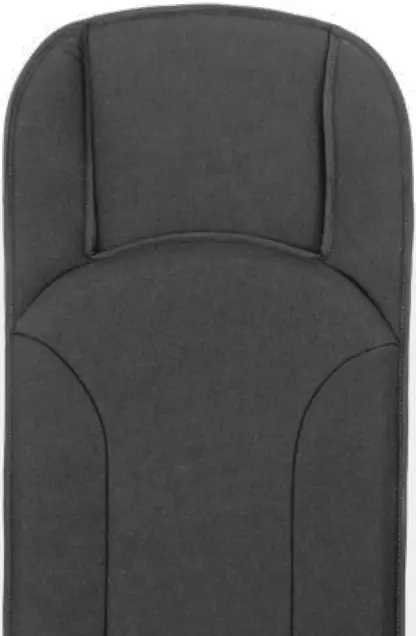

Upholstery Colour Options
| Berry Soft | Turquoise Soft | Black | |||
| Upholstery (required) | |||||
| Size 1: 2881-8801-347 |  | Size 1: 2881-8801-349 |  | Size 1: 2881-8801-346 |  |
| Size 2: 2882-8802-347 | Size 2: 2882-8802-349 | Size 2: 2882-8802-346 | |||
| Size 3: 2883-8803-347 | Size 3: 2883-8803-349 | Size 3: 2883-8803-346 | |||
| Hip Support Upholstery (required) | |||||
| Size 1: 2881-1075-347 |  | Size 1: 2881-1075-349 |  | Size 1: 2881-1075-346 |  |
| Size 2: 2882-1076-347 | Size 2: 2882-1076-349 | Size 2: 2882-1076-346 | |||
| Size 3: 2883-1077-347 | Size 3: 2883-1077-349 | Size 3: 2883-1077-346 | |||

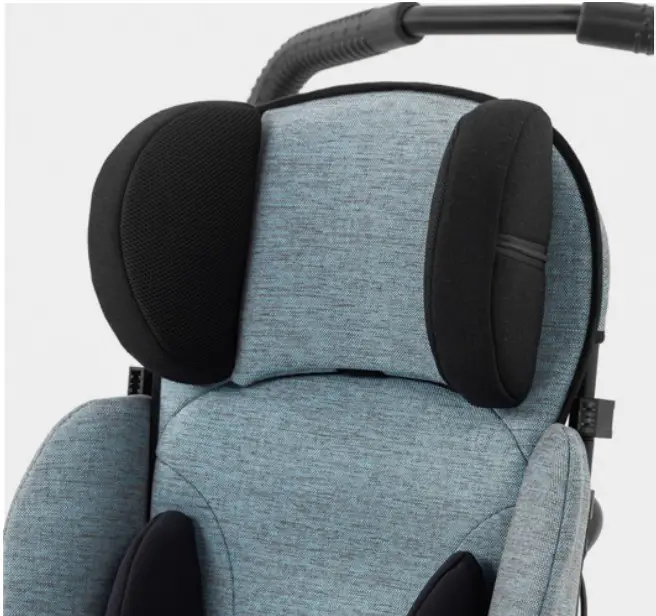

Head Supports

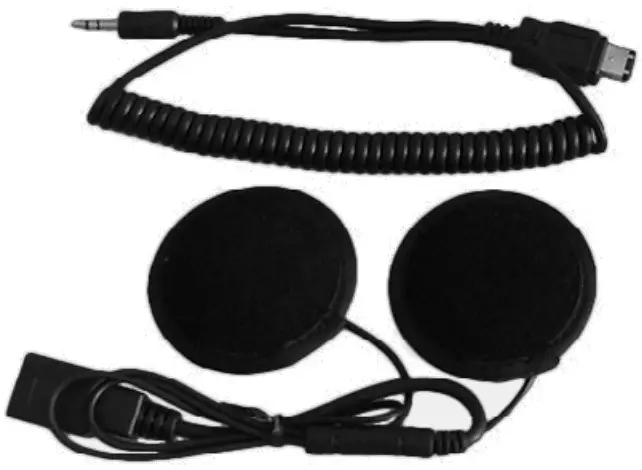

| Spacer Fabric Head Support Pads | Head Support Speakers | ||
| Required for Head Support Speakers to be used |  | Requires Spacer Fabric Head Support Pads |  |
| Size 1 2880-4471-346 11cm Deep x 16cm High | 2880-8330-000 | ||
| Size 2 2880-4472-346 13cm Deep x 18cm High | |||

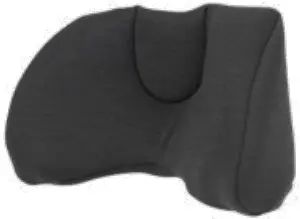

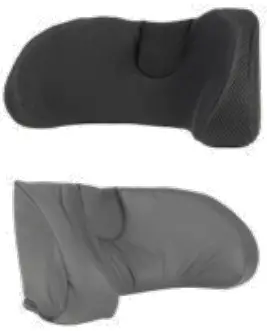

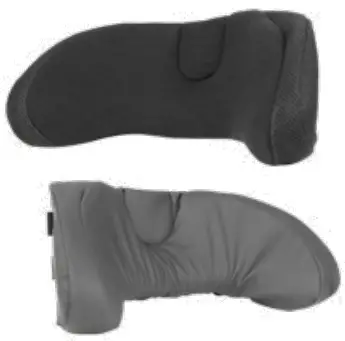

| Occipital Head Support | Standard Lateral Head Support | Extended Lateral Head Support | |||
| Small (17cm Internal width) | Small (17cm Internal width) | ||||
| Spacer Fabric 2010-4110-099 |  | Spacer Fabric Sml 2010-4210-099 |  | Spacer Fabric Sml 2010-4310-099 |  |
| Wipe Down Cover Sml 2010-4210-209 | Wipe Down Cover Sml 2010-4310-209 | ||||
| Wipe Down Cover 2010-4110-209 |  | Large (21cm Internal width) | Large (21cm Internal width) | ||
| Spacer Fabric Lrg 2010-4211-099 |  | Spacer Fabric Lrg 2010-4311-099 |  | ||
| Wipe Down Cover Lrg 2010-4211-209 | Wipe Down Cover Lrg 2010-4311-209 | ||||

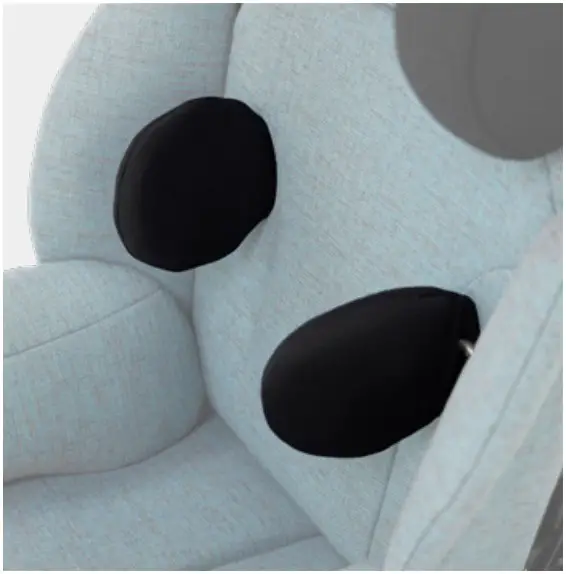

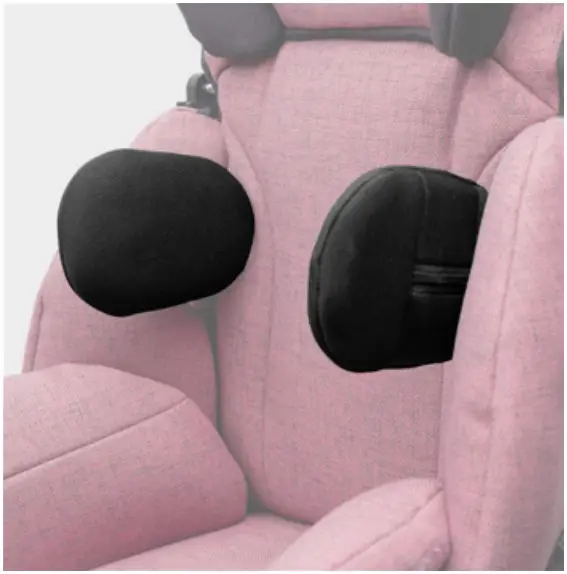

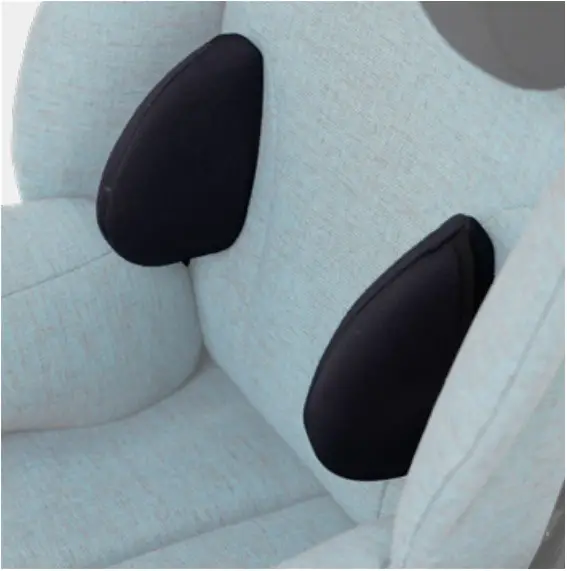

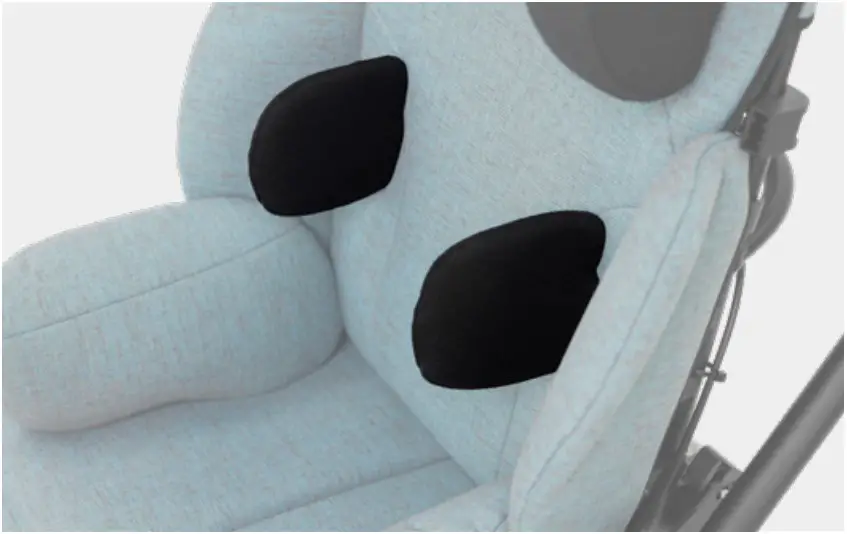

Lateral Supports

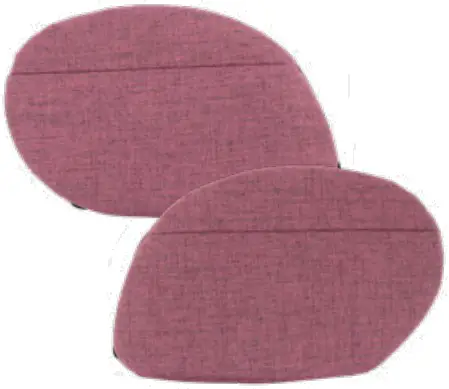

Standard Lateral Supports
Height and angle adjustable. All sizes are compatible with all BINGO seat units
| Size 1 – 8cm(H) x 10cm(L) | Size 2 – 10cm(H) x 12cm(L) | Size 3 – 12cm(H) x 13cm(L) |
| 2880-3010-346 | 2880-3020-346 | 2880-3030-346 |
| Spex Narrow Straight Lateral Supports | Spex Broad Lateral Supports | Spex Teardrop Lateral Supports | |||
| Size 0 85mm high x 115mm deep |  | Size 1 105mm high x 130mm deep |  | Size 0 150mm high x 105mm deep |  |
| 2880-3008-100 | 2880-3008-310 | 2880-3008-500 | |||

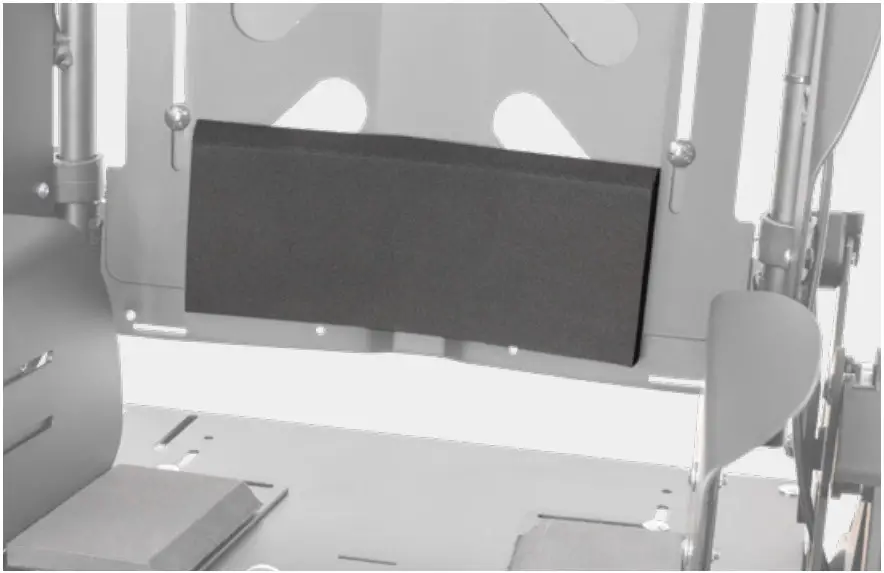

Sacral Support
Sacral foam insert including spacer
22cm W x 9cm H x 1cm Thick
2880-2510-060
Recommended for use with the Size 1 BINGO Evo only
Seat Options

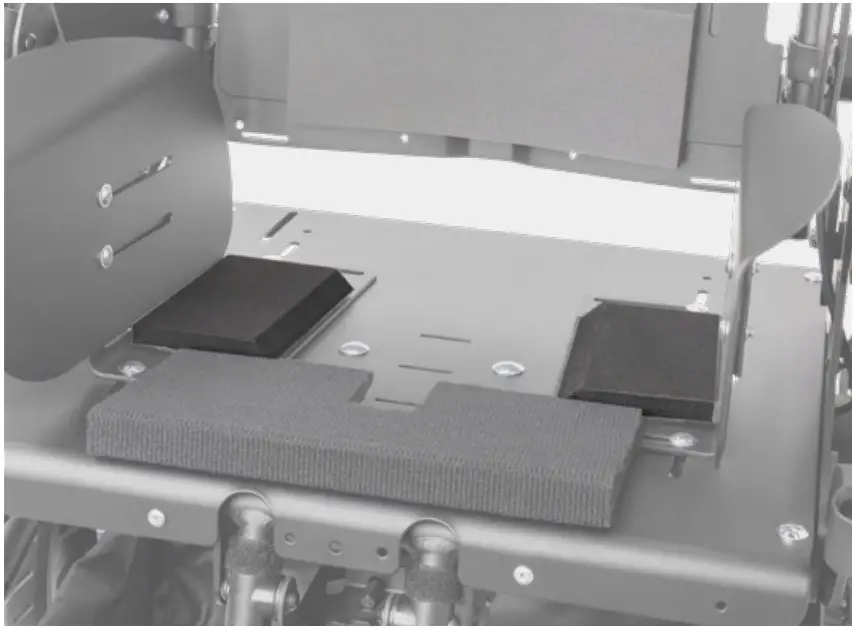

| Thigh Wedge | Trochanter Wedges | ||
| Velcro attached under upholstery. 22.5cm (W) x 10.5cm (D). Height: 2cm tapering down to 1cm |  | Option to contour standard flat cushion. Velcro attached under upholstery. |  |
| 2006-0505-000 | 2006-0660-000 | ||
| Recommended for use with the Size 1 BINGO Evo only | Recommended for use with the Size 1 BINGO Evo only | ||

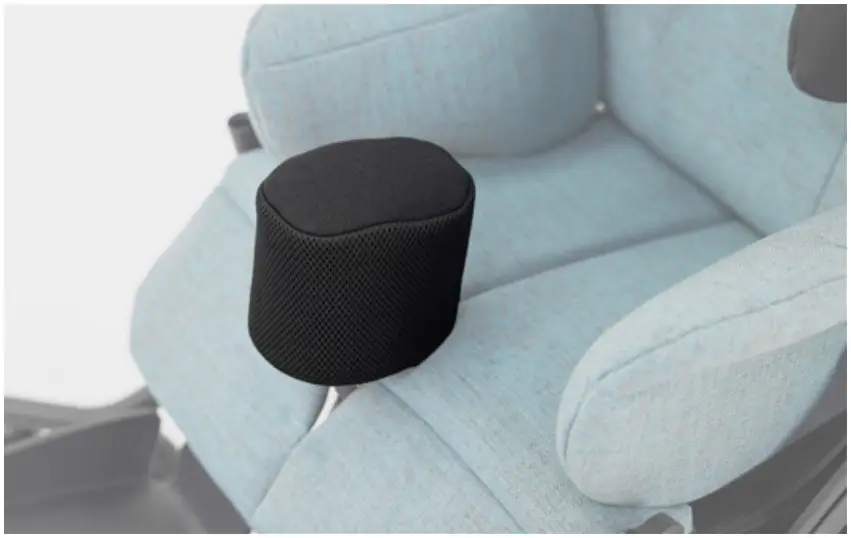

Abductor Pommel
Swing down abductor pommel for increased abduction of the legs
All sizes are compatible with all BINGO seat units
| Size 1 9cm(H) x 6cm(D) | Size 2 1cm(H) x 8cm(D) | Size 3 12.5cm(H) x 9cm(D) |
| 2880-1651-346 | 2880-1652-346 | 2880-1653-346 |
Belt Options

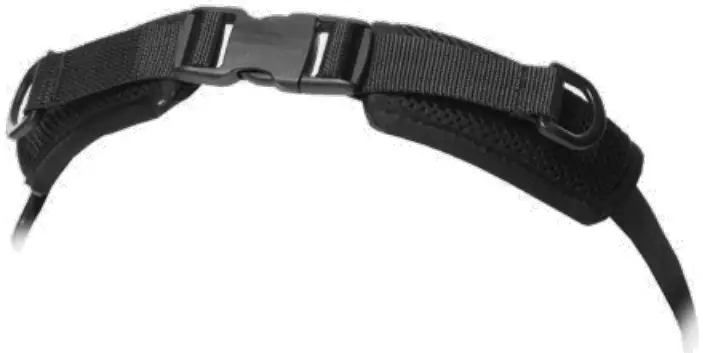

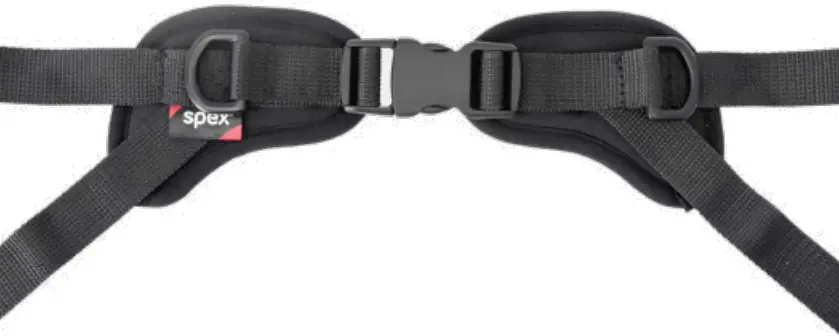

| Spex 2-Point Hip Belt | Wonderseat 4-Point Hip Belt | ||
| 2 point slim line, dual pull with neoprene sleeve padding. X-small. |  | Stabilises and controls the pelvis. Can be quickly removed for washing. |  |
| 1405-6220-027 | 1406-5420-027 | ||
Groin Strap
| To fit Size 1 | To fit Size 2 & 3 |
| 2880-6361-346 | 2880-6362-346 |

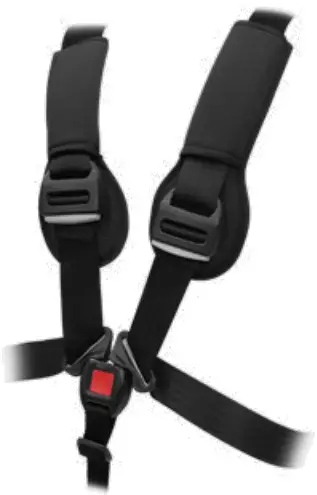

Harness Options

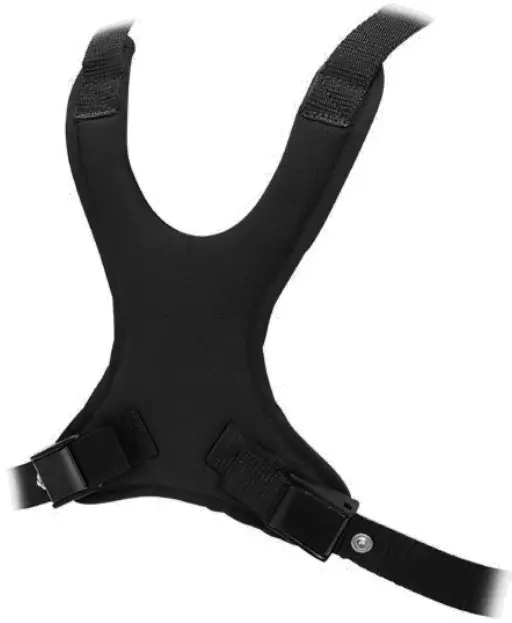

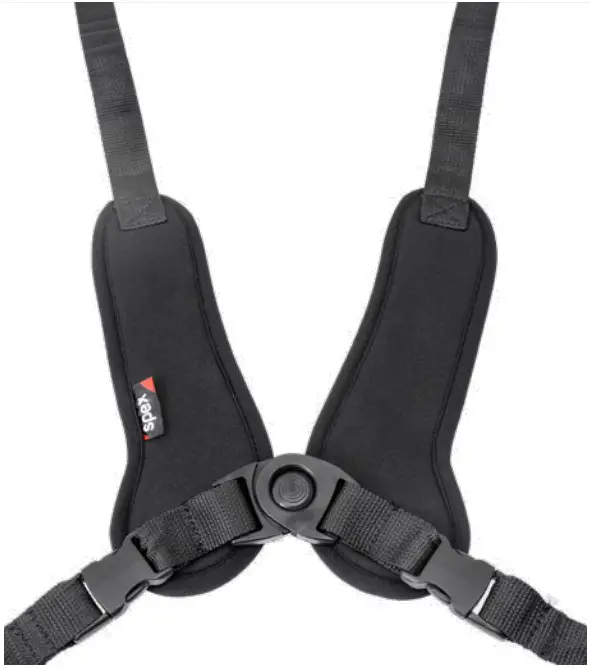

| Chest Shoulder Harness | Wonderseat Padded Centrepoint Shoulder Harness | ||
| Size 1 2880-6751-346 |  | Size 0 Pad height 22cm 1409-5660-017 |  |
| Size 2 2880-6752-346 | Size 1 Pad height 28cm 1409-5661-017 | ||
| Size 3 2880-6753-346 | |||

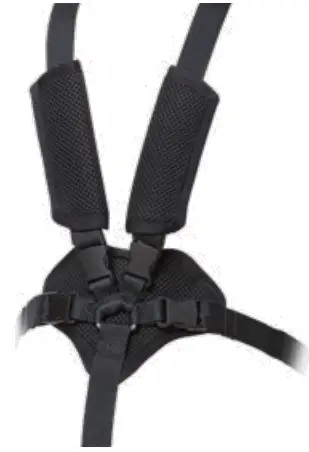

| 5-Point Harness | Spex 5-Point Harness | ||
| With front pull adjusters and neck padding |  | On tee pad for babies and very small children |  |
| 2880-6511-346 | 2006-6551-000 | ||
| Recommended for size 1 BINGO Evo only | |||

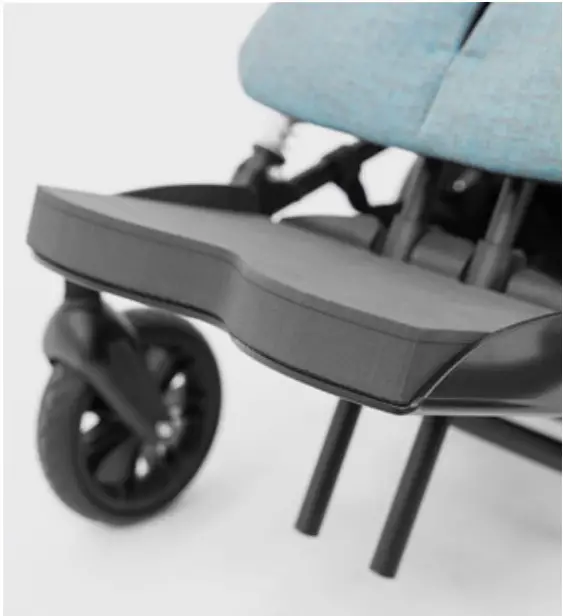

Foot Positioning
| Footplate Spacer | ||
| Spacer block to reduce lower leg length. 4cm thick |  | |
| Size 1 | Size 2 & 3 | |
| 2880-5321-000 | 2880-5322-000 | |

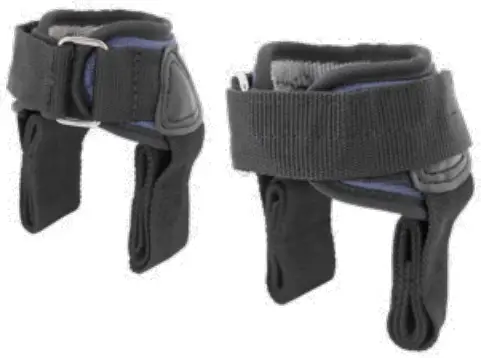

| Ankle Footfasts | ||
| Requires technician to install. Purchase only. Inner circumference listed below: | ||
| Size 1 | Size 2 |  |
| 2880-6101-000 | 2880-6102-000 | |
| 16 – 25cm | 21-29cm | |
Tray & Grab Rail Options

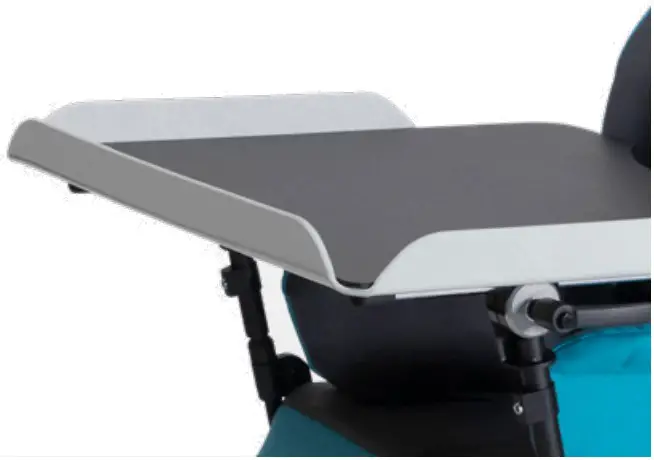

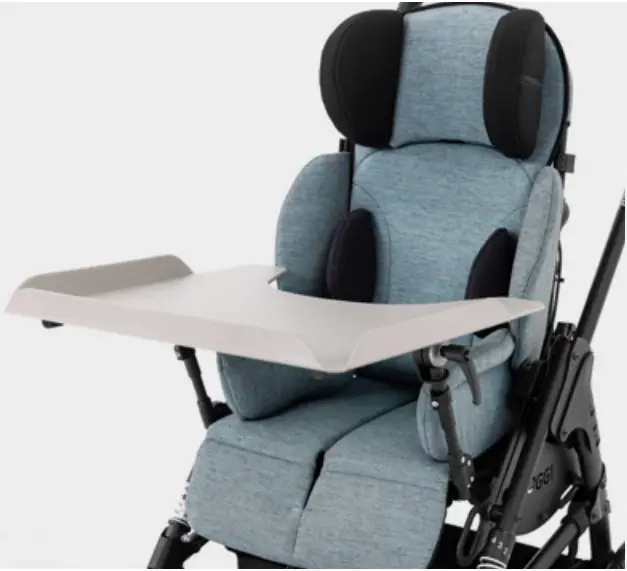

| Therapy Tray | Therapy Tray Infill | |||
| Cannot be used with Grab Rail | For smaller trunk cut out. Fits both tray sizes. |  | ||
| To fit Size 1 | To fit Size 2 & 3 |  | 2880-7180-000 | |
| 2880-7111-000 | 2880-7112-000 | |||

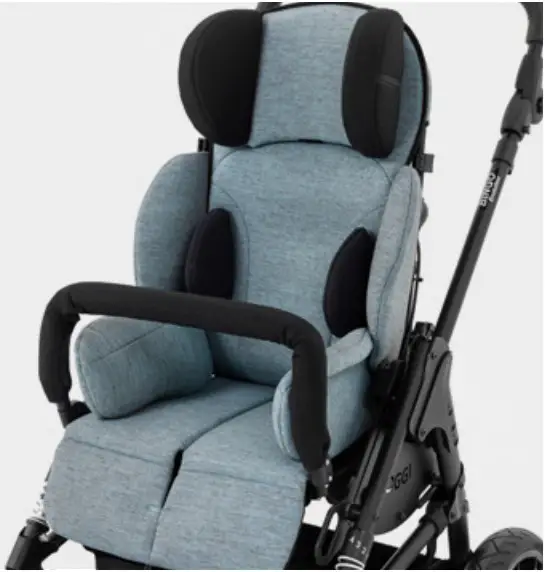

Grab Rail
Cannot be used with therapy tray
| To fit Size 1 | To fit Size 2 & 3 |
| 2880-7251-346 | 2880-7252-346 |
Critical Care Options

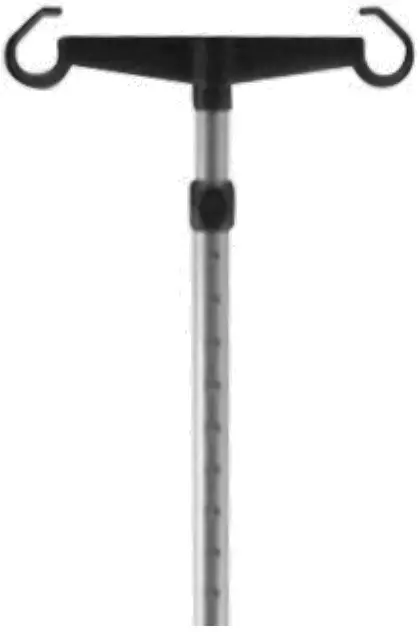

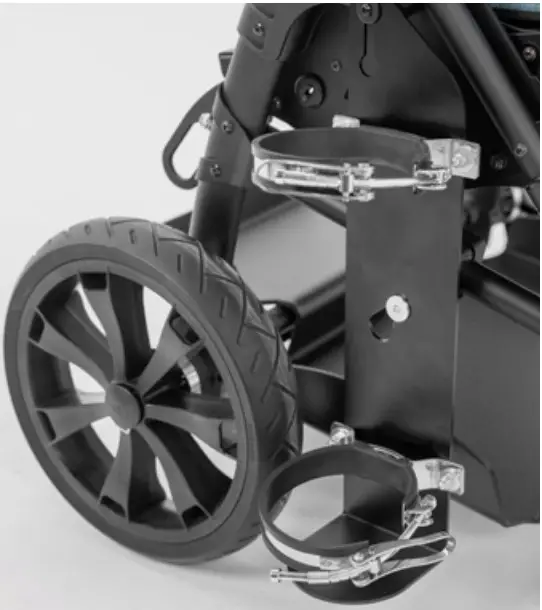

| IV Pole | Extra Bracket | Oxygen Bottle Holder | ||
| With mobility bracket for attachment to mobility base. Fits all sizes. |  | For QR mounting of IV pole to second base (Cobra or other indoor base) | With mounting bracket for attachment to mobility base. 120mm diameter for ‘C Type’ bottle. Fits all sizes. |  |
| 2880-8275-000 | 2880-8275-050 | 2880-8253-000 | ||

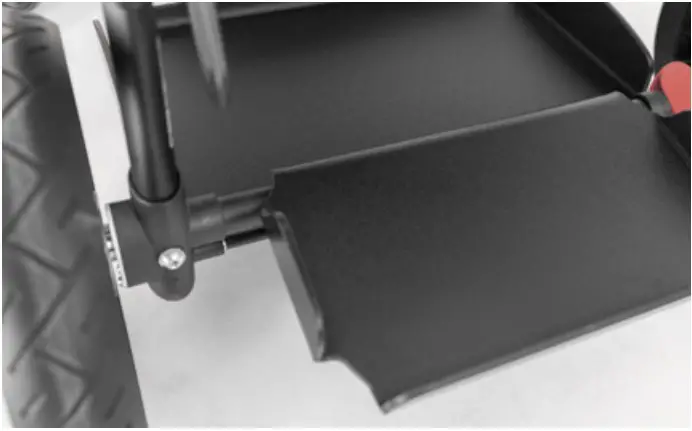

Chassis Mount Tray
| Size 1 | Size 2 & 3 |
| 2880-8058-000 | 2880-8059-000 |

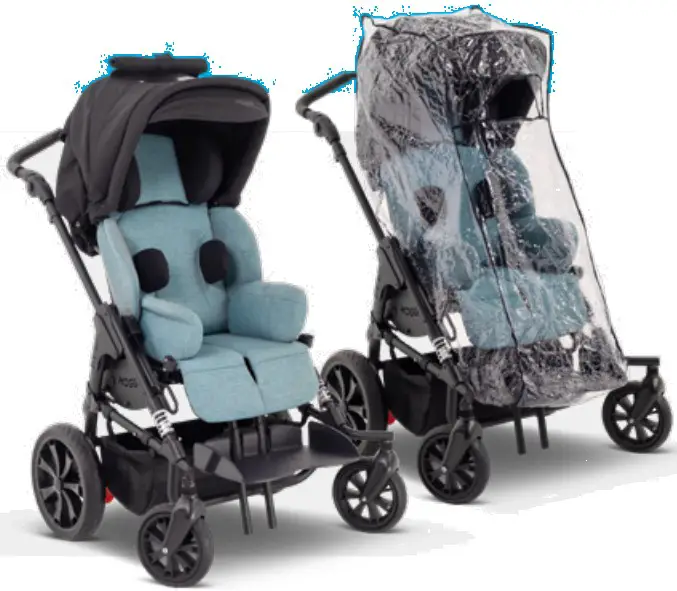

Canopy
Includes mounts and rain cover
2880-7500-346

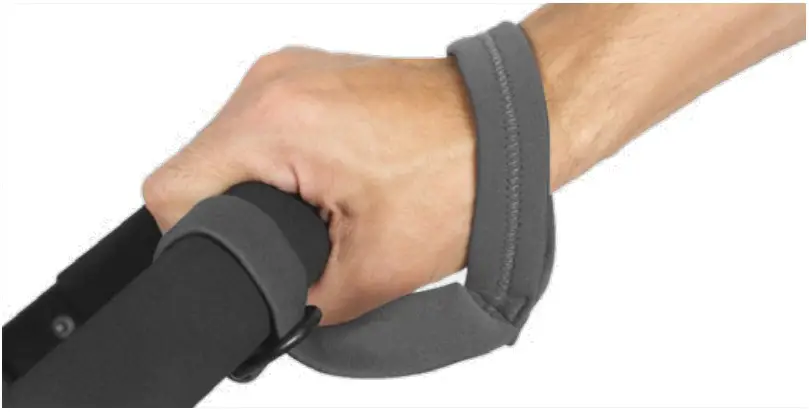

Hand Strap
Wrist safety tether strap
2005-6930-000

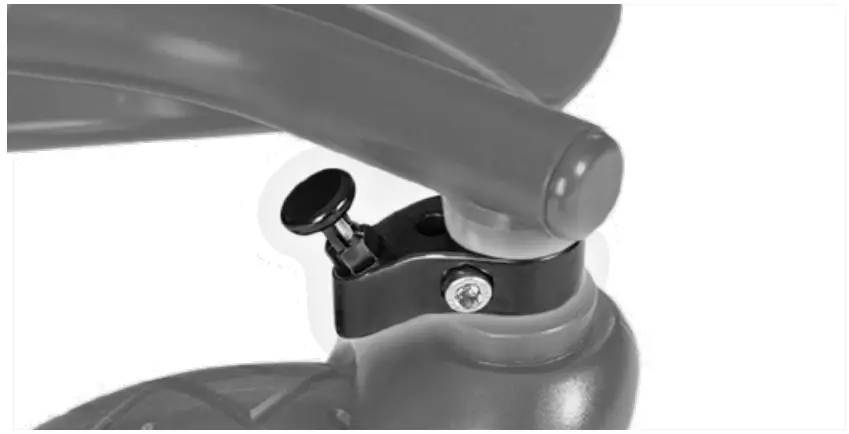

Swivel Lock
To hold castors straight when brisk walking
For all sizes
2880-8440-000

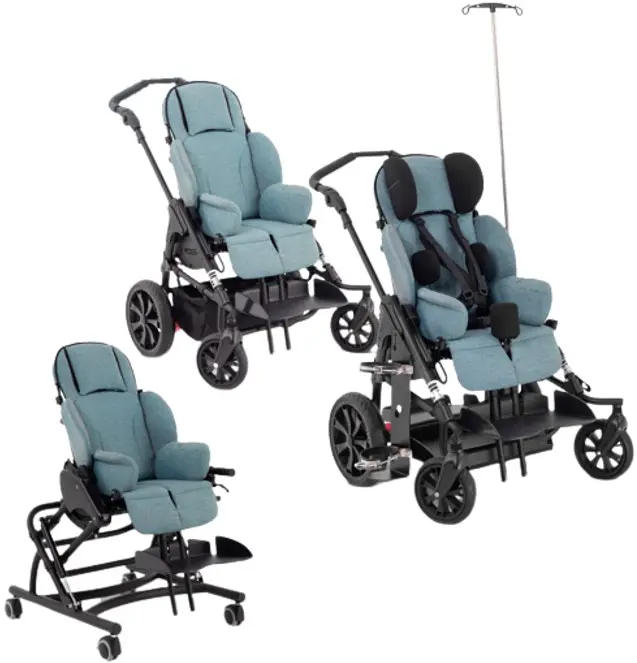

Cobra Indoor Base
Cobra Hi-Low Indoor Frame with 75mm Twin Castors
The seat unit of the BINGO Evo easily transfers out of the stroller base and into the Cobra indoor base for feeding and activity times. Lower down the floor for playing and activities, and raise up to a table for meal time! Tilt settings can still be adjusted in the same way as the stroller base.
| Size 1 | Size 2 & 3 |
| 2880-8711-000 | 2880-8721-000 |
Separate Seat Unit
Use with Cobra Base
Separate seat unit for use with the Cobra Base if a combined stroller and seat unit is not purchased. This is also a great option if two seat units are preferred to avoid swapping the seat unit between the stroller and Cobra bases. Must be purchased with upholstery.
| Size 1 | Size 2 |
| 2881-0011-000 | 2882-0012-000 |

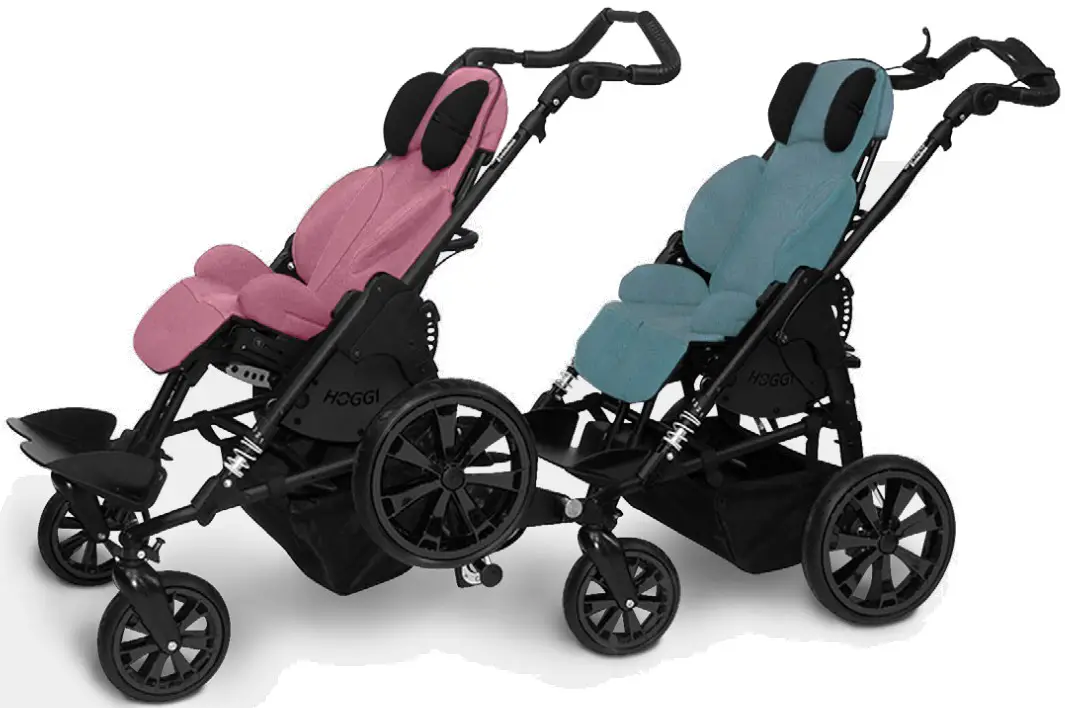

Twin Bingo Stroller
Connection mount that allows two strollers to be connected one in front of the other for an additional sibling.
The strollers are able to be easily detached and used separately where required, providing flexibility when travelling with or without siblings.
This is not available for use with a size 3 Bingo Evo.
This can be used to connect either: bases of the same size (and corresponding sized Bingo Spex strollers), or the Bingo Mini and Evo Size 1. It is not suitable for use between any other size combinations.
Please fill out an additional script form to order the 2nd stroller unit with a unique configuration and accessories.
Please note that this can only be fitted at the time of ordering both stroller units.
(Medifab cannot retrofit this attachment).
2880-8630-000
Attendant Brake
Recommended for purchase with Twin Stroller configuration due to the increased combined weight and inertia when both strollers are connected.
2880-8452-000
Distributed by Medifab Ltd
26 Pardoe Street,
East Devonport,
Tasmania, 7310
+61 3 6427 0105
[email protected]
www.medifab.com
