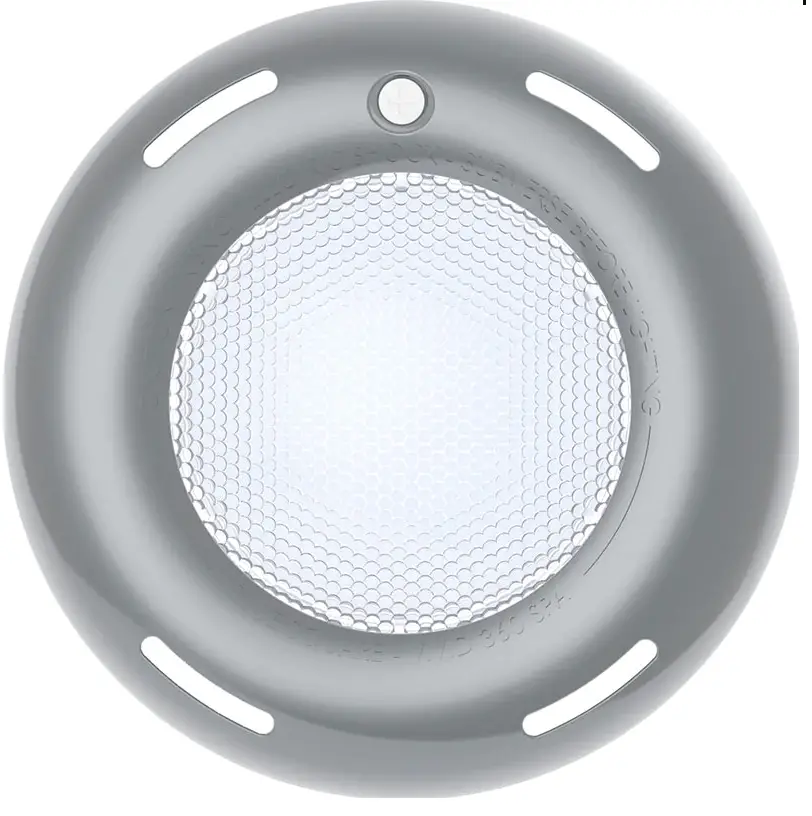

BLUE SQUARE Multi-Color LED Pool Lights User Manual
These instructions are applicable to Blue Square LED Multi-Color Lights programmed to be compatible with Pentair Controllers. The LED Pool Lights {P-Series) can be operated from either a wall switch or connected to a Pentair Controller.

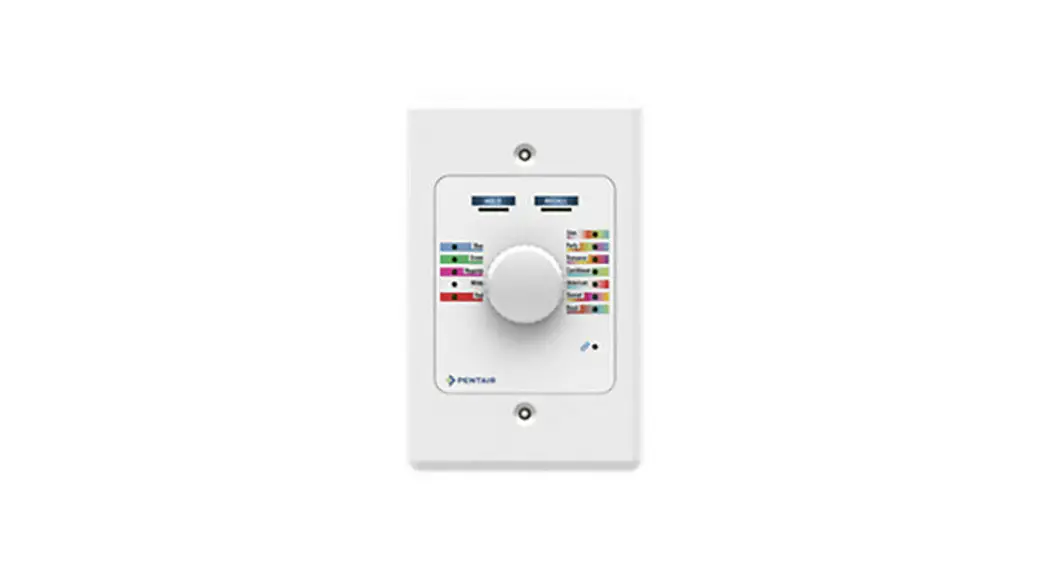

When connected to the Pentair lntelli Touch®, EasyTouch®, or Color Sync™ Controllers, the fixed colors and color-shows can be easily selected using the controller.
When connected to a Wall Switch, manually switching on and off a specific number of times activates the fixed color modes and color-shows.
Lights will always start up in the previously selected color. To change from this setting, turn the wall switch off/on a specific number of times (as shown below) until your desired color or color-show is reached. During the off/on switching process, the light is turned off for a short period until the selected color is displayed. During this time, the pool will not be illuminated.
PROGRAMMING MODES
Number of times to cycle power 1-14
| Cyles | Mode | Mode Description |
| 1 | SAm® | Cycles through white, magenta, blue and green colors {emulates the Pentair SAm® color changing light) |
| 2 | Party | Rapid color changing building energy and excitement |
| 3 | Romance | Slow color transitions creating a mesmerizing and calming effect |
| 4 | Caribbean | Transitions between a variety of blues and greens |
| 5 | American | Patriotic red, white and blue transition |
| 6 | California Sunset | Dramatic transitions of orange, red and magenta tones |
| 7 | Royal | Richer, deeper color tones |
| 8 | Blue | Fixed color |
| 9 | Green | Fixed color |
| 10 | Red | Fixed color |
| 11 | White | Fixed color |
| 12 | Magenta | Fixed color |
| 13 | Hold | Save the current color effect during a color light show |
| 14 | Recall | Activate the last saved color effect. |
Example: To select California Sunset Mode; turn the light on, then turn off and on six times. During the off/on switching process, no illumination will occur.
For supply connection, use only an isolating low voltage power supply with ungrounded output, evaluated for swimming pool use.
Toll Free: 800.277.4150
BlueSquaremfg.com
All Pentair trademarks are owned by Pentair. Inc. EasyTouch®, SAm® and lntelliTouch® are registered trademarks of Pentair Water Pool and Spa, Inc. and/or its affiliated companies in the USA and/or other countries.
WARNING
NEVER STARE DIRECTLY AT LED POOL LIGHTS. PROLONGED DIRECT EXPOSURE CAN CAUSE EYE DAMAGE.
