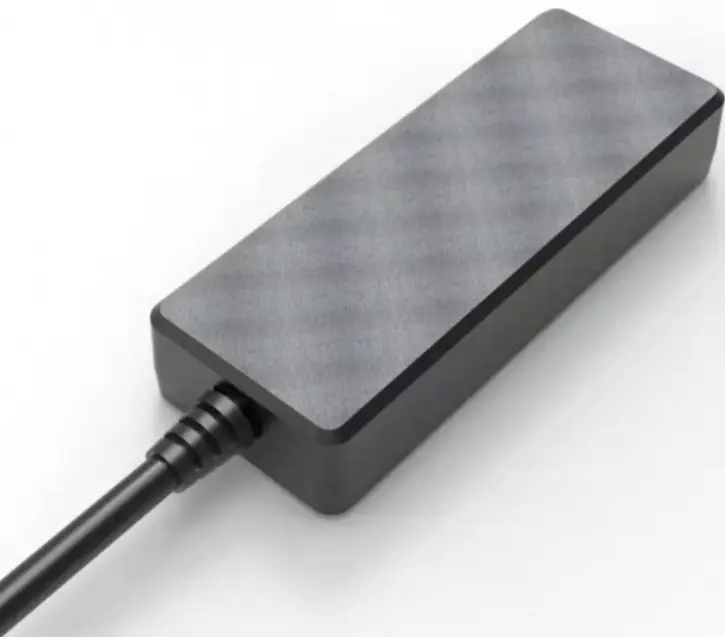

UniGuard UM555 Mini GPS Tracker
Thanks for your purchase of UniGuard GPS Tracker. Please read the manual carefully. Any questions, free to contact us.
Specifications
| Model | UM555 |
| Internet | 2G GSM 850/900/1800/1900Mhz |
| Communication Protocol | TCP/IP |
| GNSS details | GPS and BeiDou and GLONASS Location accuracy: 10m Speed accuracy: 0.1m/s Capturing sensitivity: -148dbm Tracking sensitivity: -165dbm Cool start: <32s Hot start: <2s |
| GNSS antenna | Built in. |
| Memory | 32mb + 32mb |
| Switch | On/Off |
| SIM card | Micro-SIM |
| Signal light | Blue for GPS, Green for GSM |
| Battery | 90mAh 3.7V Li-polymer Industry battery |
| Working voltage | 9-100V DC / 24mAh (12VDVC) / 12mA (24VDVC) |
| Working current | Avg. 88mA@ RX:-75dBm Sleep: 5mA Max: 280mA@RX:-108dBm |
| GSM sensitivity | -108dBm |
| Working temperature | -20 °C to 70 °C |
| Working humidity | 5 -95% RH |
| AGPS | Support |
| Size | 78* 30* 15 mm |
| Weight | 30 g |
SIM Card Installation
SIM card must enable GPRS SMS and Call function for testing purpose. Make sure SIM card has enough credit. Insert it into device.
Signal Light
| Color | Fast Flashing | Slow Flashing | OFF |
| Blue for GPS | GPS located | Initialize GPS | Sleep or Switched OFF |
| Green for GSM | GPRS online | Initialize GSM | Sleep or Switched OFF |
SMS commands
| Admin number | admin123456 Tel | The last binding is valid | |
| Change password | password123456 X | X is new 6 digits password | |
| APN setup | apn123456 cmnet | Get right APN. | |
| Status check | CXZT | ||
| Google Link | Map | ||
| Cut oil | DY123456 | Resume | KY123456 |
| Restart GPS | CQGPS | Restart Device | CQ |
| Overspeed | speed123456 080 | ||
| Move alarm | move123456 300 | Move 300m and alarm | |
| Power cut SMS alarm | pwrsms123456,X | X=1, open. X=0, close | |
| Power cut Call alarm | pwrcall123456,X | ||
| ACC Arm/Disarm | ACCLOCK,123456,X | ||
| ACC ON SMS alarm | accsms123456,X | ||
| ACC ON Call alarm | acccall123456,X | ||
| Calling Time Control | CALLTIMES#X | X=1,2,3 (Default 3) | |
| Shock SMS alarm | 125# | Close | 126# |
| Shock Call alarm | 122# | Close | 121# |
| Sleep mode | sleep 123456,X | X=0, close sleep mode | |
| ACC ON Interval | FREQ,123456,30 | ACC OFF | STATIC,123456,300 |

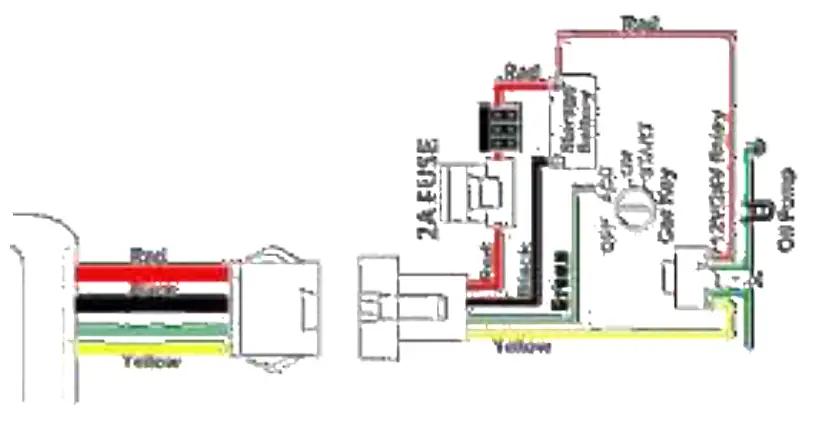

Wire Connection
- Red for DC+
- Black for GND
- Green for ACC
- Yellow for Relay

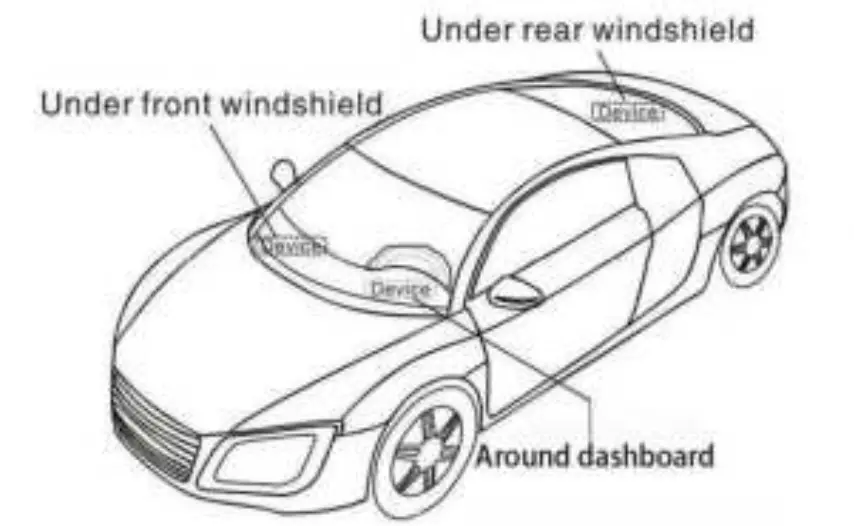

Installation Attentions
Metal shall shield or weaken GPS signal
Web Platform GPS Tracking Software
website:
www.gpspos.net
APP:
Search POSGPS to download from Google Play. Search GPSPOS to download from AppStore.
Guarantee Card
| Name | Phone | ||
| Purchase Date | IMEI | ||
